Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

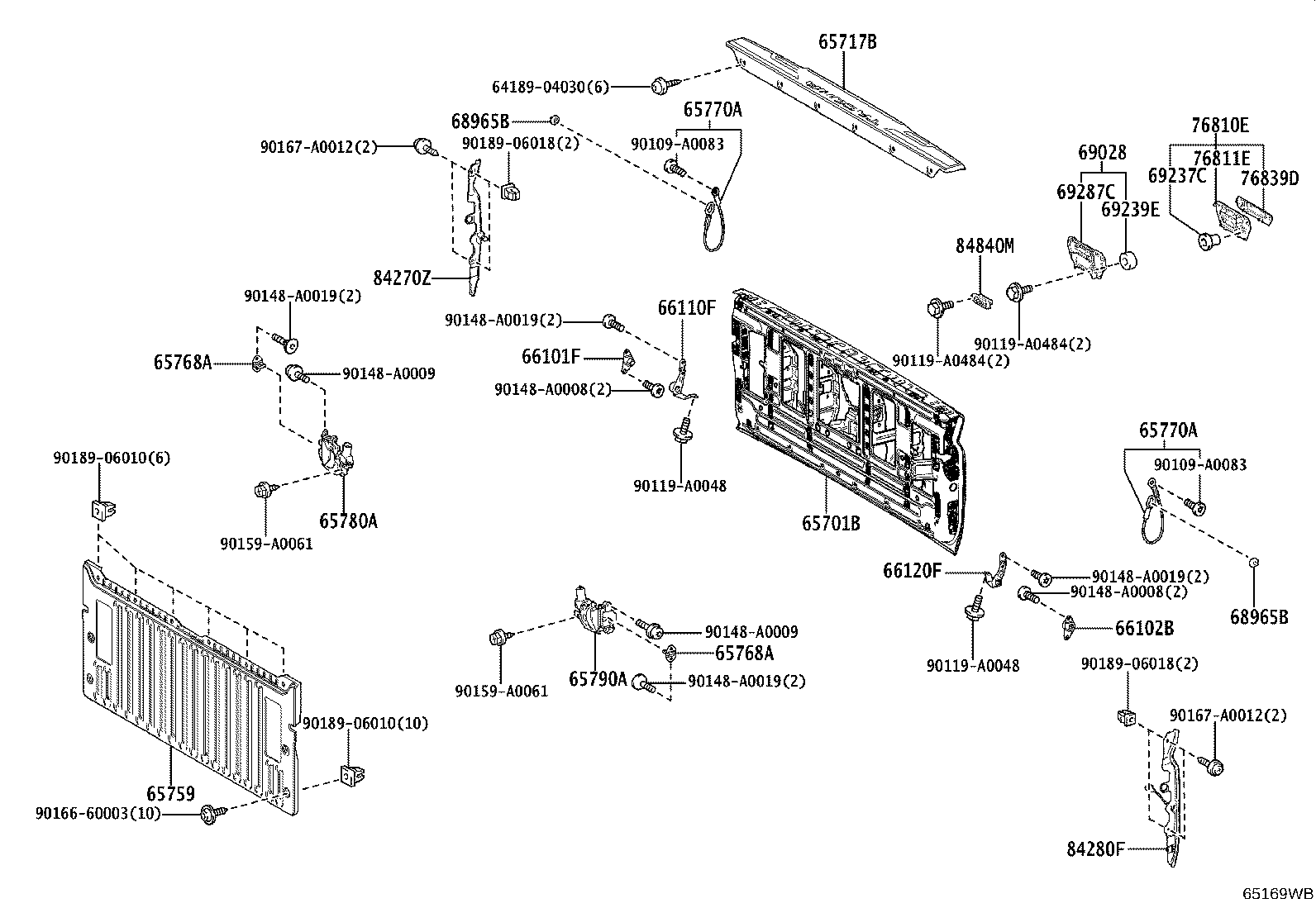

Rear Body Guard Frame & Tail Gate
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65701B | Gate Sub-assy, Rear Body Tail |
| 65717B | Protector, Tail Gate |
| 65747A | Plate, Tail Gate Seal, RH |
| 65748A | Plate, Tail Gate Seal, LH |
| 65759 | Cover, Tail Gate Service Hole |
| 65768A | Striker, Tail Gate Lock |
| 65770A | Stay Assy, Tail Gate |
| 65780A | Lock Assy, Tail Gate, RH |
| 65790A | Lock Assy, Tail Gate, LH |
| 65797A | Link, Tail Gate Lock Control |
| 65797B | Link, Tail Gate Lock Control |
| 66101F | Hinge Sub-assy, Tail Gate End Post, RH |
| 66102B | Hinge Sub-assy, Tail Gate End Post, LH |
| 66110F | Hinge Assy, Tail Gate, RH |
| 66120F | Hinge Assy, Tail Gate, LH |
| 68965B | Shaft, Tail Gate Stay |
| 69028 | Base Sub-assy, Tail Gate Outside Handle |
| 69090D | Handle Assy, Tail Gate Outside |
| 69150B | Actuator Assy, Tail Gate Lock |
| 69237C | Nut, Door Handle |
| 69239E | Bush, Door Handle |
| 69287C | Base, Tail Gate Outside Handle |
| 69749P | Clamp, Tail Gate Lock Link |
| 69759E | Snap, Tail Gate Lock Link |
| 76810E | Garnish Assy, Tail Gate Outside |
| 76811E | Garnish, Tail Gate Outside |
| 76839D | Cover, Tail Gate Garnish |
| 84270Z | Sensor Assy, Power Tail Gate, RH |
| 84280F | Sensor Assy, Power Tail Gate, LH |
| 84840M | Switch Assy, Tail Gate Opener |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
