Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

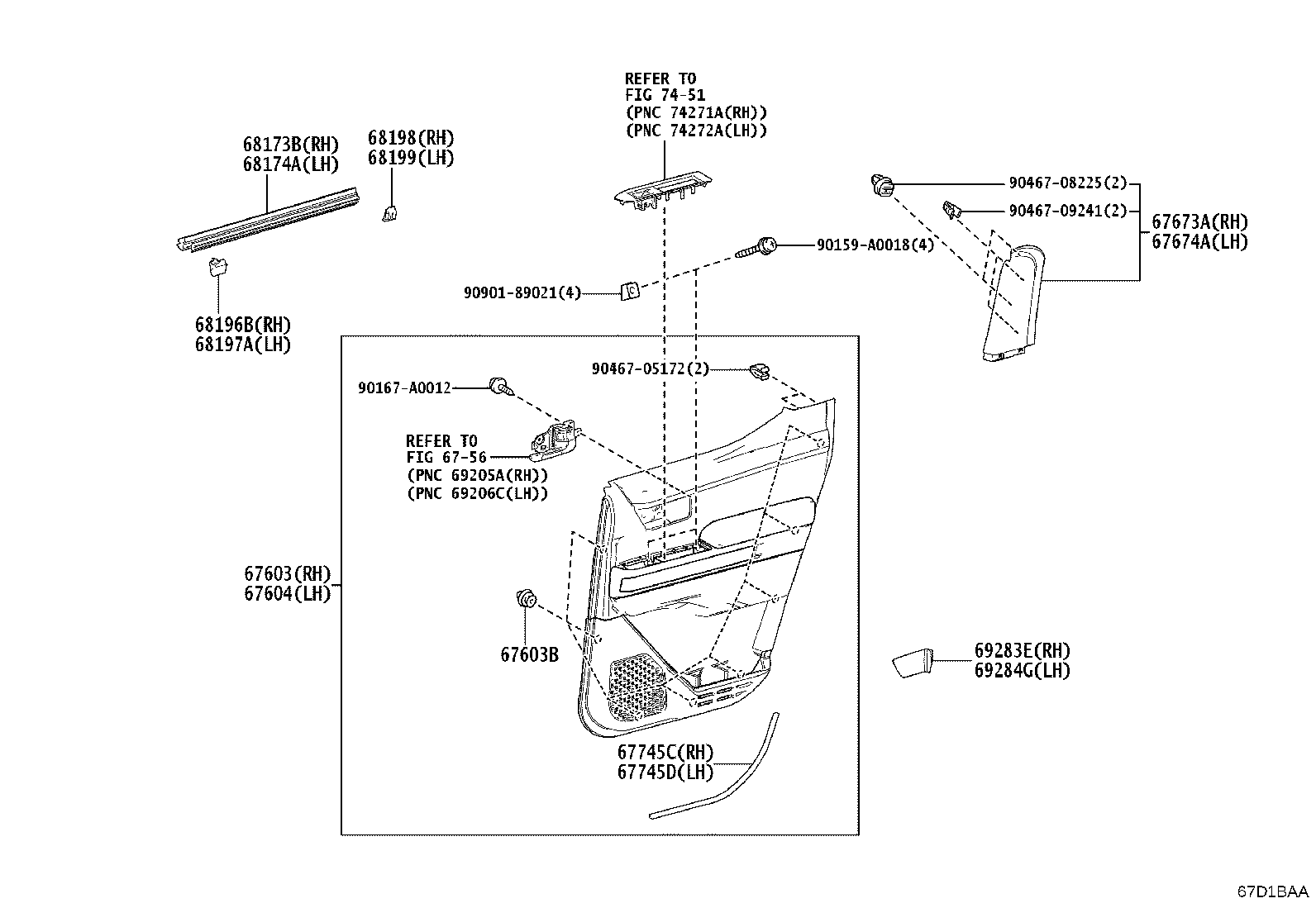

Rear Door Panel & Glass
48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62939J | Silencer, Rear Door Vent, RH |
| 62939K | Silencer, Rear Door Vent, LH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67405B | Guide Sub-assy, Rear Door Window, Front RH |
| 67406B | Guide Sub-assy, Rear Door Window, Front LH |
| 67407D | Guide Sub-assy, Rear Door Window, Rear RH |
| 67408D | Guide Sub-assy, Rear Door Window, Rear LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67745C | Moulding, Rear Door Trim, RH |
| 67745D | Moulding, Rear Door Trim, LH |
| 67837C | Seal, Rear Door Dust Proof |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67867S | Retainer, Rear Door Weatherstrip, NO.2, RH |
| 67867T | Retainer, Rear Door Weatherstrip, NO.2, LH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67869M | Clip, Door Weatherstrip |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67895C | Weatherstrip, Rear Door, NO.3 RH |
| 67896 | Weatherstrip, Rear Door, NO.3 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68144C | Run, Rear Door Glass, Lower Front |
| 68145E | Run, Rear Door Glass, Lower Rear |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 68630 | Check Assy, Rear Door |
| 69283E | Plug, Rear Door Inside Handle Bezel, RH |
| 69284G | Plug, Rear Door Inside Handle Bezel, LH |
| 75923C | Tape, Black Out, NO.2 RH |
| 75924C | Tape, Black Out, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
