Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

18 part groups · 2 illustrations

Illustrations

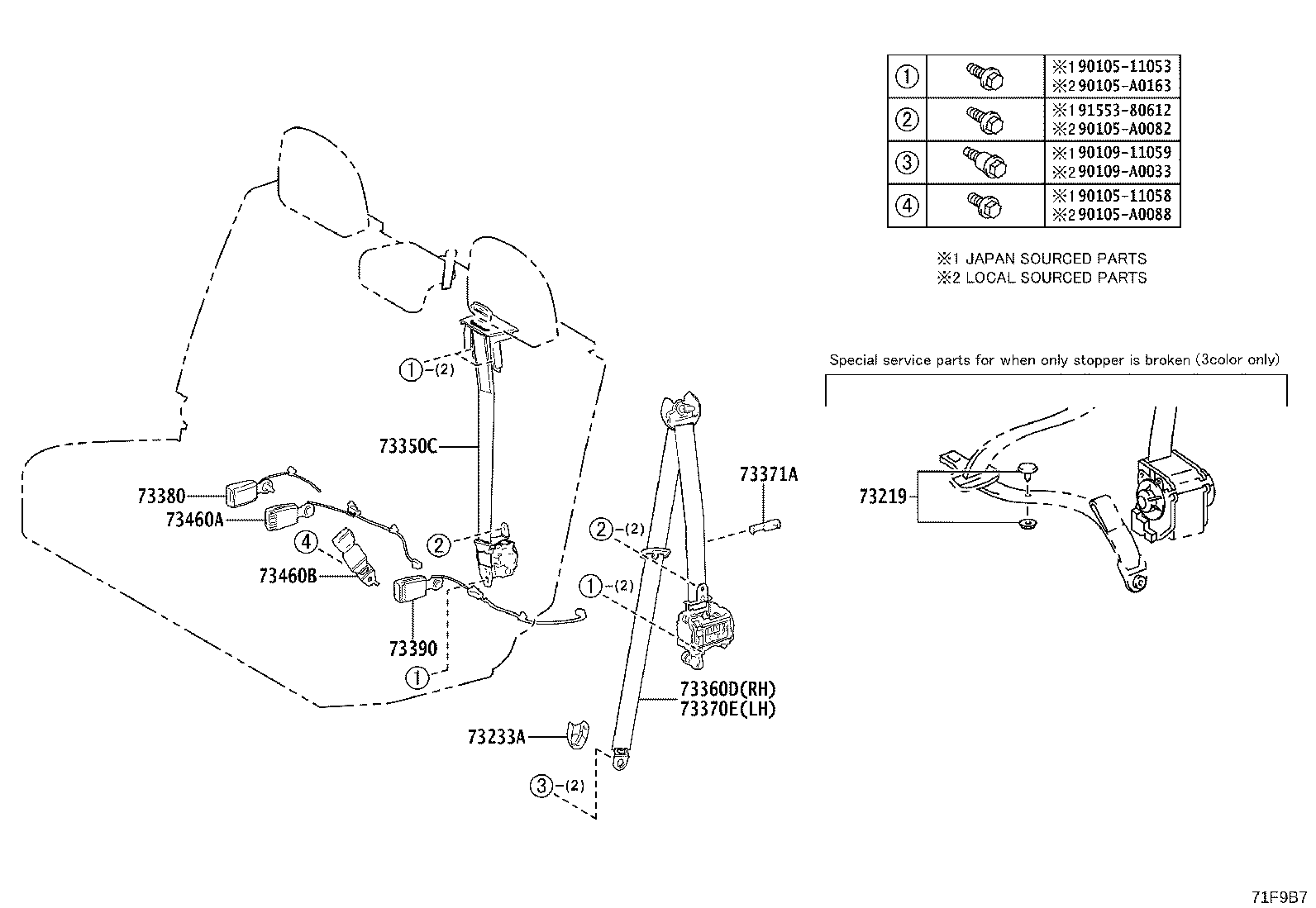

Figure 71F9B6 71F9B6 2023-12 → — Figure 71F9B7 71F9B7 2023-12 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233A Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360D Belt Assy, Rear Seat, Outer RH
73370E Belt Assy, Rear Seat, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73460A Belt Assy, Rear Seat Center, Inner
73460B Belt Assy, Rear Seat Center, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
