Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03
Armrest & Visor
20 part groups · 4 illustrations
Part groups

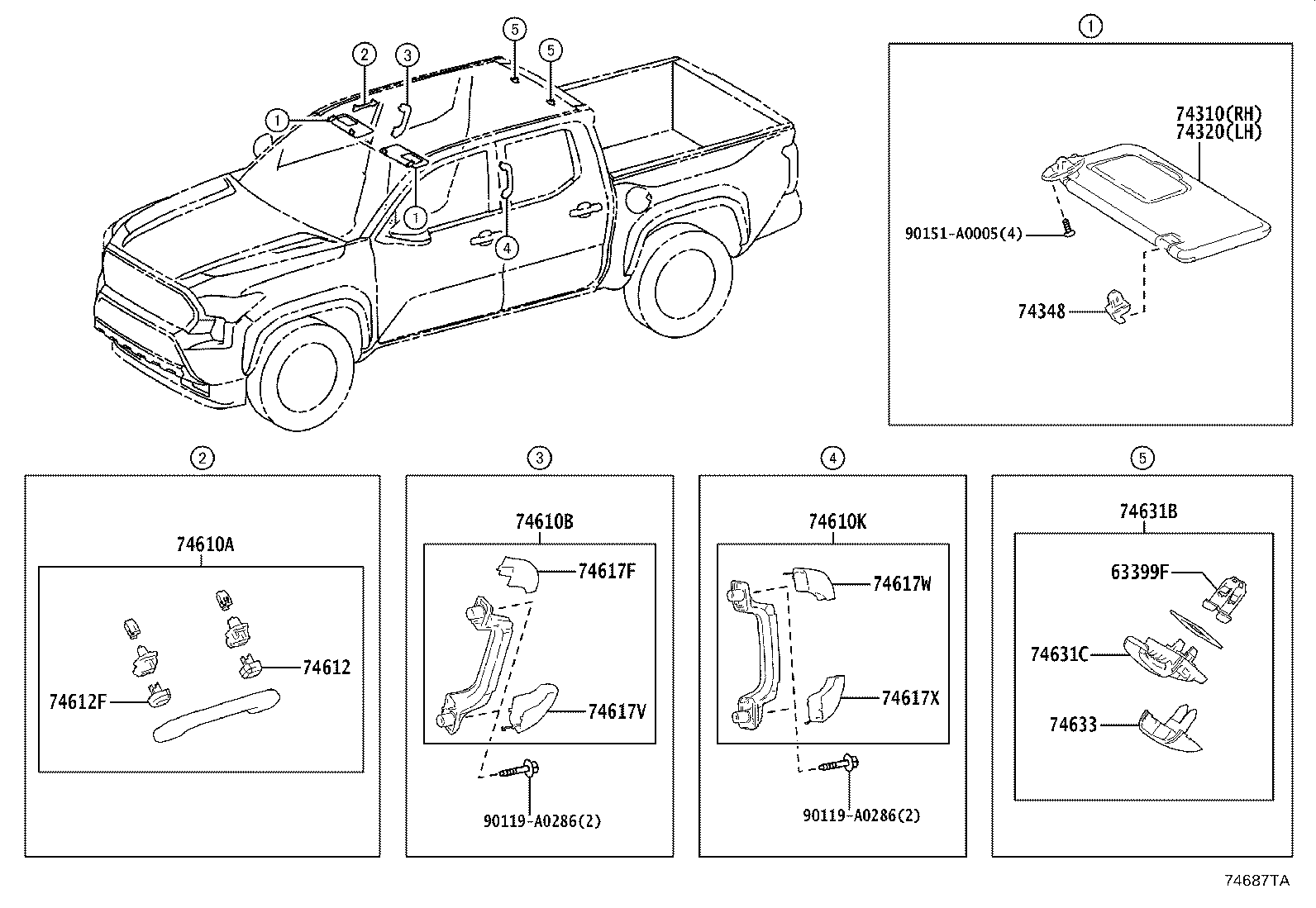

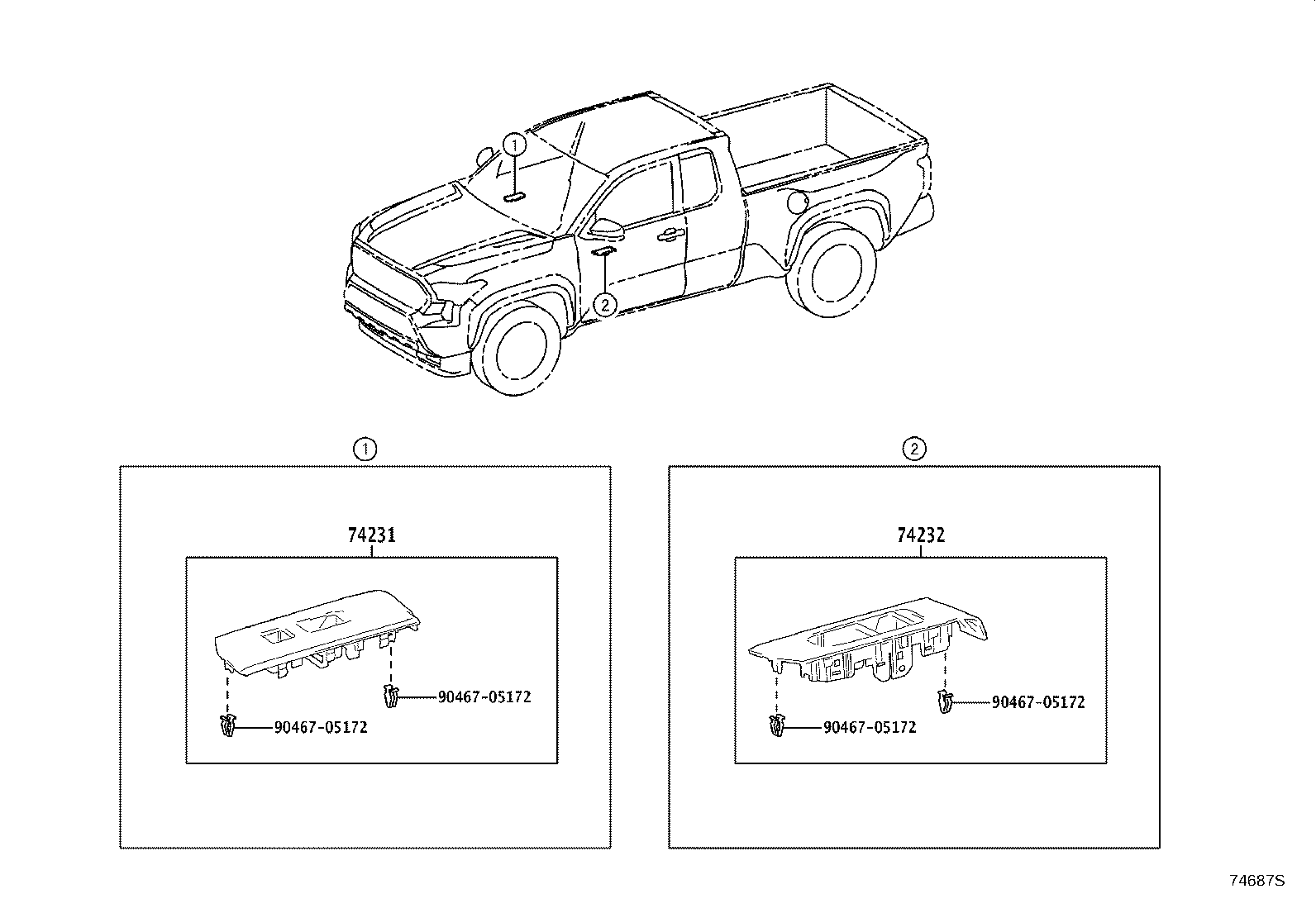

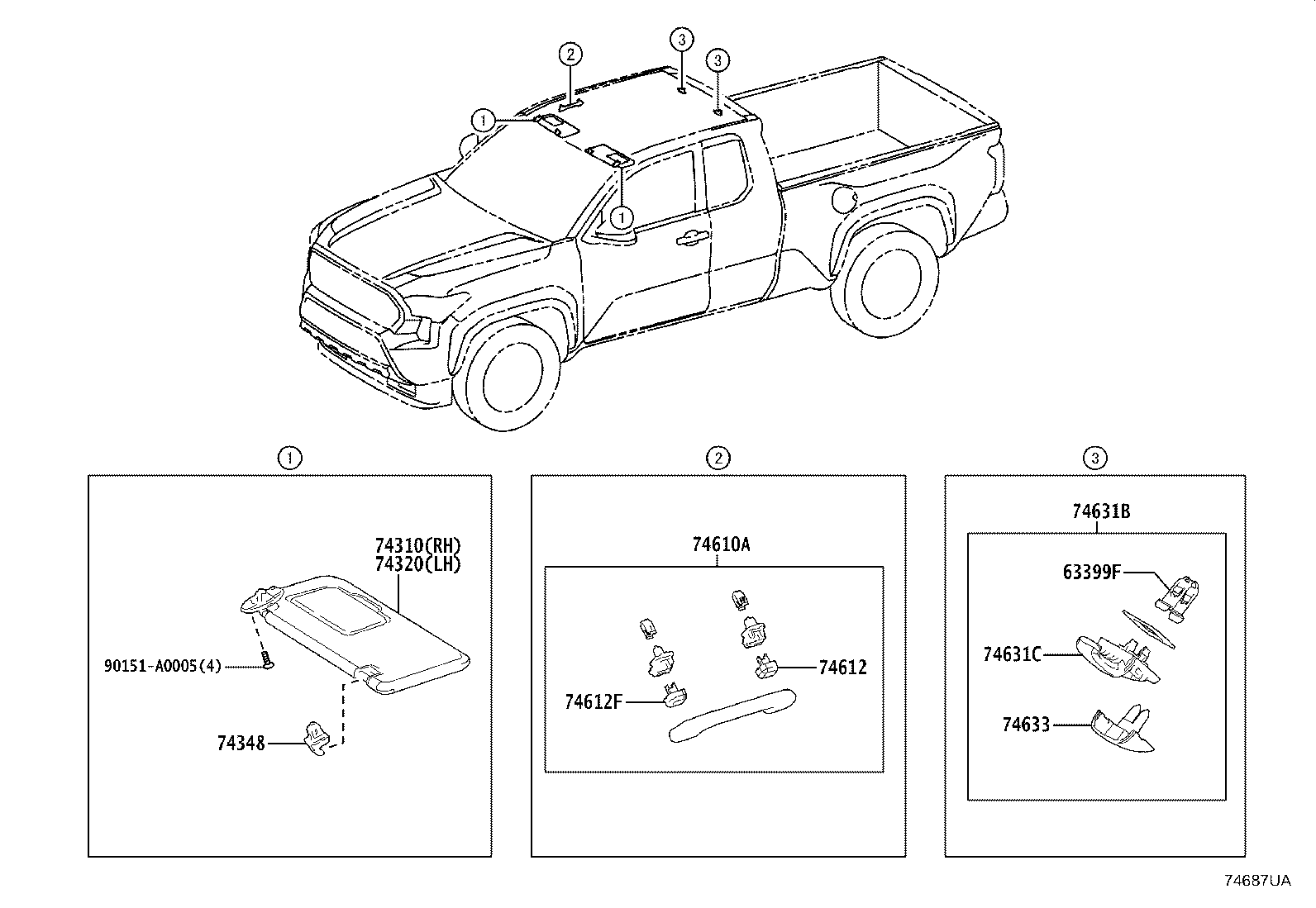

| PNC | Description |
|---|---|
| 63399F | Clip, Roof Headlining |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74610B | Grip Assy, Assist, NO.2 RH |
| 74610K | Grip Assy, Assist, NO.2 LH |
| 74612 | Cover, Assist Grip |
| 74612F | Cover, Assist Grip |
| 74617F | Plug, Assist Grip |
| 74617V | Plug, Assist Grip |
| 74617W | Plug, Assist Grip |
| 74617X | Plug, Assist Grip |
| 74631B | Hook, Coat |
| 74631C | Hook, Coat |
| 74633 | Cap, Coat Hook |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
