Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

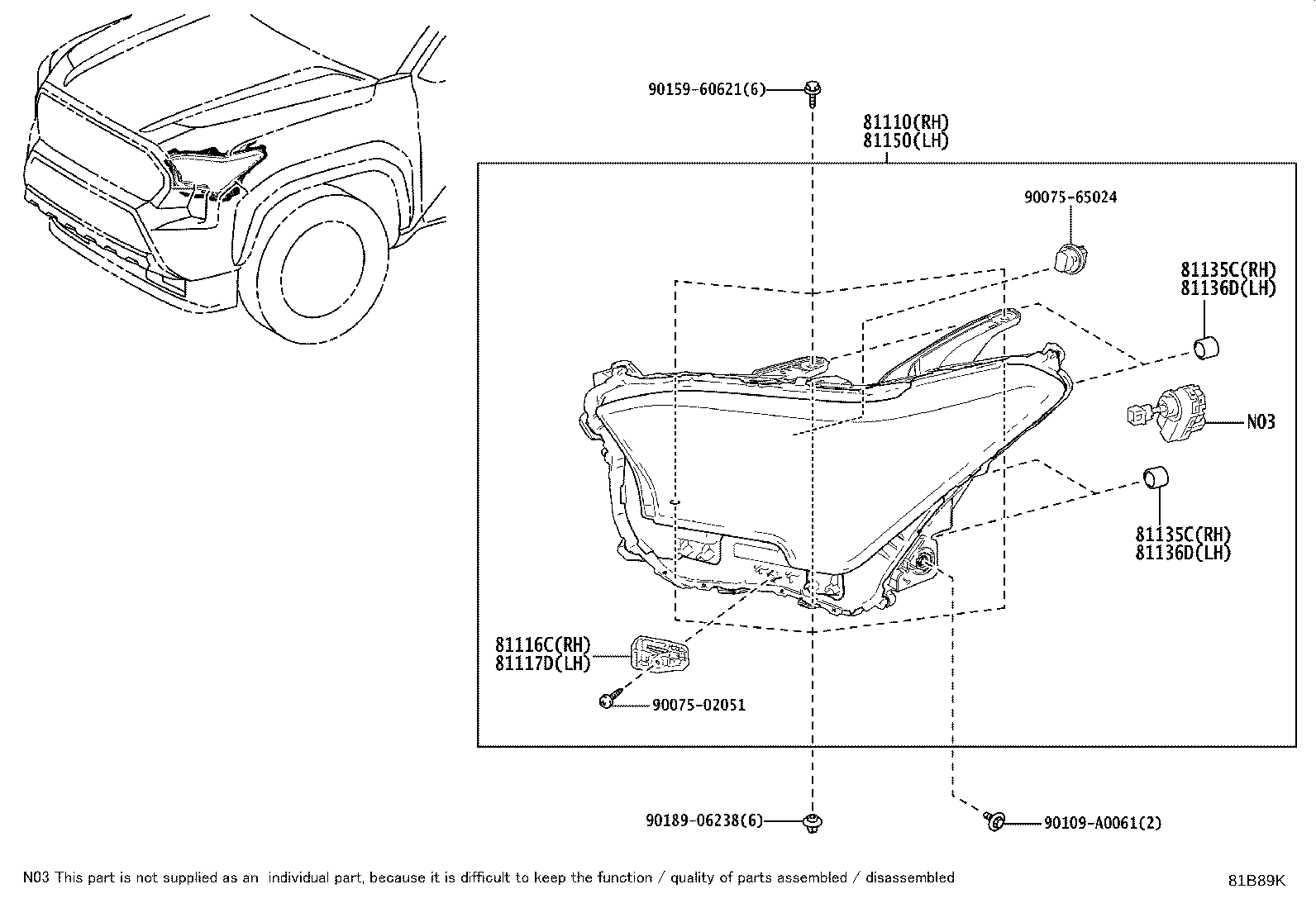

Headlamp
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81116C | Bracket, Headlamp, RH |
| 81117D | Bracket, Headlamp, LH |
| 81135C | Cover, Headlamp Back, NO.1 |
| 81136D | Cover, Headlamp |
| 81150 | Headlamp Assy, LH |
| 81510A | Bulb, Front Turn Signal & Parking Lamp |
| 81515B | Socket, Front Turn Signal Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
