Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03
Heating & Air Conditioning - Cooler Unit
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 87050 | Radiator Assy, Air Conditioner |

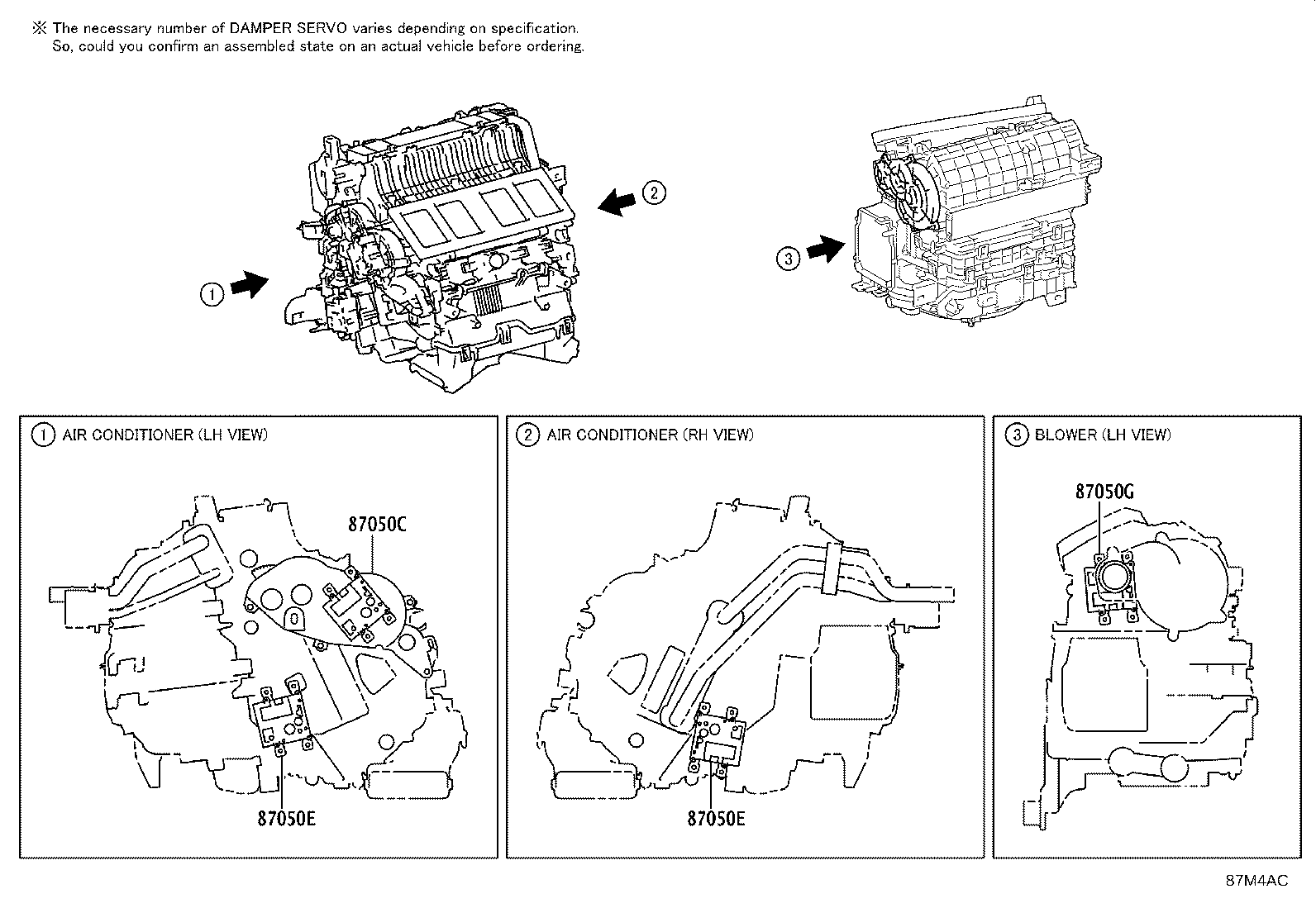

| 87050C | Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 |
| 87050E | Damper Servo Sub-assy, Air Conditioner Radiator, NO.3 |
| 87050G | Damper Servo Sub-assy, Air Conditioner Radiator, NO.5 |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87107D | Ring, O (FOR HEATER RADIATOR UNIT) |
| 87114B | Cover, Heater |
| 87124B | Clamp, Heater |
| 87127C | Packing, Blower Motor Sub-assy, NO.1 |
| 87128 | Grommet, Heater |
| 87128B | Grommet, Heater, NO.2 |
| 87130D | Blower Assy |
| 87139C | Filter, Clean Air |
| 87710G | Quick Heater Assy |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501F | O-ring, Cooler Evaporator NO.1(DISCHARGE) |
| 88501G | O-ring, Cooler Evaporator NO.1(SUCTION) |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88539G | Grommet (FOR COOLER UNIT DRAIN HOSE) |
| 88539J | Hose, Drain Cooler |
| 88548B | Case, Air Filter |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88710H | Tube & Accessory Assy, Air Conditioner |
| 88710W | Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) |
| 88710Z | Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) |
| 88897K | Grommet, (FOR COOLER PIPE) |
| 88897L | Grommet (FOR DRAIN HOSE) |
| 88898D | Grommet |
| 88899L | Parts, Cooling Unit |
| 88899M | Plate, Cover(FOR AIR FILTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
