Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

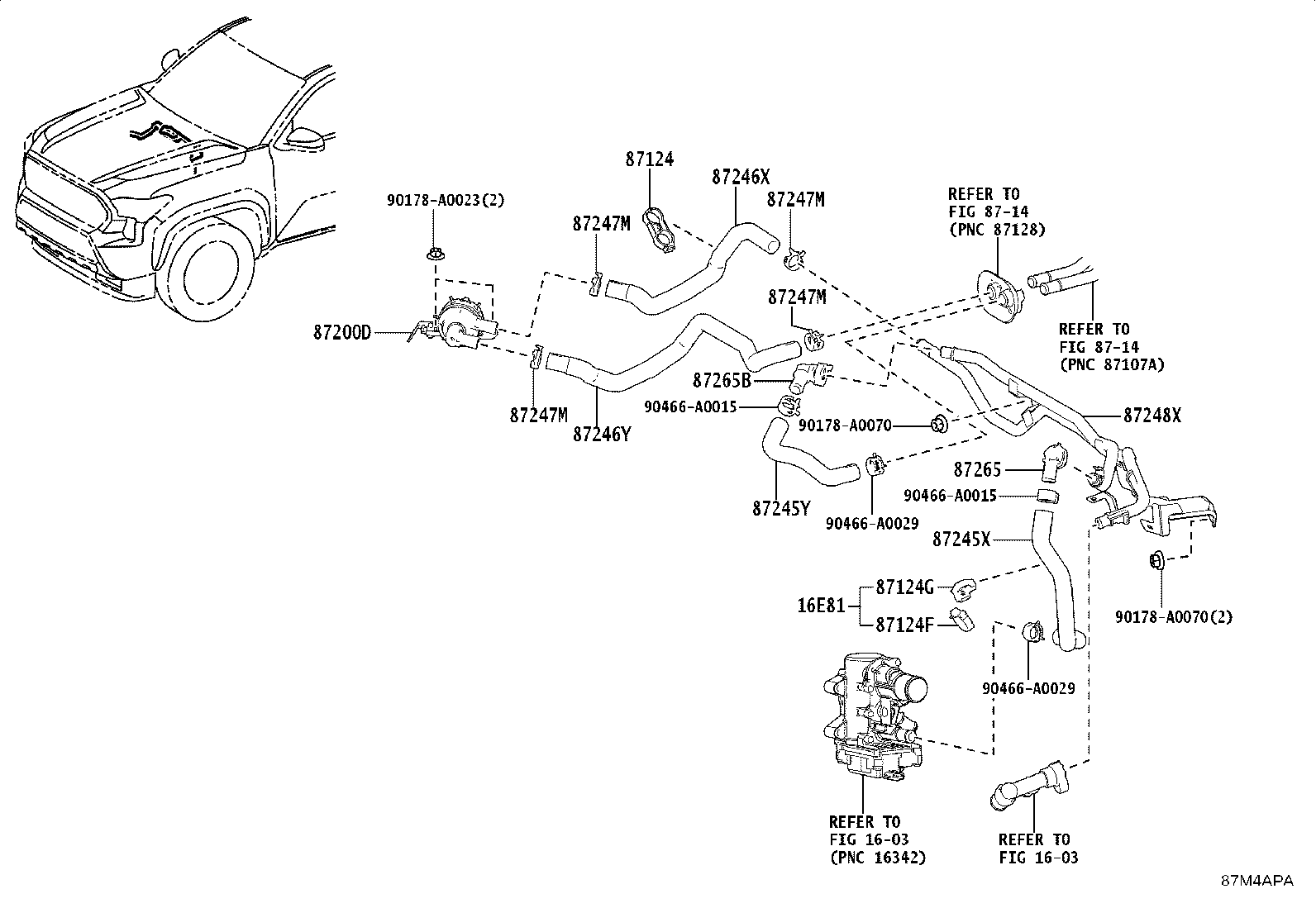

Heating & Air Conditioning - Water Piping
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16E81 | Clamp, Hose(FOR WATER HOSE) |
| 87121F | Bracket, Heater |
| 87124 | Clamp, Heater |
| 87124F | Clamp, Heater Hose, NO.1 |
| 87124G | Clamp, Heater Hose, NO.2 |
| 87200D | Accessory Assy, Heater |
| 87245X | Hose, Heater Water |
| 87245Y | Hose, Heater Water |
| 87246X | Hose, Heater Water |
| 87246Y | Hose, Heater Water |
| 87247M | Clip, Hose |
| 87248X | Pipe, Heater Water |
| 87265 | Connector, Heater Water Hose |
| 87265B | Connector, Heater Water Hose, NO.2 |
| 87265F | Connector, Water Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
