Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

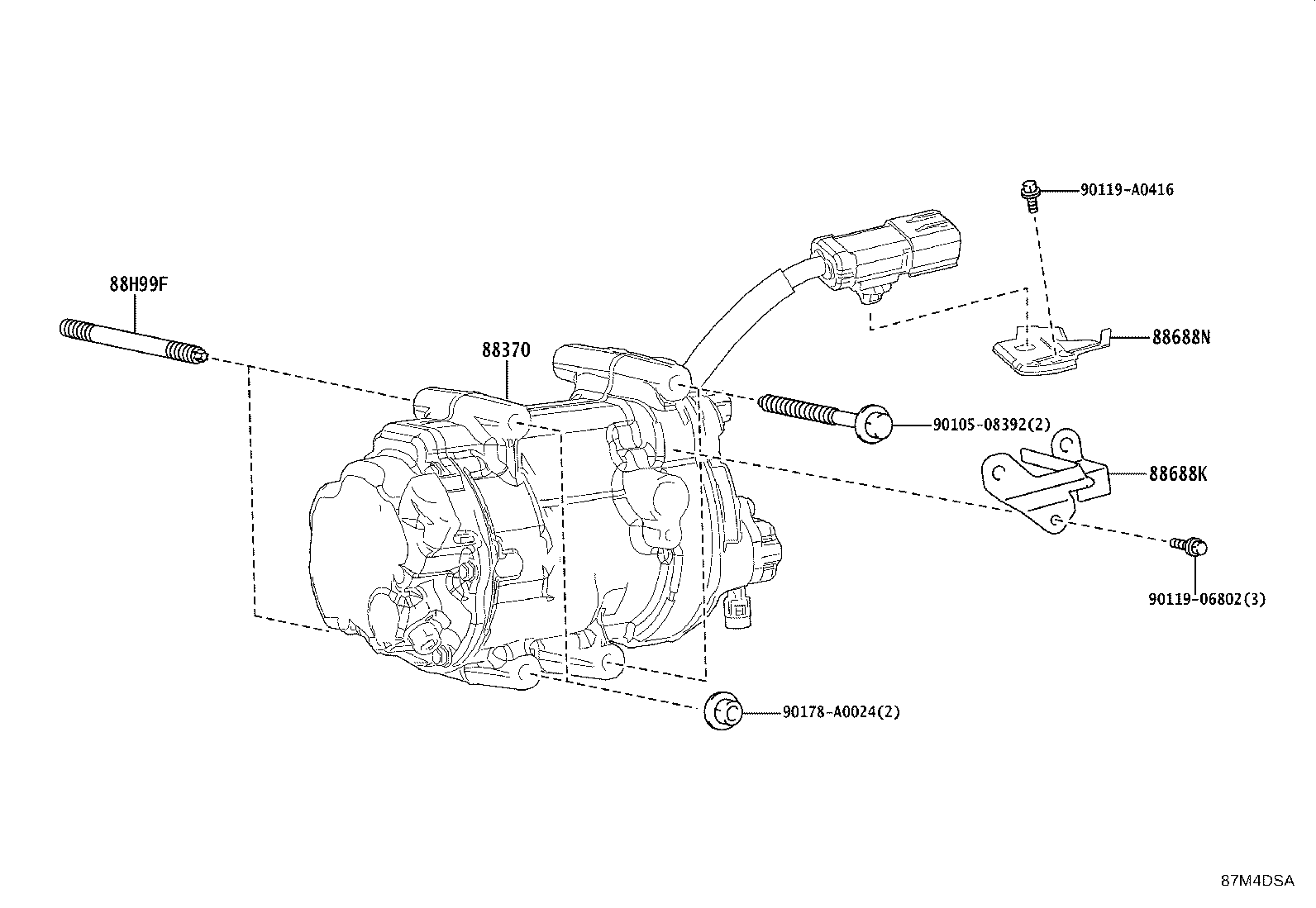

Heating & Air Conditioning - Compressor
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88310E | Compressor, W/Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88335 | Gasket Kit, Overhaul |
| 88365 | Ring, Snap |
| 88365B | Ring, Snap, NO.2 |
| 88370 | Compressor Assy, W/Motor |
| 88410 | Clutch Assy, Magnet |
| 88446C | Bolt, Magnet Clutch Setting |
| 88446D | Bolt, Cooler |
| 88688K | Bracket, Cooler Compressor |
| 88688N | Bracket, Cooler |
| 88849 | Bracket, Cooler Compressor, NO.2 |
| 88H99F | Bolt, Stud |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
