Toyota 4-Runner Truck (NAP)
1991-09 → 1995-01 · chassis RN80,90 · catalogue 675450 · United States
Discontinued model
Data version 1996-08

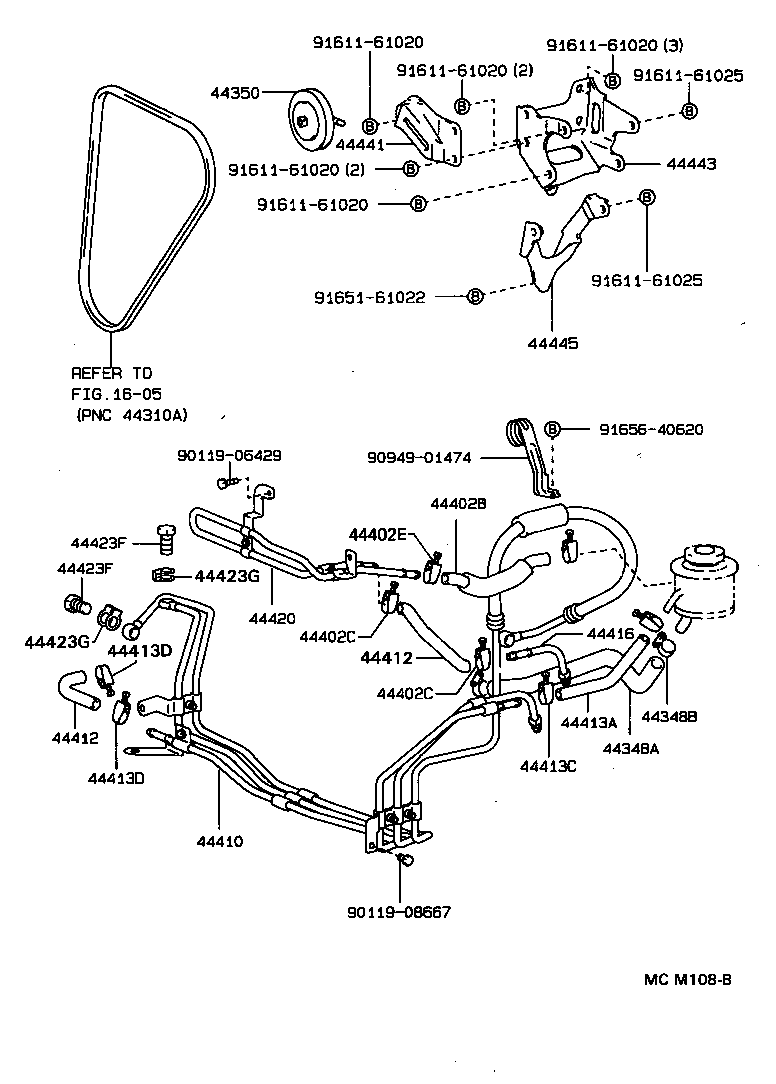

Power Steering Tube
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44350 | Pulley Assy, Power Steering Idle |
| 44402B | Hose, Power Steering Oil Cooler Outlet |
| 44402C | Clamp, Power Steering Oil Cooler Inlet Hose |
| 44402E | Clamp, Power Steering Oil Cooler Outlet Hose |
| 44410 | Tube Assy, Pressure Feed |
| 44411 | Hose, Pressure Feed |
| 44412 | Hose, Return |
| 44413A | Hose(FOR RETURN TUBE OUTLET) |
| 44413C | Clamp(FOR RETURN TUBE OUTLET HOSE) |
| 44413D | Clamp(FOR RESERVOIR TANK INLET HOSE) |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44420 | Cooler Assy, Oil |
| 44423F | Bolt, Union |
| 44423G | Gasket, Union Bolt |
| 44441 | Bracket, Pump, Front |
| 44443 | Bracket, Pump |
| 44445 | Bracket, Pump, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
