Toyota 4-Runner Truck (NAP)

1991-09 → 1995-01 · chassis RN80,90 · catalogue 675450 · United States

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

16 part groups · 13 illustrations

Illustrations

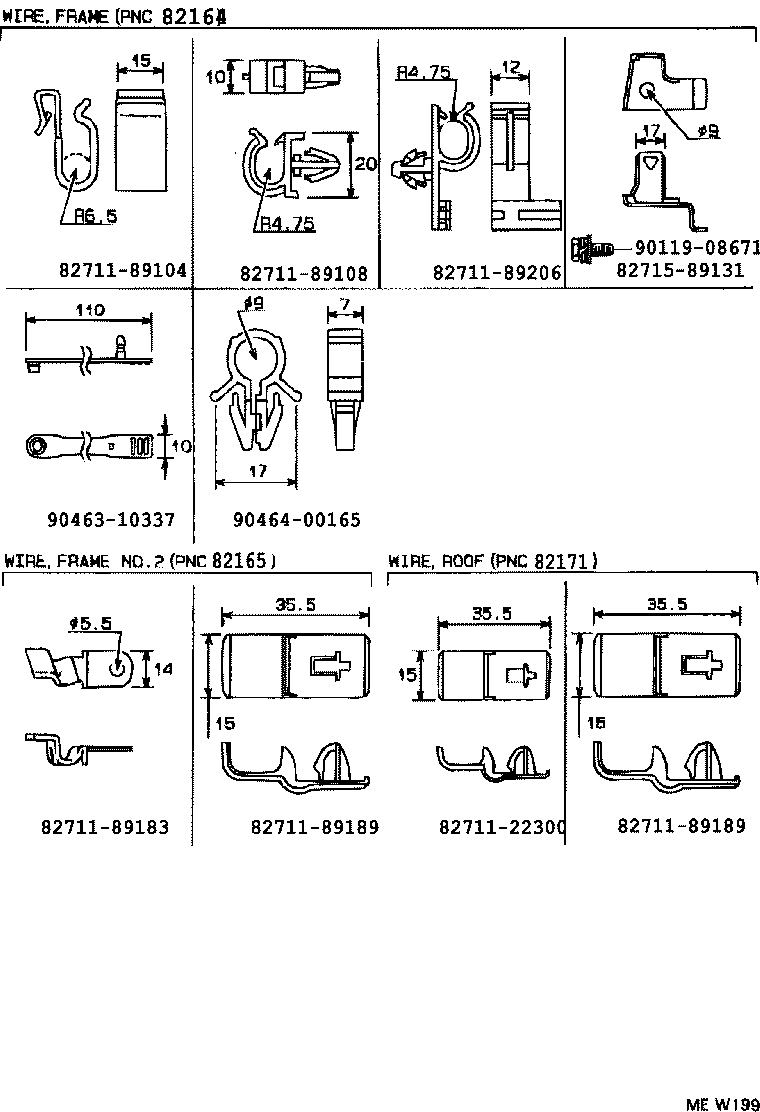

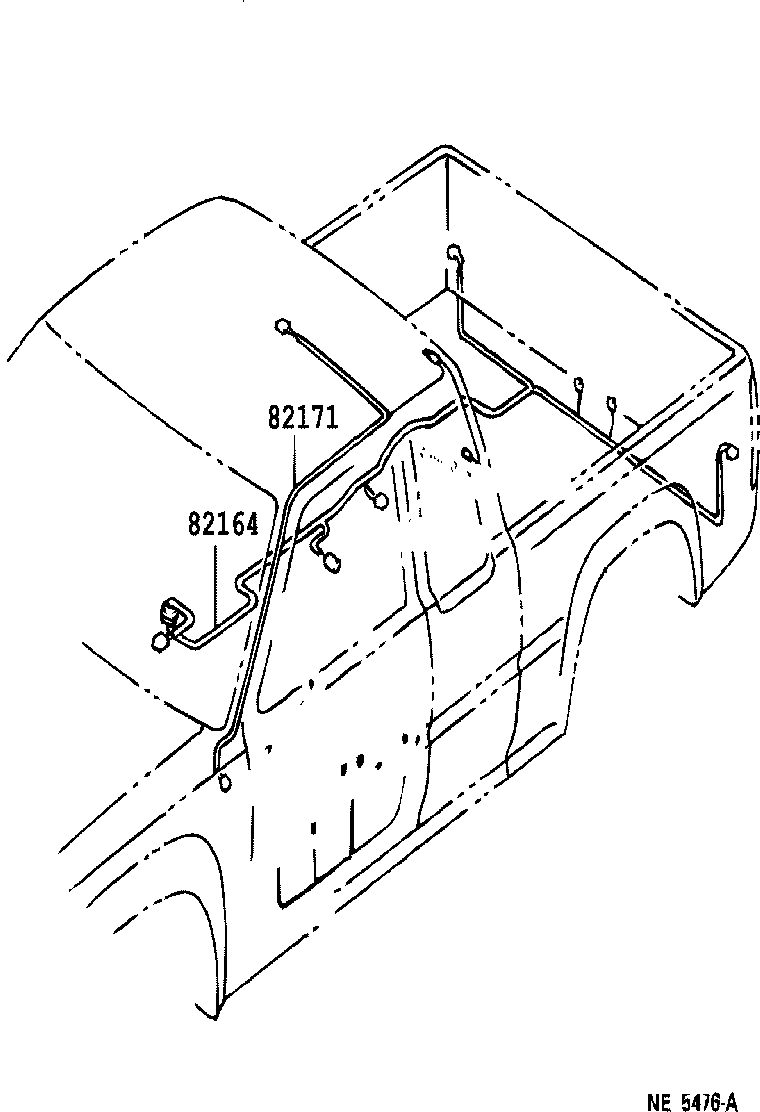

Figure 827497 827497 1988-08 → — Figure 827474 827474 1988-08 → — Figure NE5480A NE5480A 1988-08 → — Figure MES210 MES210 1988-08 → — Figure NE5481C NE5481C 1988-08 → — Figure NE5482E NE5482E 1988-08 → — Figure MES211 MES211 1988-08 → — Figure MEU084A MEU084A 1991-09 → — Figure NE5483D NE5483D 1988-08 → — Figure MEU853 MEU853 1988-08 → — Figure MEU854 MEU854 1988-08 → — Figure MES215 MES215 1988-08 → — Figure 827498 827498 1988-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82164 Wire, Frame
82171 Wire, Roof, NO.1
82210C Fusible Link
82261A Wire, Alternator
82620 Block Assy, Fusible Link
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823 Cap, Terminal, NO.1
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
