Toyota 4-Runner Truck (NAP)

1991-09 → 1995-01 · chassis RN80,90 · catalogue 675450 · United States

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

11 part groups · 2 illustrations

Illustrations

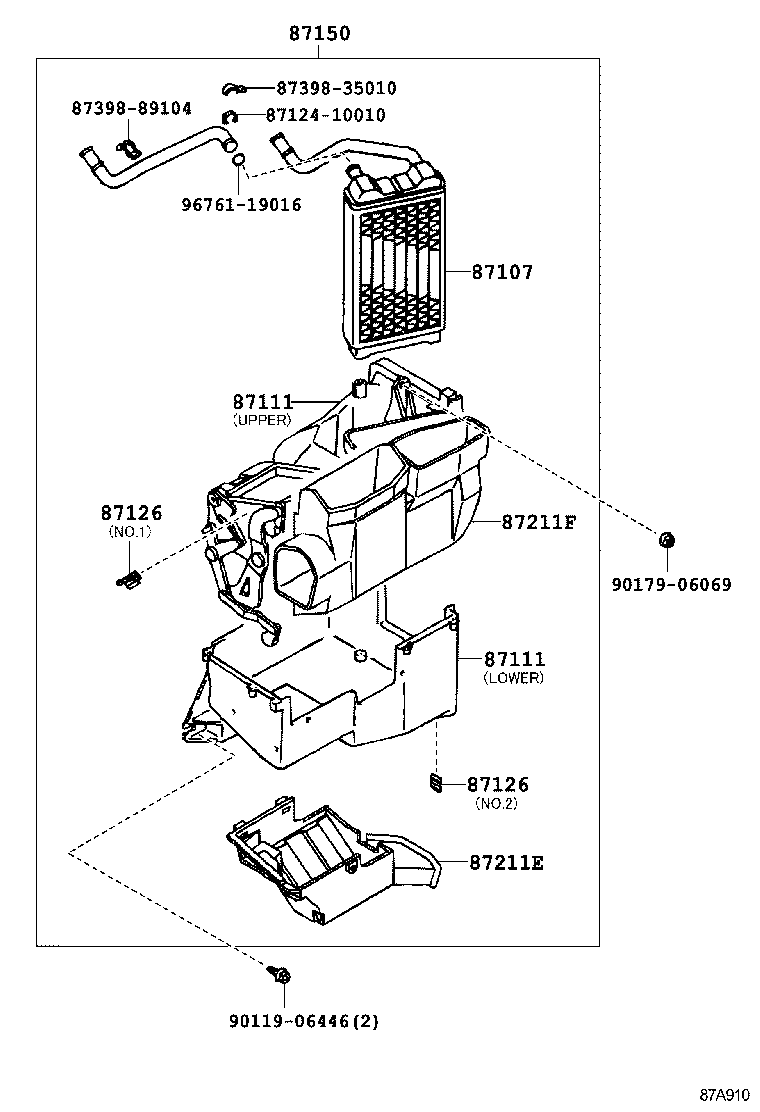

Figure MES340 MES340 1988-08 → — Figure 87A910 87A910 1988-08 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87111 Case, Heater
87126 Clamp, Heater Control
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87211E Duct, Air
87211F Duct, Air
87211L Duct, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
