Toyota 4-Runner Truck (NAP)

1991-09 → 1995-01 · chassis RN80,90 · catalogue 675450 · United States

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

16 part groups · 4 illustrations

Illustrations

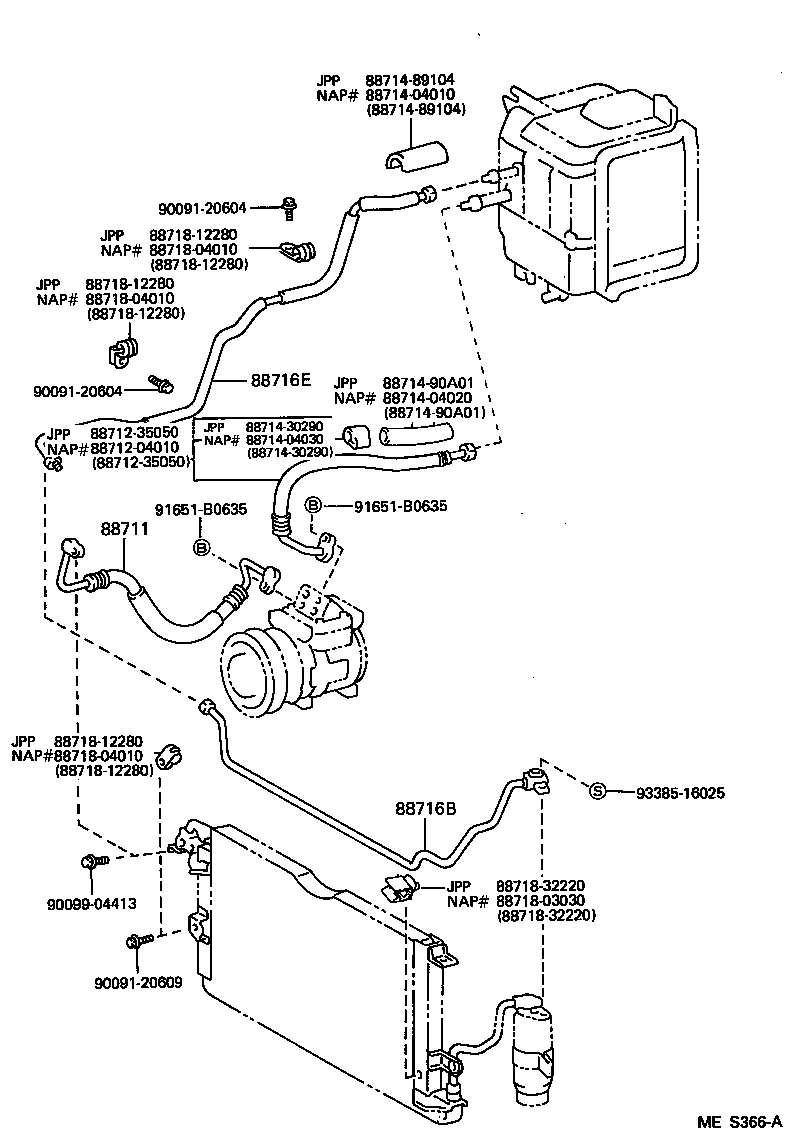

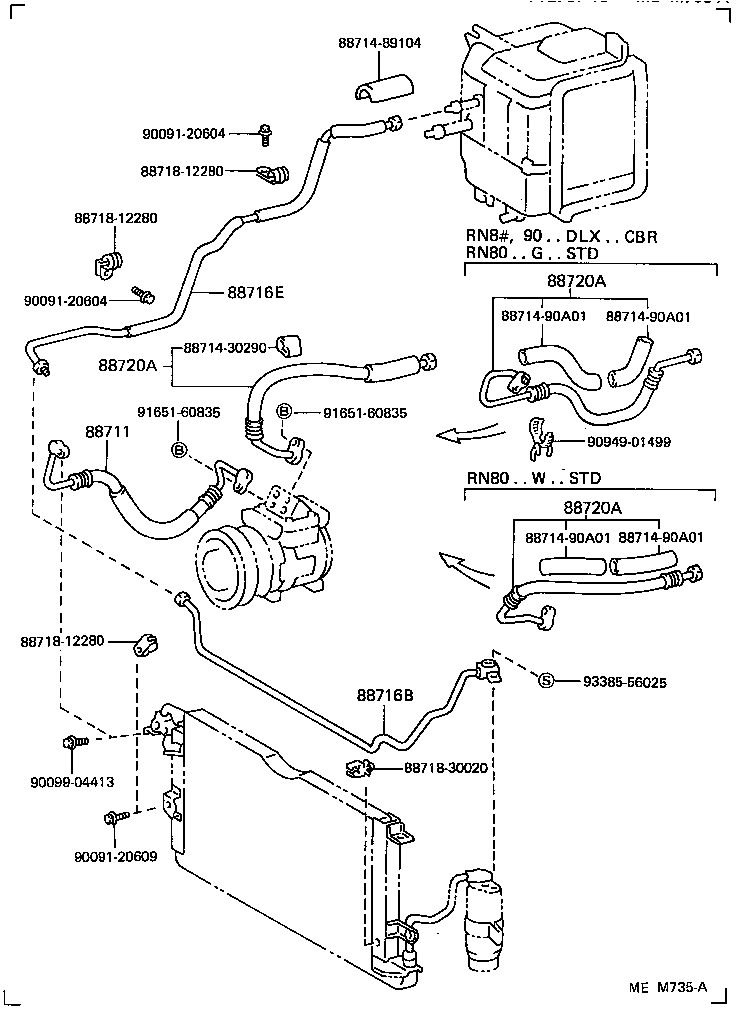

Figure MES347C MES347C 1988-08 → — Figure MES348 MES348 1991-09 → — Figure MEM735A MEM735A 1988-08 → — Figure MES366A MES366A 1991-09 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88720A Hose & Accessory, Air Conditioner
88723B Label, Cooler Service Caution
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
88891G Packing G (FOR COOLER)
88892C Plate, Condenser, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
