Toyota Tacoma

1995-01 → 2004-09 · chassis RZN140,150,19#,VZN150,195 · catalogue 675460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

29 part groups · 3 illustrations

Illustrations

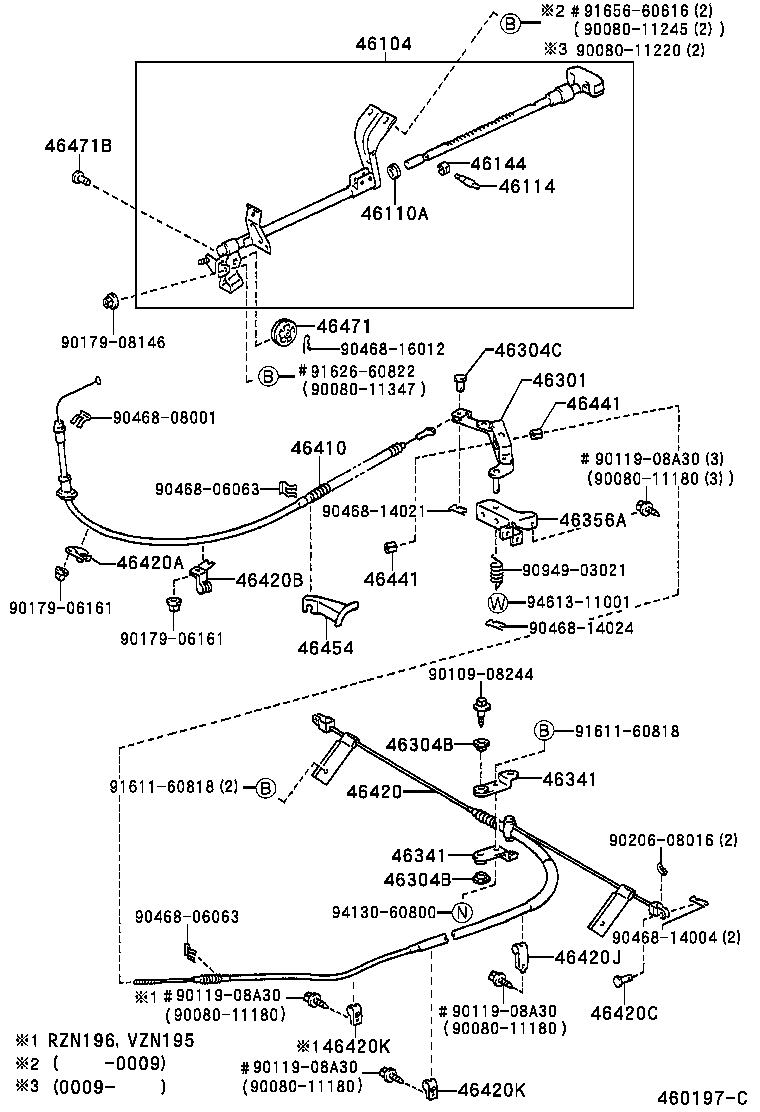

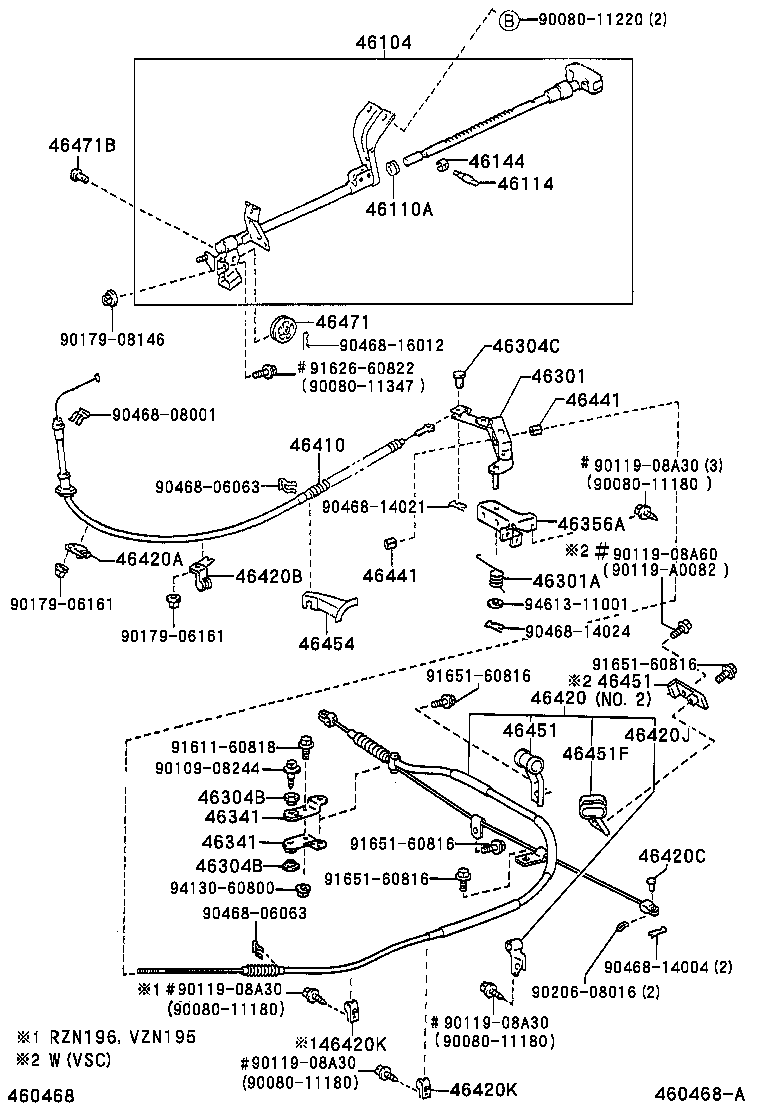

Figure 460045F 460045F 1995-01 → — Figure 460197C 460197C 1998-02 → 2002-09 Figure 460468A 460468A 2002-09 → —

Part groups

PNCDescription
46104 Handle Sub-assy, Parking Brake Control
46110A Bush OR Ring, O (FOR PARKING BRAKE PLUNGER)
46114 Pin, Parking Brake Plunger
46144 Anti-rattle, Parking Brake Plunger
46301 Lever Sub-assy, Parking Brake Intermediate
46301A Spring, Tension(FOR INTERMEDIATE LEVER)
46301F Spring, Torsion(FOR PARKING BRAKE INTERMEDIATE LEVER)
46304 Equalizer Sub-assy, Parking Brake
46304B Bush(FOR PARKING BRAKE EQUALIZER)
46304C Pin(FOR PARKING BRAKE EQUALIZER)
46341 Equalizer, Parking Brake
46356A Bracket, Intermediate Lever(FOR PARKING BRAKE)
46361 Rod, Parking Brake Pull
46410 Cable Assy, Parking Brake, NO.1
46419 Protector, Parking Brake Cable Differential
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46420C Pin, W/Hole(FOR PARKING BRAKE CABLE)
46420J Clamp, NO.3(FOR PARKING BRAKE CABLE)
46420K Clamp, NO.4(FOR PARKING BRAKE CABLE)
46420L Clamp, NO.5(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46451 Bracket, Cable Support
46451F Bracket, Cable Support
46454 Bracket, Cable Retainer, Front
46471 Pulley, Wire
46471B Pin, W/Hole(FOR WIRE PULLEY SET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
