Toyota Tacoma
1995-01 → 2004-09 · chassis RZN140,150,19#,VZN150,195 · catalogue 675460 · United States
Discontinued model
Data version 2005-04

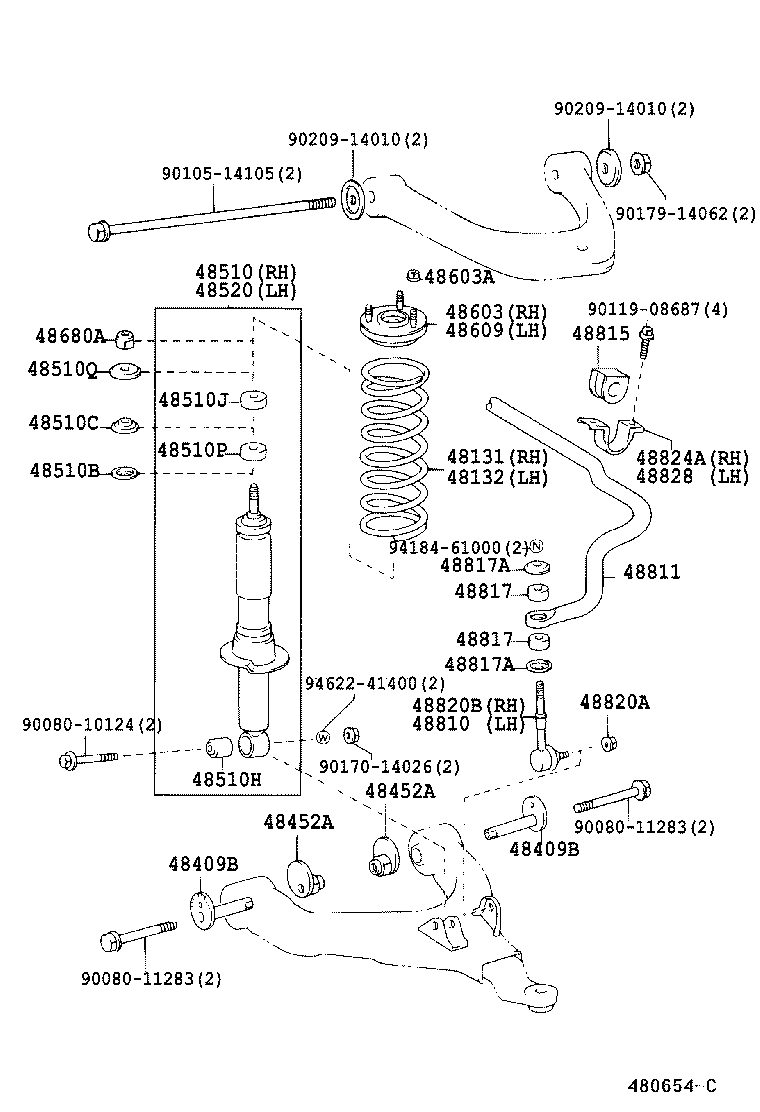

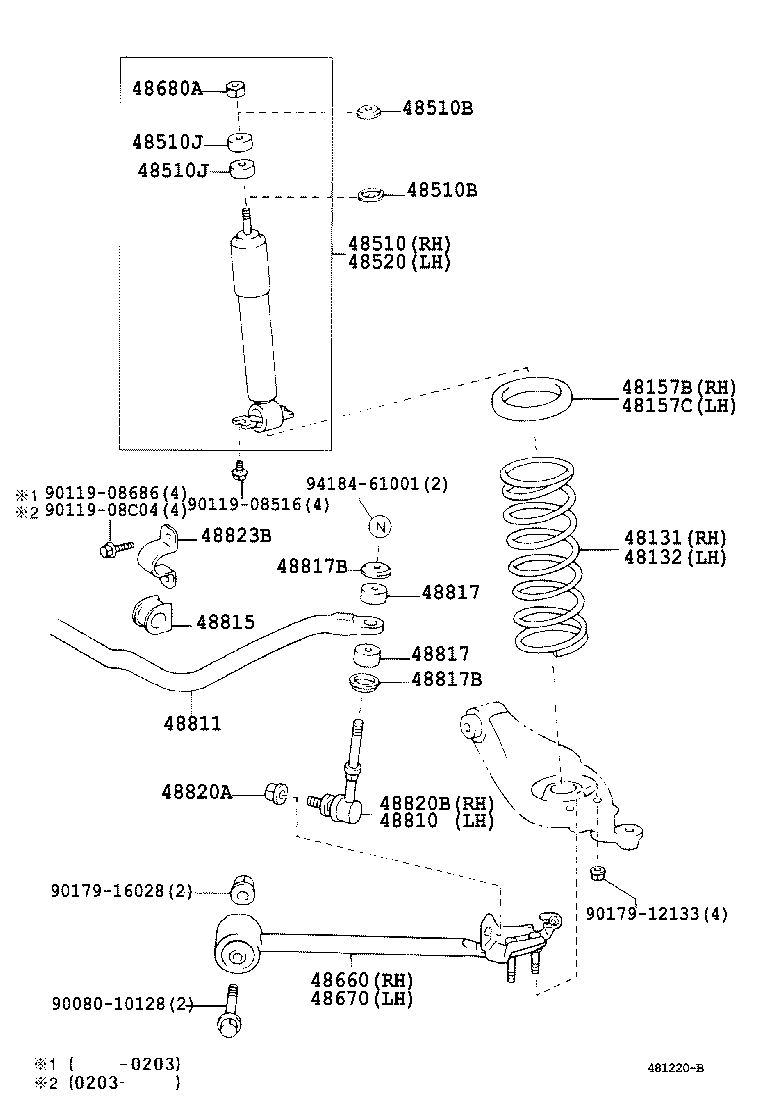

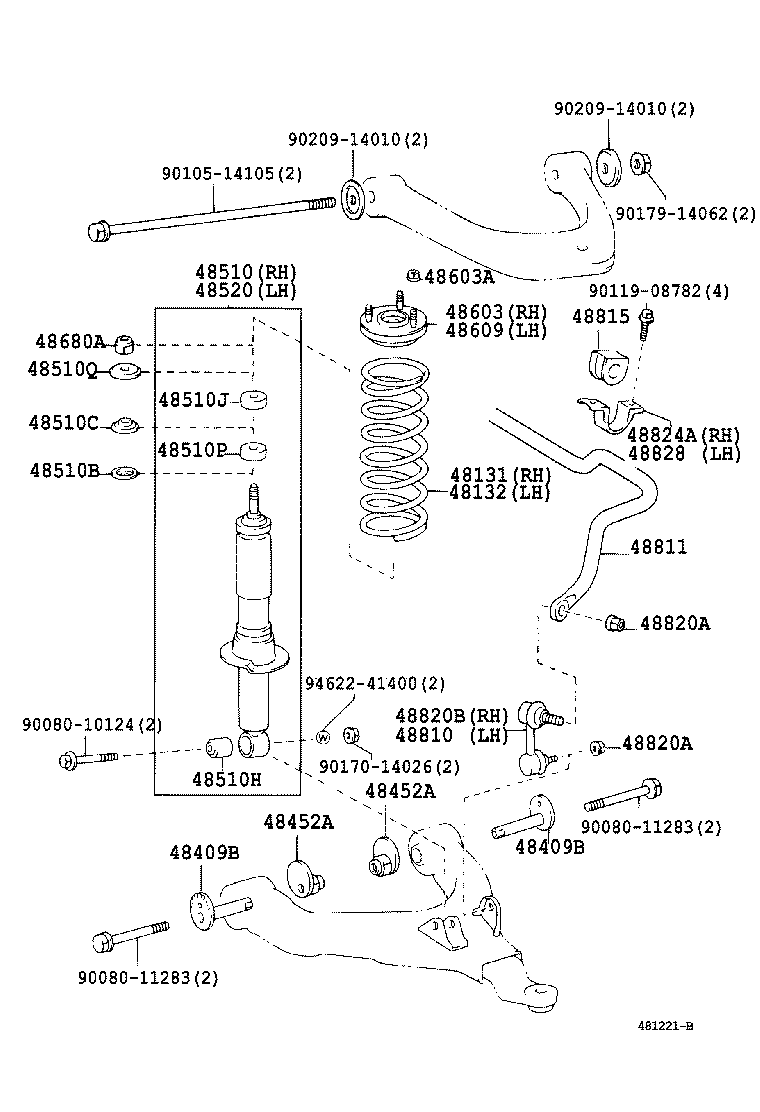

Front Spring & Shock Absorber
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 48131 | Spring, Front Coil, RH |
| 48132 | Spring, Front Coil, LH |
| 48157B | Insulator, Front Coil Spring, Upper RH |
| 48157C | Insulator, Front Coil Spring, Upper LH |
| 48409B | Cam Sub-assy, Front Suspension Toe Adjust |
| 48452A | Plate, Front Suspension Toe Adjust, NO.2 |
| 48510 | Absorber Assy, Shock, Front RH |
| 48510B | Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER) |
| 48510C | Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER) |
| 48510H | Bush(FOR FRONT SHOCK ABSORBER) |
| 48510J | Cushion, Front Shock Absorber, NO.1 |
| 48510P | Cushion, Front Shock Absorber, NO.2 |
| 48510Q | Retainer, Cushion, NO.3(FOR FRONT SHOCK ABSORBER) |
| 48520 | Absorber Assy, Shock, Front LH |
| 48603 | Support Sub-assy, Front Suspension, RH |
| 48603A | Nut(FOR FRONT SUSPENSION SUPPORT) |
| 48609 | Support Sub-assy, Front Suspension, LH |
| 48660 | Bar Assy, Strut, RH |
| 48670 | Bar Assy, Strut, LH |
| 48680A | Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) |
| 48810 | Link Assy, Front Stabilizer, LH |
| 48811 | Bar, Stabilizer, Front |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48817 | Cushion, Front Stabilizer |
| 48817A | Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR) |
| 48817B | Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR) |
| 48817C | Collar(FOR STABILIZER BAR) |
| 48817F | Nut(FOR FRONT STABILIZER BAR) |
| 48820A | Nut(FOR FRONT STABILIZER LINK) |
| 48820B | Link Assy, Front Stabilizer, RH |
| 48823B | Cover, Front Stabilizer Bracket |
| 48824A | Bracket, Front Stabilizer, NO.1 RH |
| 48828 | Bracket, Front Stabilizer, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
