Toyota Tacoma
1995-01 → 2004-09 · chassis RZN140,150,19#,VZN150,195 · catalogue 675460 · United States
Discontinued model
Data version 2005-04

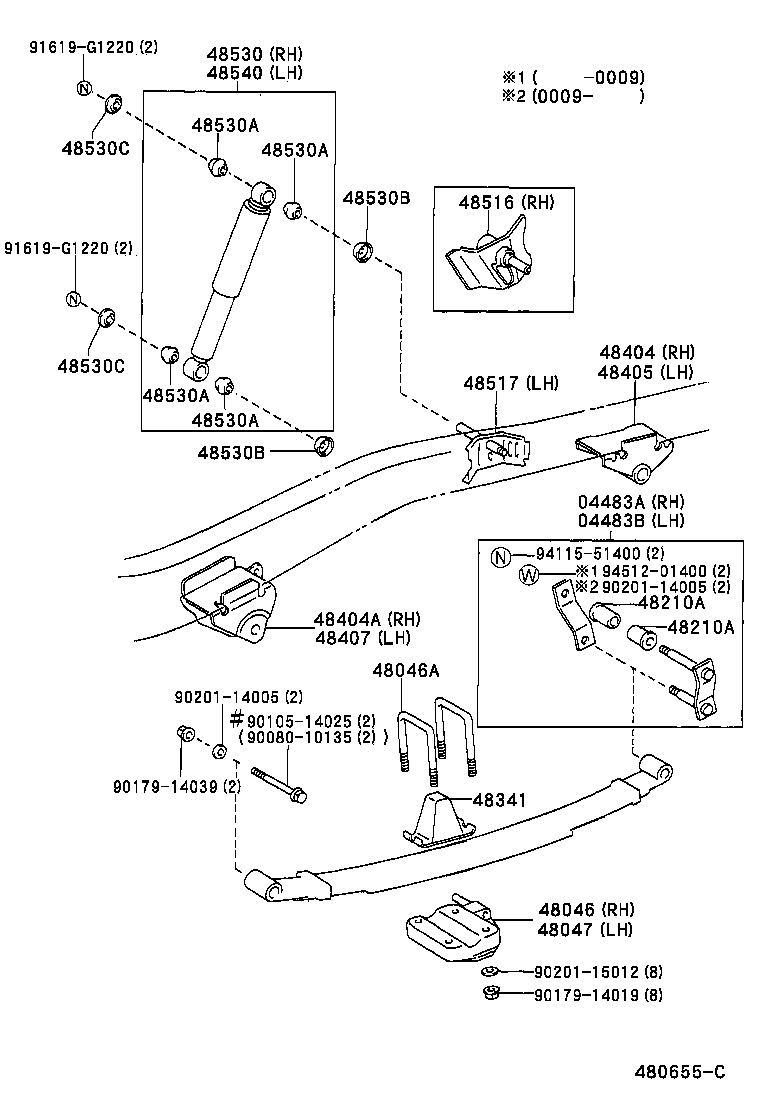

Rear Spring & Shock Absorber
43 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 04483A | Shackle Kit, Rear Spring, RH |
| 04483B | Shackle Kit, Rear Spring, LH |
| 48046 | Seat Sub-assy, Spring U Bolt, RH |
| 48046A | Bolt, U(FOR REAR SPRING) |
| 48047 | Seat Sub-assy, Spring U Bolt, LH |
| 48210 | Spring Assy, Rear RH |
| 48210A | Bush(FOR REAR SPRING SHACKLE UPPER) |
| 48210C | Bush(FOR REAR SPRING LEAF) |
| 48210G | Bush(FOR REAR SPRING SHACKLE LOWER) |
| 48211 | Leaf, Rear Spring, NO.1 |
| 48212 | Leaf, Rear Spring, NO.2 |
| 48213 | Leaf, Rear Spring, NO.3 |
| 48214 | Leaf, Rear Spring, NO.4 |
| 48220 | Spring Assy, Rear LH |
| 48247 | Bolt, Rear Spring, Center |
| 48248 | Spacer, Rear Spring Clip |
| 48252 | Silencer, Rear Spring |
| 48253 | Spacer, Rear Spring, NO.1 |
| 48253D | Spacer, Rear Spring, NO.3 |
| 48256 | Bolt, Hexagon(FOR REAR SPRING CLIP SET) |
| 48341 | Bumper, Rear Spring |
| 48404 | Bracket Sub-assy, Rear Spring, Rear RH |
| 48404A | Bracket Sub-assy, Spring, NO.3 RH |
| 48405 | Bracket Sub-assy, Rear Spring, Rear LH |
| 48407 | Bracket Sub-assy, Spring, NO.3 LH |
| 48516 | Bracket, Rear Shock Absorber, Upper RH |
| 48517 | Bracket, Rear Shock Absorber, Upper LH |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530A | Bush(FOR REAR SHOCK ABSORBER) |
| 48530B | Washer, Rear Shock Absorber Cushion, NO.1 |
| 48530C | Washer, Rear Shock Absorber Cushion, NO.2 |
| 48540 | Absorber Assy, Shock, Rear LH |
| 48805 | Bar Sub-assy, Rear Stabilizer |
| 48805A | Bush(FOR REAR STABILIZER BAR) |
| 48807B | Bracket Sub-assy, Stabilizer, RH |
| 48809D | Bracket Sub-assy, Stabilizer, LH |
| 48815R | Bush, Stabilizer(FOR REAR) |
| 48817R | Cushion, Stabilizer(FOR REAR) |
| 48817T | Collar(FOR STABILIZER REAR BAR) |
| 48817V | Retainer, Cushion, NO.2(FOR STABILIZER REAR BAR) |
| 48823C | Cover, Rear Stabilizer Bracket |
| 48830D | Link Assy, Rear Stabilizer, RH |
| 48840A | Link Assy, Rear Stabilizer, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
