Toyota Tacoma

1995-01 → 2004-09 · chassis RZN140,150,19#,VZN150,195 · catalogue 675460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

5 part groups · 2 illustrations

Illustrations

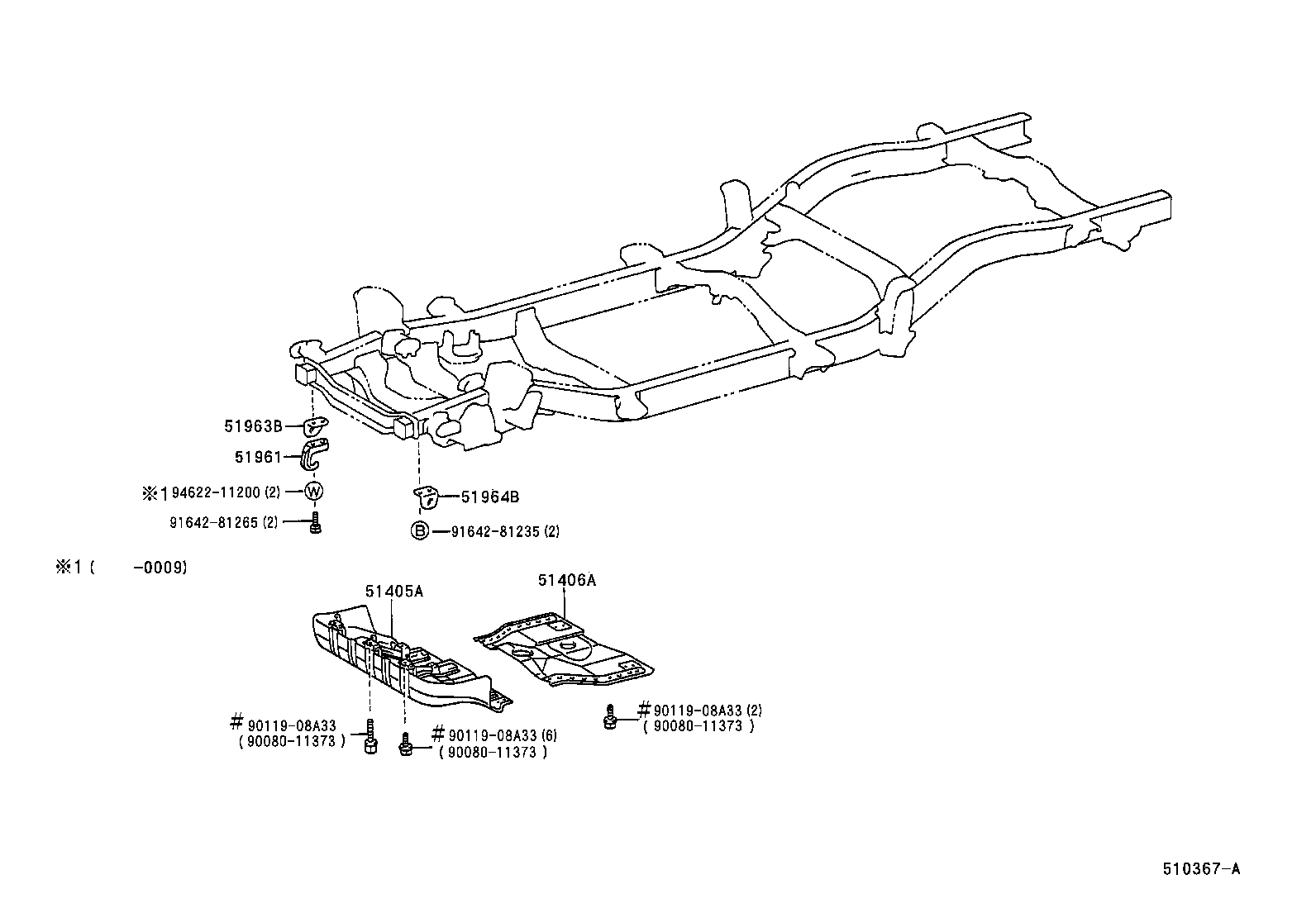

Figure 510614 510614 1995-01 → — Figure 510367A 510367A 1998-02 → —

Part groups

PNCDescription
51405A Cover Sub-assy, Engine Under, NO.1
51406A Cover Sub-assy, Engine Under, NO.2
51961 Hook, NO.1
51963B Hook, Transport, Front RH
51964B Hook, Transport, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
