Toyota Tacoma
1995-01 → 2004-09 · chassis RZN140,150,19#,VZN150,195 · catalogue 675460 · United States
Discontinued model
Data version 2005-04

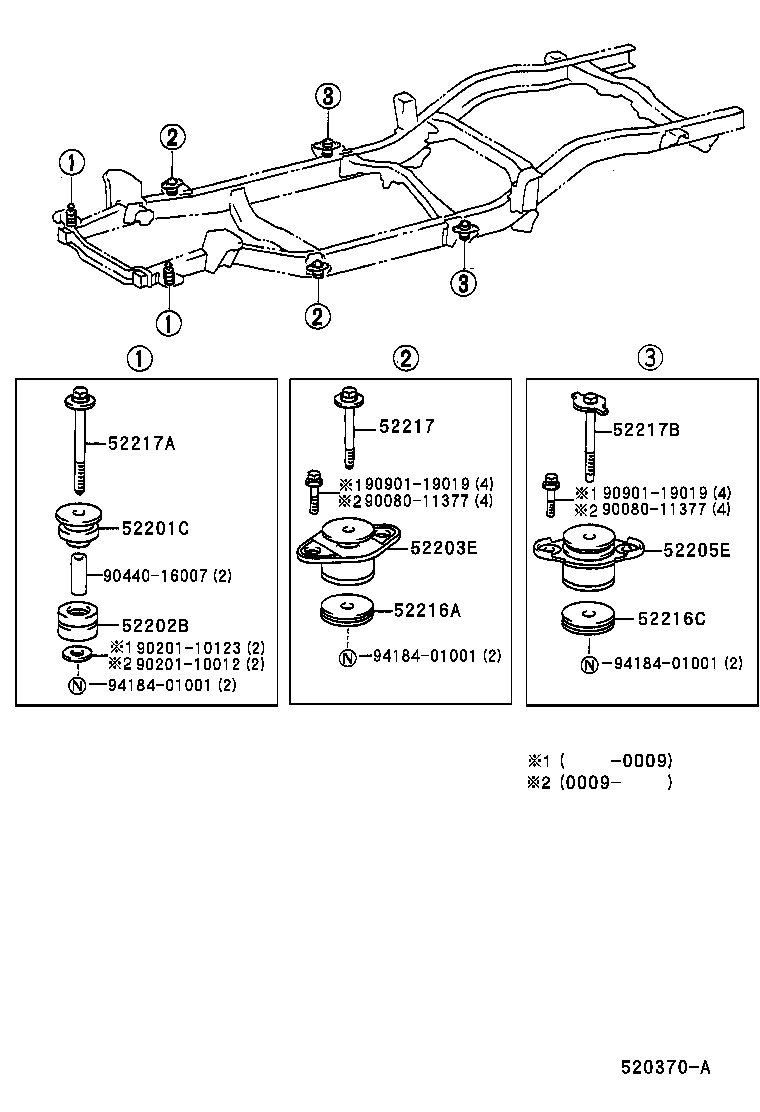

Cab Mounting & Body Mounting
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52201C | Cushiion Sub-assy, Cab Mounting, NO.1 Upper |
| 52202B | Cushiion Sub-assy, Cab Mounting, NO.1 Lower |
| 52203E | Cushion Sub-assy, Cab Mounting, NO.2 |
| 52205E | Cushion Sub-assy, Cab Mounting, NO.3 |
| 52216A | Stopper, Cab Mounting Cushion |
| 52216C | Stopper, Cab Mounting Cushion |
| 52217 | Bolt, Body Mounting |
| 52217A | Bolt, Body Mounting |
| 52217B | Bolt, Body Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
