Toyota Tacoma

1995-01 → 2004-09 · chassis RZN140,150,19#,VZN150,195 · catalogue 675460 · United States

Discontinued model Data version 2005-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

94 part groups · 13 illustrations

Illustrations

840615E 1995-01 → 2004-09

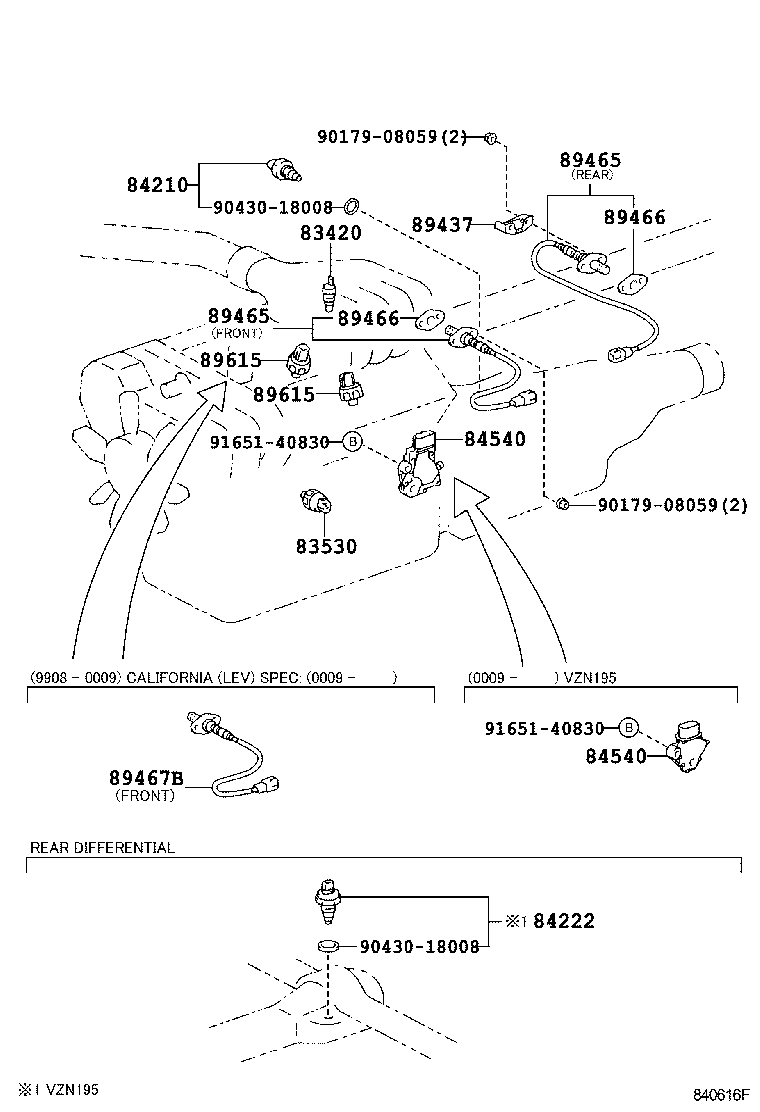

840616F 1995-01 → 2004-09

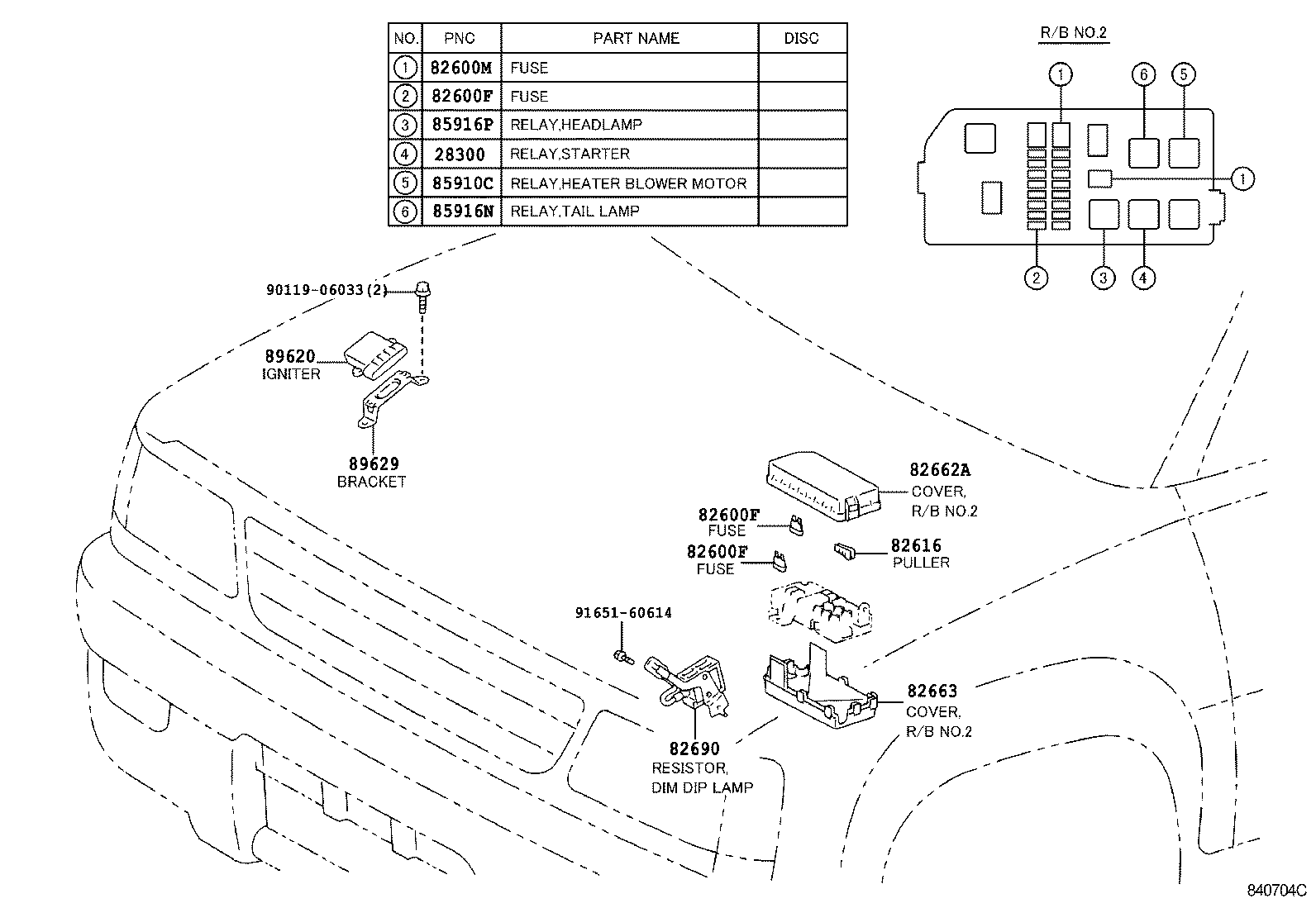

840704C 1995-01 → 1997-06

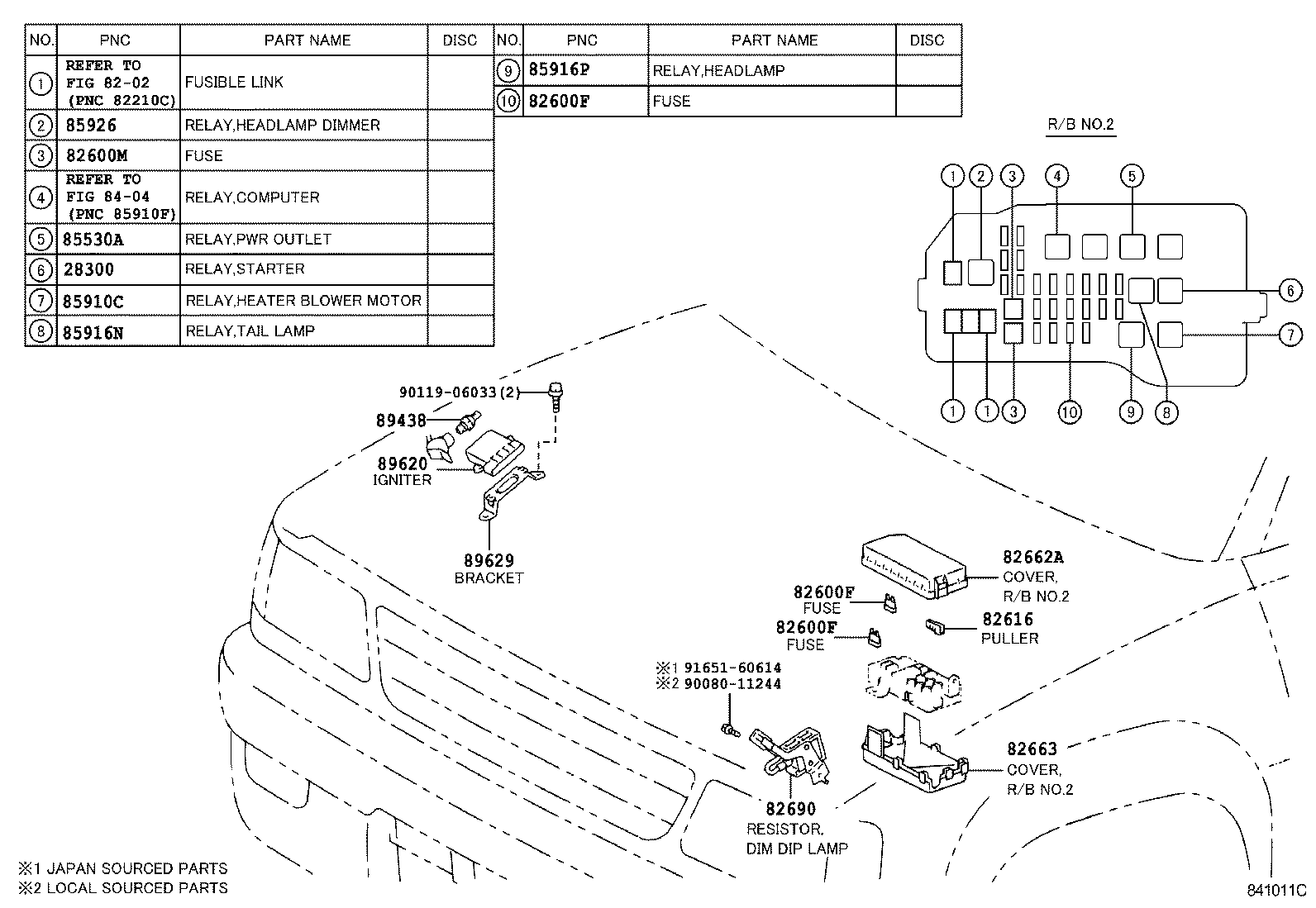

841011C 1997-06 → 2000-09

843754A 2000-09 → 2004-09

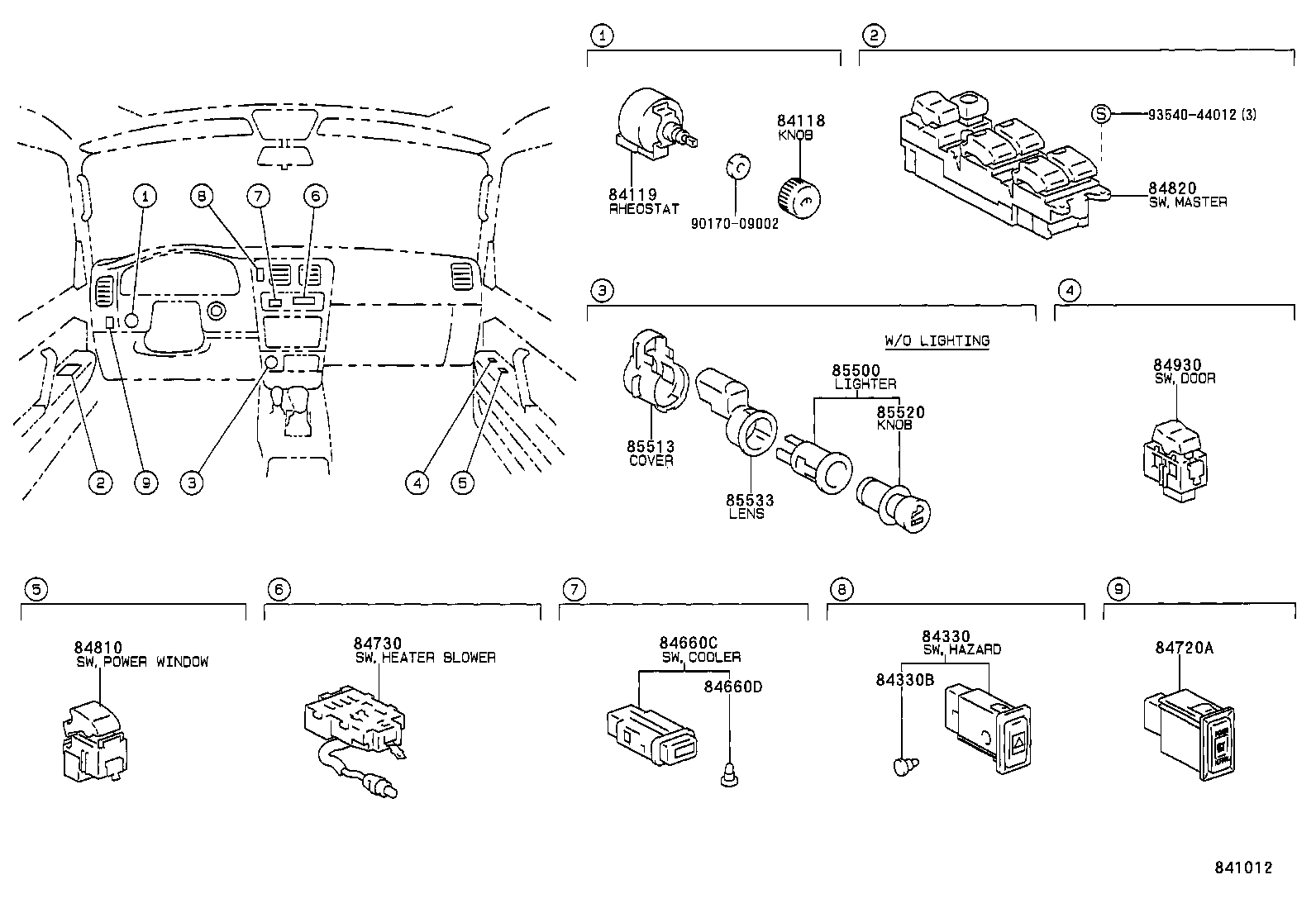

841012 1995-01 → 1997-06

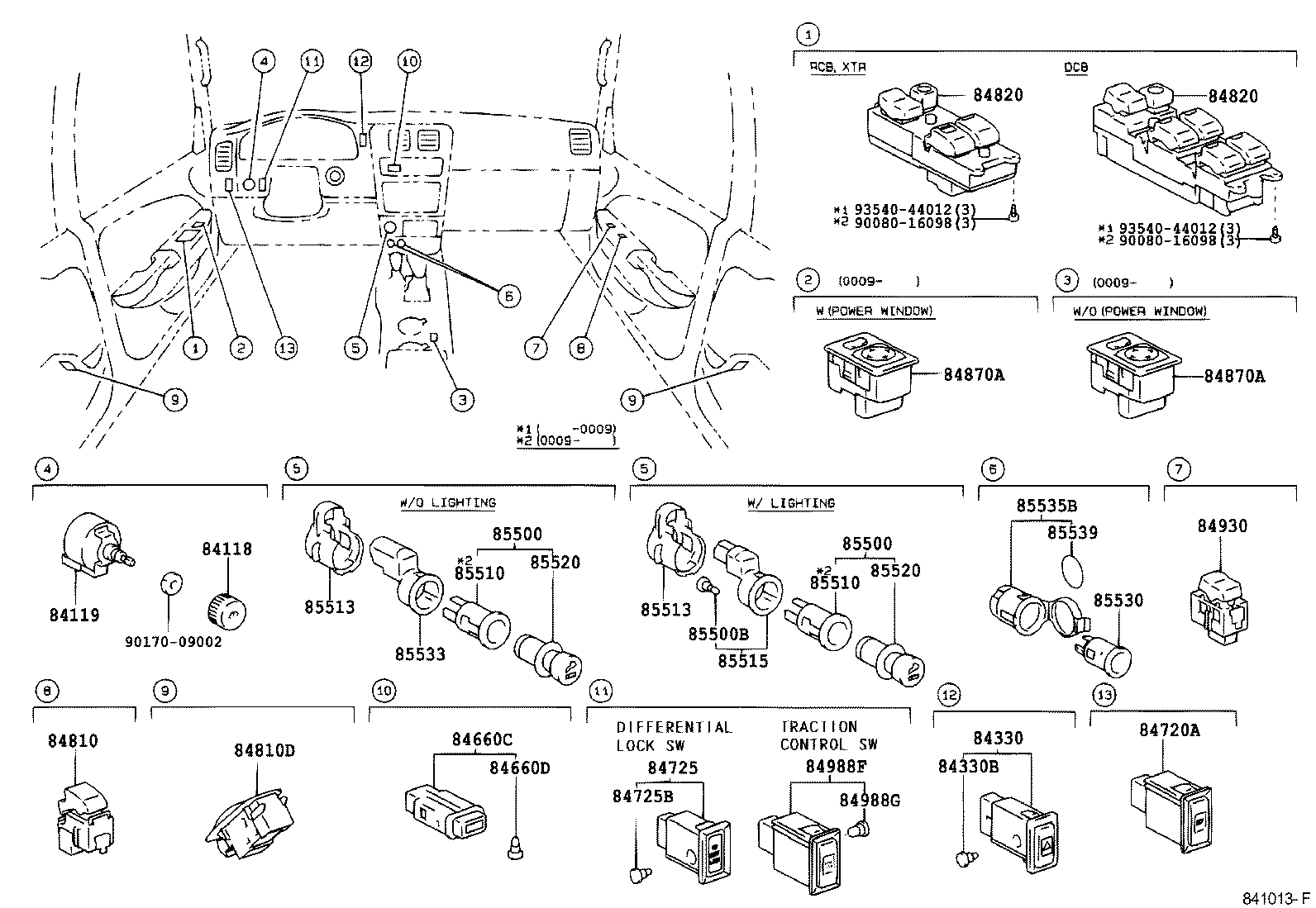

841013F 1997-06 → 2004-09

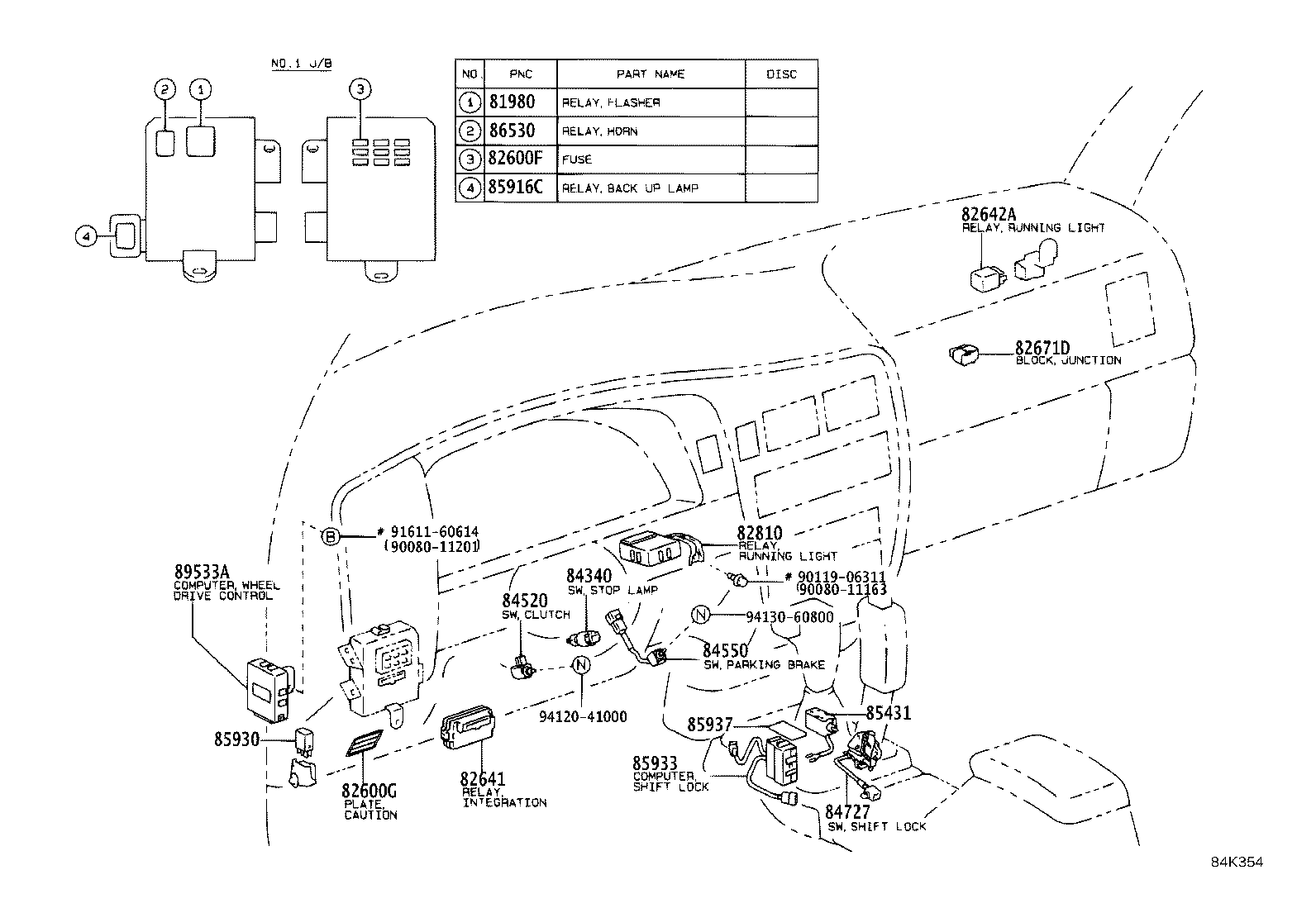

84K354 1995-01 → 2000-09

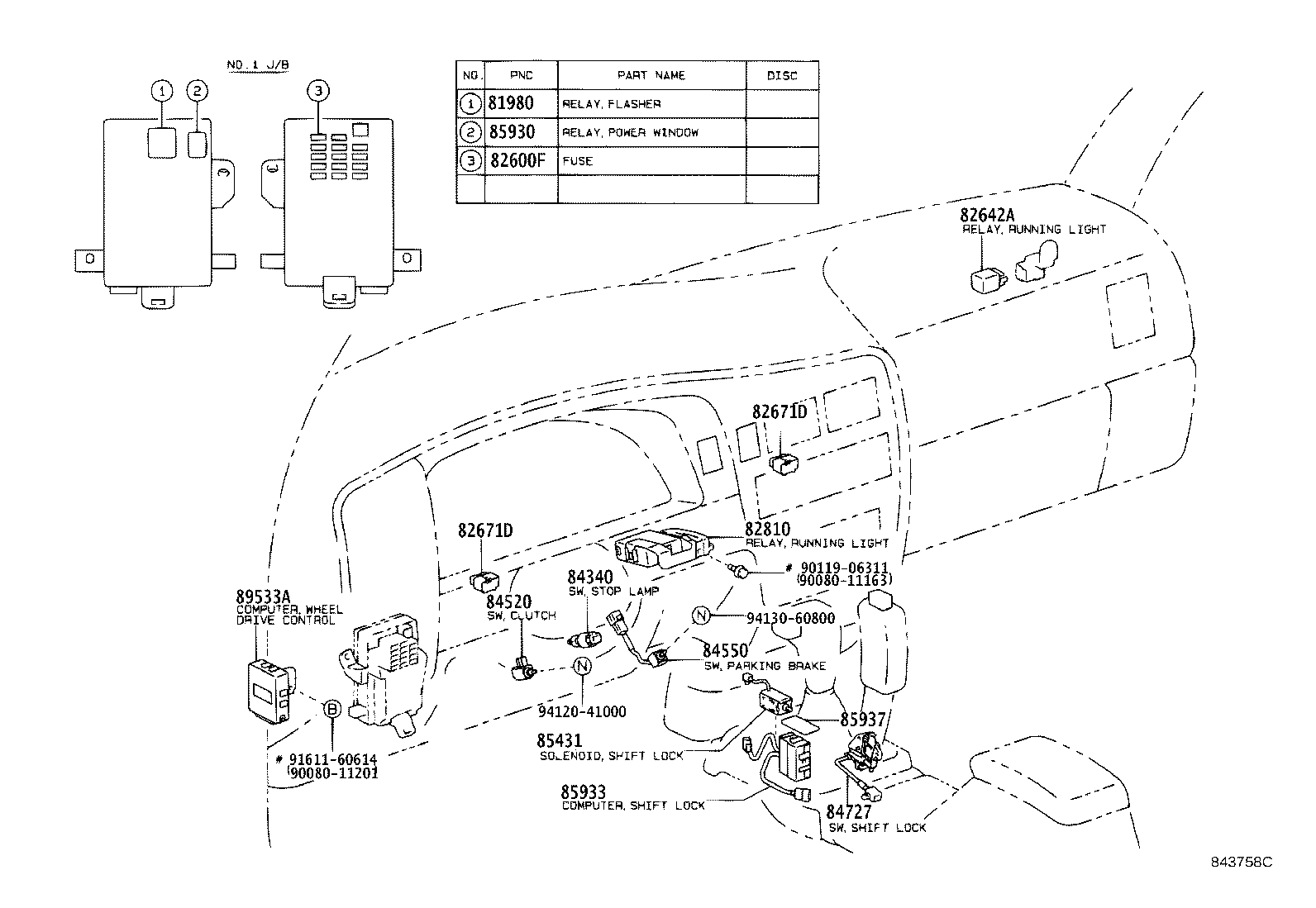

843758C 2000-09 → 2004-09

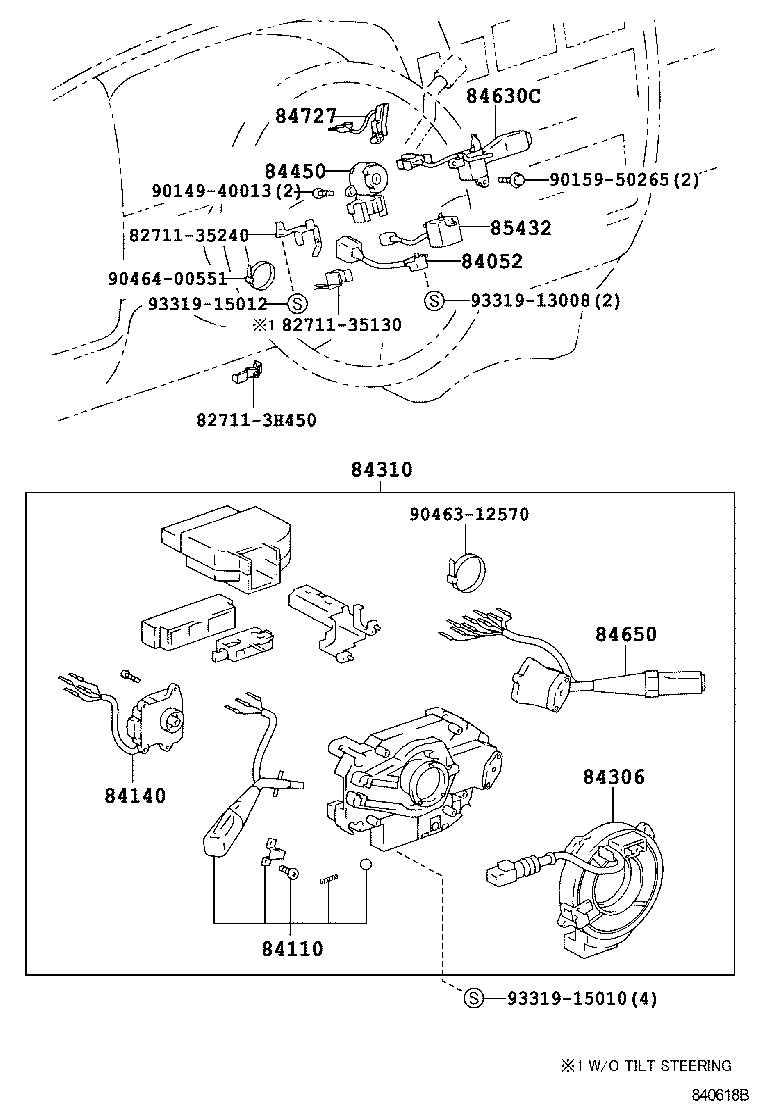

840618B 1995-01 → 1997-06

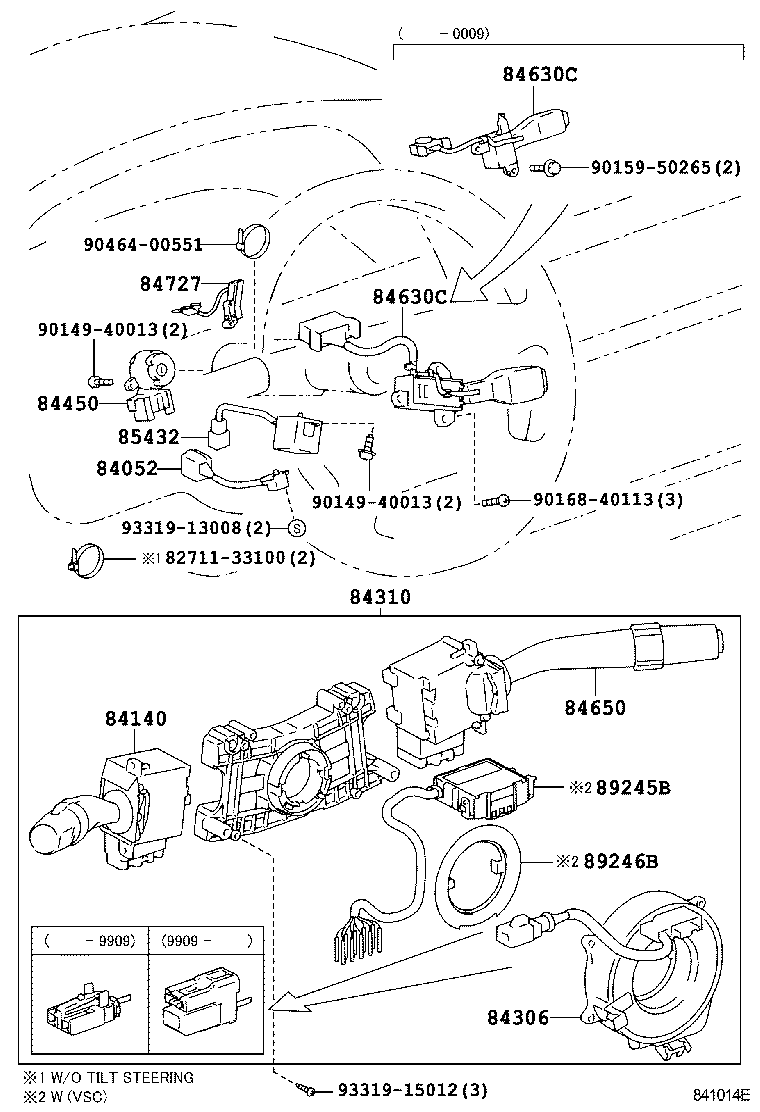

841014E 1997-06 → 2004-09

840703B 1995-01 → 2004-09

843756 2000-09 → 2004-09

Part groups

PNC	Description
28300	Relay Assy, Starter
81980	Flasher Assy, Turn Signal
82600F	Fuse, Fuse Block
82600G	Plate, Caution(FOR FUSE)
82600M	Fuse, Medium Current
82602	Block Sub-assy, Relay
82616	Puller, Fuse
82641	Relay, Integration NO.1
82642A	Relay, Running Light
82661	Cover, Relay Block, NO.1
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82671D	Block, Junction
82690	Resistor Assy, Dim Dip Lamp
82741	Block, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
82810	Relay Assy, Running Light
83320	Gage Assy, Fuel Sender
83420	Gage Assy, Water Temperature Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
84052	Switch Assy, Un-lock Warning
84110	Switch Assy, Light Control, NO.1
84118	Knob, Light Control Rheostat
84119	Rheostat, Light Control
84140	Switch Assy, Headlamp Dimmer
84210	Switch Assy, Back-up Lamp
84222	Switch, Transfer Indicator, NO.1
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B	Cushion, Courtesy Switch (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234B	Cushion, Courtesy Switch (FOR REAR DOOR)
84306	Cable Sub-assy, Spiral
84310	Switch Assy, Turn Signal
84330	Switch Assy, Hazard Warning Signal
84330B	Bulb, Hazard Warning Signal Switch
84340	Switch Assy, Stop Lamp
84450	Switch Assy, Ignition OR Starter
84520	Switch Assy, Clutch Start
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84630C	Switch Assy, Speed Control Main
84650	Switch Assy, Windshield Wiper
84660C	Switch, Cooler
84660D	Bulb(FOR COOLER SWITCH)
84720A	Switch Assy, Pattern Select, NO.1
84725	Switch, Center Differential Lock
84725B	Blub, Differential Lock Switch
84727	Switch, Shift Lock Control
84730	Switch Assy, Heater Blower
84750A	Switch Assy, Seat
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84820	Master Switch Assy, Power Window Regulator
84870A	Switch Assy, Outer Mirror
84930	Switch Assy, Door Control
84931B	Switch, Door Control
84988F	Switch, Traction Control
84988G	Bulb, Traction Control Switch
85431	Solenoid, Shift Lock
85432	Solenoid, Key Interlock
85500	Lighter Assy, Cigarette
85500B	Bulb, Cigarette Lighter
85510	Socket & Retainer Assy, Cigarlighter
85513	Cover, Cigarette Lighter
85515	Stay, Cigarette Lighter Bezel
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85530A	Relay, Power Outlet Socket
85533	Lens, Cigarette Lighter Indicator
85535B	Cover, Power Outlet Socket, NO.1
85539	Label, Power Outlet Notice
85910C	Relay Assy (FOR HEATER BLOWER MOTOR)
85916C	Relay, Back UP Lamp
85916N	Relay, Taillamp
85916P	Relay, Headlamp
85926	Relay, Headlamp Dimmer
85930	Relay Assy, Power Window
85933	Computer, Shift Lock Control
85937	Protector, Shift Lock Control
85980	Relay Assy, Door Control
86530	Relay Assy, Horn
89245B	Sensor, Steering
89246B	Disc, Sensor Steering
89437	Cover, Sensor
89438	Switch, Power Steering Oil Pressure
89465	Sensor, Oxygen
89466	Gasket, Oxygen Sensor
89467B	Sensor, Air Fuel Ratio
89533A	Computer, 4 Wheel Drive Control, NO.2
89615	Sensor, Knock Control
89620	Igniter Assy
89629	Bracket, Igniter Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
