Toyota Tacoma

1995-01 → 2004-09 · chassis RZN140,150,19#,VZN150,195 · catalogue 675460 · United States

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

8 part groups · 4 illustrations

Illustrations

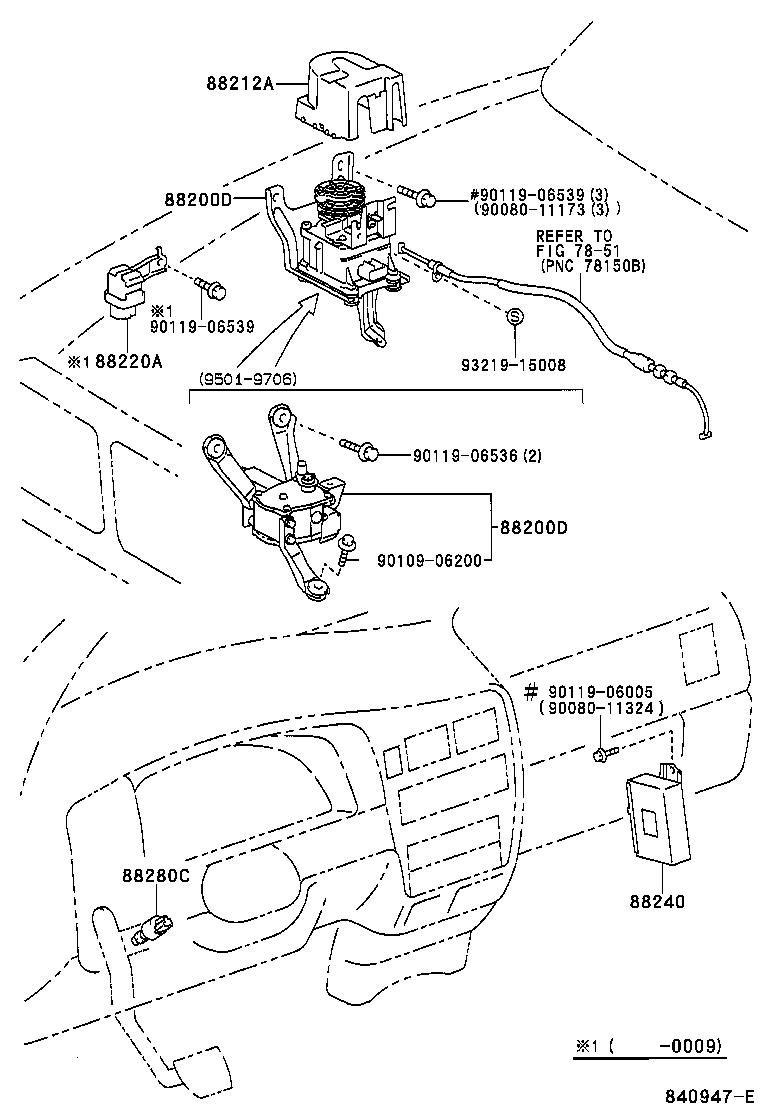

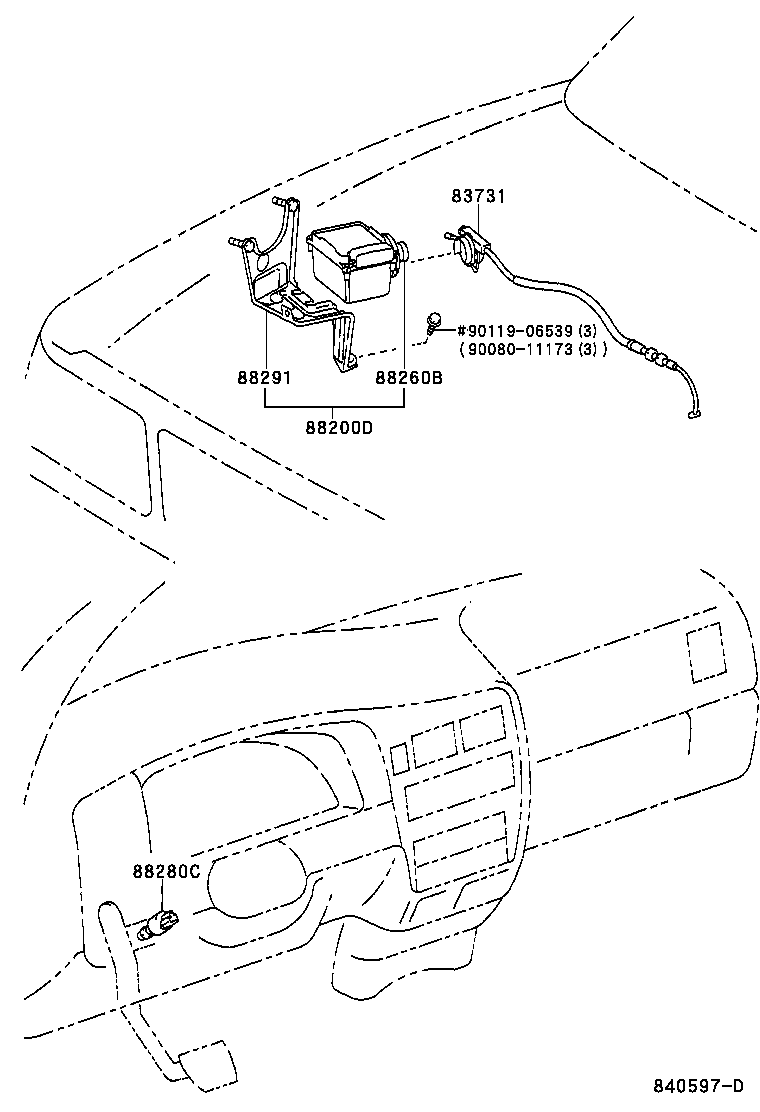

Figure 840943B 840943B 1995-01 → 1996-09 Figure 840947F 840947F 1995-01 → — Figure 840597D 840597D 1996-09 → 2000-09 Figure 843735 843735 2000-09 → —

Part groups

PNCDescription
83731 Cable, Cruise Control
88200D Actuator Assy, Cruise Control
88212A Cover, Cruise Control Actuator
88220A Relay Assy, Speed Control Main
88240 Computer Assy, Cruise Control
88260B Actuator Assy, Cruise Control W/Computer
88280C Switch Assy, Clutch
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
