Toyota Tacoma
1995-01 → 2004-09 · chassis RZN140,150,19#,VZN150,195 · catalogue 675460 · United States
Discontinued model
Data version 2005-04
Overdrive & Electronic Controlled Transmission

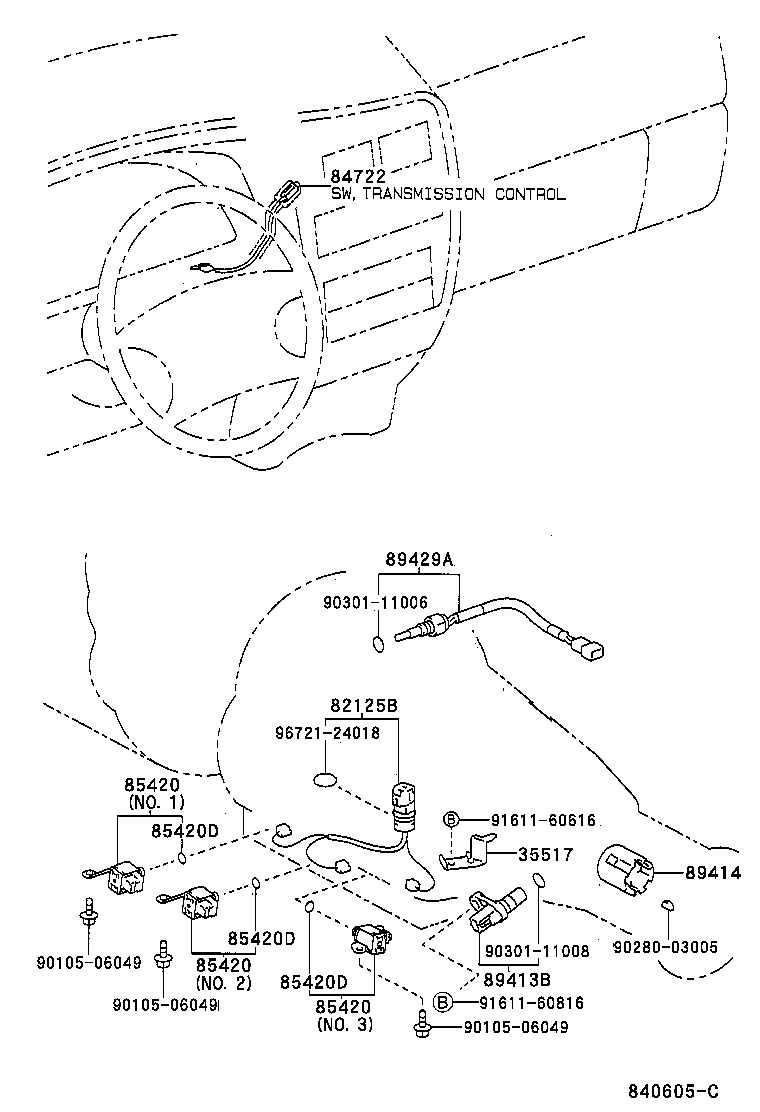

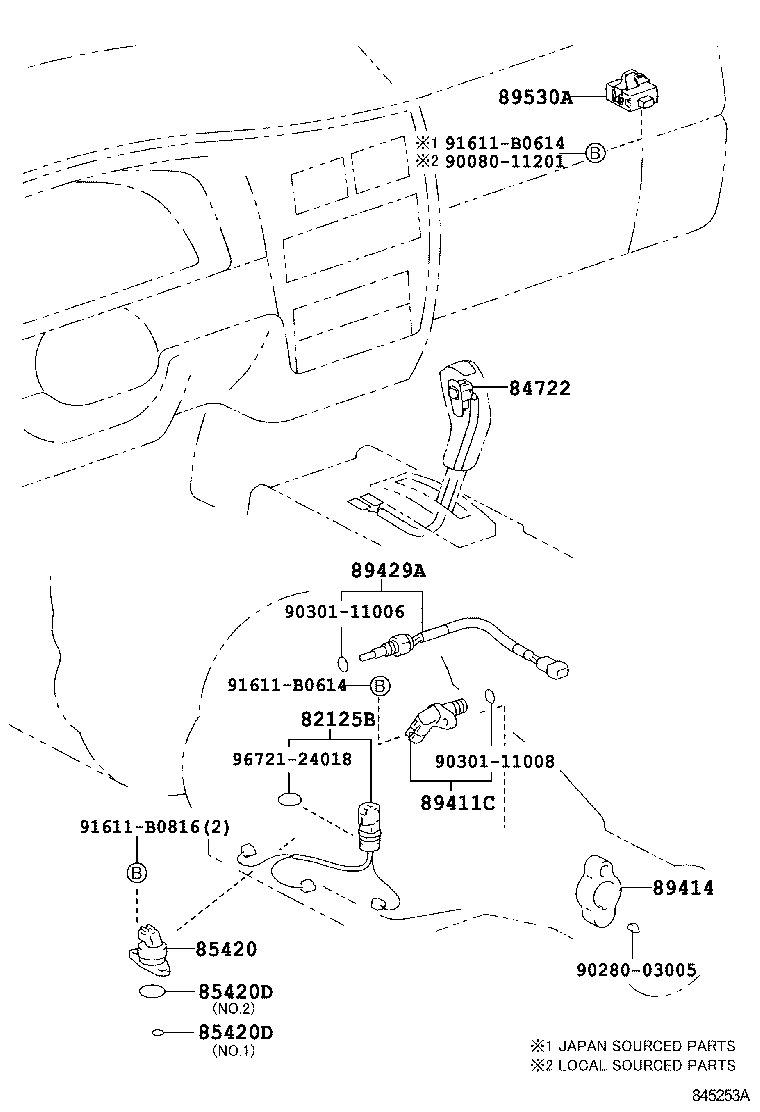

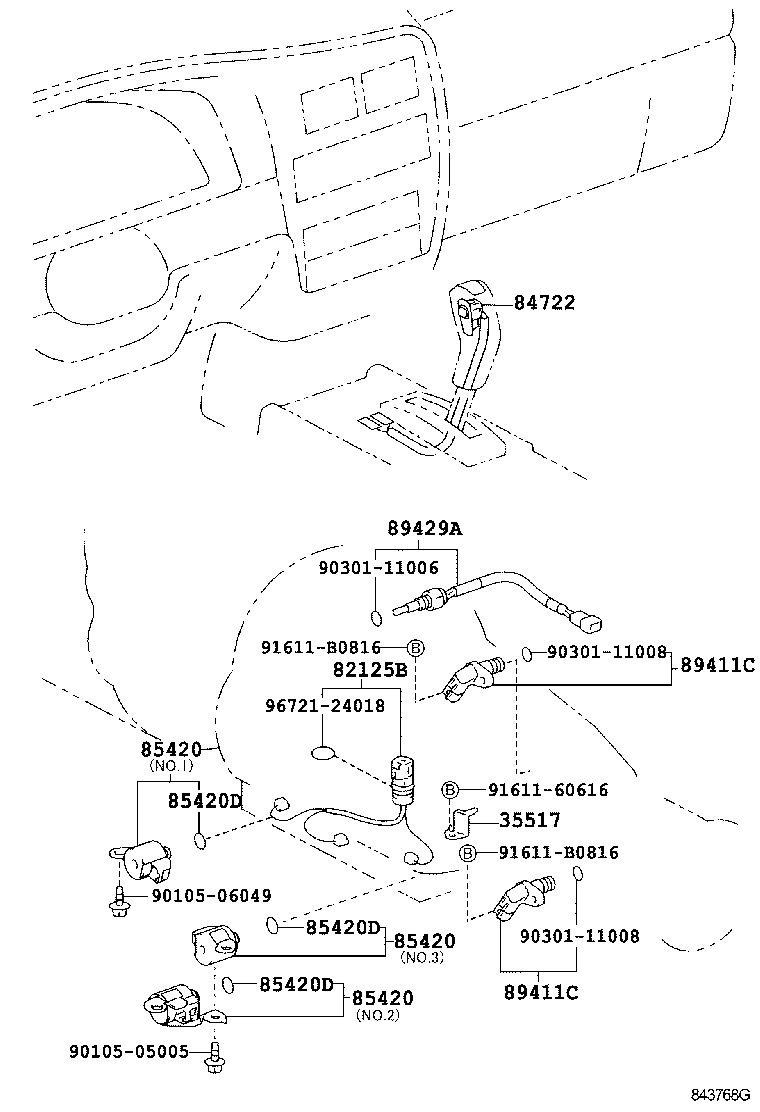

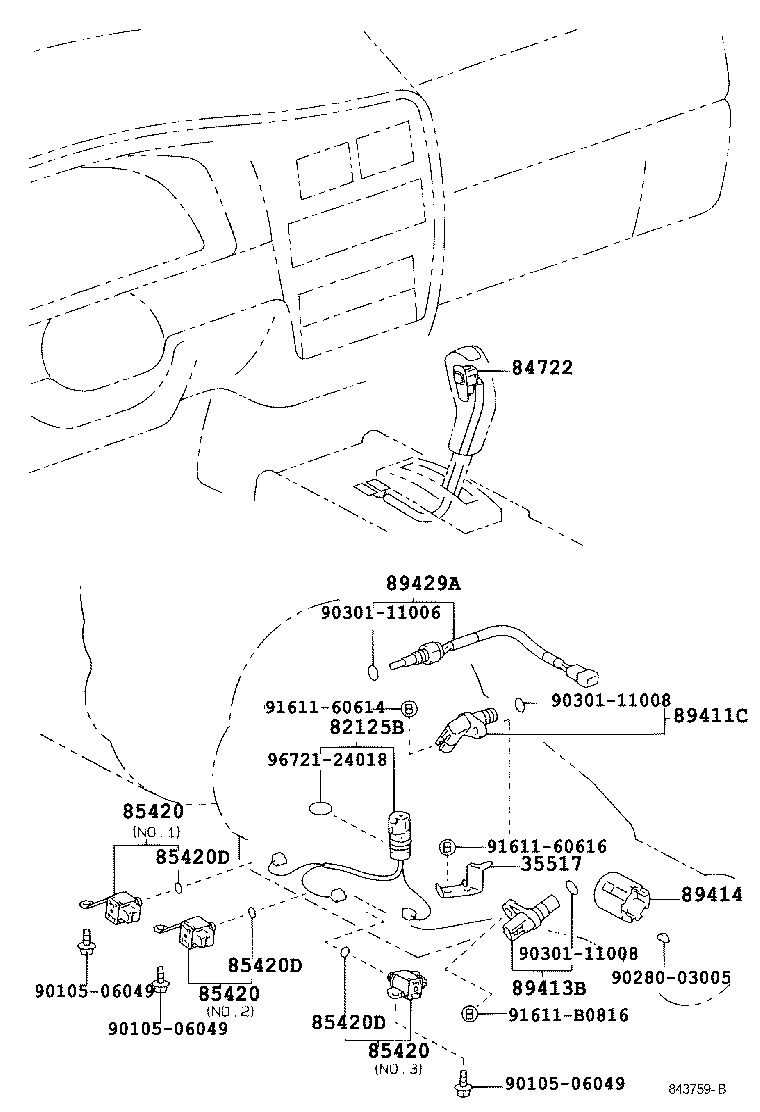

10 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 35517 | Plate, Transmission Wire Lock |
| 82125B | Wire, Transmission |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
| 89414 | Rotor, Sensor |
| 89429A | Sensor, Temperature |
| 89530A | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
