Toyota Hiace
2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States
Supported model
Data version 2014-08

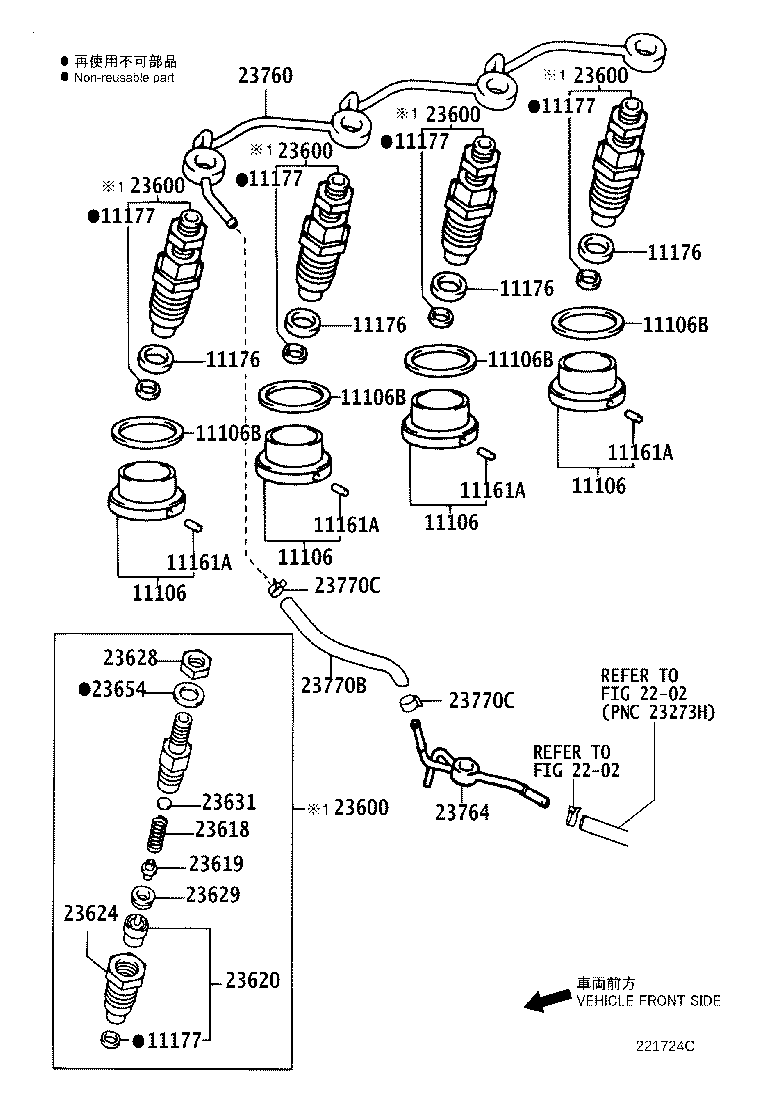

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11106 — Chamber Sub-assy, Combustion | ||||
| 11106-54170 |
Chamber Sub-assy, Combustion
2006-09 → 2008-10
ended
|
5LE LH212 10S | — | |
| 11106-54170 |
Chamber Sub-assy, Combustion
2006-09 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 11106-54171 |
Chamber Sub-assy, Combustion
2005-01 → 2006-09
ended
|
5LE LH20#,212,222 | — | |
| 11106B — Shim(FOR COMBUSTION CHAMBER) | ||||
| 11165-54030 note |
Shim(FOR COMBUSTION CHAMBER)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 11165-54030 note |
Shim(FOR COMBUSTION CHAMBER)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 11161A — Pin, Straight(FOR COMBUSTION CHAMBER) | ||||
| 90250-02046 |
Pin, Straight(FOR COMBUSTION CHAMBER)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 90250-02046 |
Pin, Straight(FOR COMBUSTION CHAMBER)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 11176 — Seat, Injection Nozzle | ||||
| 11176-05010 note |
Seat, Injection Nozzle
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 11176-05010 note |
Seat, Injection Nozzle
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 11176-0L010 |
Seat, Injection Nozzle
2005-08 → 2008-01
ended
|
2KDFTV KDH202 MA,TH;2KDFTV KDH202 +4 | — | |
| 11176-0L010 note |
Seat, Injection Nozzle
2007-09 → 2008-01
ended
|
2KDFTV KDH202 TH | — | |
| 11176-0L010 note |
Seat, Injection Nozzle
2006-02 → 2008-01
ended
|
2KDFTV KDH200 TH | — | |
| 11176-0L010 |
Seat, Injection Nozzle
2005-08 → 2005-12
ended
|
2KDFTV KDH212 STD | — | |
| 11176-0L010 note |
Seat, Injection Nozzle
2006-02 → 2006-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 11176-0L010 note |
Seat, Injection Nozzle
2006-02 → 2006-10
ended
|
2KDFTV KDH20# RHD SRF +4 | — | |
| 11176-0L010 note |
Seat, Injection Nozzle
2005-12 → 2007-09
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
| 11176-0L011 note |
Seat, Injection Nozzle
2008-01 → 2013-09
ended
|
2KDFTV KDH202 TH | — | |
| 11176-0L011 note |
Seat, Injection Nozzle
2008-01 → 2012-05
ended
|
2KDFTV KDH200 TH | — | |
| 11176-0L011 |
Seat, Injection Nozzle
2008-01 → 2014-01
ended
|
2KDFTV KDH200,212 MA,VN;1KDFTV,2KDFTV KDH202,203 +2 | — | |
| 11176-0L011 |
Seat, Injection Nozzle
2013-10 → 2014-01
ended
|
1KDFTV KDH223 TH | — | |
| 11176-30010 |
Seat, Injection Nozzle
2005-01 → 2007-10
ended
|
2KDFTV L,GCC,GEN,SA,TH;2KDFTV KDH212 KDH202,212 +9 | — | |
| 11176-30010 note |
Seat, Injection Nozzle
2007-09 → 2007-10
ended
|
2KDFTV KDH202 TH | — | |
| 11176-30010 note |
Seat, Injection Nozzle
2005-12 → 2007-10
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
| 11176-30010 |
Seat, Injection Nozzle
2005-12 → 2007-10
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
| 11176-30010 note |
Seat, Injection Nozzle
2005-01 → 2007-10
ended
|
2KDFTV KDH202 RHD SRF +7 | — | |
| 11176-30010 note |
Seat, Injection Nozzle
2005-01 → 2007-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 11176-30010 note |
Seat, Injection Nozzle
2005-01 → 2007-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 11176-30011 note |
Seat, Injection Nozzle
2007-10 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 11176-30011 |
Seat, Injection Nozzle
2011-10 → 2014-02
ended
|
1KDFTV KDH201 SP 06S | — | |
| 11176-30011 note |
Seat, Injection Nozzle
2009-10 → 2014-02
ended
|
2KDFTV KDH220,222 STD SA | — | |
| 11176-30011 |
Seat, Injection Nozzle
2007-10 → 2014-02
ended
|
1KDFTV,2KDFTV 200,201,203,220,221 KDH201,202,212,222,223 (03S,12S,14S) +5 | — | |
| 11176-30011 |
Seat, Injection Nozzle
2007-10 → 2013-10
ended
|
1KDFTV KDH223 TH | — | |
| 11176-30011 note |
Seat, Injection Nozzle
2012-05 → 2013-09
ended
|
2KDFTV KDH222 TH | — | |
| 11176-30011 note |
Seat, Injection Nozzle
2007-10 → 2013-09
ended
|
2KDFTV KDH202 STD TH | — | |
| 11176-30011 note |
Seat, Injection Nozzle
2007-10 → 2013-09
ended
|
2KDFTV KDH200 TH | — | |
| 11176-30011 note |
Seat, Injection Nozzle
2007-10 → 2012-08
ended
|
2KDFTV KDH202 GL | — | |
| 11176-30011 |
Seat, Injection Nozzle
2007-10 → 2012-05
ended
|
2KDFTV KDH222 TH | — | |
| 11176-30011 |
Seat, Injection Nozzle
2007-10 → 2011-10
ended
|
1KDFTV KDH201 SP 06S | — | |
| 11176-30011 note |
Seat, Injection Nozzle
2007-10 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 11176-30011 note |
Seat, Injection Nozzle
2007-10 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 11176-30011 note |
Seat, Injection Nozzle
2007-10 → 2009-10
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
| 11176-64010 note |
Seat, Injection Nozzle
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 11176-64010 note |
Seat, Injection Nozzle
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 11177 — Gasket, Injection Nozzle Seat | ||||
| 11177-54020 |
Gasket, Injection Nozzle Seat
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 11177-54020 |
Gasket, Injection Nozzle Seat
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23600 — Holder & Nozzle Set, Nozzle | ||||
| 23600-59325 |
Holder & Nozzle Set, Nozzle
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23600-59325 |
Holder & Nozzle Set, Nozzle
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23618 — Spring, Nozzle Holder Pressure | ||||
| 23618-64080 |
Spring, Nozzle Holder Pressure
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23618-64080 |
Spring, Nozzle Holder Pressure
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23619 — Pin, Nozzle Holder Pressure | ||||
| 23619-64010 |
Pin, Nozzle Holder Pressure
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23619-64010 |
Pin, Nozzle Holder Pressure
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23620 — Nozzle Assy | ||||
| 23620-69115 |
Nozzle Assy
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23620-69115 |
Nozzle Assy
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23624 — Nut, Nozzle Retaining | ||||
| 23624-64041 |
Nut, Nozzle Retaining
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23624-64041 |
Nut, Nozzle Retaining
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23628 — Nut(FOR RING PACKING SETTING) | ||||
| 23628-64010 |
Nut(FOR RING PACKING SETTING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23628-64010 |
Nut(FOR RING PACKING SETTING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23629 — Piece, Distance(FOR NOZZLE) | ||||
| 23629-54080 |
Piece, Distance(FOR NOZZLE)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23629-54080 |
Piece, Distance(FOR NOZZLE)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23631 — Washer(FOR NOZZLE HOLDER PRESSURE SPRING) | ||||
| 23631-64010 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23631-64010 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23631-64012 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23631-64012 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23631-64014 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23631-64014 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23631-64016 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23631-64016 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23631-64018 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23631-64018 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23632-64010 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23632-64010 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23632-64012 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23632-64012 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23632-64014 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23632-64014 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23632-64016 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23632-64016 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23632-64018 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23632-64018 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23633-64010 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23633-64010 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23633-64012 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23633-64012 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23633-64014 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23633-64014 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23633-64016 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23633-64016 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23633-64018 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23633-64018 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23634-64010 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23634-64010 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23634-64012 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23634-64012 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23634-64014 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23634-64014 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23634-64016 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23634-64016 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23634-64018 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23634-64018 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23635-64010 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23635-64010 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23635-64012 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23635-64012 note |
Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23654 — Washer(FOR RING PACKING) | ||||
| 23654-64010 |
Washer(FOR RING PACKING)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23654-64010 |
Washer(FOR RING PACKING)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23760 — Pipe Assy, Nozzle Leakage | ||||
| 23760-0L010 |
Pipe Assy, Nozzle Leakage
2005-08 → 2005-12
ended
|
2KDFTV KDH212 STD | — | |
| 23760-0L010 note |
Pipe Assy, Nozzle Leakage
2006-02 → 2006-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 23760-0L010 note |
Pipe Assy, Nozzle Leakage
2006-02 → 2006-10
ended
|
2KDFTV KDH20# RHD SRF +4 | — | |
| 23760-0L010 note |
Pipe Assy, Nozzle Leakage
2005-12 → 2007-09
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
| 23760-0L010 |
Pipe Assy, Nozzle Leakage
2013-10 → 2014-01
ended
|
1KDFTV KDH223 TH | — | |
| 23760-0L010 |
Pipe Assy, Nozzle Leakage
2005-08 → 2014-01
ended
|
2KDFTV H KDH202 HRF +5 | — | |
| 23760-0L010 note |
Pipe Assy, Nozzle Leakage
2006-02 → 2012-05
ended
|
2KDFTV KDH200 TH | — | |
| 23760-0L010 note |
Pipe Assy, Nozzle Leakage
2007-09 → 2013-09
ended
|
2KDFTV KDH202 TH | — | |
| 23760-30020 note |
Pipe Assy, Nozzle Leakage
2005-01 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 23760-30020 |
Pipe Assy, Nozzle Leakage
2011-10 → 2014-02
ended
|
1KDFTV KDH201 SP 06S | — | |
| 23760-30020 note |
Pipe Assy, Nozzle Leakage
2009-10 → 2014-02
ended
|
2KDFTV KDH220,222 STD SA | — | |
| 23760-30020 |
Pipe Assy, Nozzle Leakage
2005-12 → 2014-02
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
| 23760-30020 |
Pipe Assy, Nozzle Leakage
2005-01 → 2014-02
ended
|
1KDFTV RF DH200,212,220,221,223 KDH201 +15 | — | |
| 23760-30020 |
Pipe Assy, Nozzle Leakage
2005-01 → 2013-10
ended
|
1KDFTV KDH223 TH | — | |
| 23760-30020 note |
Pipe Assy, Nozzle Leakage
2012-05 → 2013-09
ended
|
2KDFTV KDH222 TH | — | |
| 23760-30020 note |
Pipe Assy, Nozzle Leakage
2005-01 → 2013-09
ended
|
2KDFTV KDH200 TH;2KDFTV KDH202 +4 | — | |
| 23760-30020 note |
Pipe Assy, Nozzle Leakage
2007-09 → 2012-08
ended
|
2KDFTV KDH202 GL | — | |
| 23760-30020 |
Pipe Assy, Nozzle Leakage
2005-01 → 2012-05
ended
|
2KDFTV KDH222 TH | — | |
| 23760-30020 |
Pipe Assy, Nozzle Leakage
2005-01 → 2011-10
ended
|
1KDFTV KDH201 SP 06S | — | |
| 23760-30020 note |
Pipe Assy, Nozzle Leakage
2005-12 → 2009-10
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
| 23760-30020 note |
Pipe Assy, Nozzle Leakage
2005-01 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 23760-30020 note |
Pipe Assy, Nozzle Leakage
2005-01 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 23760-30020 note |
Pipe Assy, Nozzle Leakage
2007-09 → 2013-09
ended
|
2KDFTV KDH202 STD TH | — | |
| 23760-54030 |
Pipe Assy, Nozzle Leakage
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23760-54030 |
Pipe Assy, Nozzle Leakage
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23764 — Pipe, Nozzle Leakage, NO.4 | ||||
| 23764-54130 |
Pipe, Nozzle Leakage, NO.4
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 23764-54130 |
Pipe, Nozzle Leakage, NO.4
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 23770B — Hose, Fuel | ||||
| 23271-30330 |
Hose, Fuel
2012-12 → 2013-12
ended
|
1KDFTV KDH201,203 LHD | — | |
| 23271-30330 |
Hose, Fuel
2011-10 → 2013-12
ended
|
1KDFTV KDH201 SP 06S | — | |
| 95333-04020 note |
Hose, Fuel
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 95333-04020 note |
Hose, Fuel
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 95333-06010 note |
Hose, Fuel
2007-09 → 2008-05
ended
|
2KDFTV KDH202 TH | — | |
| 95333-06010 note |
Hose, Fuel
2006-02 → 2006-10
ended
|
2KDFTV KDH20# RHD SRF +4 | — | |
| 95333-06010 note |
Hose, Fuel
2006-02 → 2008-05
ended
|
2KDFTV KDH200 TH | — | |
| 95333-06010 note |
Hose, Fuel
2005-12 → 2007-09
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
| 95333-06010 note |
Hose, Fuel
2006-02 → 2006-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 95333-06010 note |
Hose, Fuel
2005-01 → 2006-02
ended
|
2KDFTV KDH20# RHD 4D +3 | — | |
| 95333-06010 note |
Hose, Fuel
2005-01 → 2008-05
ended
|
2KDFTV KDH202 MA,TH;2KDFTV KDH202 +4 | — | |
| 95333-06010 note |
Hose, Fuel
2005-01 → 2006-02
ended
|
2KDFTV KDH20#,212,22# | — | |
| 95333-06010 note |
Hose, Fuel
2005-01 → 2006-02
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 95333-06010 note |
Hose, Fuel
2005-01 → 2006-02
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 95337-06010 note |
Hose, Fuel
2012-05 → 2013-09
ended
|
2KDFTV KDH200 TH | — | |
| 95337-06010 note |
Hose, Fuel
2009-10 → 2014-02
ended
|
2KDFTV KDH220,222 STD SA | — | |
| 95337-06010 note |
Hose, Fuel
2008-05 → 2014-02
ended
|
2KDFTV KDH202 RHD 12S;2KDFTV +2 | — | |
| 95337-06010 note |
Hose, Fuel
2006-02 → 2014-02
ended
|
1KDFTV A;2KDFTV N,RUS,SA,TH KDH201 +12 | — | |
| 95337-06010 note |
Hose, Fuel
2012-05 → 2013-09
ended
|
2KDFTV KDH222 TH | — | |
| 95337-06010 note |
Hose, Fuel
2007-09 → 2013-09
ended
|
2KDFTV KDH202 STD TH | — | |
| 95337-06010 note |
Hose, Fuel
2006-02 → 2012-12
ended
|
1KDFTV KDH201,203 LHD | — | |
| 95337-06010 note |
Hose, Fuel
2006-02 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 95337-06010 note |
Hose, Fuel
2006-02 → 2009-10
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
| 95337-06010 note |
Hose, Fuel
2006-02 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 95337-06010 note |
Hose, Fuel
2006-02 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 95337-06010 note |
Hose, Fuel
2006-02 → 2011-10
ended
|
1KDFTV KDH201 SP 06S | — | |
| 95337-06010 note |
Hose, Fuel
2006-02 → 2012-05
ended
|
2KDFTV KDH222 TH | — | |
| 95337-06010 note |
Hose, Fuel
2008-05 → 2012-05
ended
|
2KDFTV KDH200 TH | — | |
| 95337-06010 note |
Hose, Fuel
2007-09 → 2012-08
ended
|
2KDFTV KDH202 GL | — | |
| 95337-06010 note |
Hose, Fuel
2006-02 → 2013-09
ended
|
2KDFTV KDH202 RHD SRF +2 | — | |
| 23770C — Clamp OR Clip(FOR FUEL HOSE SET) | ||||
| 90466-T0022 |
Clamp OR Clip(FOR FUEL HOSE SET)
2013-10 → 2014-01
ended
|
1KDFTV KDH223 TH | — | |
| 90466-T0022 |
Clamp OR Clip(FOR FUEL HOSE SET)
2012-07 → 2014-01
ended
|
2KDFTV KDH200 MA;1KDFTV,2KDFTV KDH202,203 +2 | — | |
| 90466-T0022 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2012-07 → 2013-09
ended
|
2KDFTV KDH202 TH | — | |
| 90466-T0043 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2006-02 → 2006-10
ended
|
2KDFTV KDH20# RHD SRF +4 | — | |
| 90466-T0043 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2007-09 → 2012-07
ended
|
2KDFTV KDH202 TH | — | |
| 90466-T0043 |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-08 → 2012-07
ended
|
2KDFTV KDH202 MA,TH;2KDFTV KDH202 +4 | — | |
| 90466-T0043 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2006-02 → 2012-05
ended
|
2KDFTV KDH200 TH | — | |
| 90466-T0043 |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-08 → 2005-12
ended
|
2KDFTV KDH212 STD | — | |
| 90466-T0043 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2006-02 → 2006-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 90466-T0043 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-12 → 2007-09
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
| 96132-51000 |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-01 → —
|
5LE LH20#,212,222 03S,12S,15S,16S | — | |
| 96132-51000 |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-01 → 2008-10
ended
|
5LE LH212 10S | — | |
| 96135-51100 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2012-05 → 2013-09
ended
|
2KDFTV KDH222 TH | — | |
| 96135-51100 |
Clamp OR Clip(FOR FUEL HOSE SET)
2011-10 → 2014-02
ended
|
1KDFTV KDH201 SP 06S | — | |
| 96135-51100 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2009-10 → 2014-02
ended
|
2KDFTV KDH220,222 STD SA | — | |
| 96135-51100 |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-12 → 2014-02
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
| 96135-51100 |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-01 → 2014-02
ended
|
1KDFTV RF DH200,212,220,221,223 KDH201 +15 | — | |
| 96135-51100 |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-01 → 2013-10
ended
|
1KDFTV KDH223 TH | — | |
| 96135-51100 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-01 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 96135-51100 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2007-09 → 2013-09
ended
|
2KDFTV KDH202 STD TH | — | |
| 96135-51100 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-01 → 2013-09
ended
|
2KDFTV KDH200 TH;2KDFTV KDH202 +4 | — | |
| 96135-51100 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2007-09 → 2012-08
ended
|
2KDFTV KDH202 GL | — | |
| 96135-51100 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-01 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 96135-51100 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-01 → 2009-10
ended
|
2KDFTV KDH200 RHD 4D +2 | — | |
| 96135-51100 |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-01 → 2012-05
ended
|
2KDFTV KDH222 TH | — | |
| 96135-51100 |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-01 → 2011-10
ended
|
1KDFTV KDH201 SP 06S | — | |
| 96135-51100 note |
Clamp OR Clip(FOR FUEL HOSE SET)
2005-12 → 2009-10
ended
|
2KDFTV KDH212 LHD STD +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
