Cylinder Head

41 part groups · 13 illustrations

Illustrations

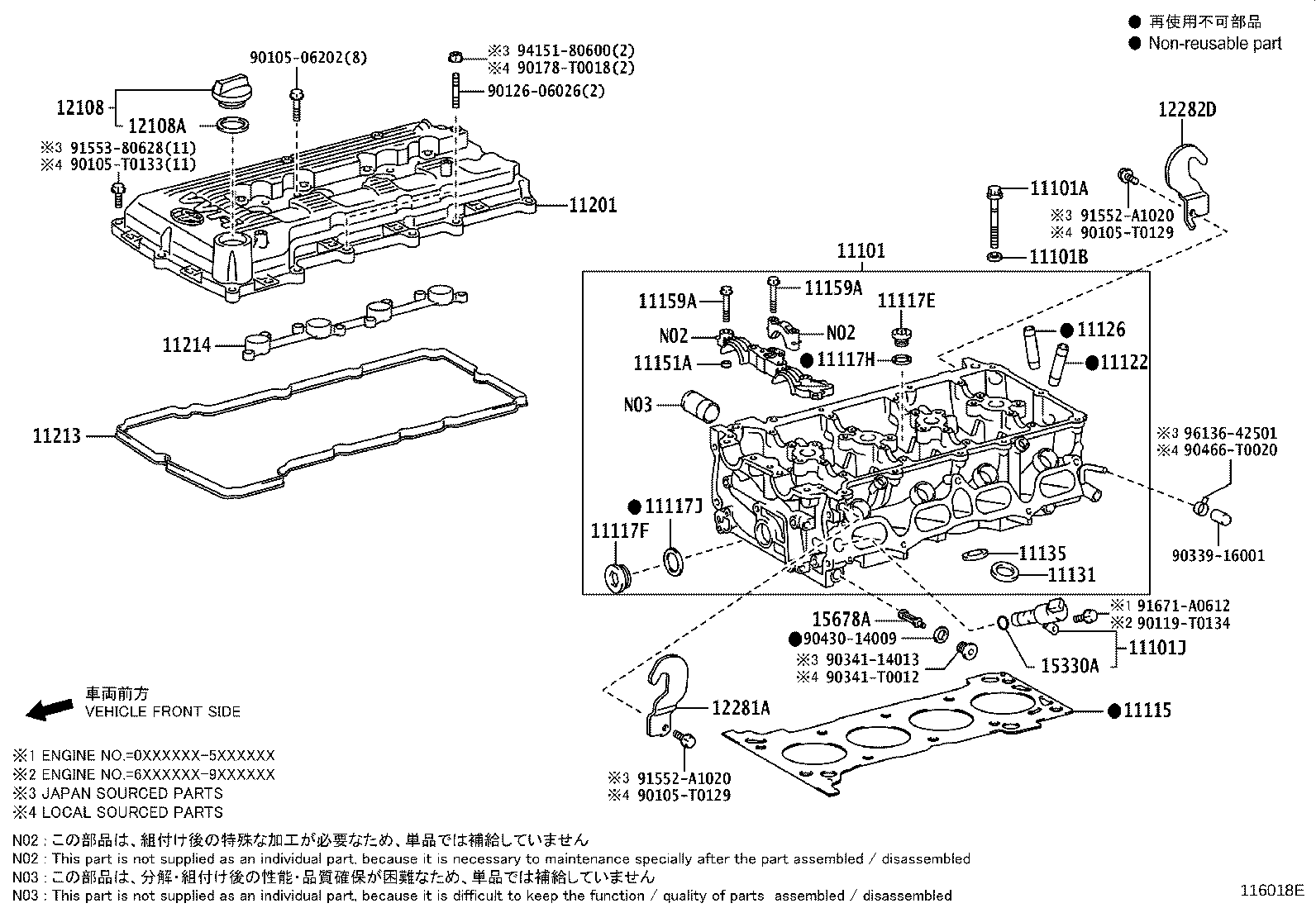

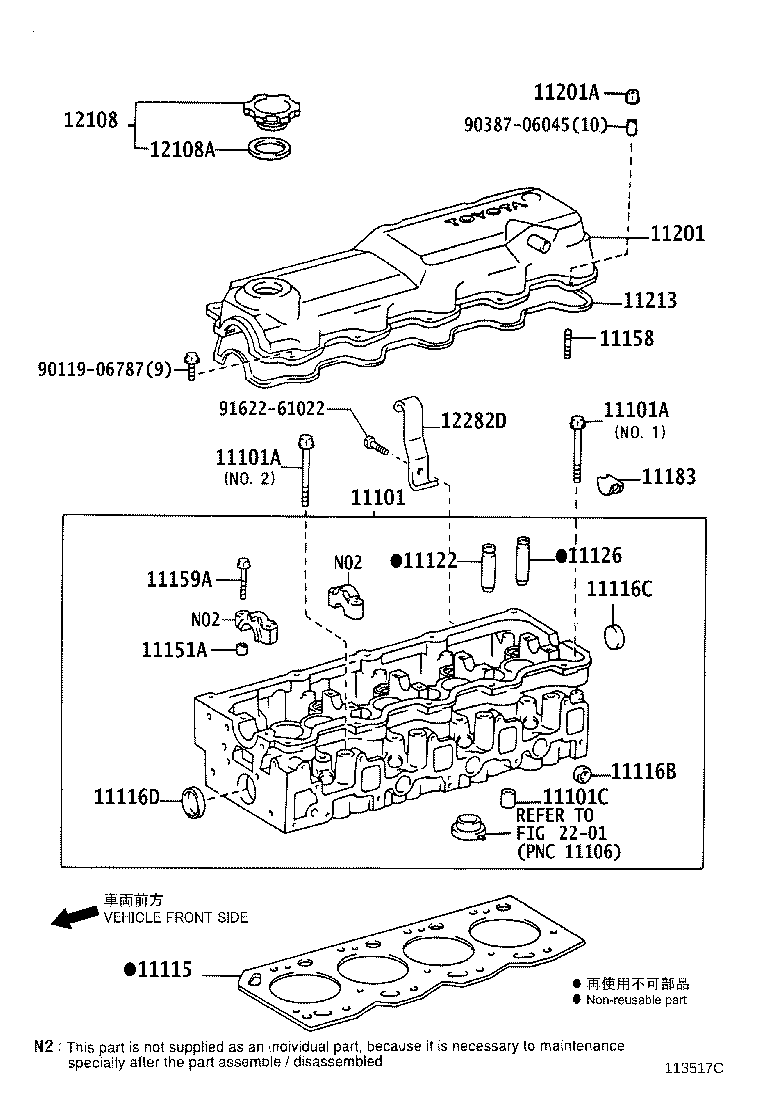

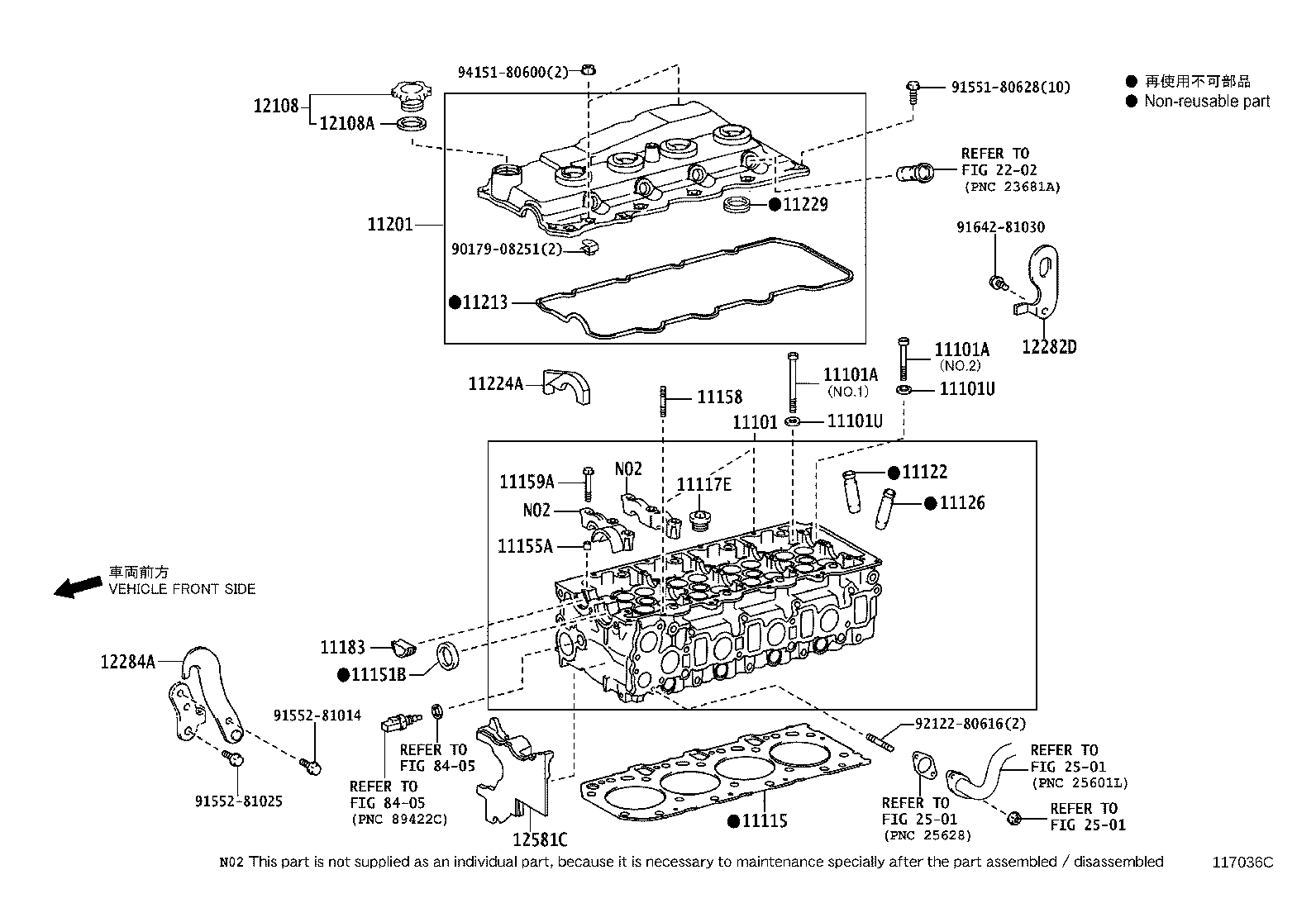

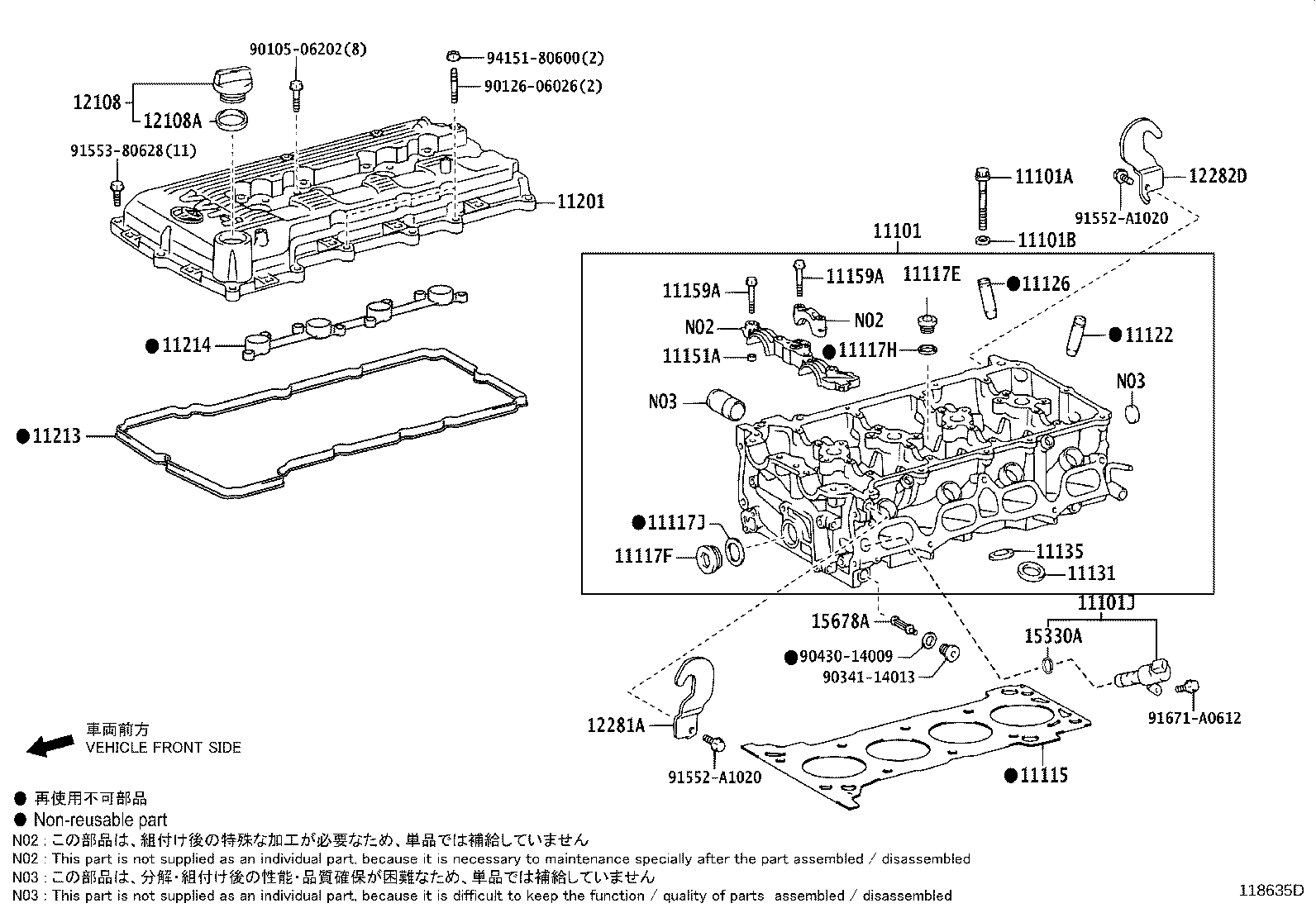

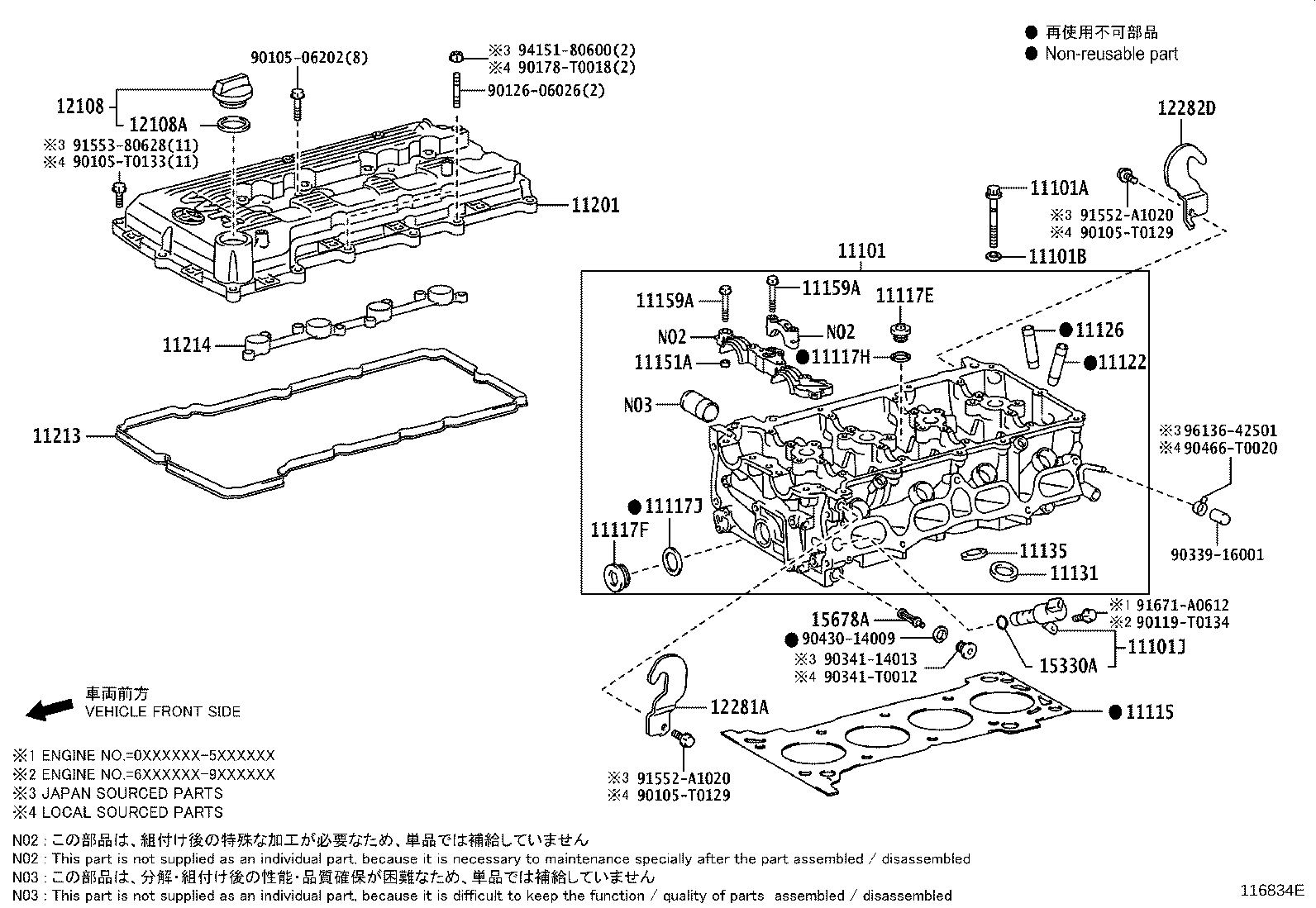

Figure 113629Y 113629Y 2005-01 → 2011-10 Figure 113629Y 113629Y 2011-10 → 2012-12 Figure 113629Y 113629Y 2011-10 → — Figure 113629Y 113629Y 2011-10 → — Figure 117036C 117036C 2011-10 → — Figure 117036C 117036C 2012-12 → — Figure 113517C 113517C 2005-01 → — Figure 116018E 116018E 2005-01 → 2010-08 Figure 116018E 116018E 2005-01 → 2011-06 Figure 116018E 116018E 2005-01 → 2011-06 Figure 116834E 116834E 2010-08 → — Figure 116834E 116834E 2011-06 → — Figure 118635D 118635D 2013-08 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101C Tube(FOR CYLINDER HEAD)
11101J Valve Assy, Camshaft Timing Oil Control
11101U Spacer(FOR CYLINDER HEAD SET BOLT)
11115 Gasket, Cylinder Head
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11116E Plug, Tight, NO.5
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117H Gasket(FOR WATER HOLE)
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151B Seal, Oil(FOR CAMSHAFT SETTING)
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11183 Plug, Semicircular
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11224A Silencer, Cylinder Head Cover, NO.1
11229 Gasket, Cylinder Head Cover, NO.3
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12284A Hanger, Engine, NO.1 Upper
12581C Insulator, Cylinder Block
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
25617A Plate, Egr Hole Cover, NO.2
25628A Gasket, Egr Hole Cover Plate, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
