Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 3 illustrations

Illustrations

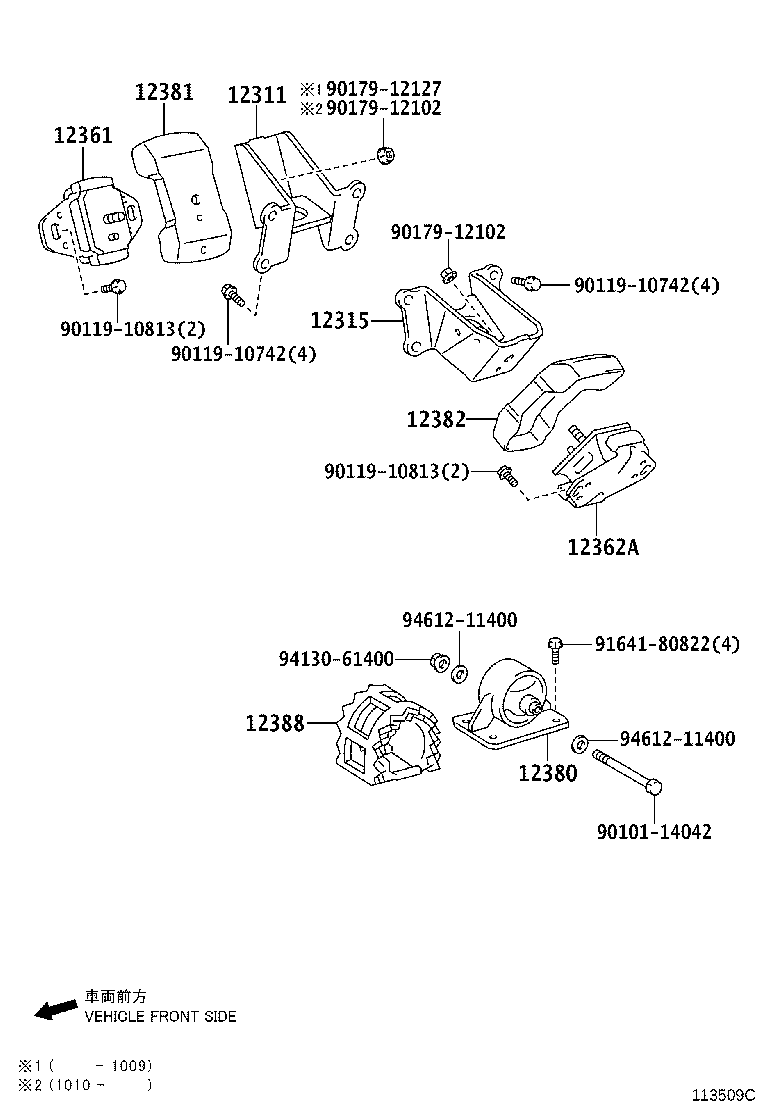

Figure 113496P 113496P 2005-01 → — Figure 113520A 113520A 2005-01 → — Figure 113509C 113509C 2005-01 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12380 Insulator Assy, Engine Mounting, Rear
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12388 Stopper, Engine Mounting Bracket, Rear
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
