Toyota Hiace
2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States
Supported model
Data version 2014-08

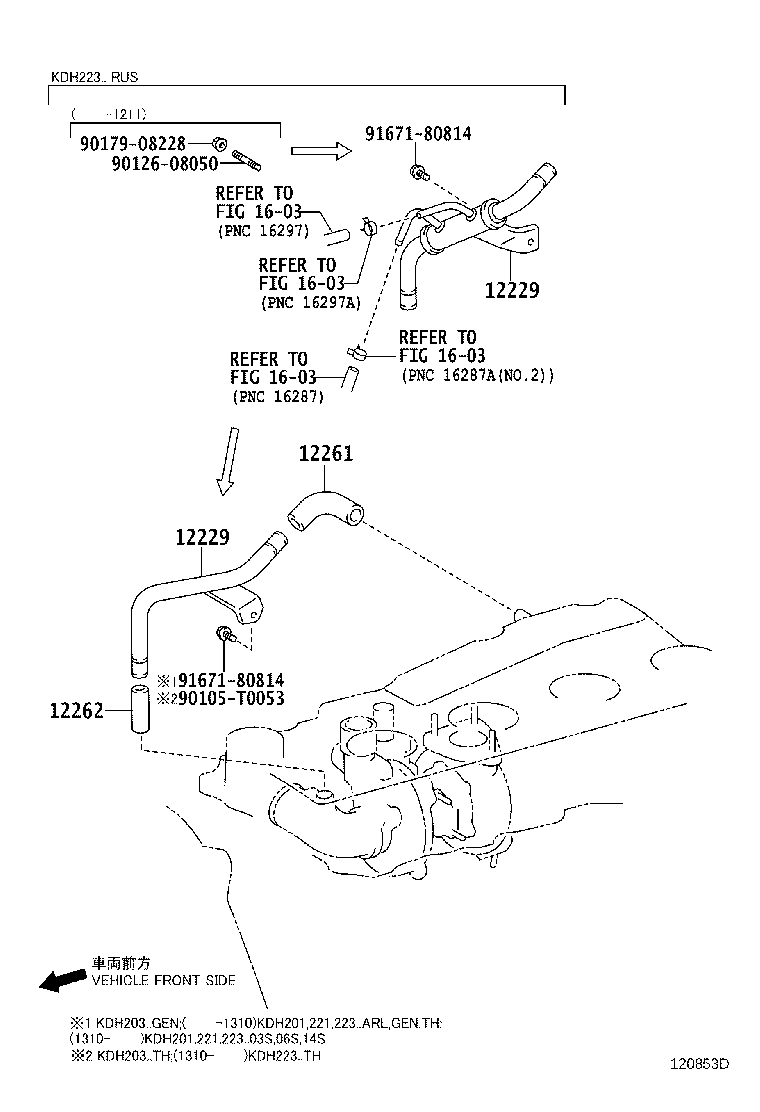

Ventilation Hose
10 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 12203 | Pipe Sub-assy, Ventilation |
| 12204 | Valve Sub-assy, Ventilation |
| 12229 | Pipe, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12263 | Hose, Ventilation, NO.3 |
| 12263A | Clip(FOR VENTILATION HOSE) |
| 12278 | Insulator, Ventilation Hose Heat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
