Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

23 part groups · 9 illustrations

Illustrations

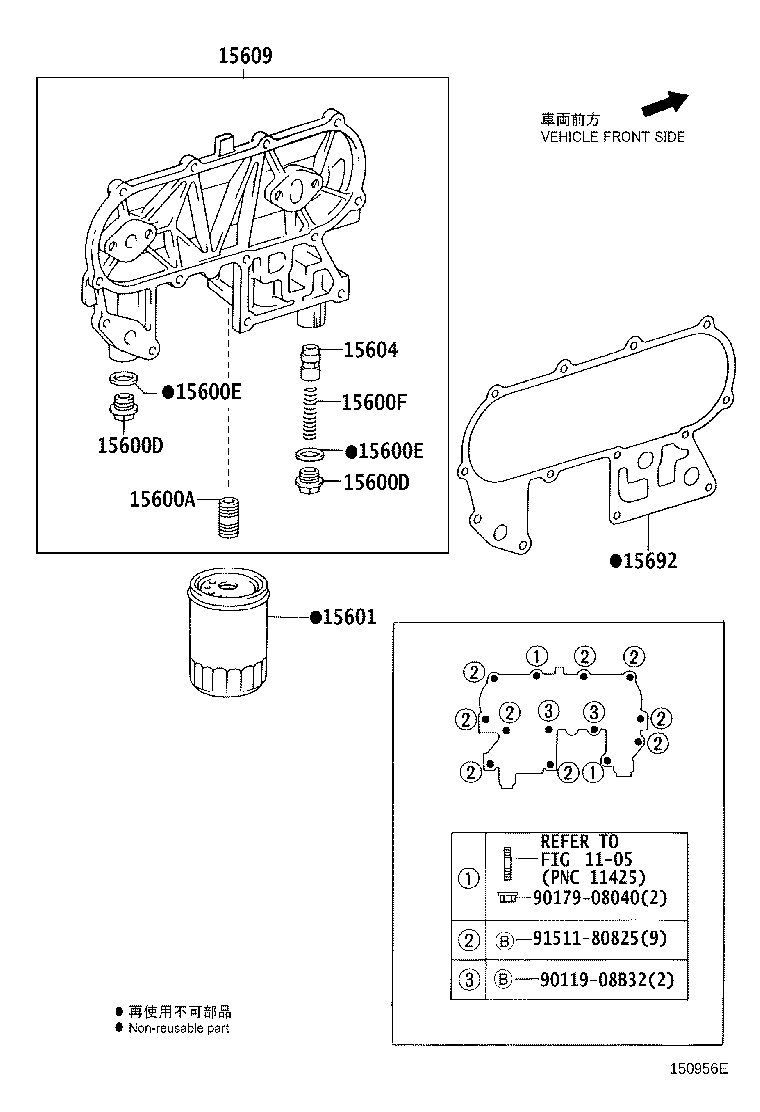

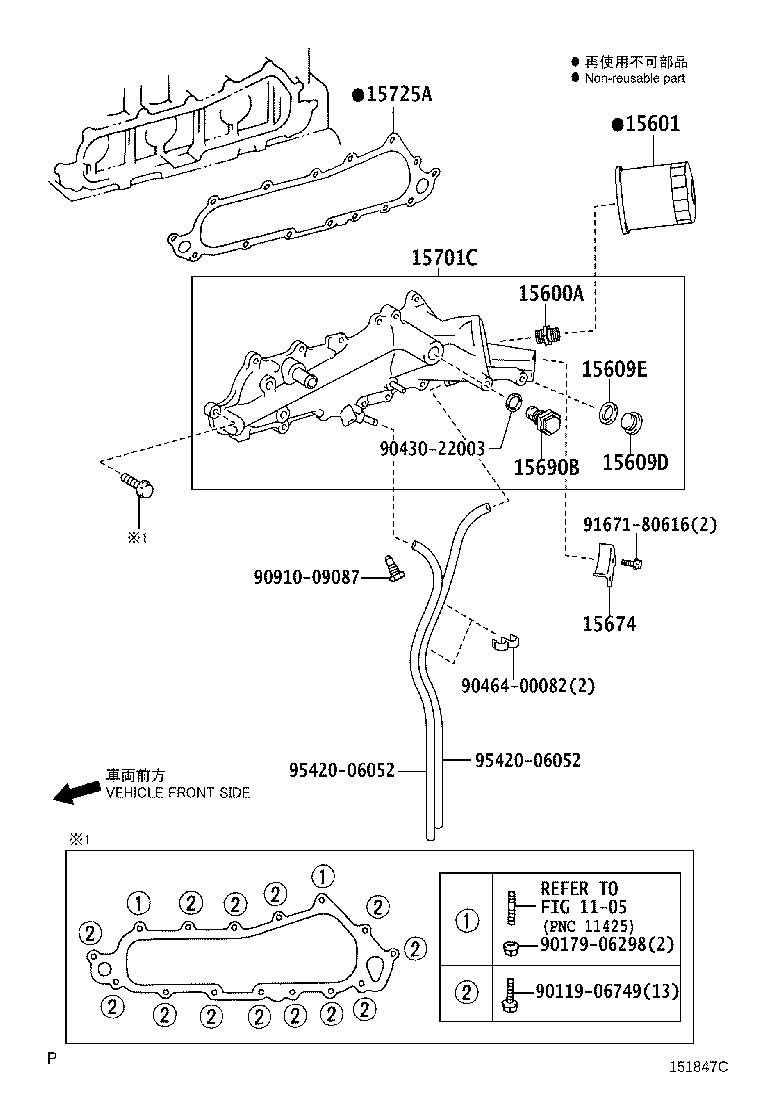

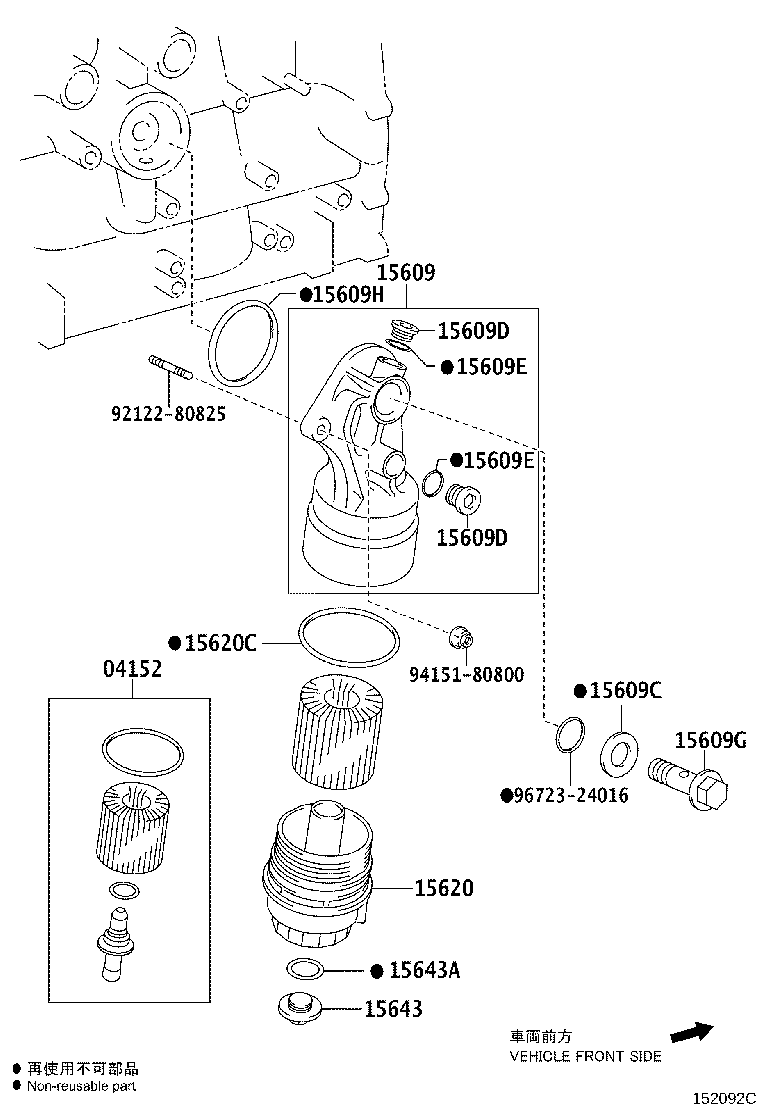

Figure 150950L 150950L 2005-01 → 2011-10 Figure 150950L 150950L 2011-10 → 2012-12 Figure 150950L 150950L 2011-10 → — Figure 150950L 150950L 2011-10 → — Figure 151847C 151847C 2011-10 → — Figure 151847C 151847C 2012-12 → — Figure 150956E 150956E 2005-01 → — Figure 150954L 150954L 2005-01 → — Figure 152092C 152092C 2013-08 → —

Part groups

PNCDescription
04152 Element Kit, Oil Filter
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609B Union(FOR OIL FILTER BRACKET)
15609C Gasket(FOR OIL FILTER BRACKET UNION)
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15609G Bolt, Union(FOR OIL FILTER BRACKET)
15609H Ring, O(FOR OIL FILTER BRACKET)
15620 Cap Assy, Oil Filter
15620C Gasket(FOR OIL FILTER CAP)
15643 Plug, Oil Filter Drain
15643A Ring, O(FOR OIL FILTER DRAIN PLUG)
15674 Receiver, Oil Filter
15690B Valve Assy, Oil Cooler Relief
15692 Gasket, Oil Filter Bracket
15701C Cover Sub-assy, Oil Cooler
15725A Gasket, Oil Cooler Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
