Water Pump

13 part groups · 3 illustrations

Illustrations

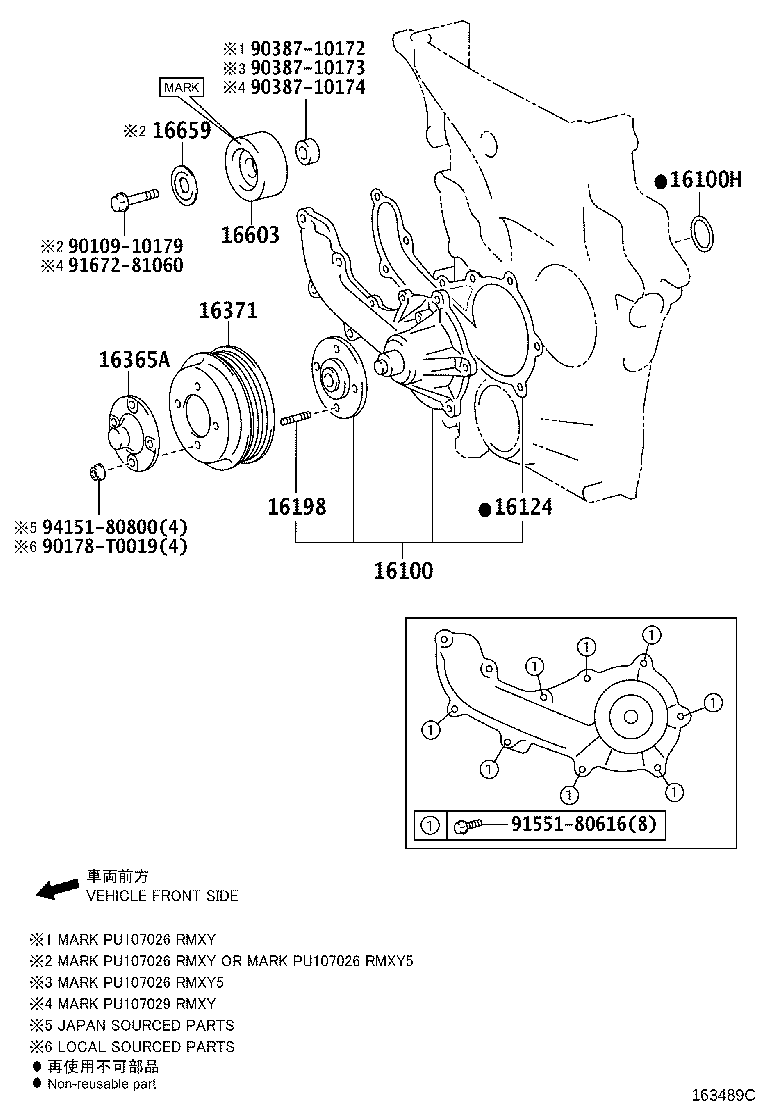

Figure 162368L 162368L 2005-01 → — Figure 162295C 162295C 2005-01 → — Figure 163489C 163489C 2005-01 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100H Ring, O(FOR WATER PUMP)
16124 Gasket, Water Pump Cover
16171 Seat, Water Pump Pulley
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16365A Spacer, Fan
16371 Pulley, Fan
16603 Pulley Sub-assy, Idler, NO.1
16620 Tensioner Assy, V-ribbed Belt
16630G Pulley Assy, Idler
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
