Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

125 part groups · 45 illustrations

Illustrations

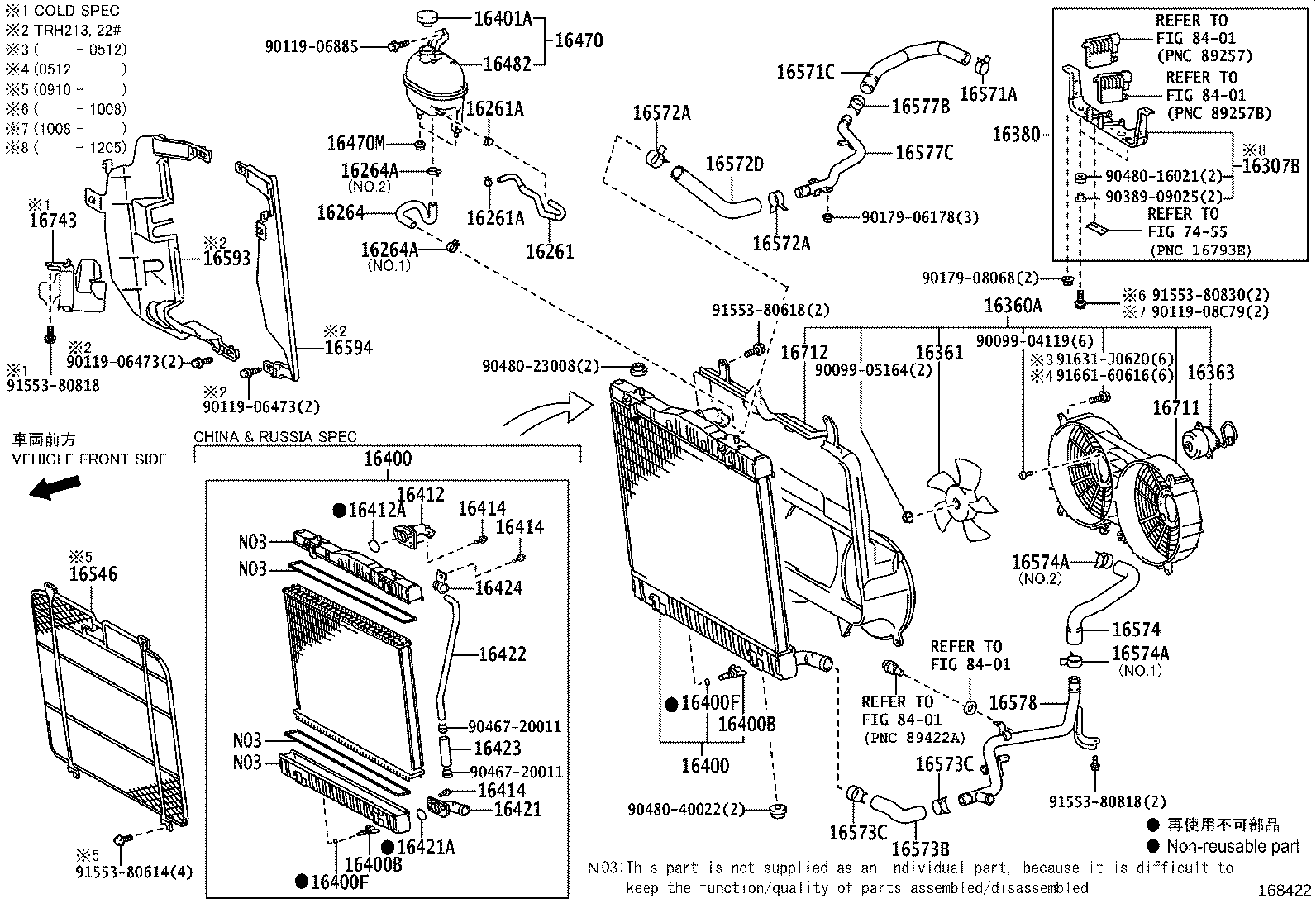

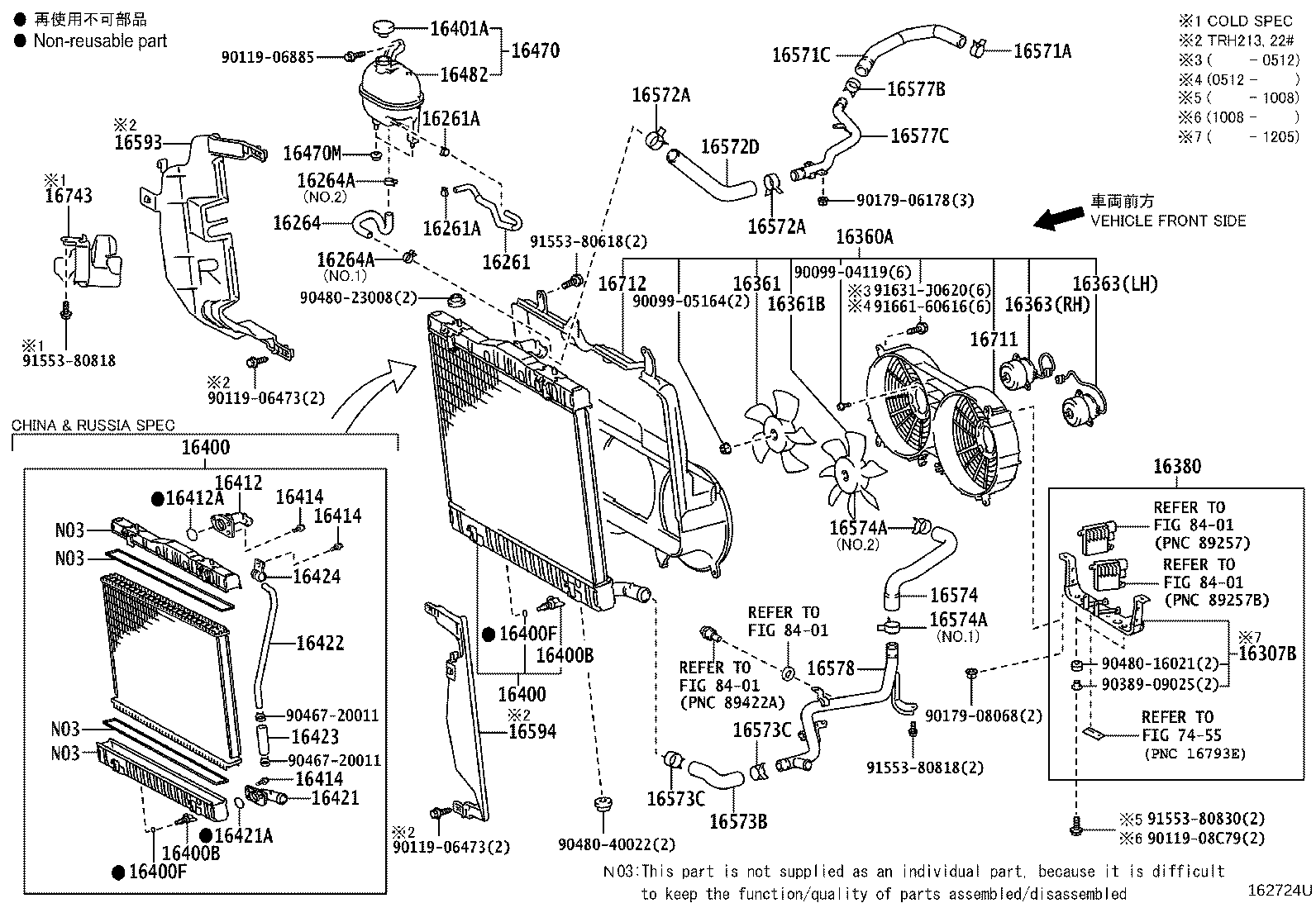

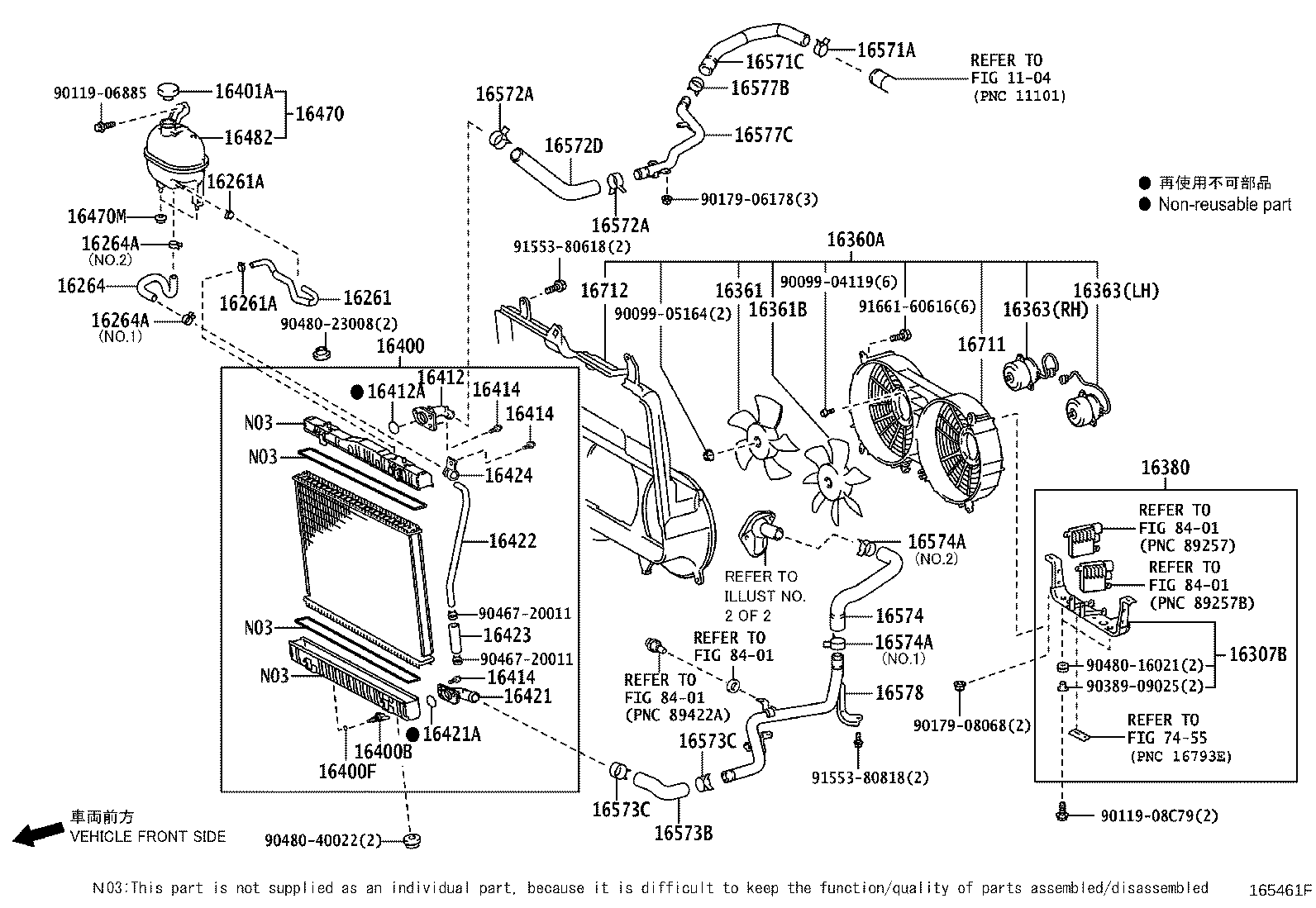

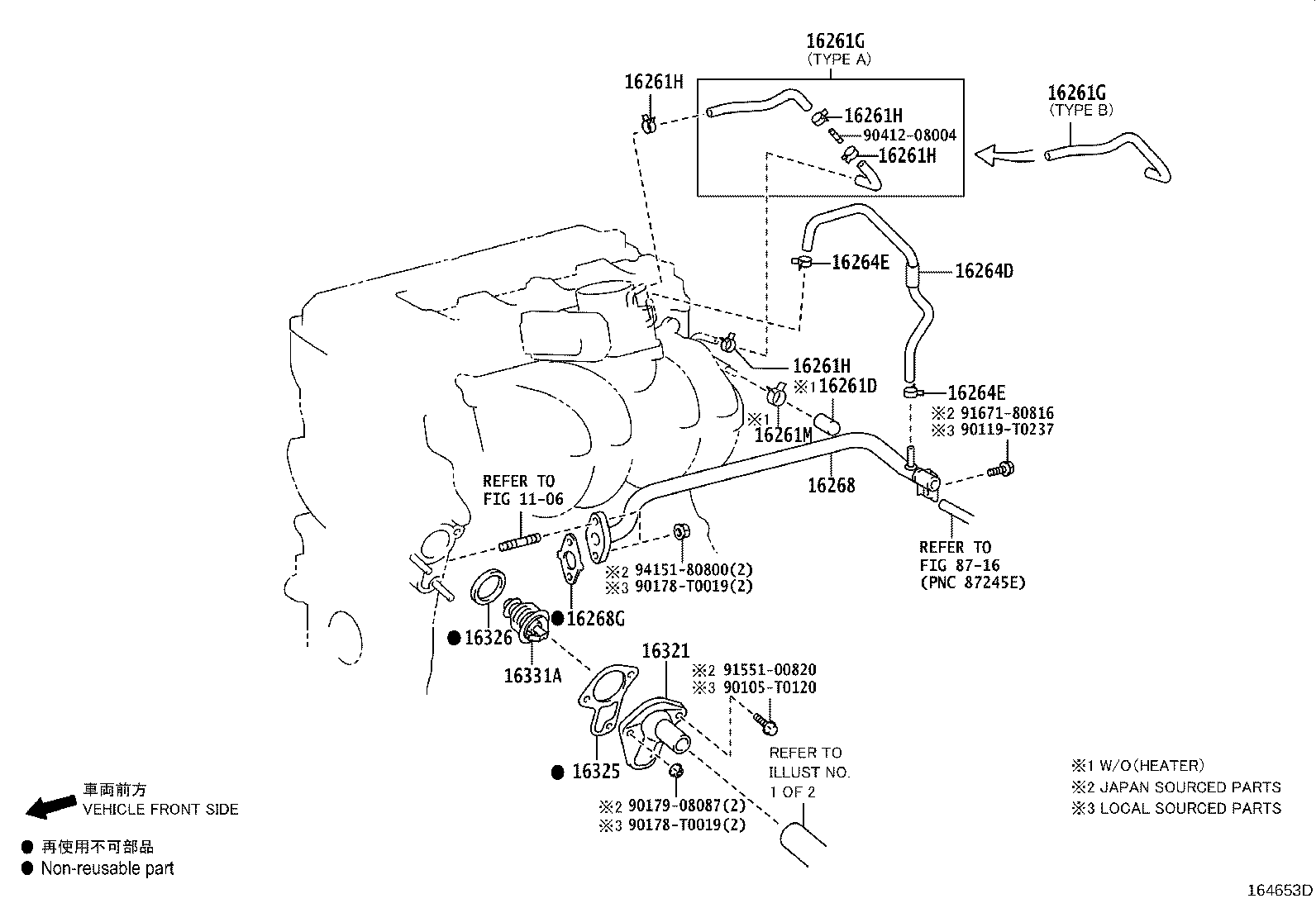

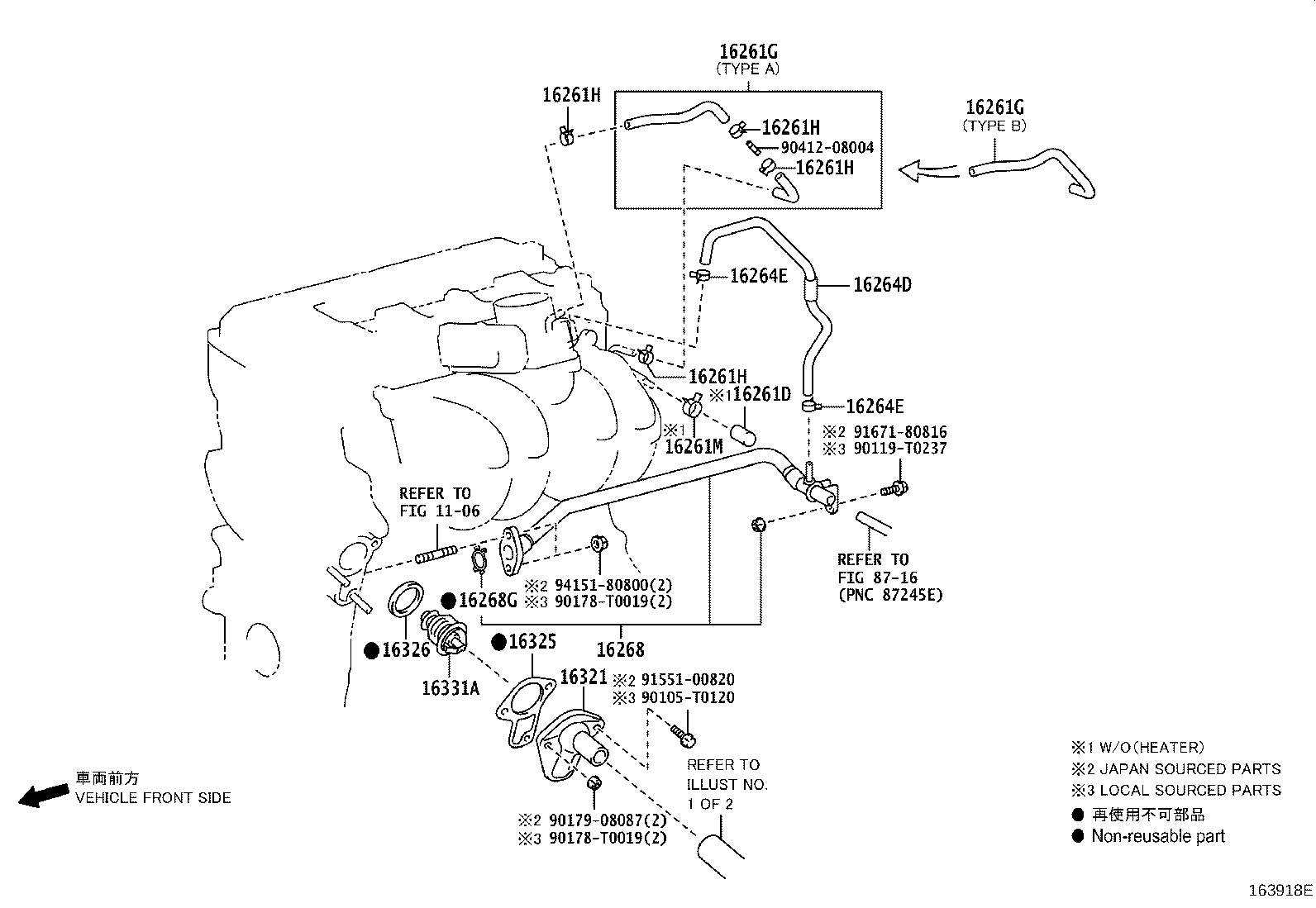

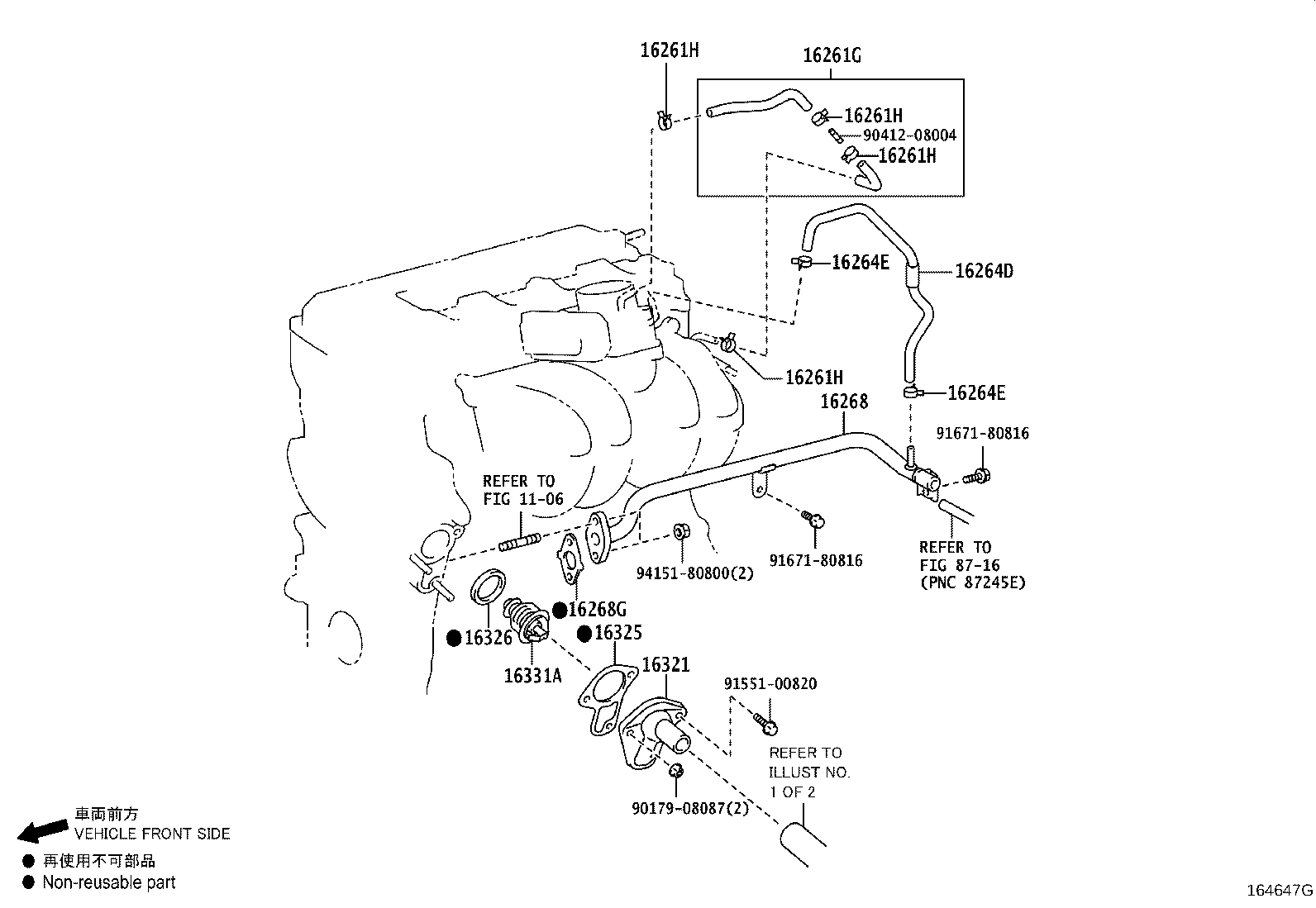

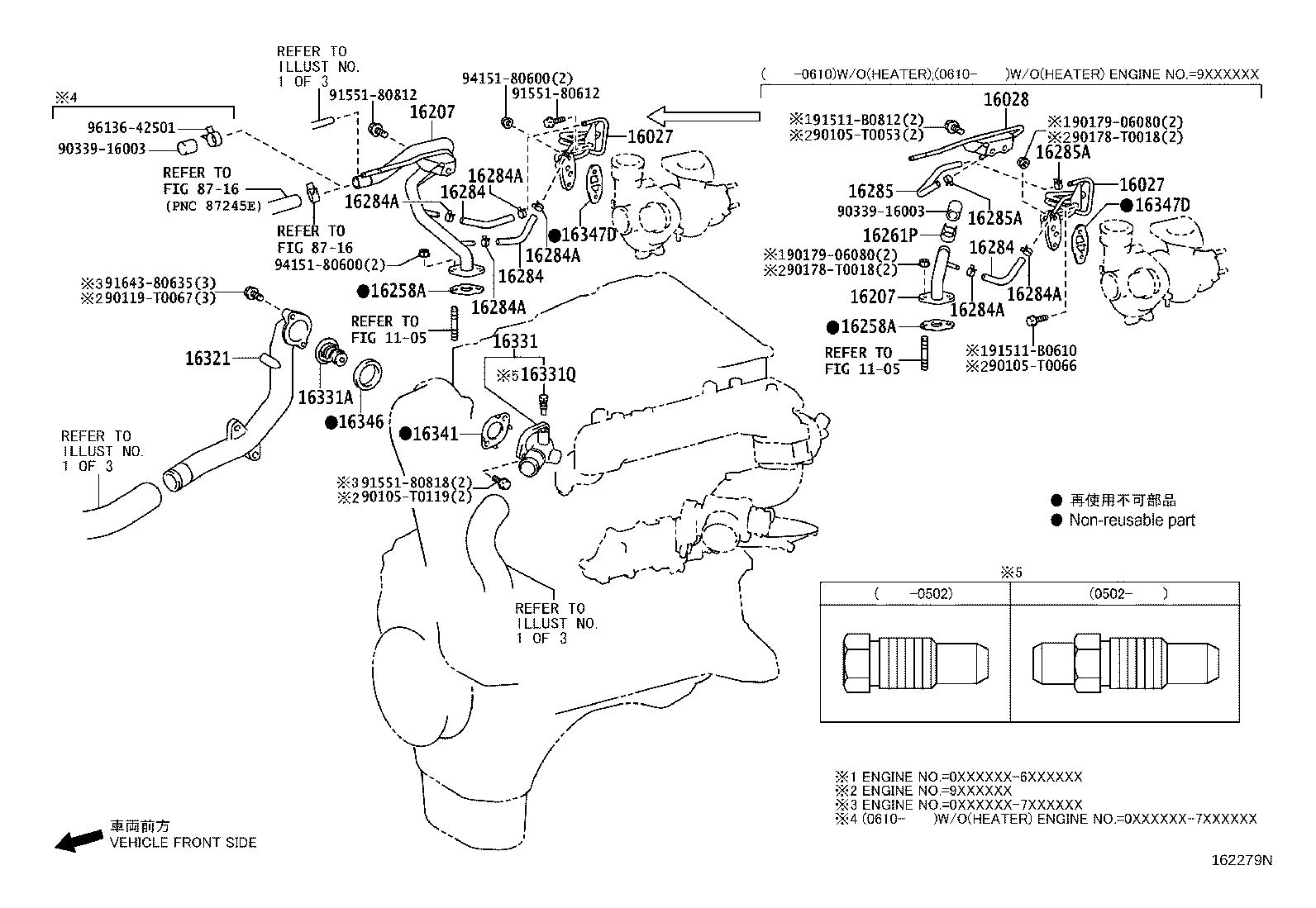

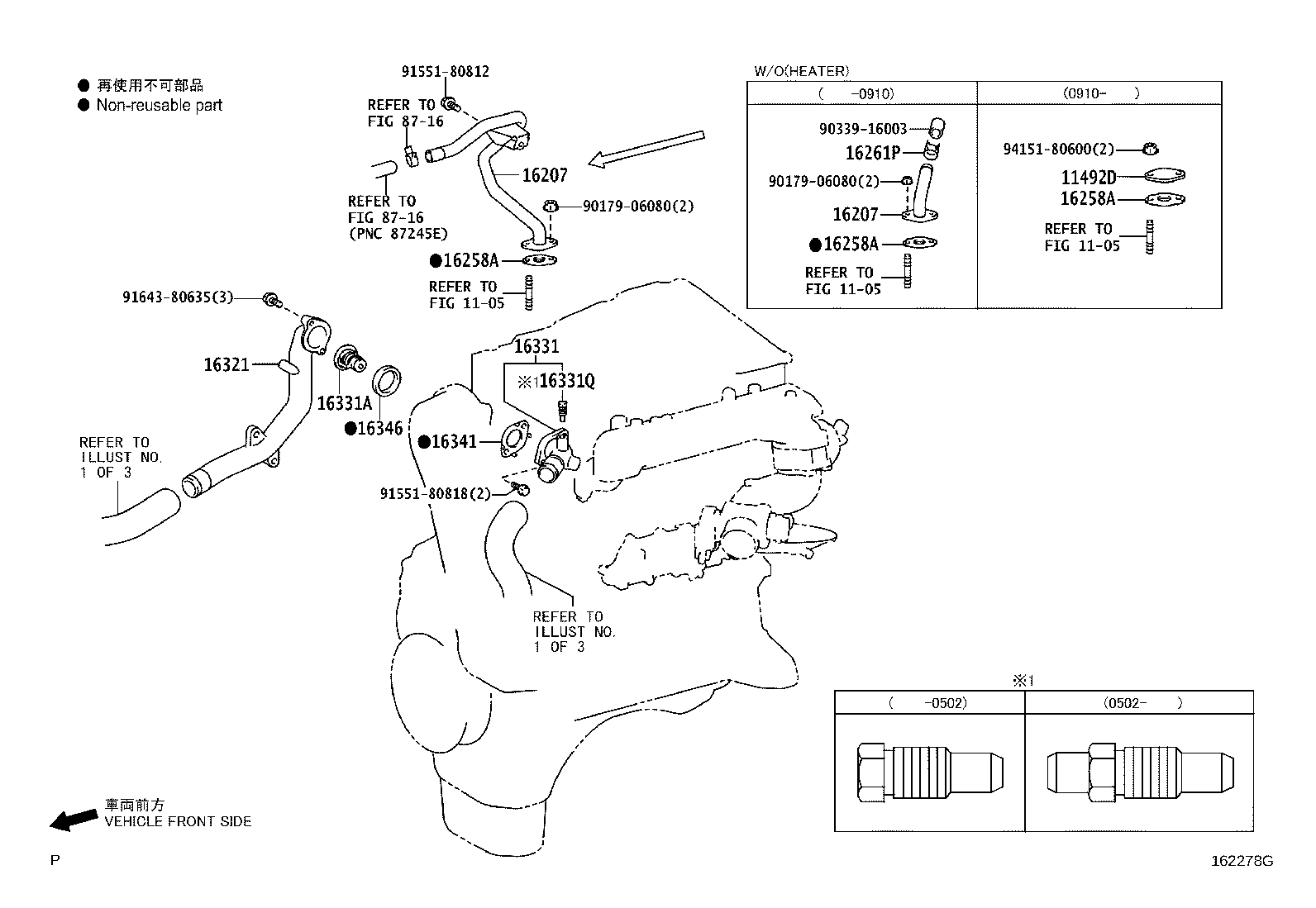

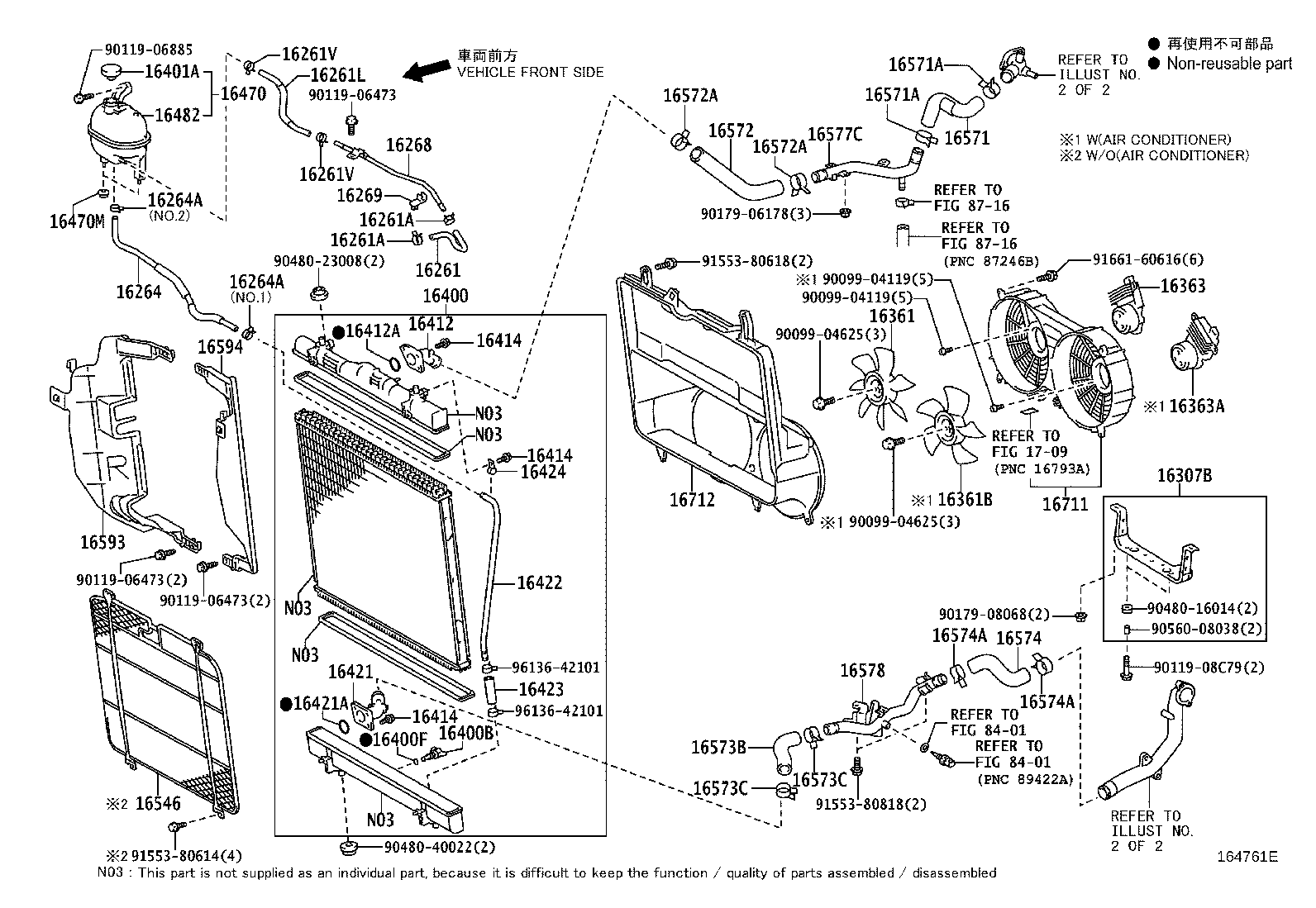

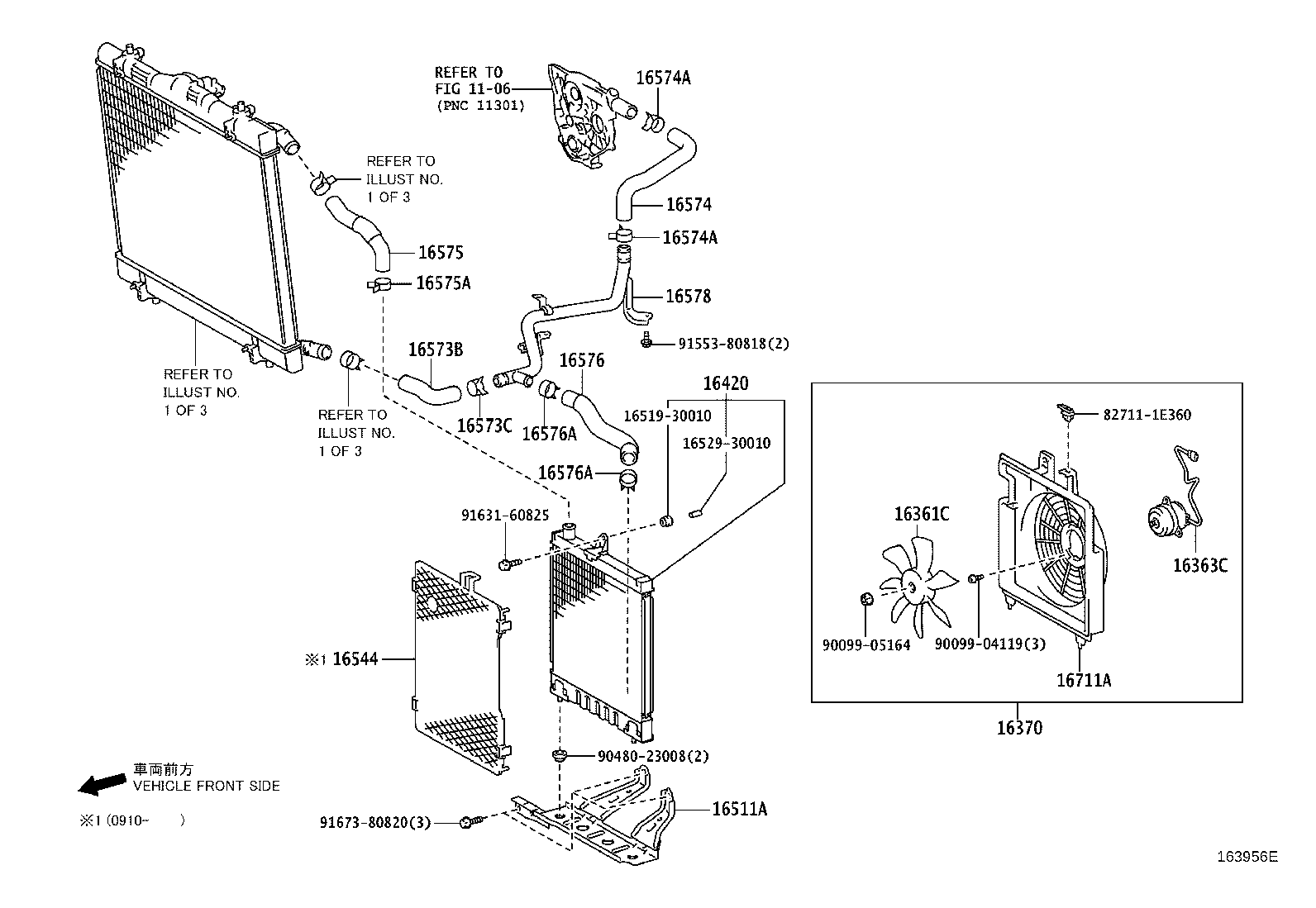

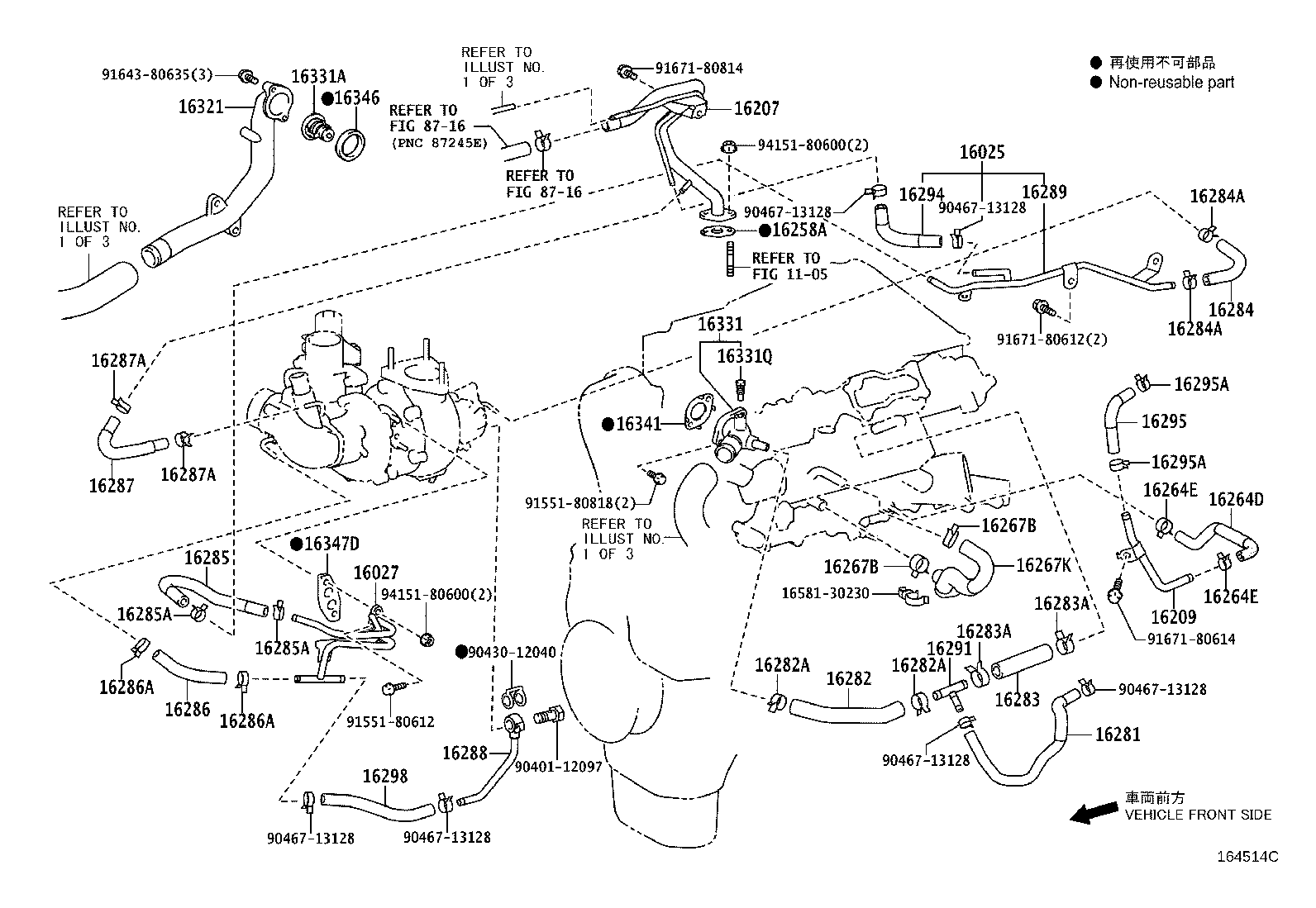

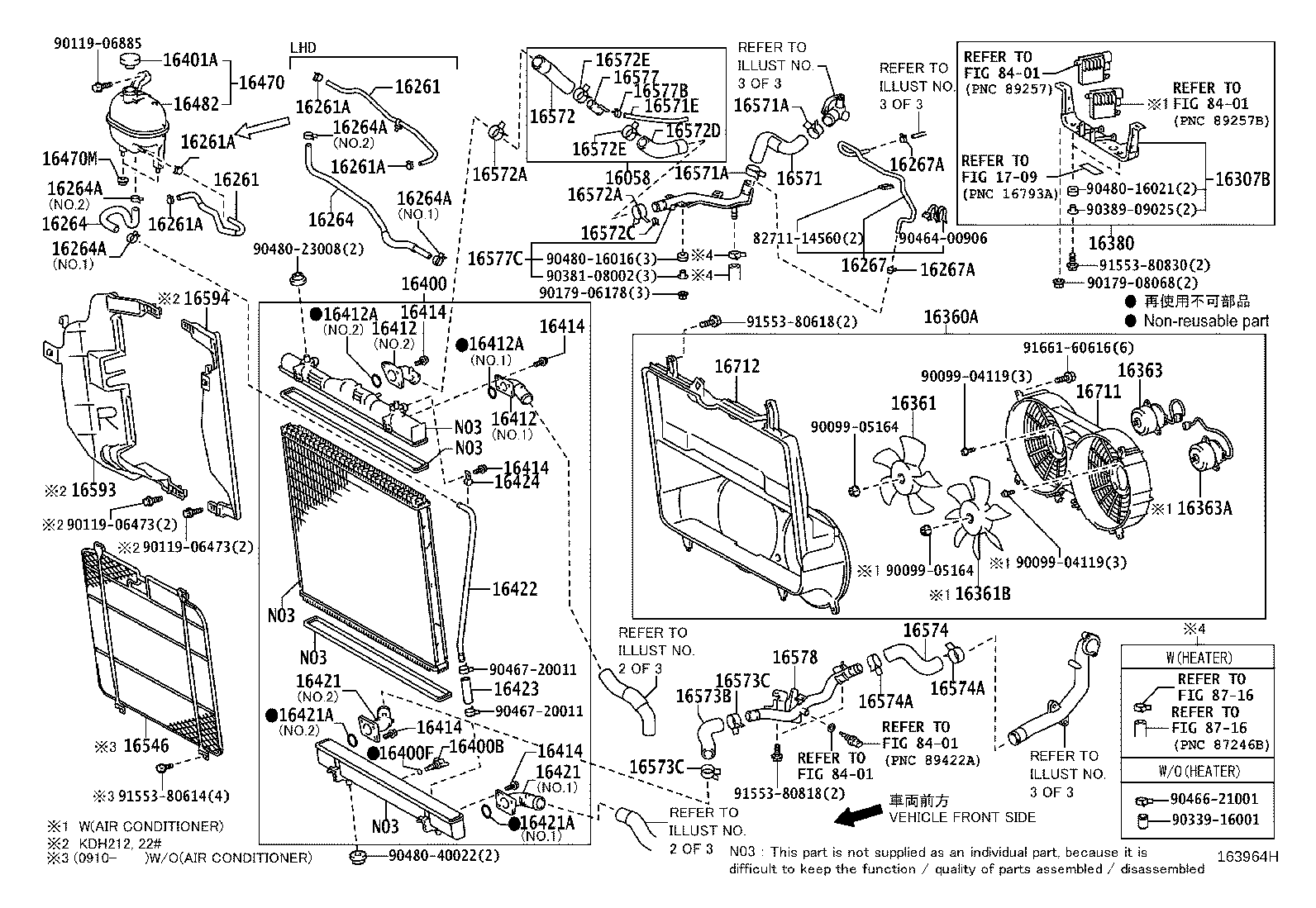

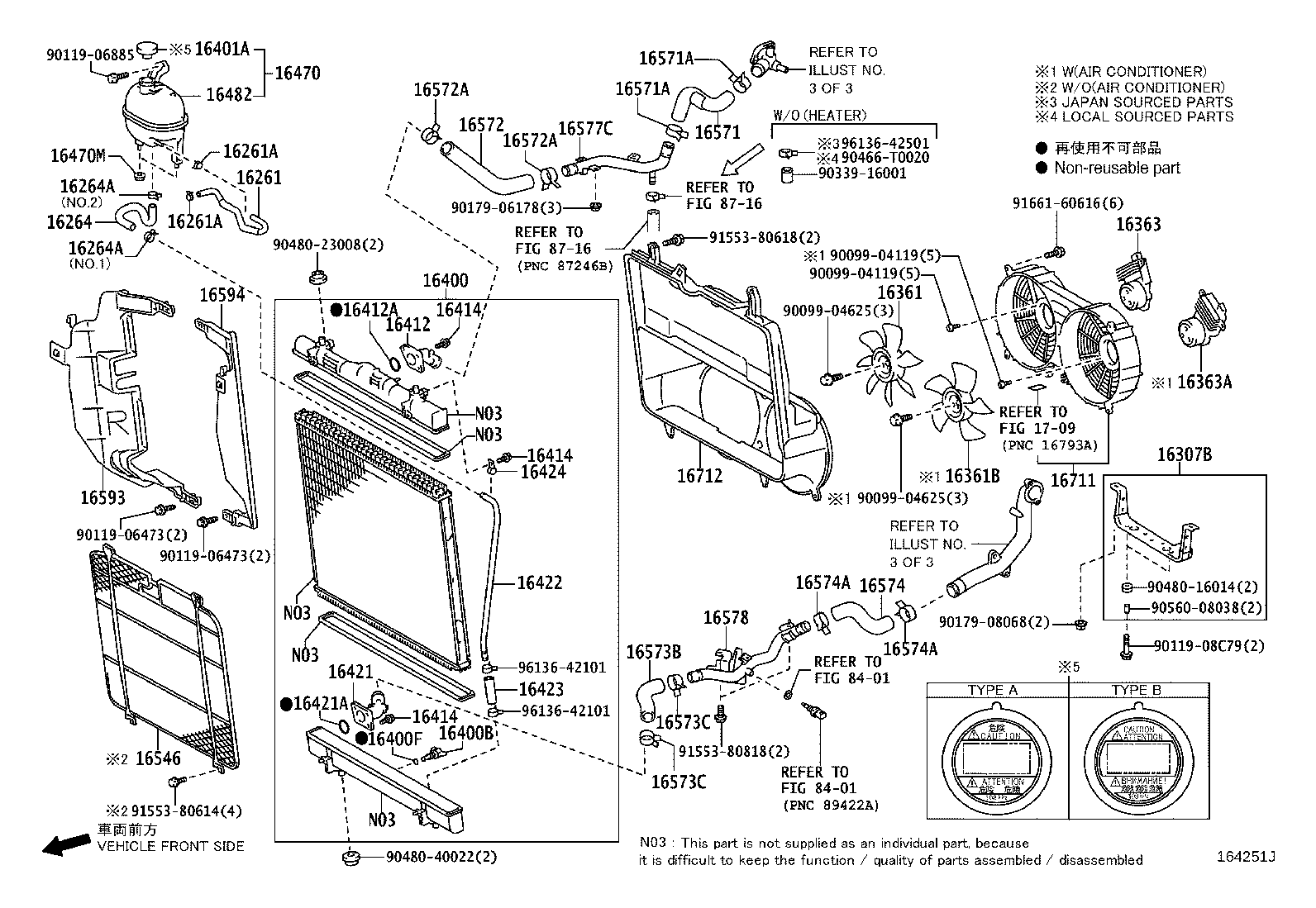

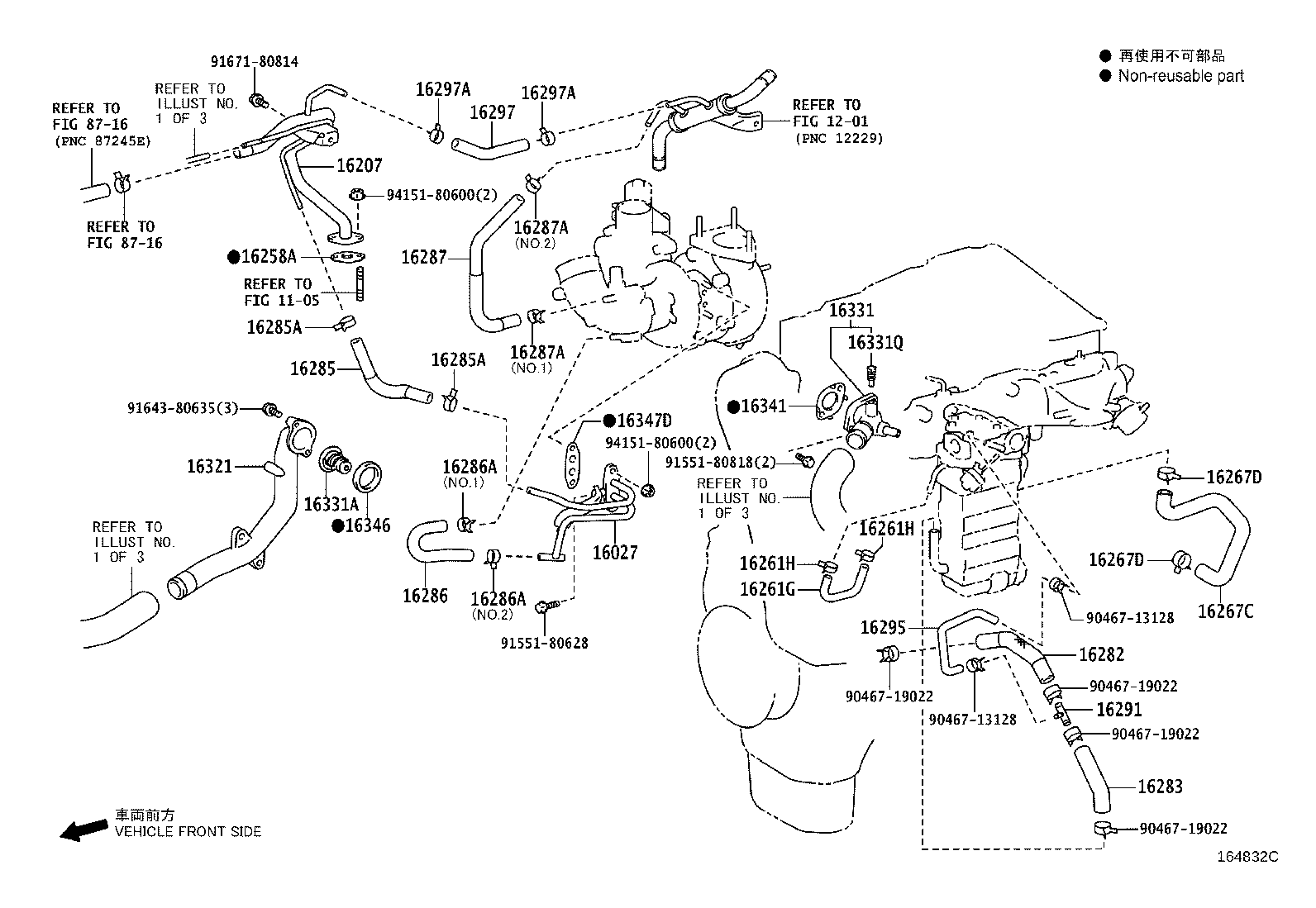

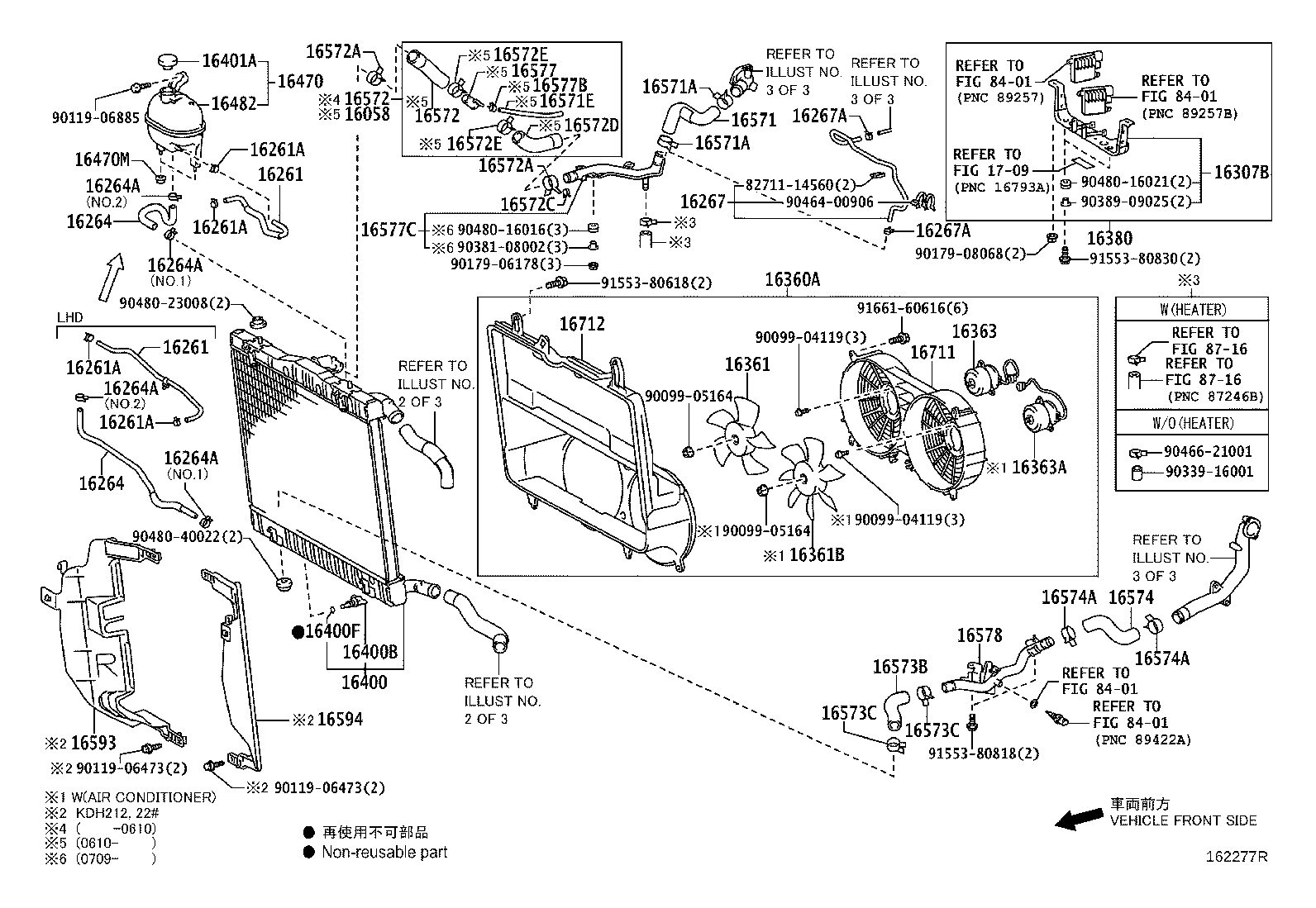

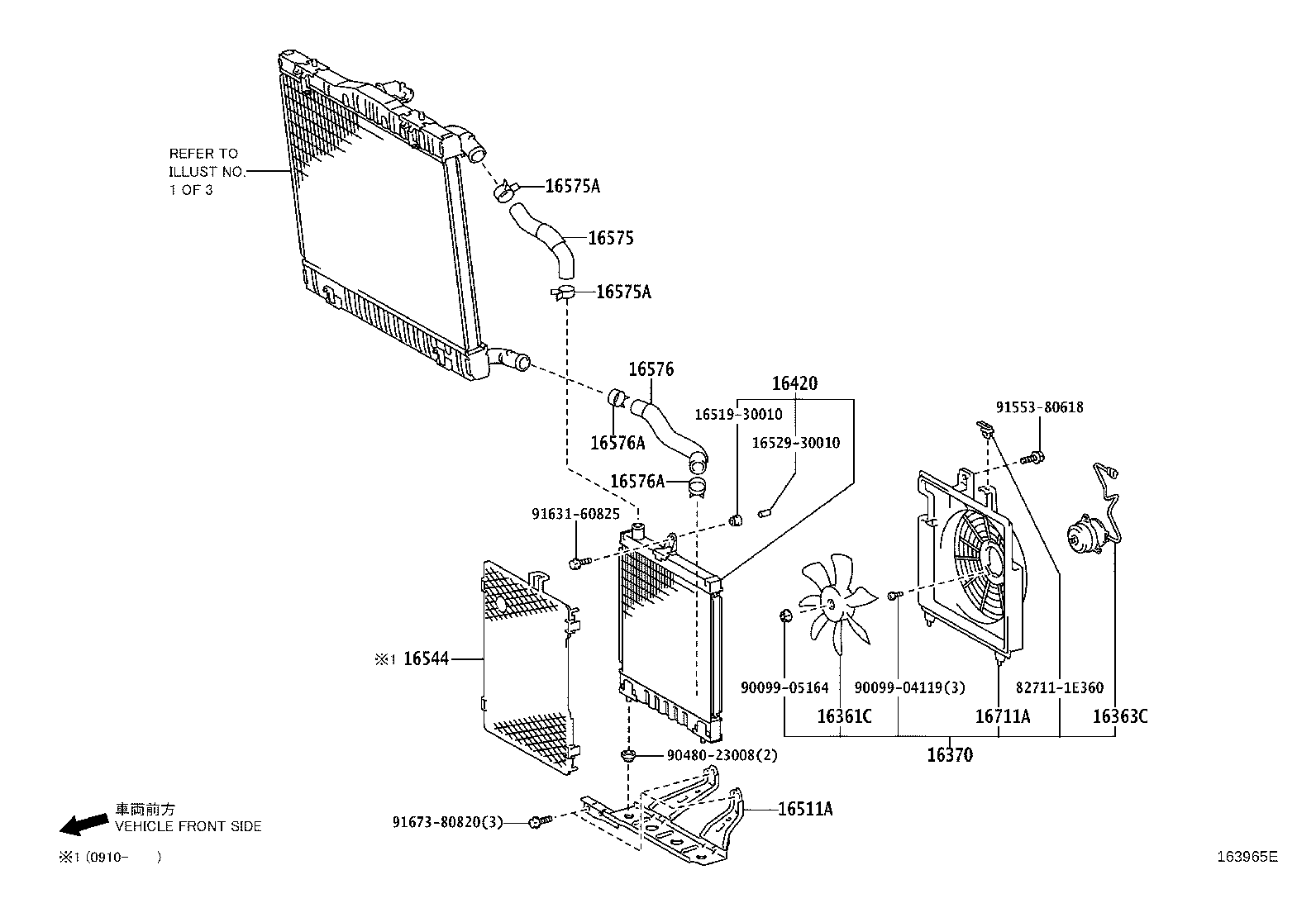

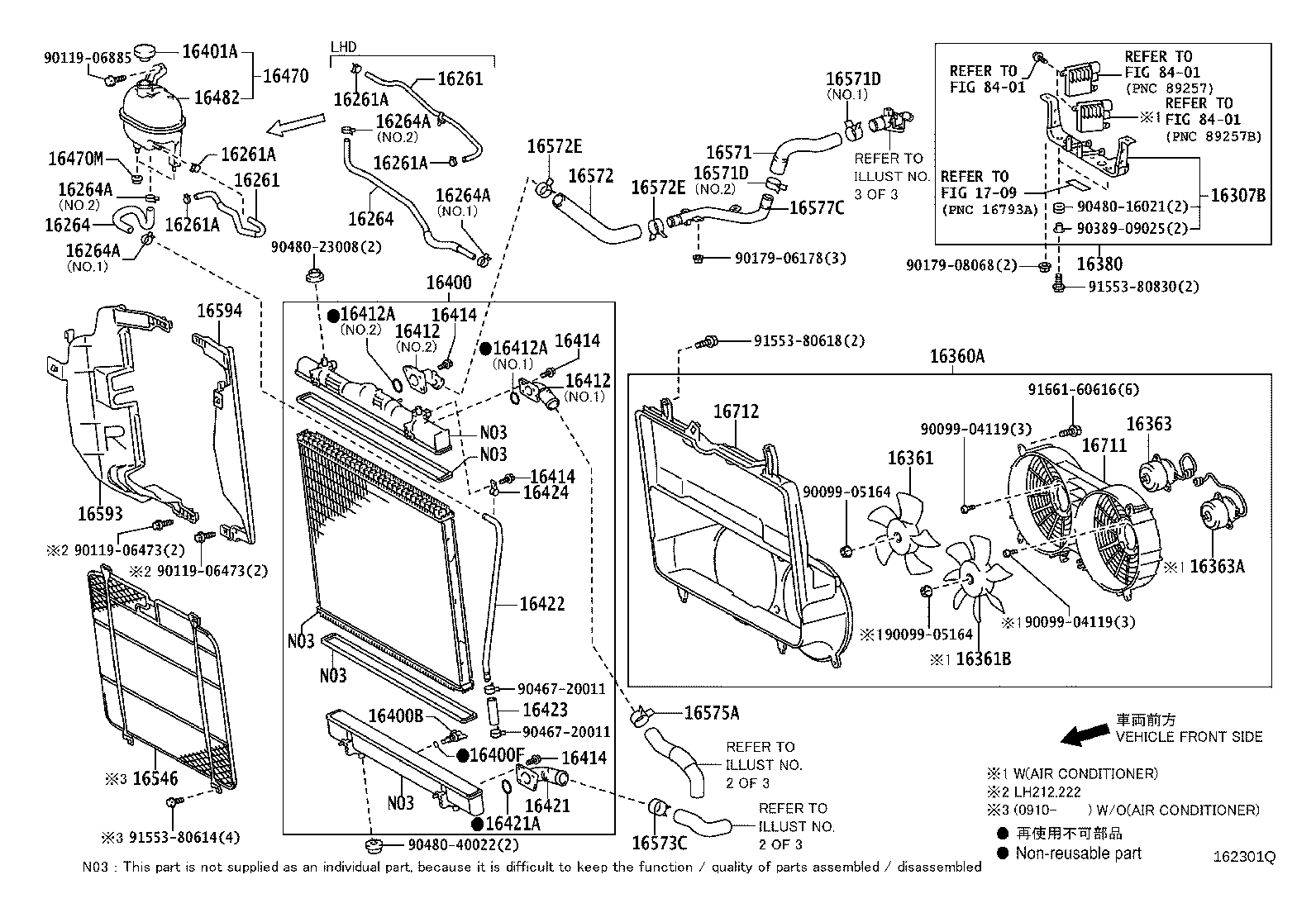

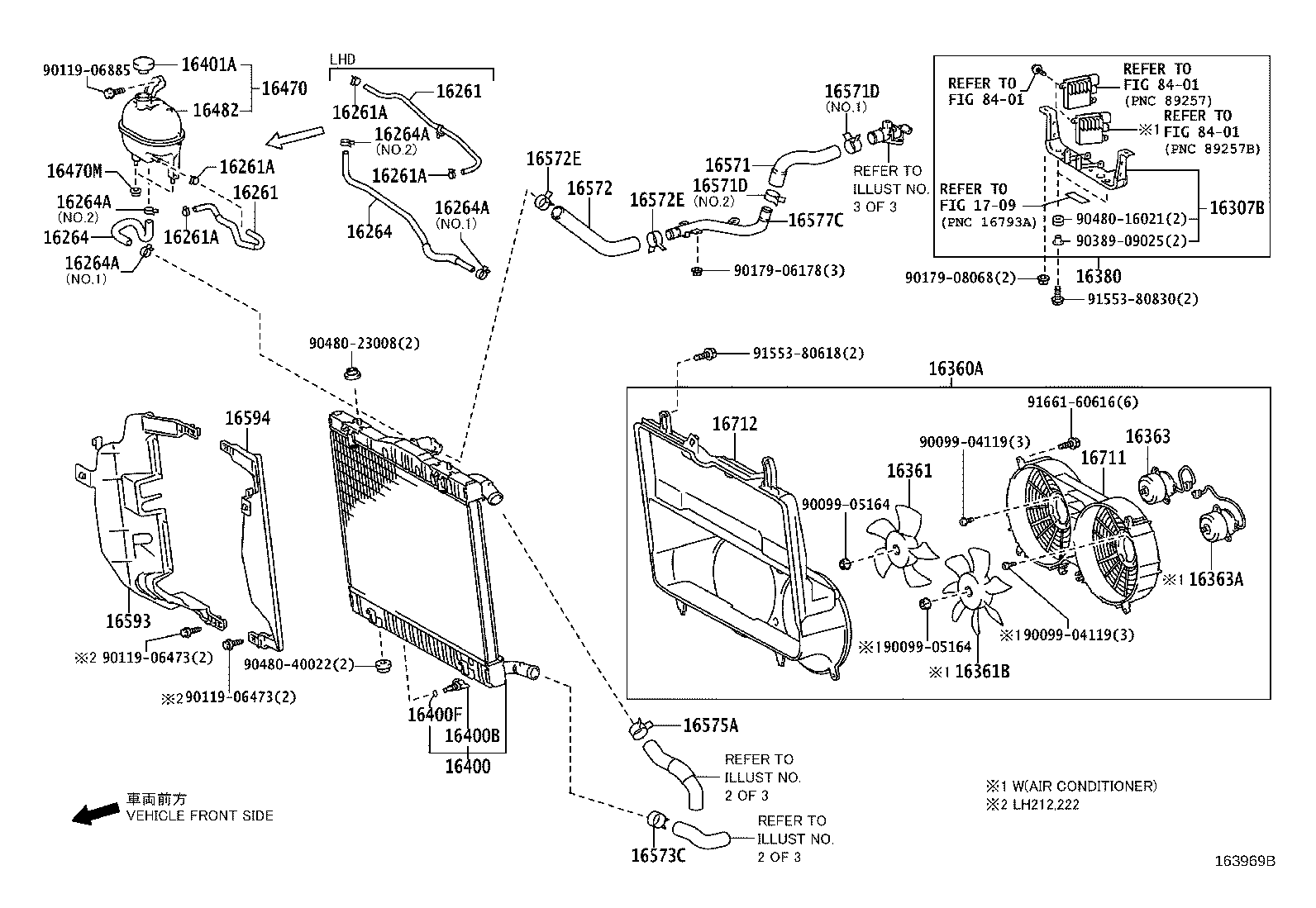

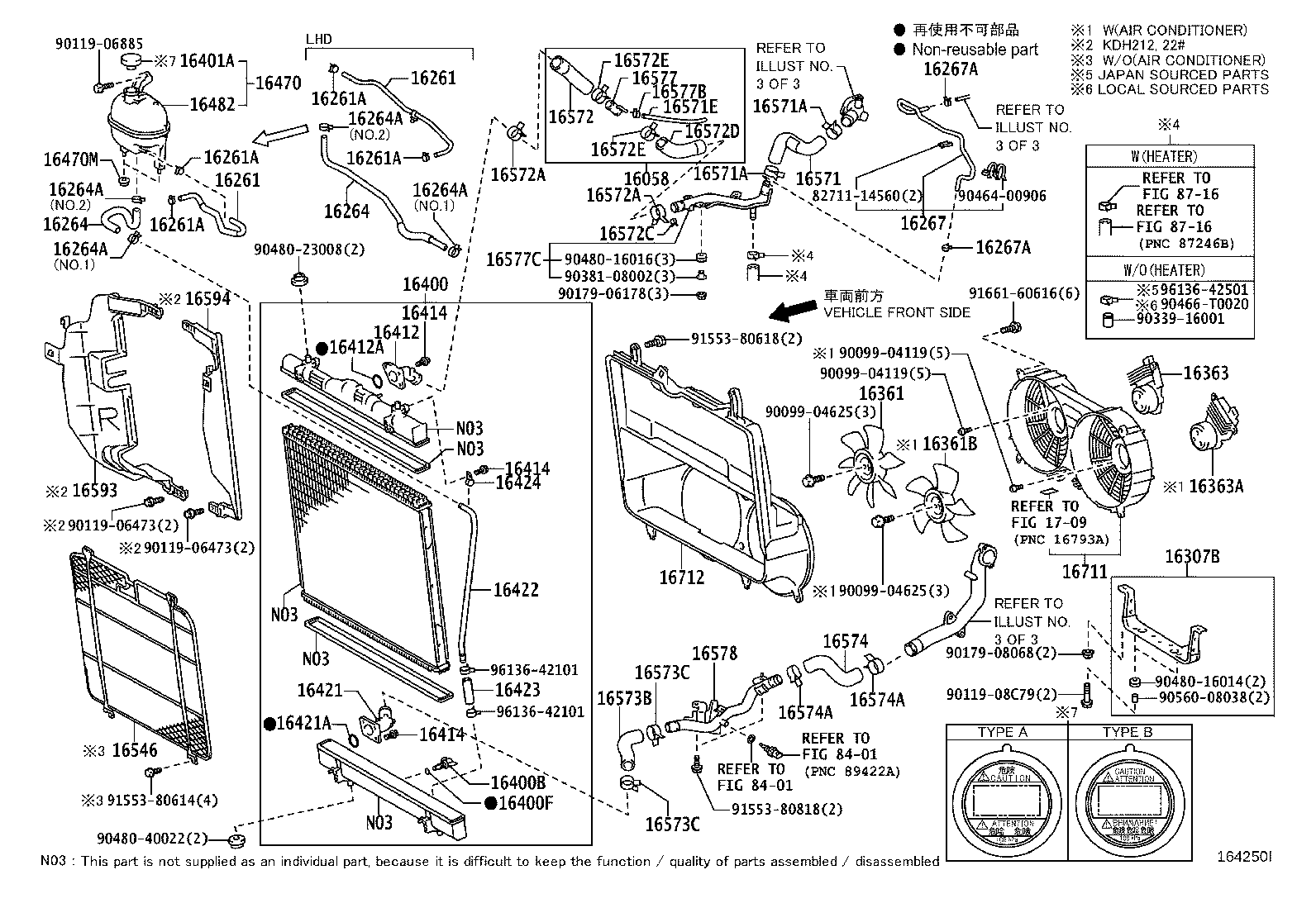

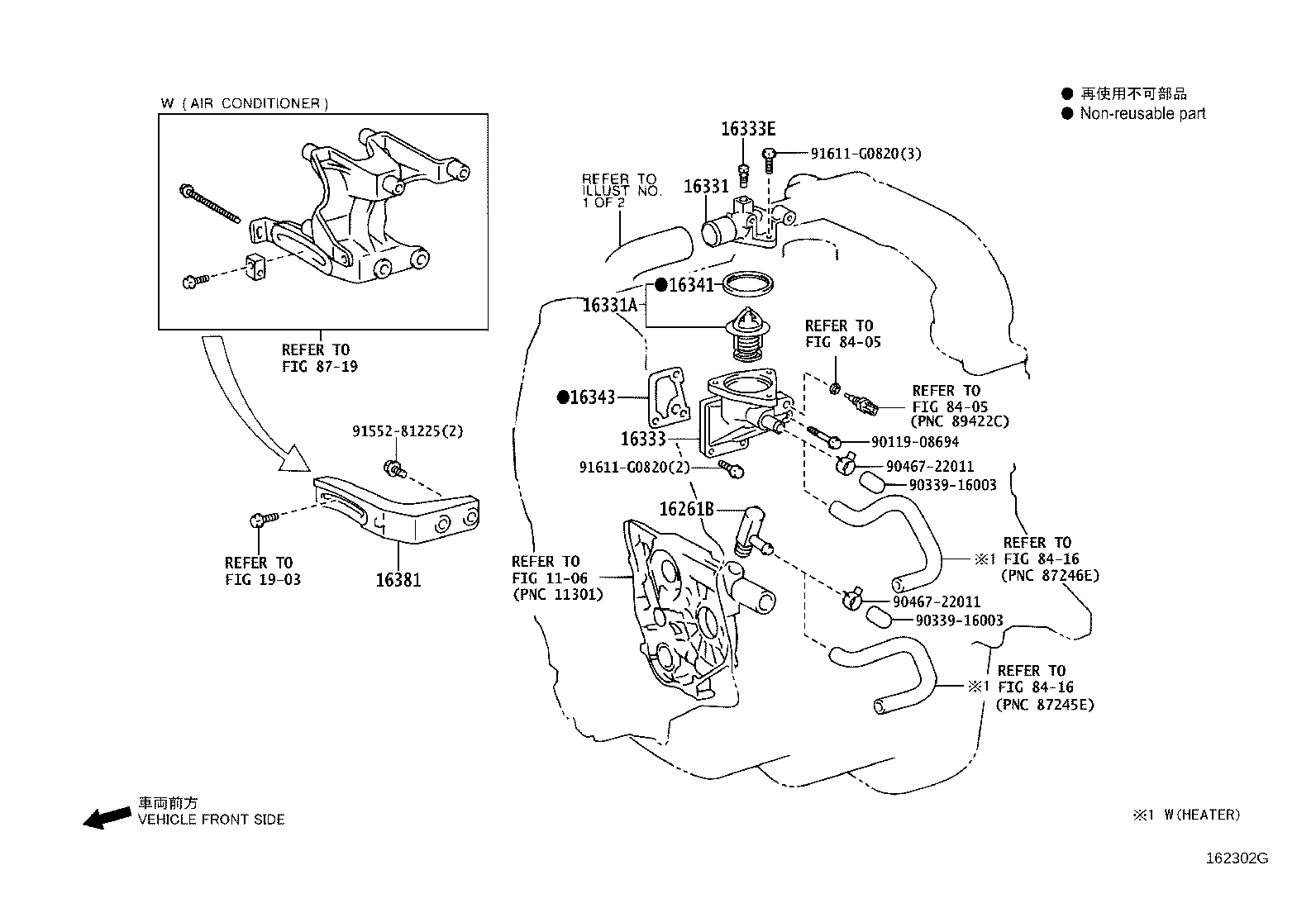

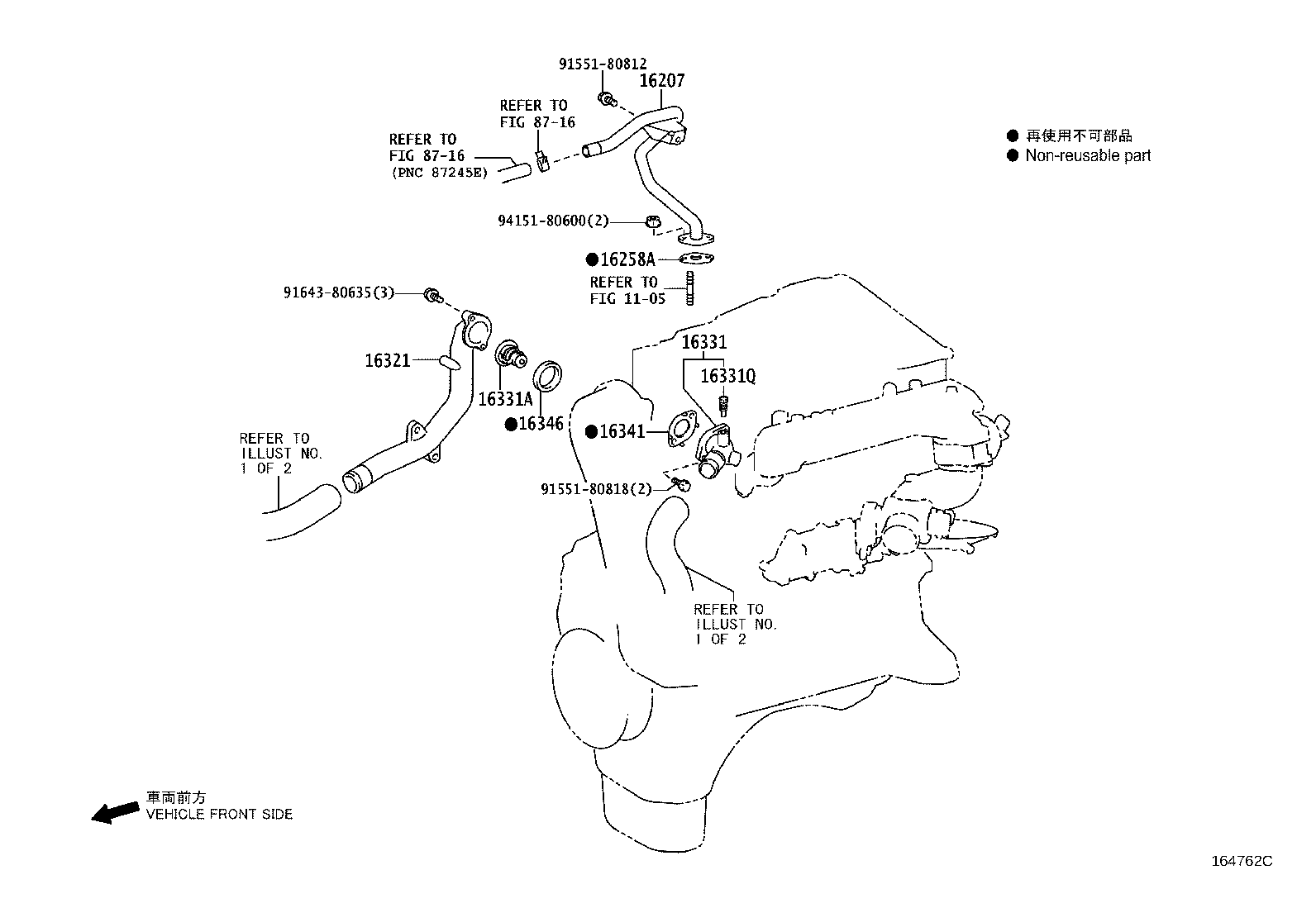

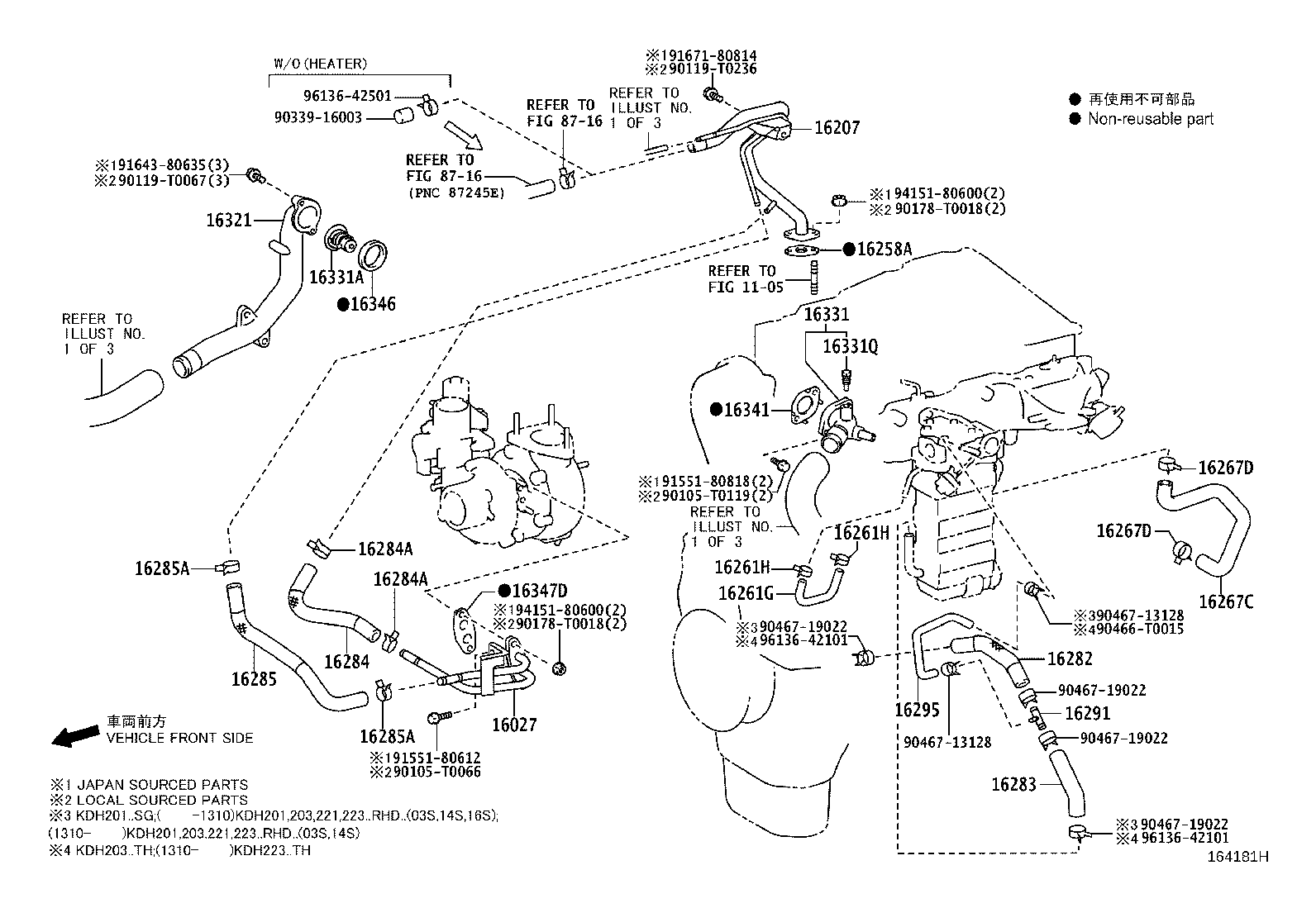

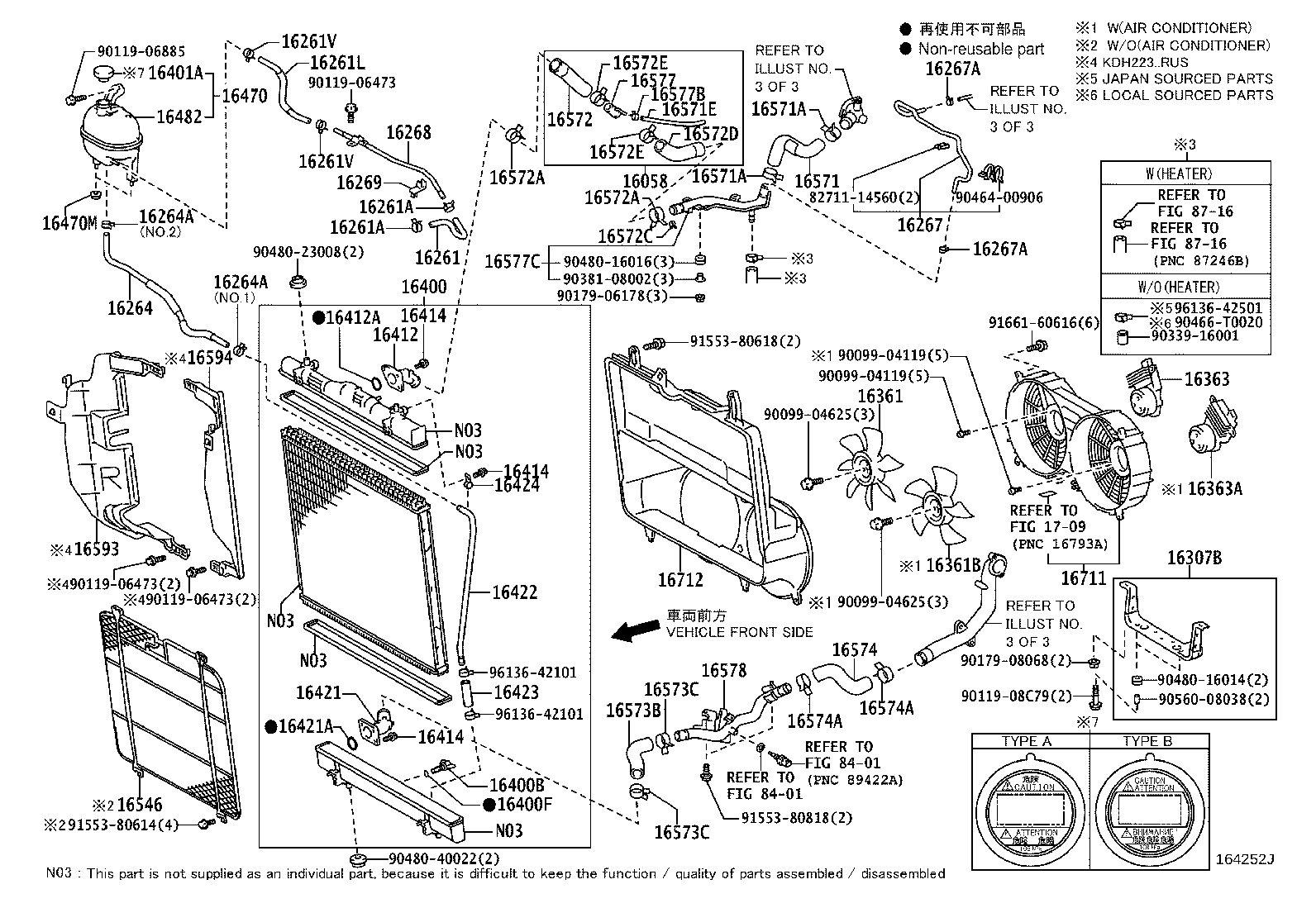

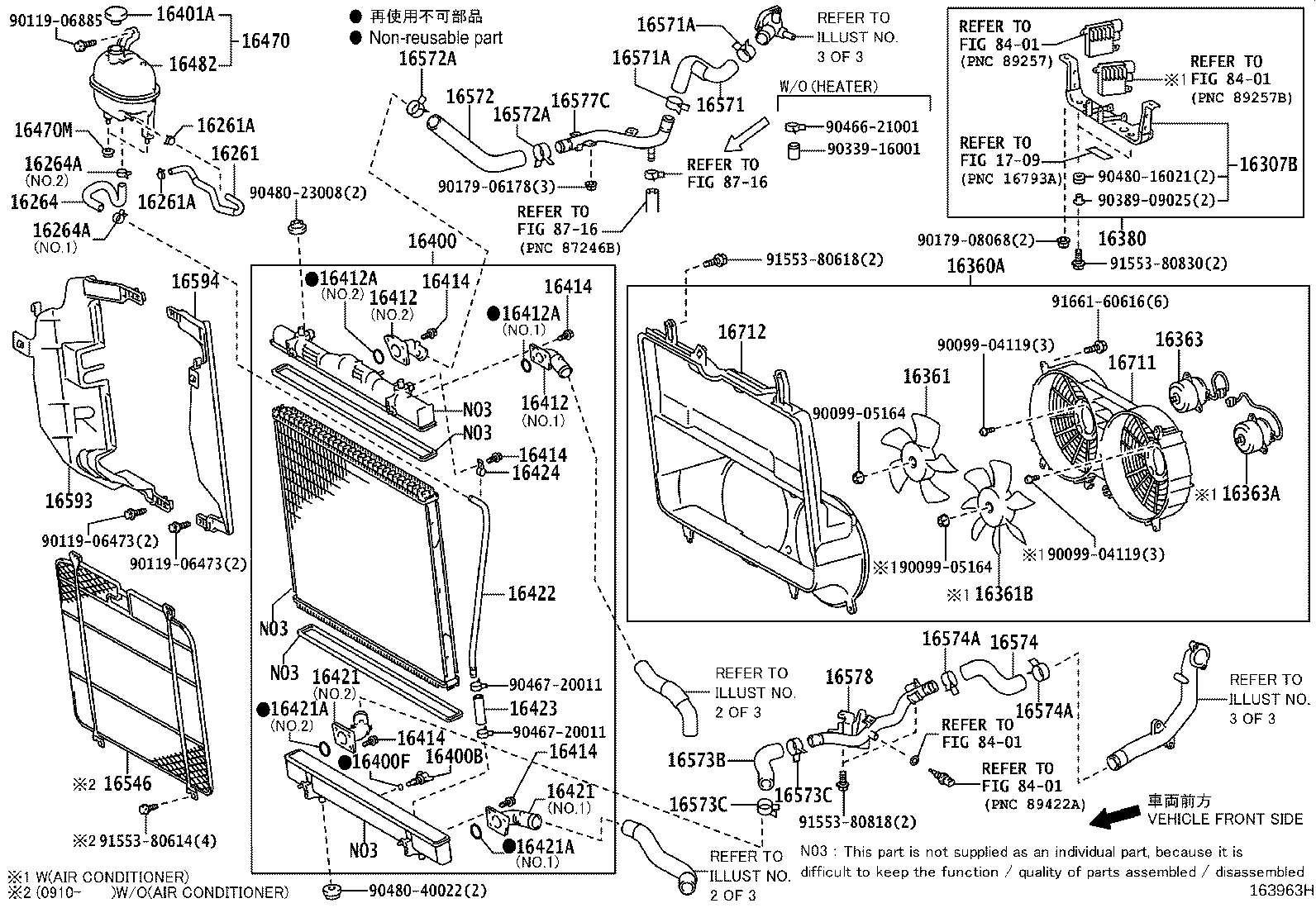

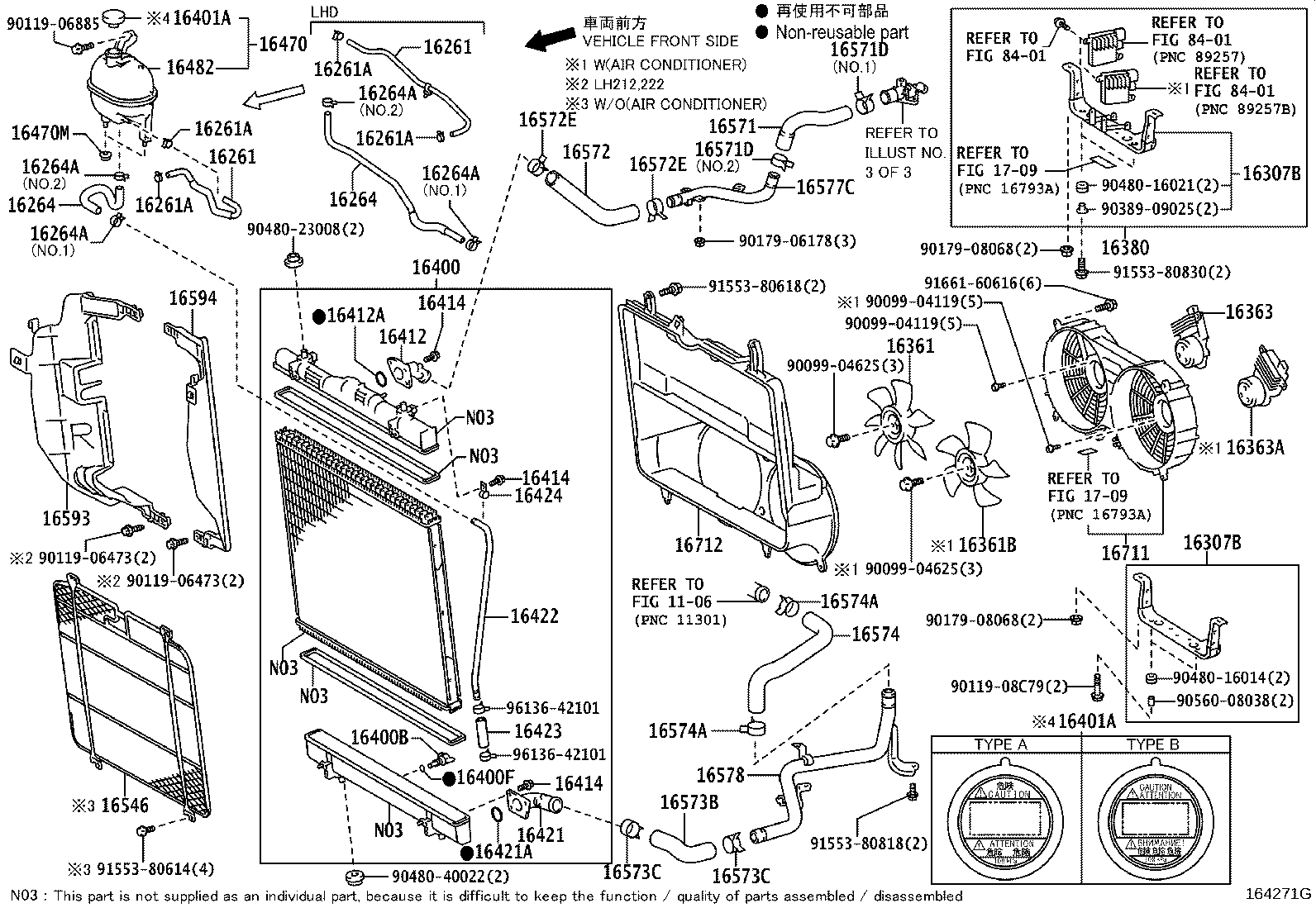

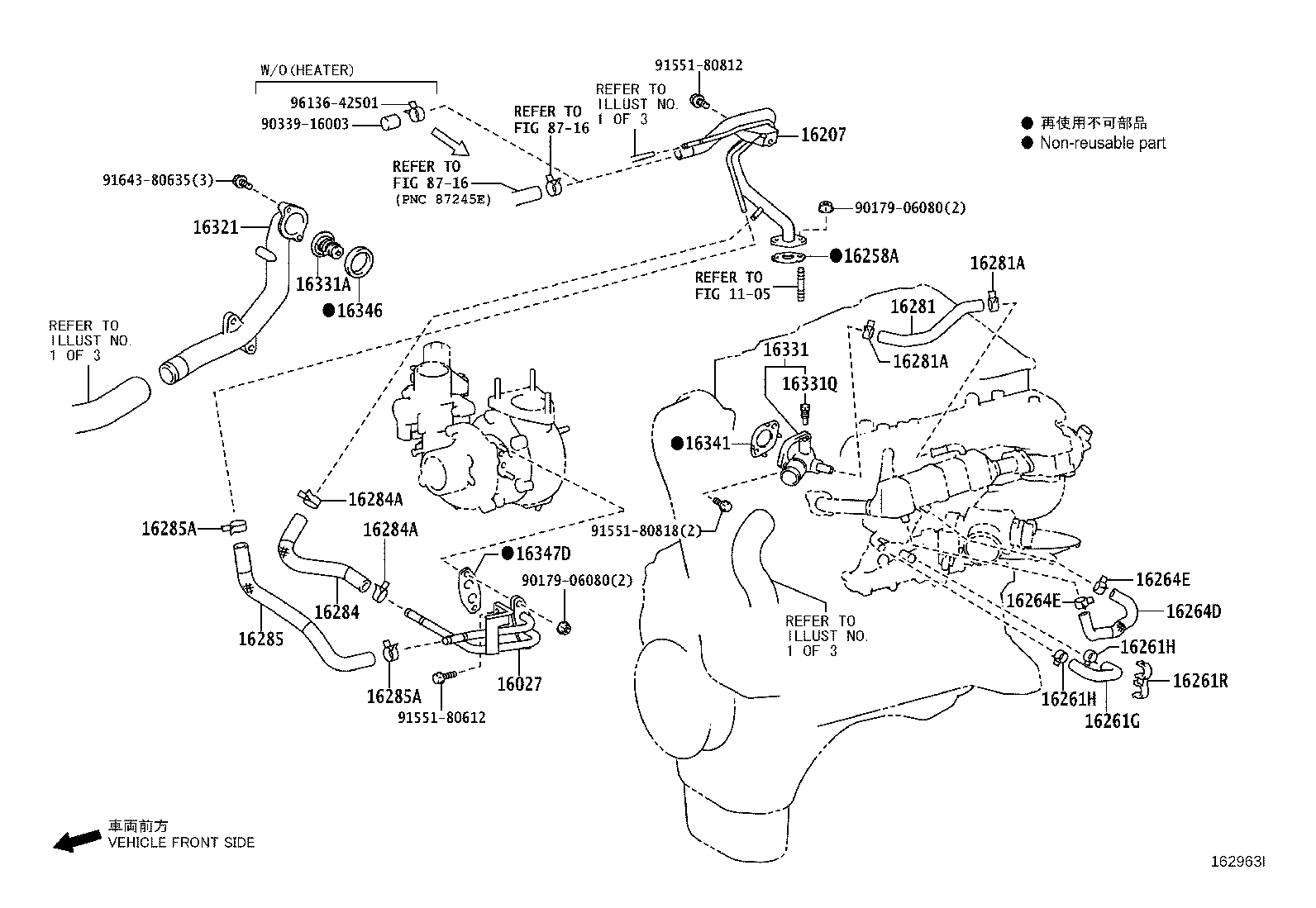

Figure 162276H 162276H 2005-01 → 2007-09 Figure 162276H 162276H 2007-09 → 2009-02 Figure 163963H 163963H 2009-02 → 2010-08 Figure 164251J 164251J 2010-08 → — Figure 162277R 162277R 2005-01 → 2009-02 Figure 162277R 162277R 2005-01 → 2009-02 Figure 162277R 162277R 2007-09 → 2009-02 Figure 163964H 163964H 2009-02 → 2010-08 Figure 164250I 164250I 2010-08 → — Figure 164250I 164250I 2010-08 → — Figure 164252J 164252J 2010-08 → — Figure 163965E 163965E 2005-01 → 2010-08 Figure 162278G 162278G 2005-01 → 2007-09 Figure 162278G 162278G 2007-09 → — Figure 162279N 162279N 2005-01 → — Figure 162279N 162279N 2005-01 → — Figure 162279N 162279N 2007-09 → — Figure 162279N 162279N 2012-06 → — Figure 162963I 162963I 2006-10 → 2010-08 Figure 164181H 164181H 2010-08 → 2011-10 Figure 164181H 164181H 2011-10 → 2012-12 Figure 164181H 164181H 2011-10 → — Figure 164514C 164514C 2011-10 → — Figure 164514C 164514C 2012-12 → — Figure 164832C 164832C 2012-05 → — Figure 164761E 164761E 2012-05 → — Figure 164762C 164762C 2012-05 → — Figure 163969B 163969B 2005-01 → 2008-12 Figure 162301Q 162301Q 2008-12 → 2010-08 Figure 164271G 164271G 2010-08 → — Figure 163956E 163956E 2005-01 → 2010-08 Figure 162302G 162302G 2005-01 → — Figure 168422 168422 2005-01 → — Figure 168422 168422 2005-01 → — Figure 162724U 162724U 2005-01 → — Figure 165461F 165461F 2013-08 → — Figure 163918E 163918E 2005-01 → 2011-07 Figure 163918E 163918E 2005-01 → 2011-07 Figure 163918E 163918E 2005-01 → — Figure 163918E 163918E 2005-01 → — Figure 163918E 163918E 2005-01 → — Figure 163918E 163918E 2007-09 → 2013-03 Figure 164653D 164653D 2011-07 → — Figure 164653D 164653D 2013-03 → — Figure 164647G 164647G 2013-08 → —

Part groups

PNCDescription
11492D Plate, Seal, NO.1
16025 Pipe Sub-assy, Water By-pass, NO.5
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16058 Hose Sub-assy, Radiator, NO.2
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16261D Plug, W/O Heater
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261L Hose, Water By-pass
16261M Clip, W/O Heater Plug
16261P Clip(FOR WATER BY-PASS HOSE NO.2)
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16261V Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16269 Support, Water By-pass Pipe
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
16291 Joint, Water Hose
16294 Hose, Water By-pass, NO.11
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
16307B Bracket Sub-assy, Fan
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16331Q Plug(FOR WATER OUTLET)
16333 Housing, Water Outlet
16333E Plug, Drain Cock
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347D Gasket, Water By-pass
16360A Fan Assy, W/Motor
16361 Fan
16361B Fan, NO.2
16361C Fan NO.2
16363 Motor, Cooling Fan
16363A Motor, Cooling Fan, NO.2
16363C Motor, Cooling Fan, NO.3
16370 Fan Assy, W/Motor, NO.2
16380 Bracket Assy, Fan
16381 Bar, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401A Cap Sub-assy, Radiator Reserve Tank
16412 Pipe, Radiator Tank, Upper
16412A Ring, O(FOR RADIATOR UPPER TANK PIPE)
16414 Bolt, Radiator Tank Pipe
16420 Radiator Assy, Sub
16421 Pipe, Radiator Tank, Lower NO.1
16421A Ring, O(FOR RADIATOR LOWER TANK PIPE NO.1)
16422 Pipe, Radiator Tank, Lower NO.2
16423 Hose, Radiator Tank
16424 Clamp, Radiator Tank Pipe
16470 Tank Assy, Radiator Reserve
16470M Grommet
16482 Tank Sub-assy, Radiator Reserve
16511A Bracket, Sub-radiator
16544 Protector, Sub-radiator
16546 Protector, Radiator
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571E Hose, Water
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572C Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16574A Clip, Radiator Hose, NO.4
16575 Hose, Radiator, NO.5
16575A Clip, Radiator Hose, NO.5
16576 Hose, Radiator, NO.6
16576A Clip, Radiator Hose, NO.6
16577 Pipe, Radiator, NO.7
16577B Clamp OR Clip, Hose(FOR RADIATOR PIPE)
16577C Pipe, Radiator
16578 Pipe, Radiator, NO.2
16593 Guide, Radiator Air, NO.1
16594 Guide, Radiator Air, NO.2
16711 Shroud, Fan
16711A Shroud, Fan, NO.2
16712 Shroud, Fan, NO.2
16743 Protector, Fan Shroud
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
