Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

21 part groups · 8 illustrations

Illustrations

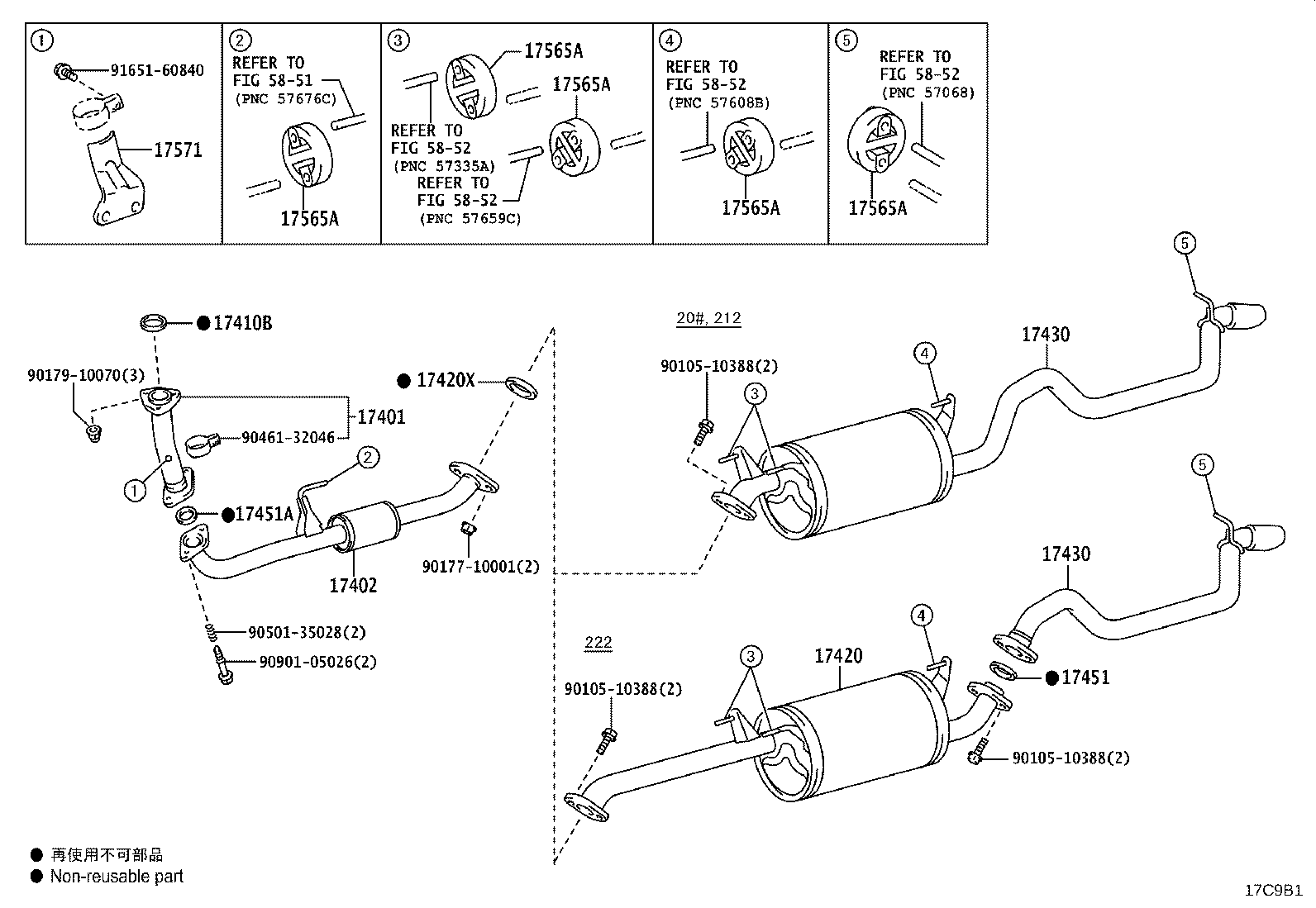

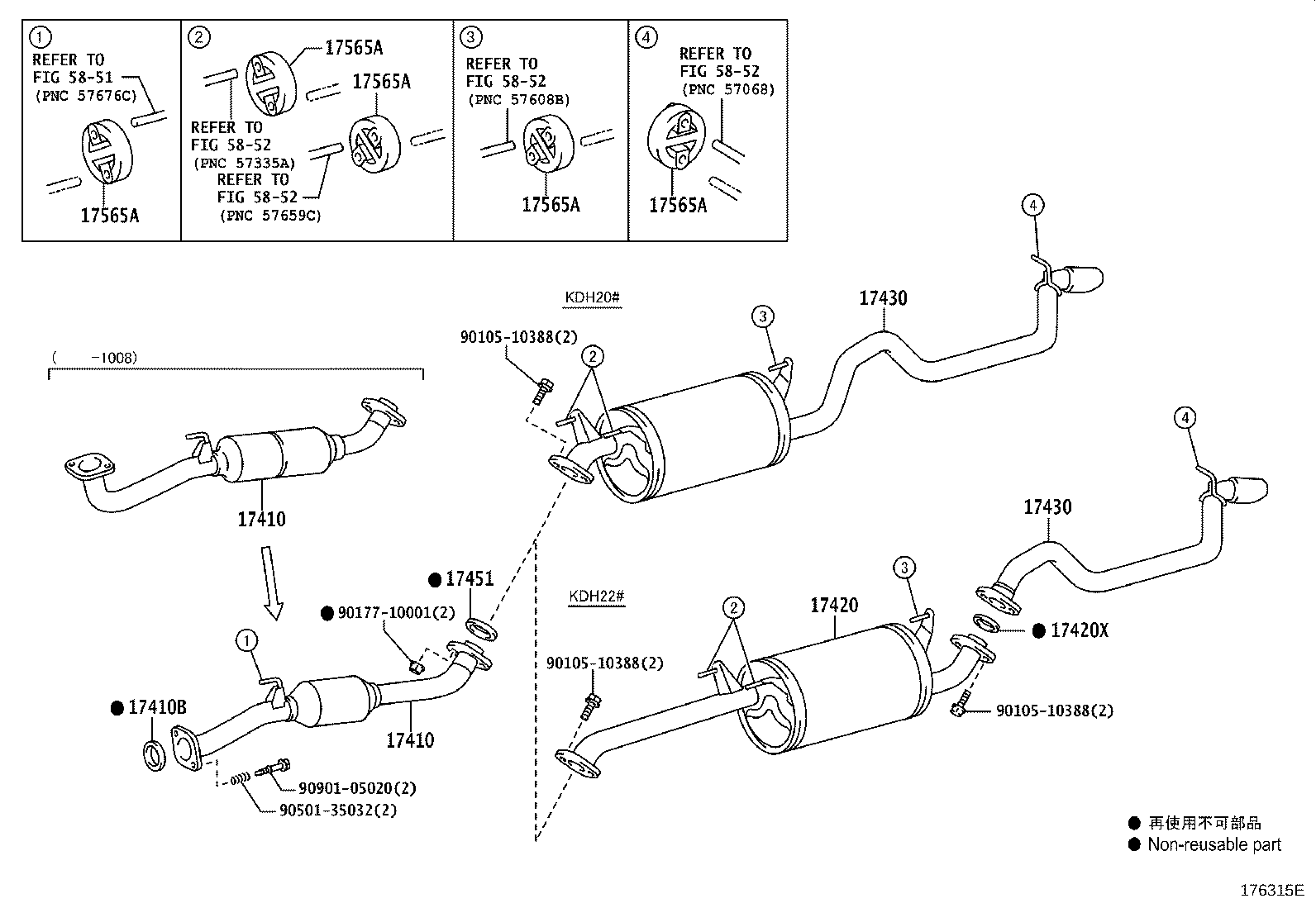

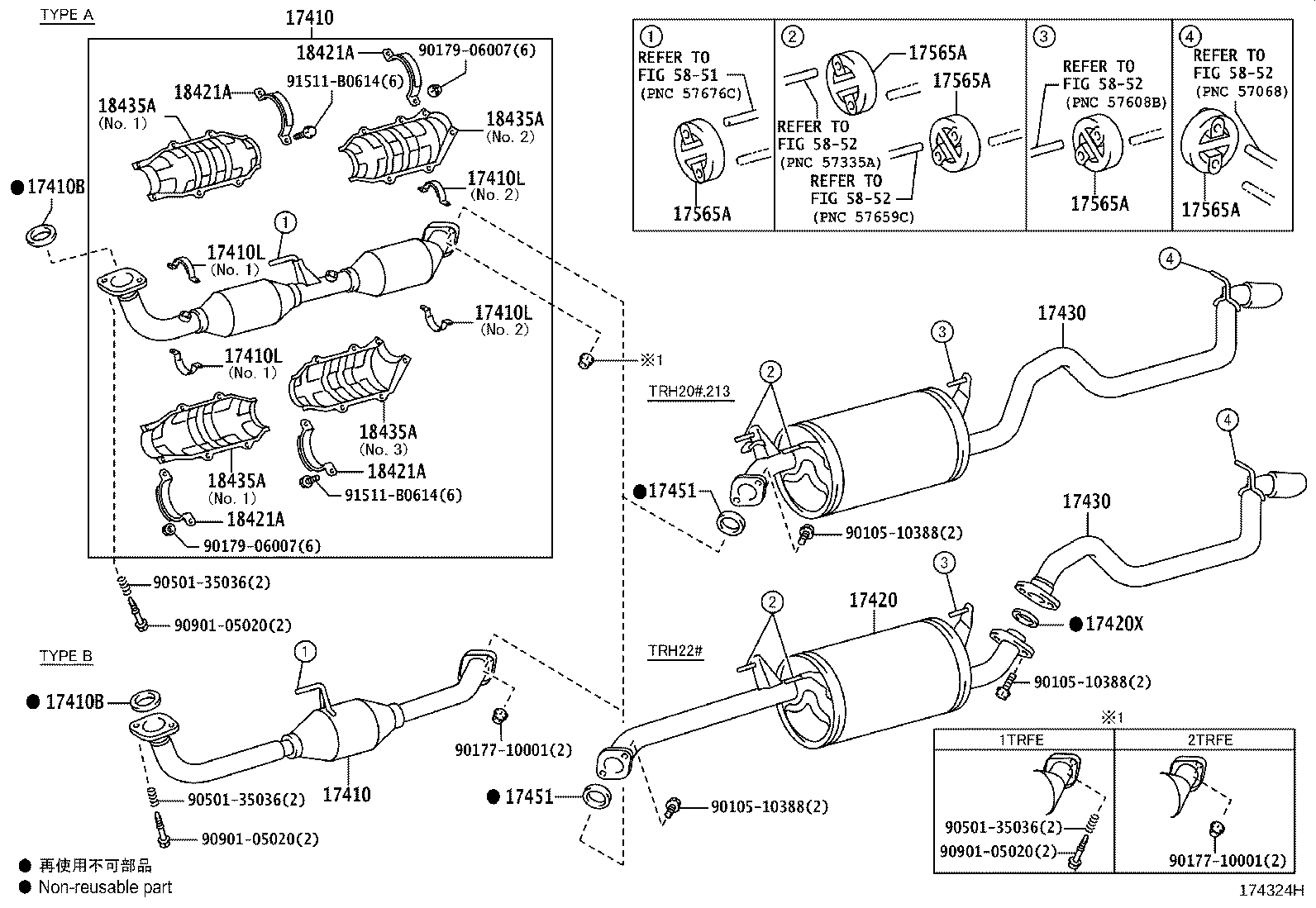

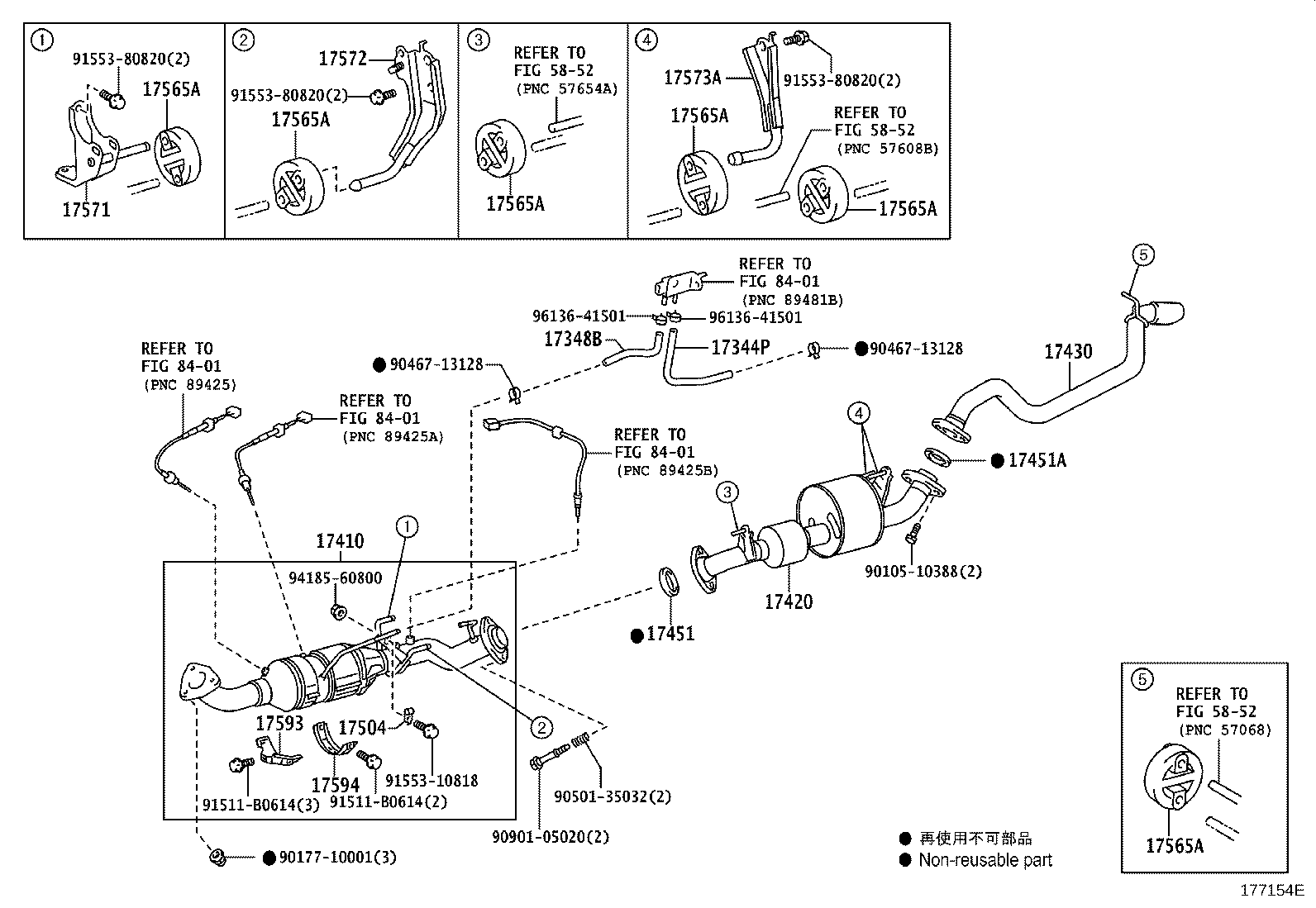

Figure 174322G 174322G 2005-01 → — Figure 174324H 174324H 2005-01 → — Figure 17C9B1 17C9B1 2005-01 → — Figure 176315E 176315E 2006-10 → 2011-11 Figure 176315E 176315E 2006-10 → — Figure 176315E 176315E 2010-08 → 2012-05 Figure 177154E 177154E 2011-11 → — Figure 177154E 177154E 2012-05 → —

Part groups

PNCDescription
17344P Hose, Air, NO.4(FOR EXHAUST PIPE)
17348B Hose, Air, NO.8(FOR EXHAUST PIPE)
17401 Pipe Sub-assy, Exhaust, Front
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17410L Stay, Exhaust Pipe Protector (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17504 Bracket Sub-assy, Catalytic Converter
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17573A Bracket, Exhaust Pipe Support, NO.3
17593 Protector, Exhaust Pipe, NO.1
17594 Protector, Exhaust Pipe, NO.2
18421A Stay, Converter Protector, LH
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
