Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

13 part groups · 3 illustrations

Illustrations

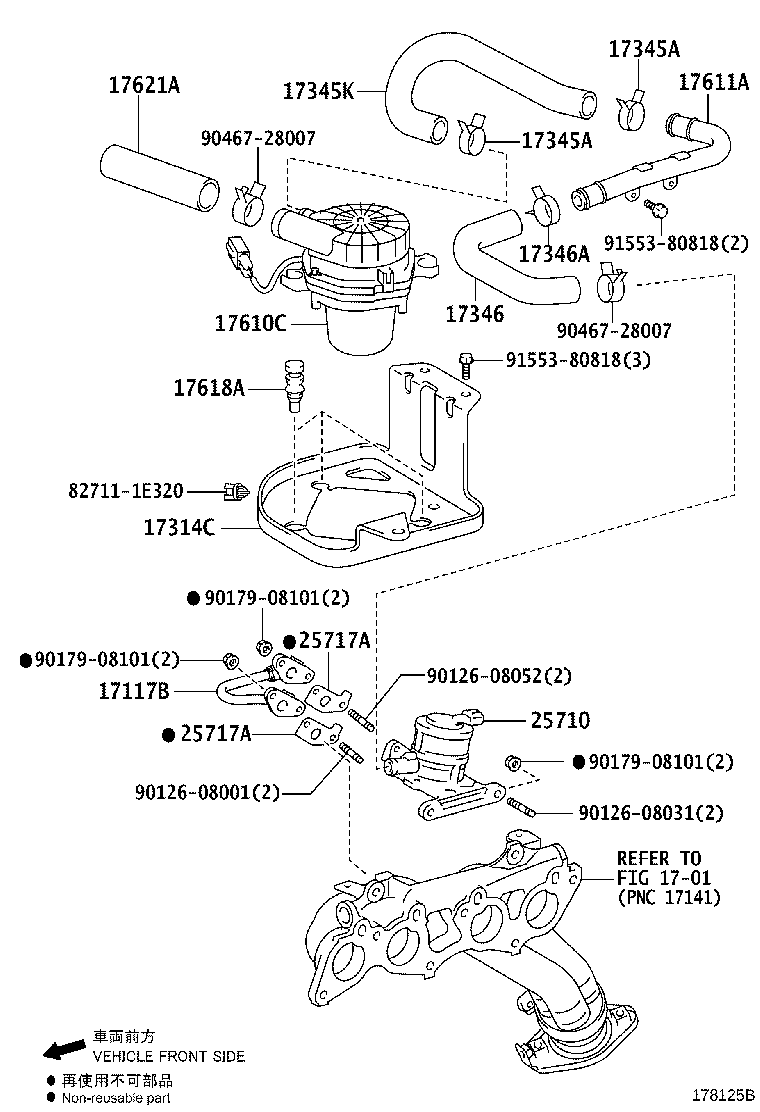

Figure 174262I 174262I 2005-01 → — Figure 174262I 174262I 2005-01 → — Figure 178125B 178125B 2013-08 → —

Part groups

PNCDescription
17030B Hose Assy, Air
17117B Pipe, Intake, NO.4
17314C Bracket, Air Pump
17345A Clamp OR Clip, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)
17345K Hose, Air, NO.5
17346 Hose, NO.6(FOR AIR INJECTION SYSTEM)
17346A Clamp OR Clip, NO.6(FOR AIR INJECTION SYSTEM HOSE, NO.6)
17610C Pump Assy, Air
17611A Pipe, Air Pump Inlet
17618A Insulator, Air Pump
17621A Inlet, Air Pump
25710 Valve Assy, Air Switching
25717A Gasket, Air Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
