Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 11 illustrations

Illustrations

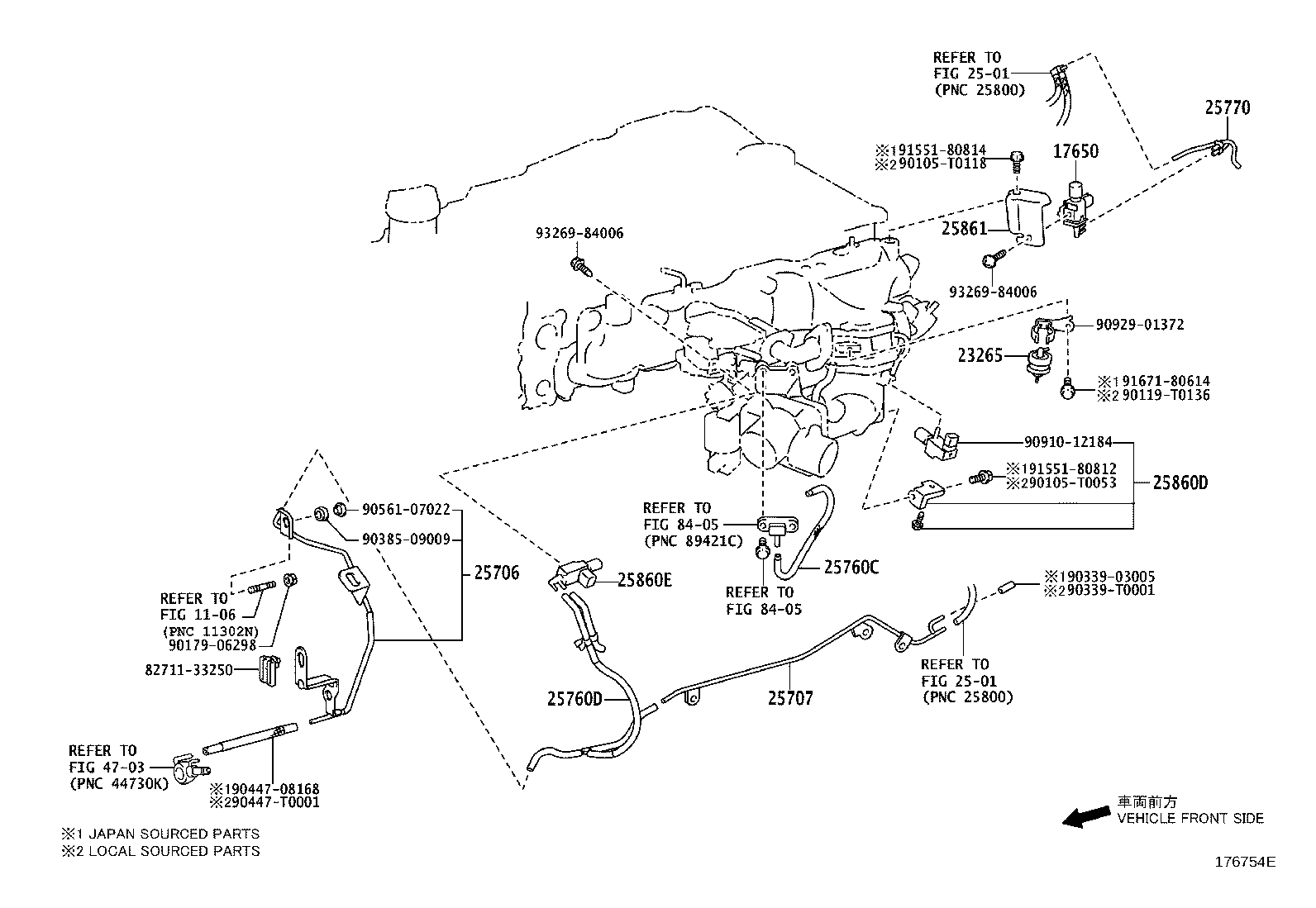

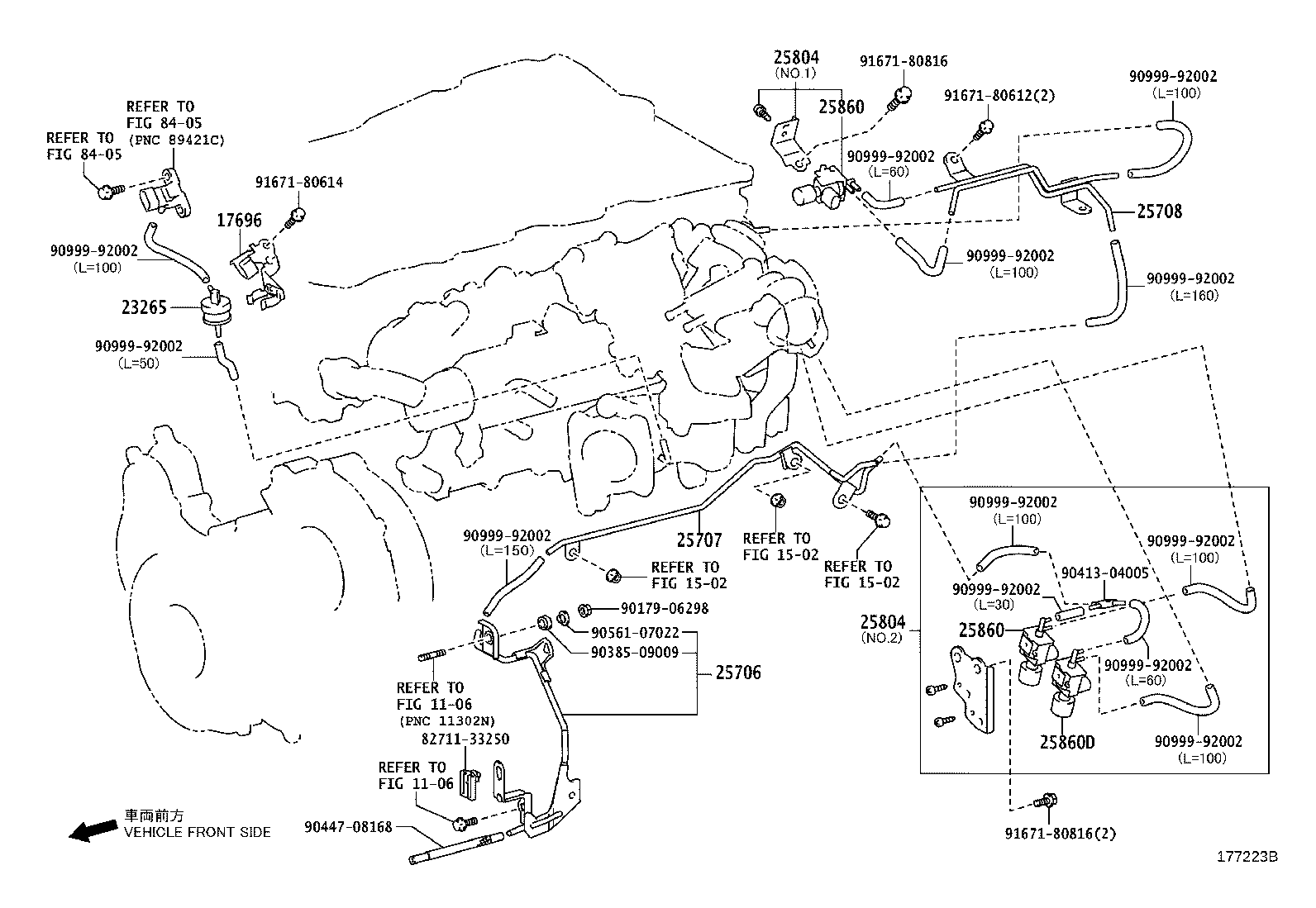

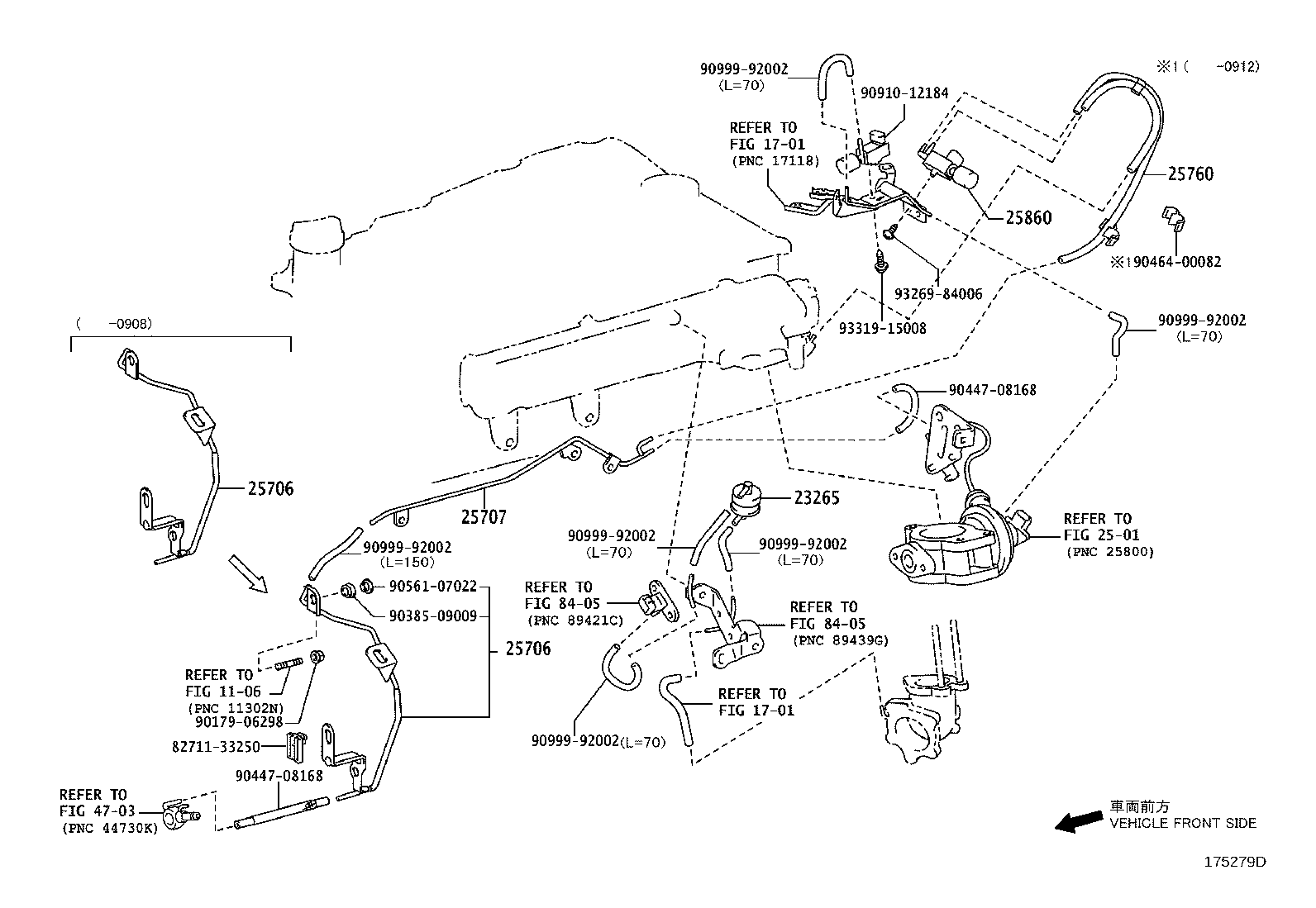

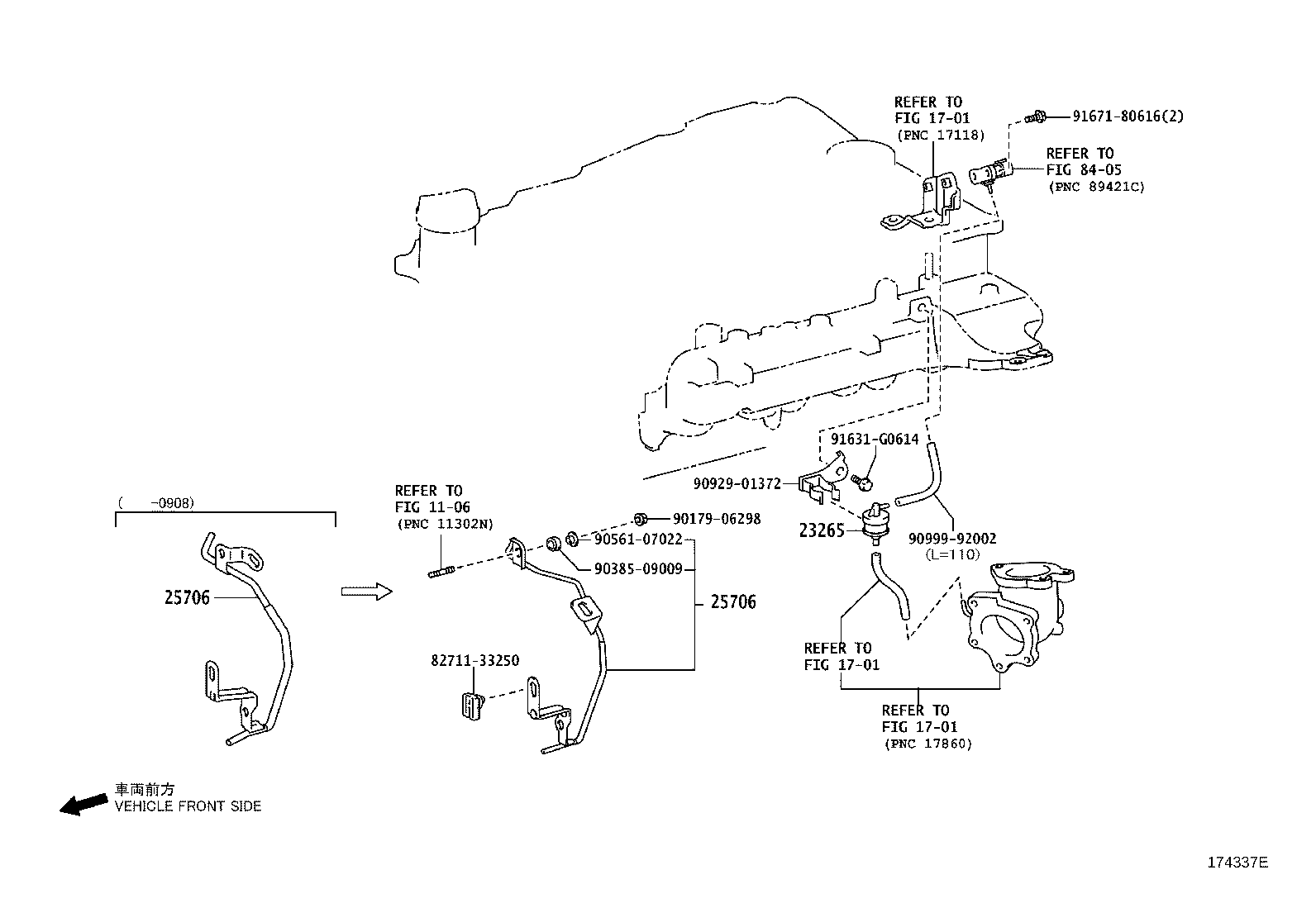

Figure 174335P 174335P 2005-01 → — Figure 174335P 174335P 2005-01 → — Figure 174337E 174337E 2005-01 → — Figure 174337E 174337E 2005-01 → — Figure 175279D 175279D 2006-10 → 2010-08 Figure 176754E 176754E 2010-08 → 2011-10 Figure 176754E 176754E 2011-10 → 2012-12 Figure 176754E 176754E 2011-10 → — Figure 177223B 177223B 2011-10 → — Figure 177223B 177223B 2012-12 → — Figure 176487C 176487C 2005-01 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
23820 Hose Assy, Fuel Vapor Feed
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25760 Hose Assy, Vacuum Transmitting
25760C Hose Assy, Vacuum Transmitting, NO.3
25760D Hose Assy, Vacuum Transmitting, NO.4
25770 Hose Assy, Vacuum Transmitting, NO.2
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
