Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

20 part groups · 15 illustrations

Illustrations

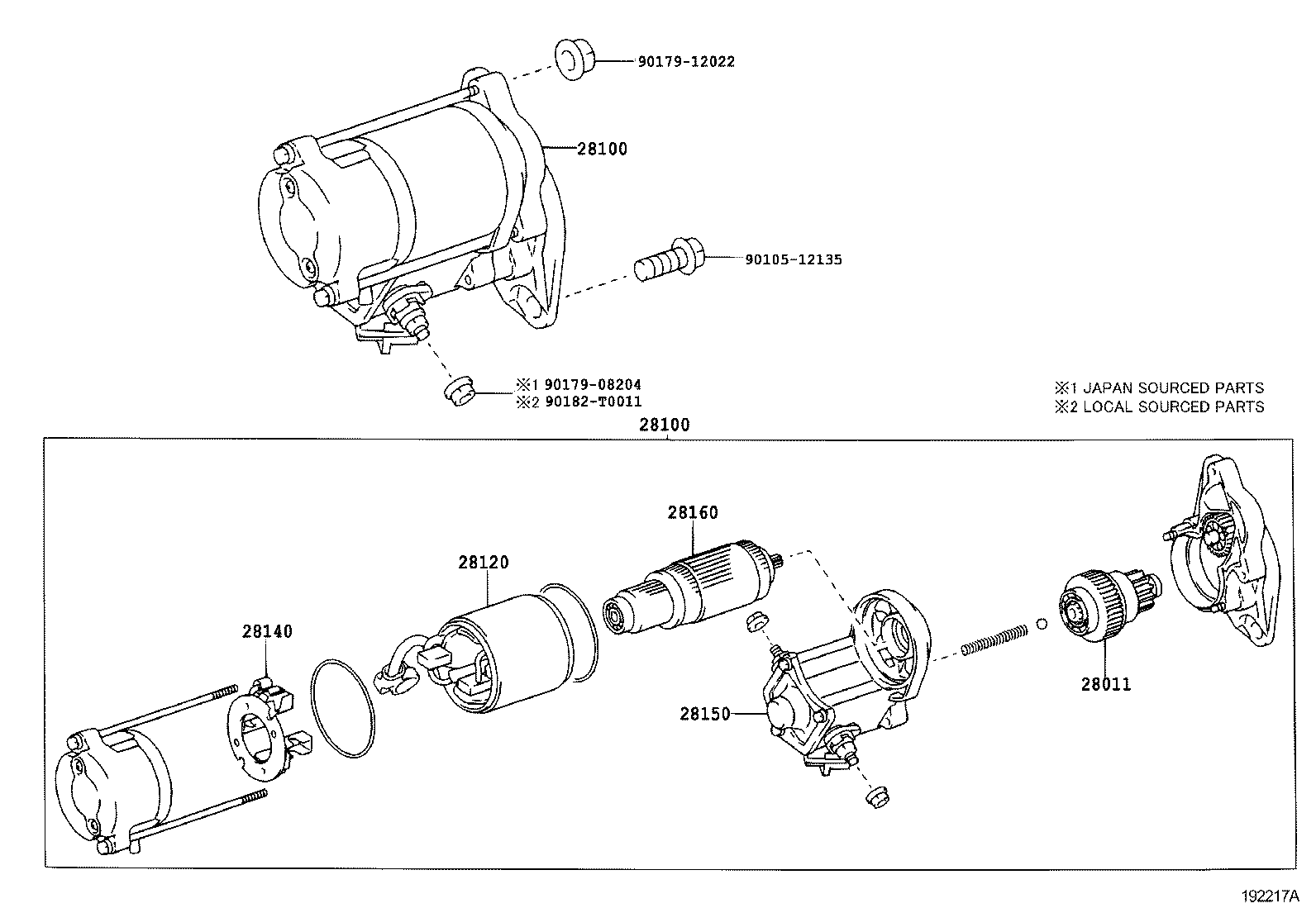

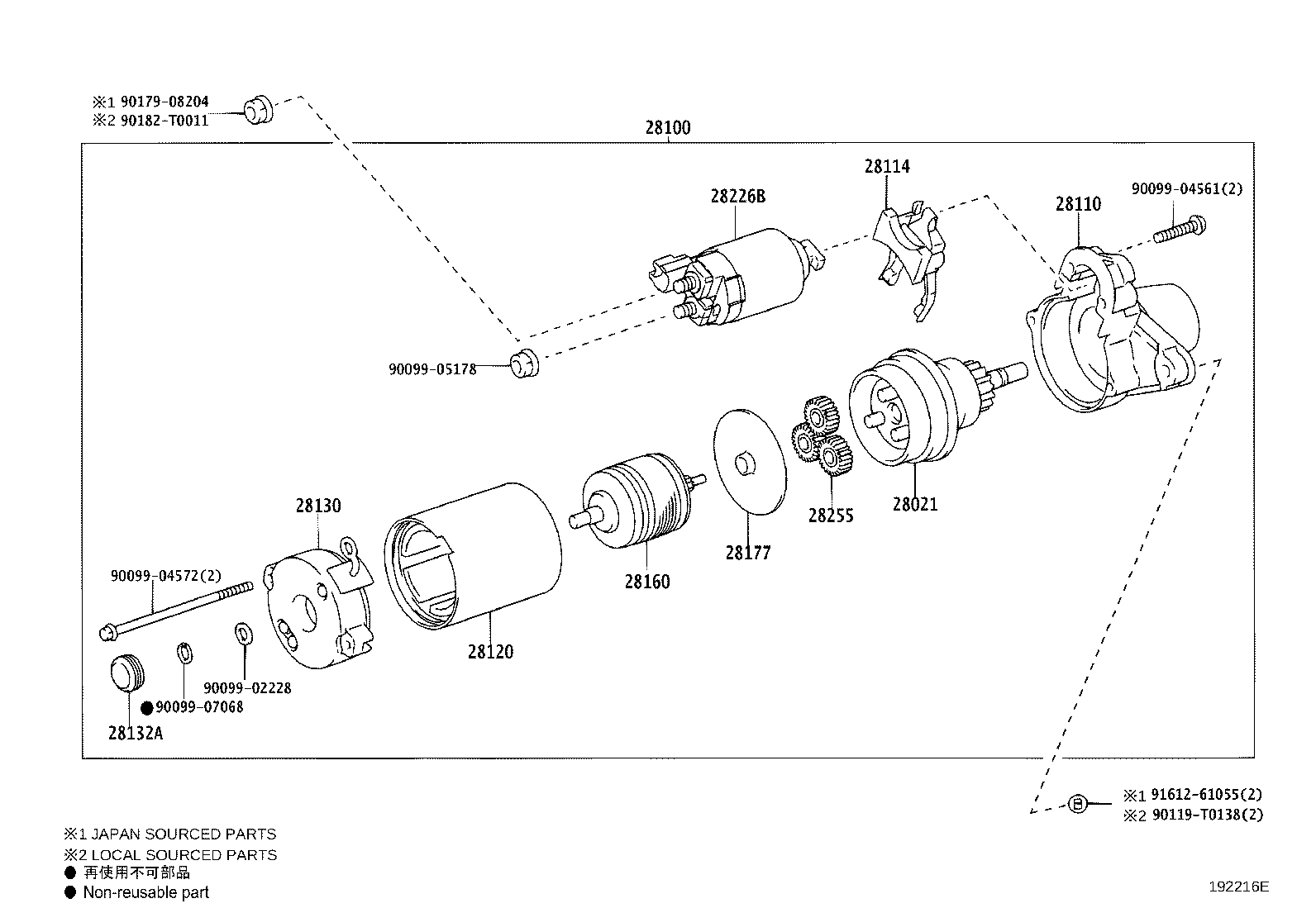

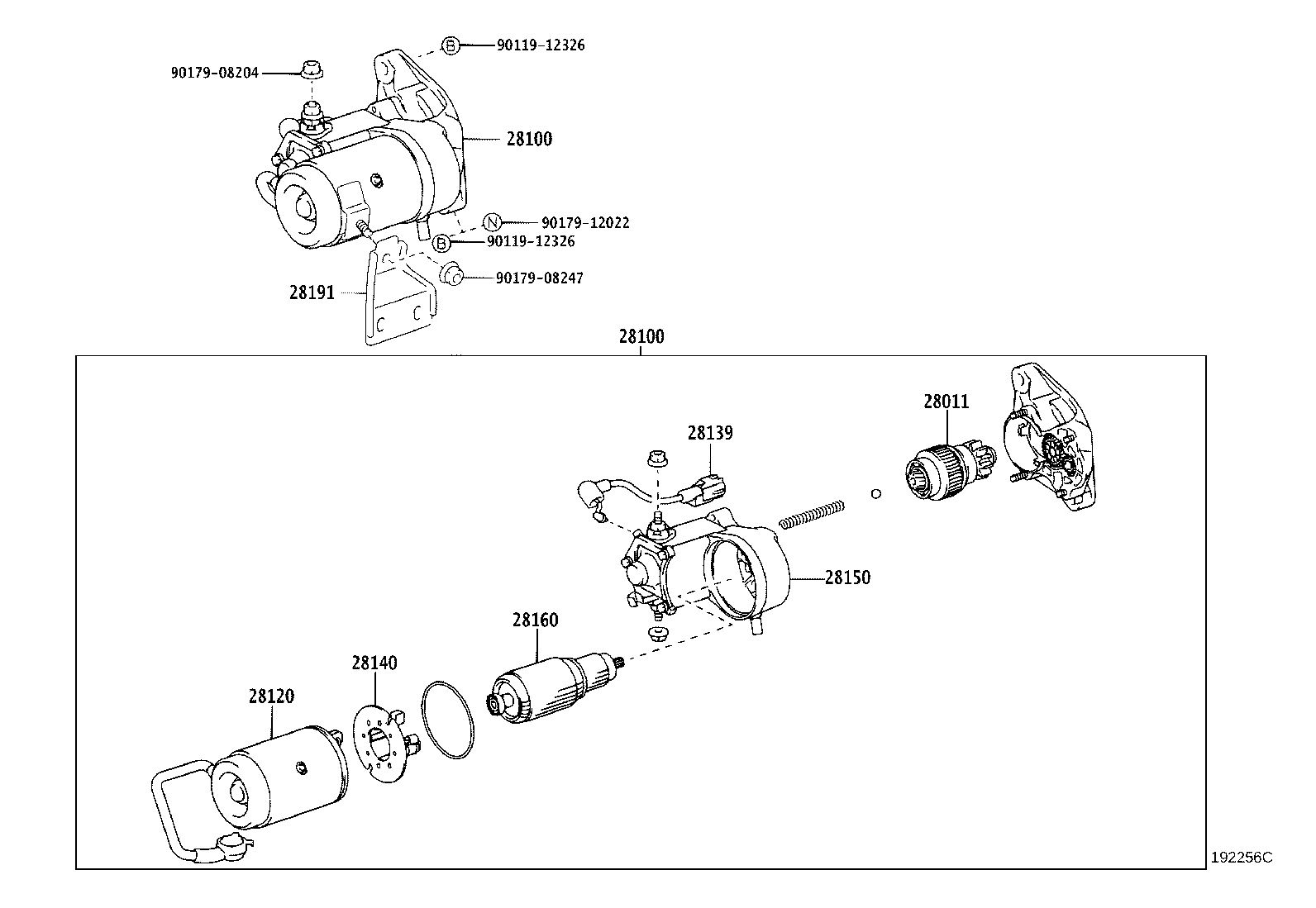

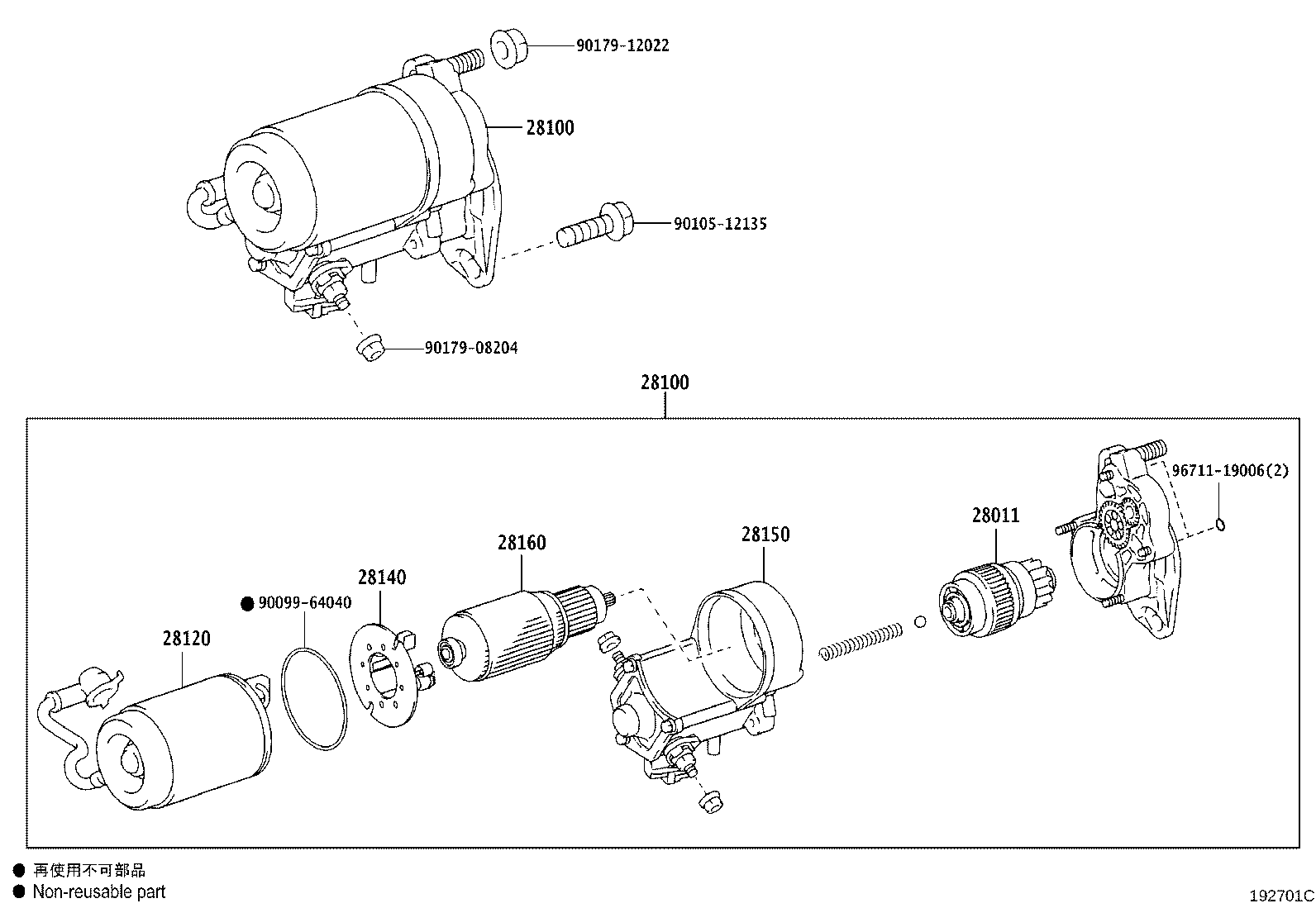

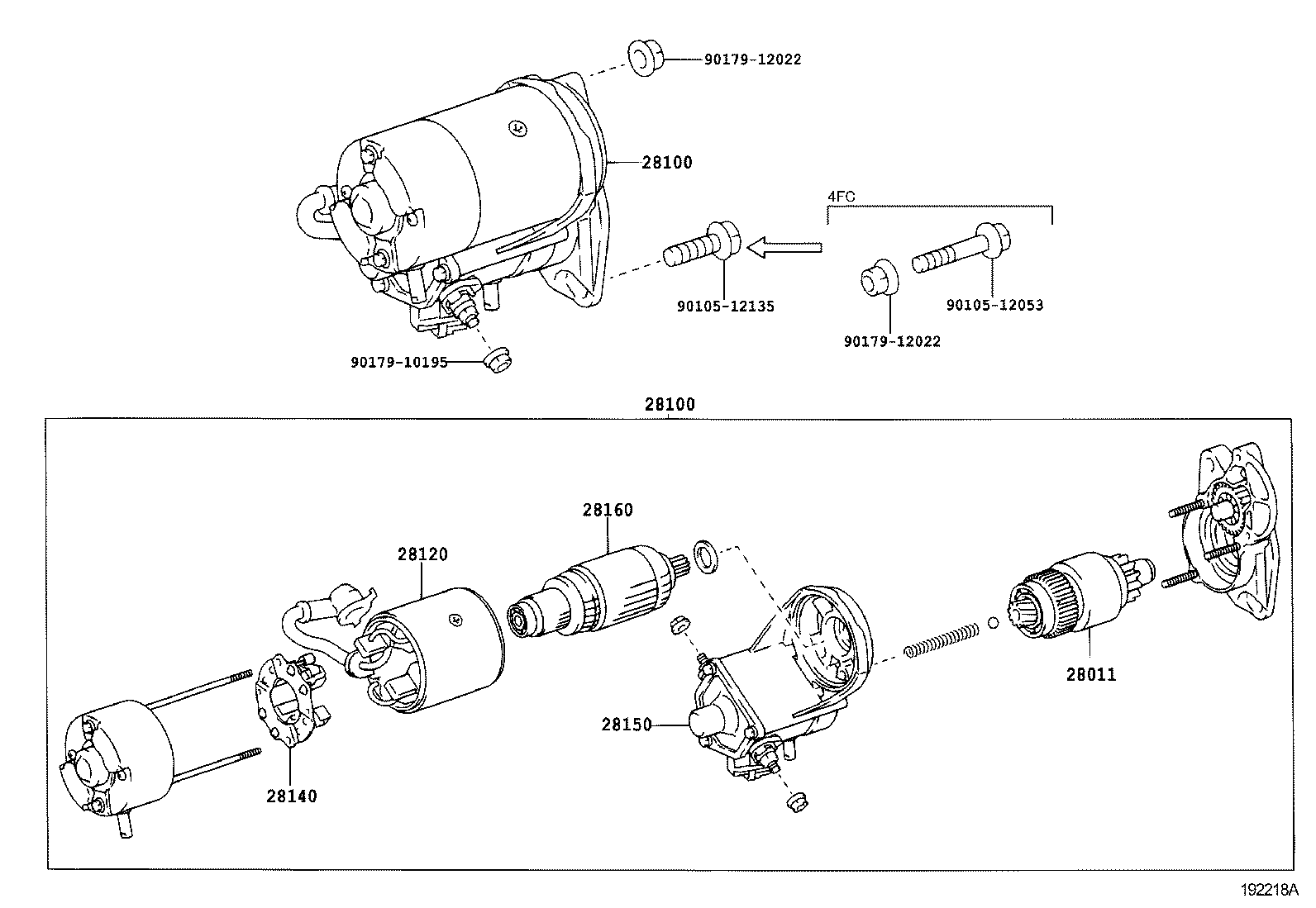

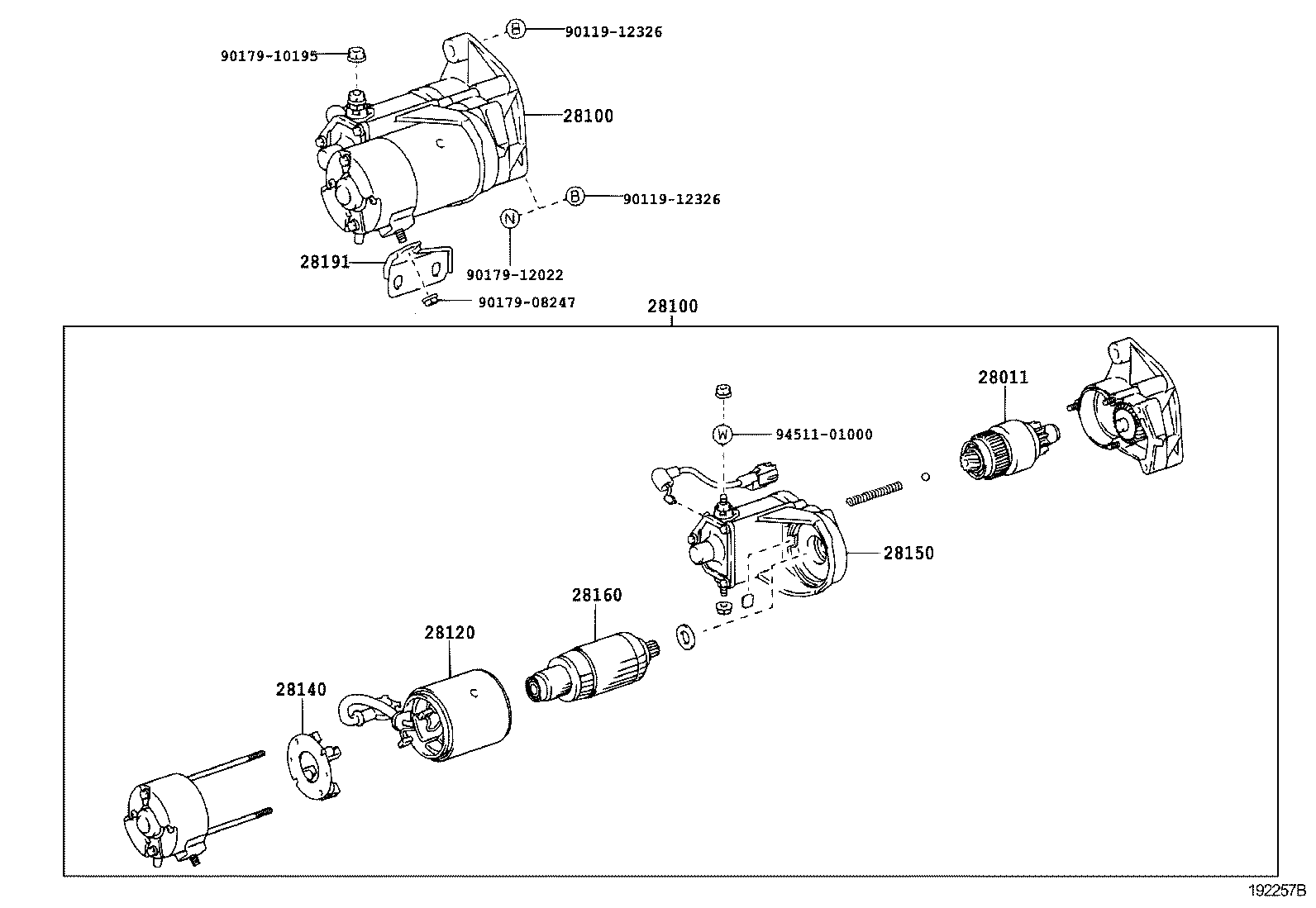

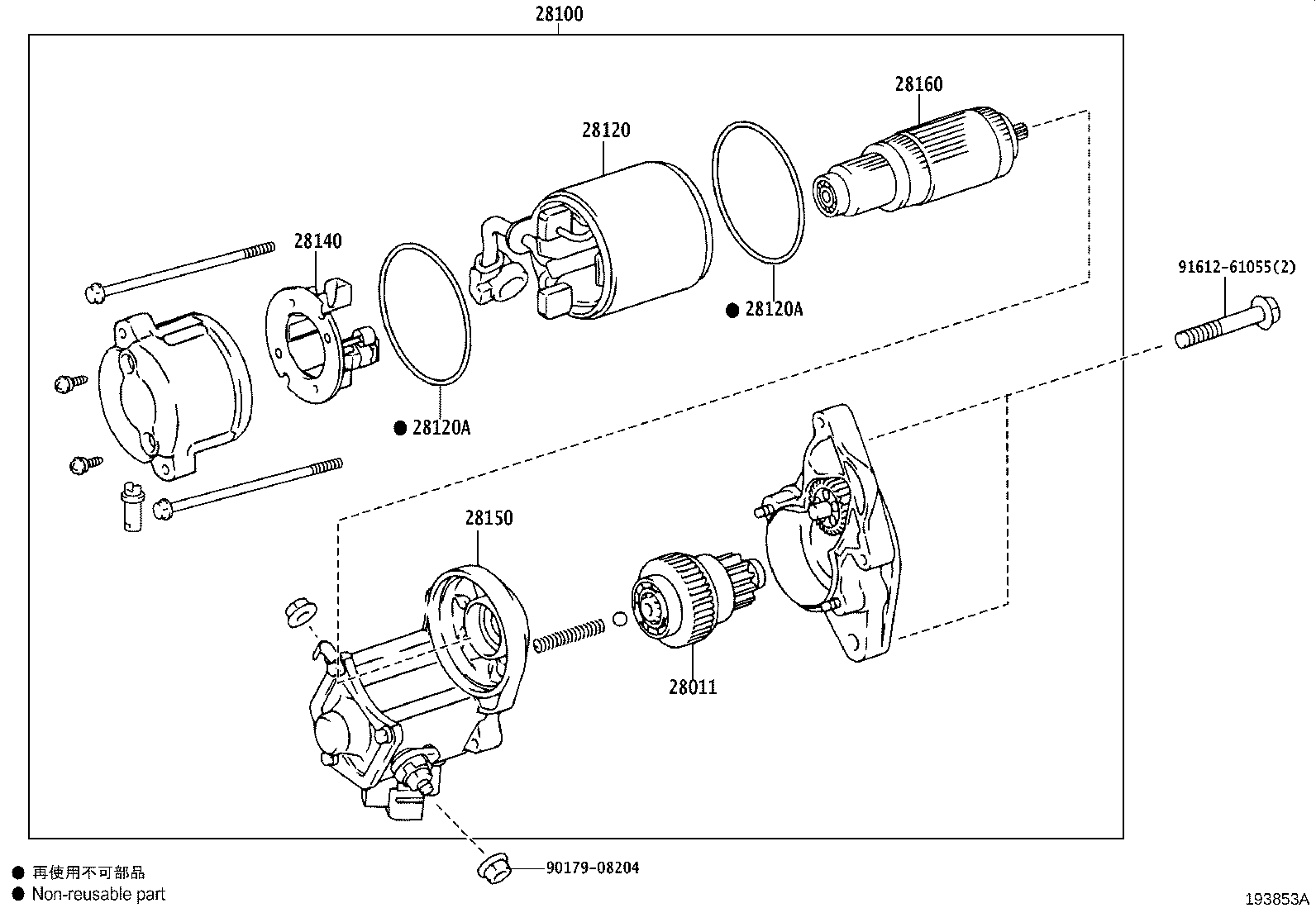

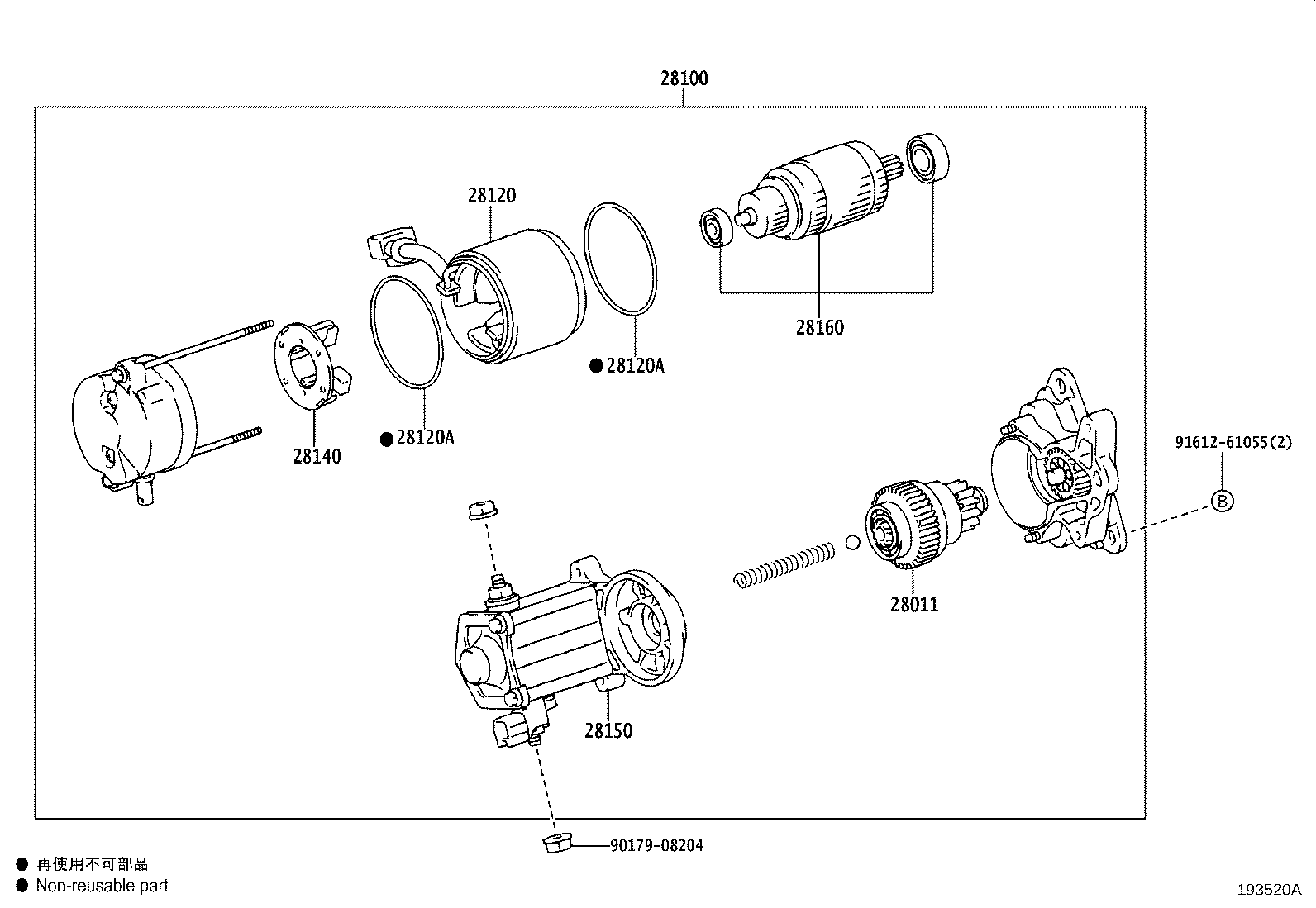

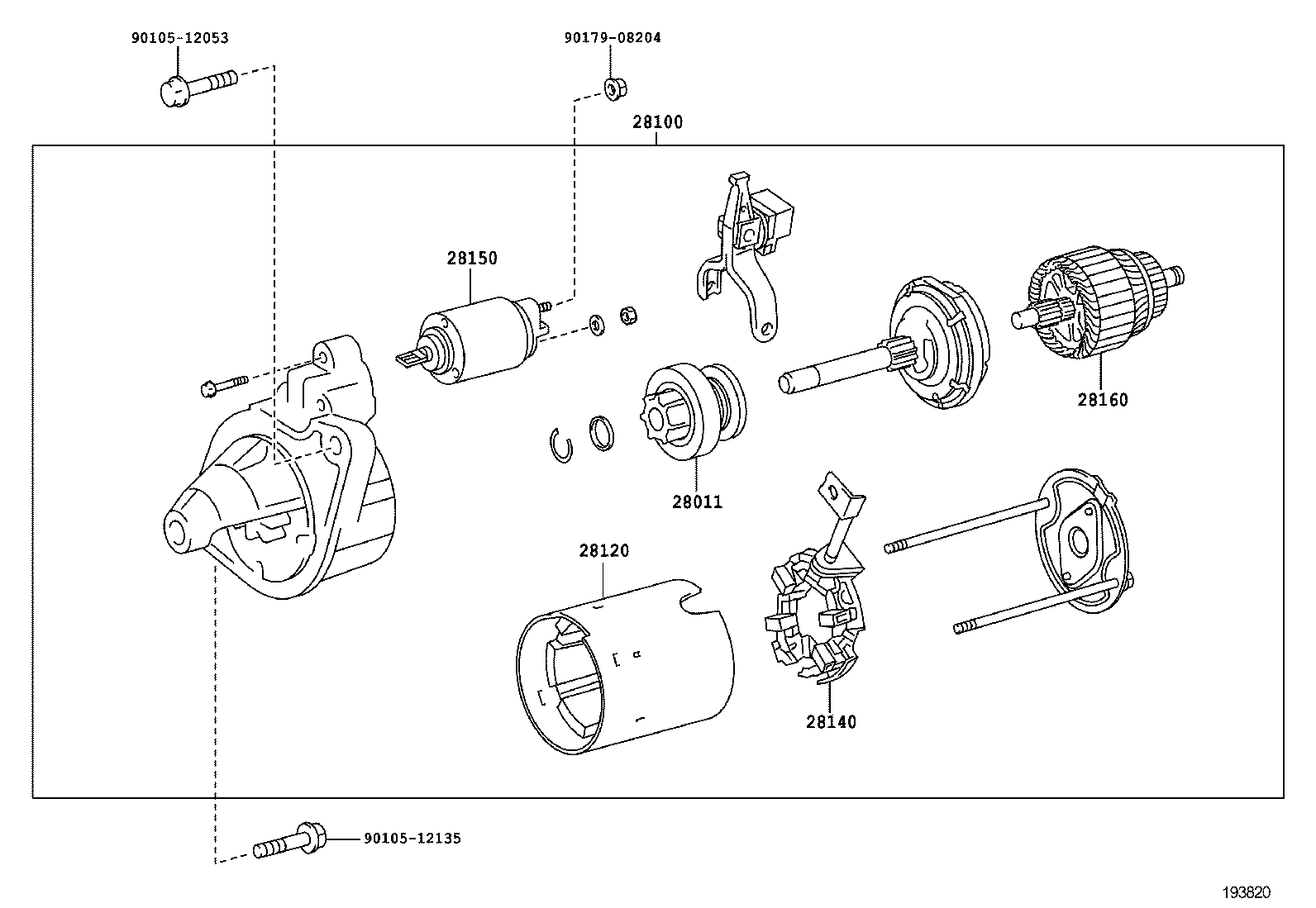

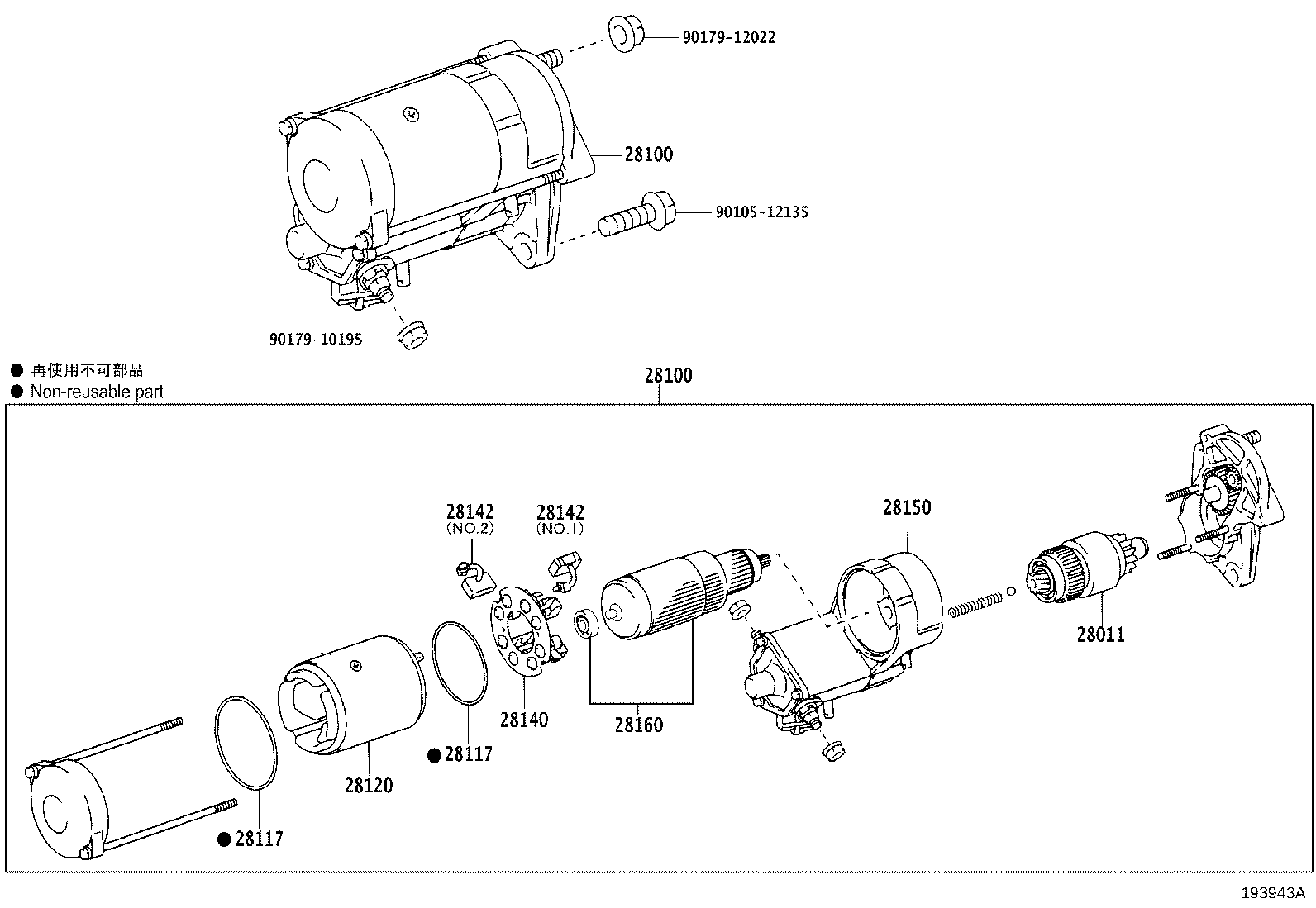

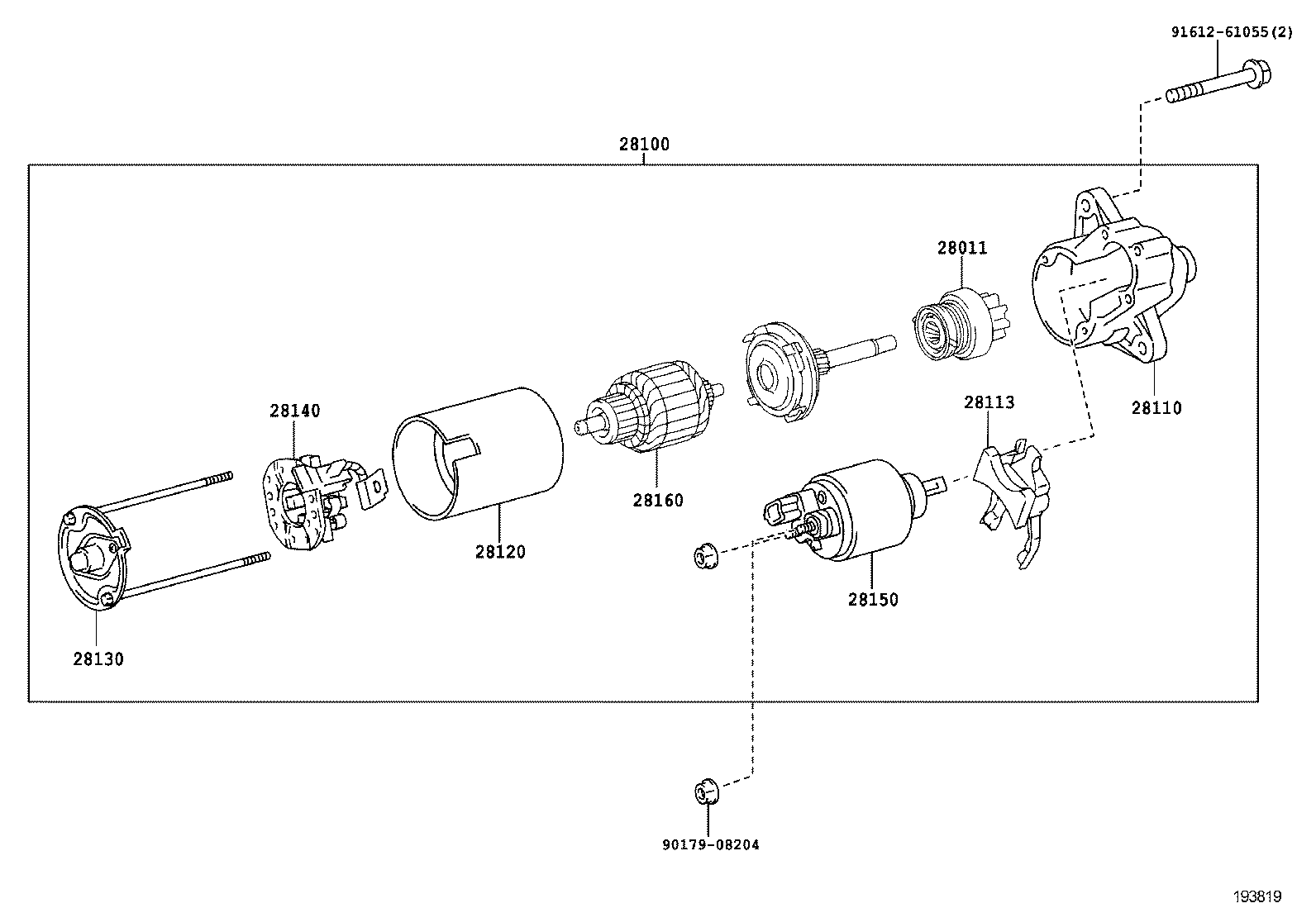

Figure 193601B 193601B 2013-08 → — Figure 192217A 192217A 2005-01 → — Figure 192218A 192218A 2005-01 → — Figure 192218A 192218A 2005-01 → — Figure 192218A 192218A 2005-01 → — Figure 192256C 192256C 2005-01 → — Figure 192257B 192257B 2005-01 → — Figure 192216E 192216E 2005-01 → — Figure 192216E 192216E 2007-10 → 2010-08 Figure 192701C 192701C 2006-10 → — Figure 193520A 193520A 2010-08 → — Figure 193819 193819 2012-04 → — Figure 193820 193820 2012-04 → — Figure 193853A 193853A 2012-05 → — Figure 193943A 193943A 2012-05 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28117 Rubber(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28191 Stay, Starter
28226B Starter Kit, Repair Service
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
