Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

25 part groups · 12 illustrations

Illustrations

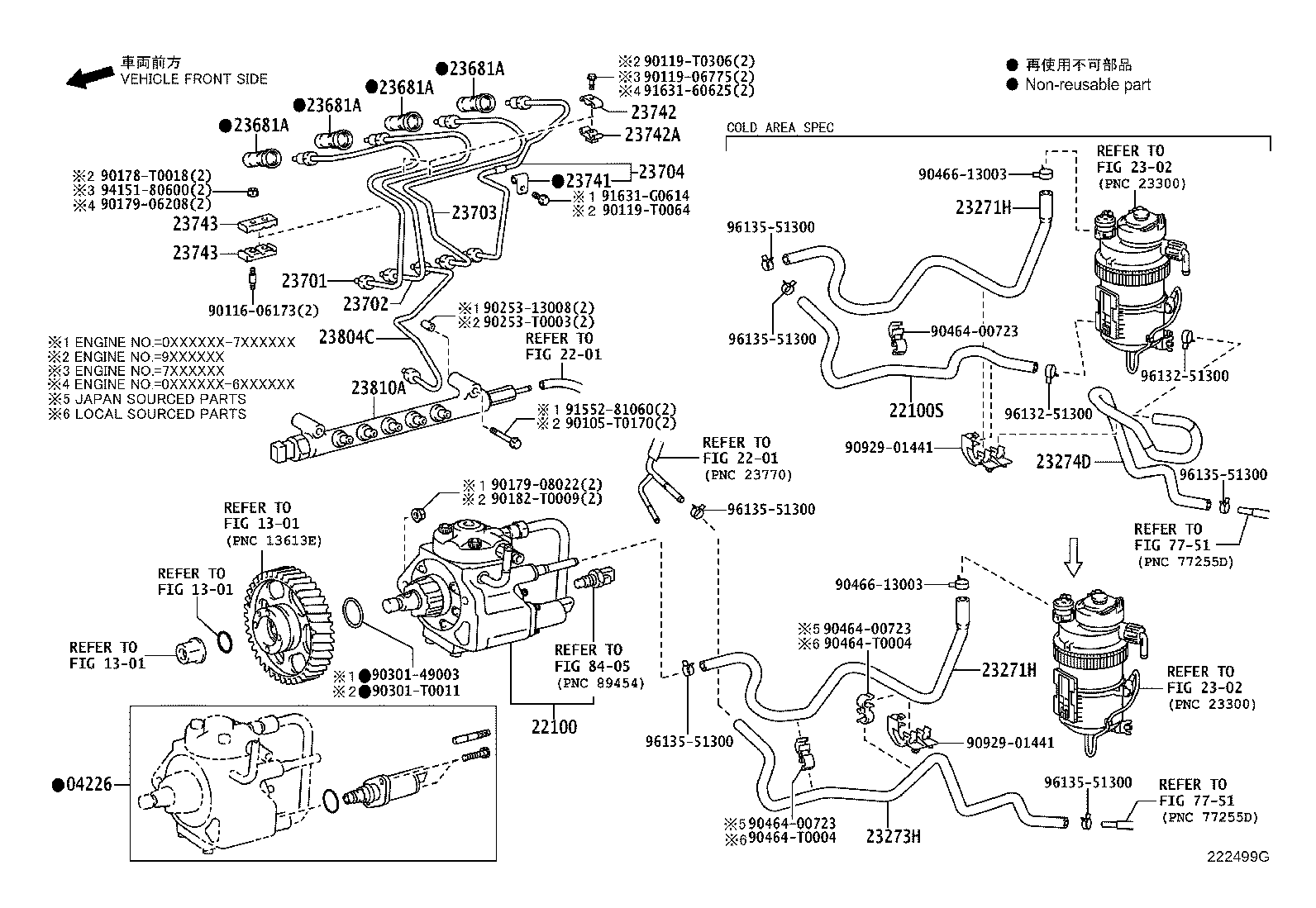

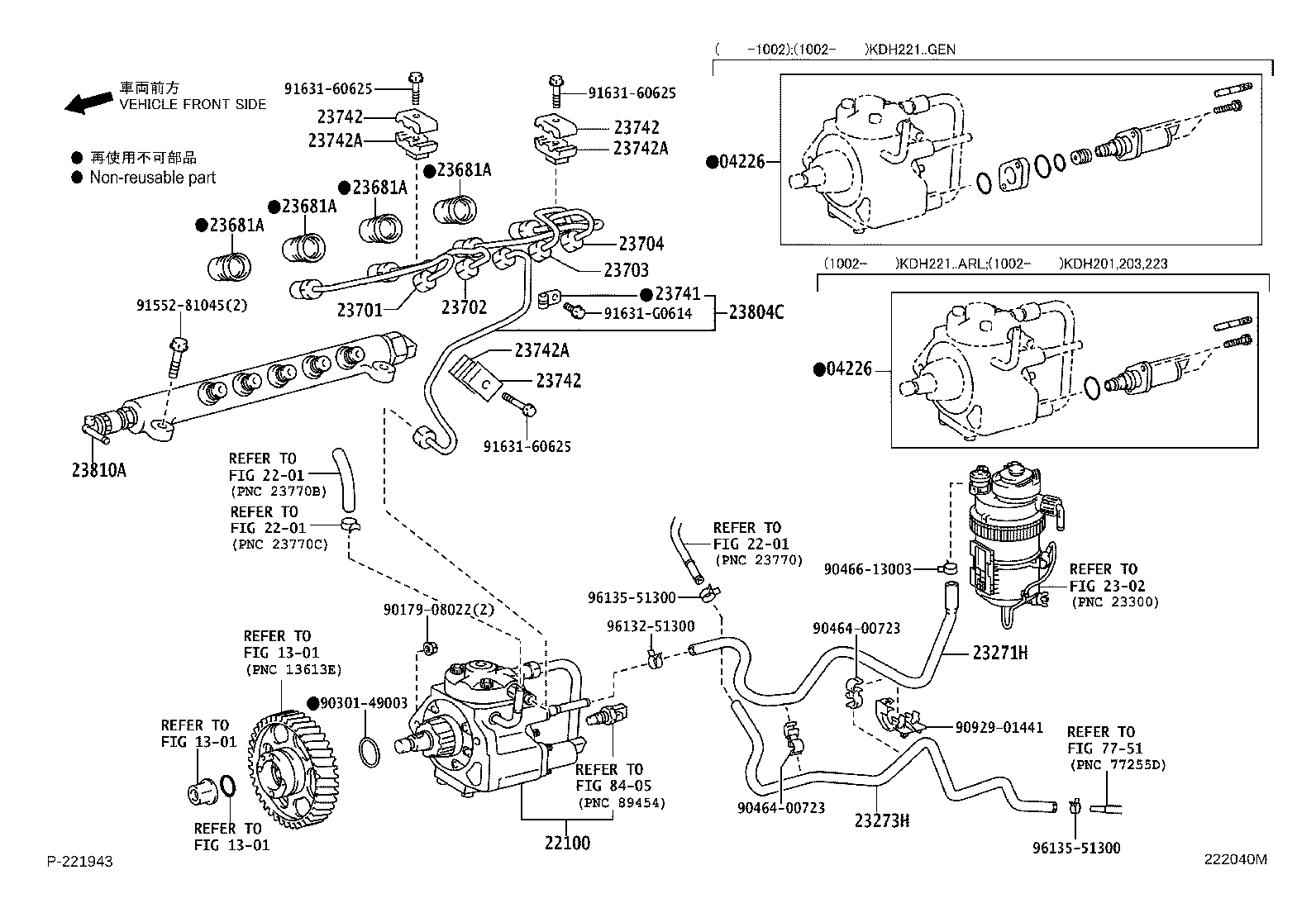

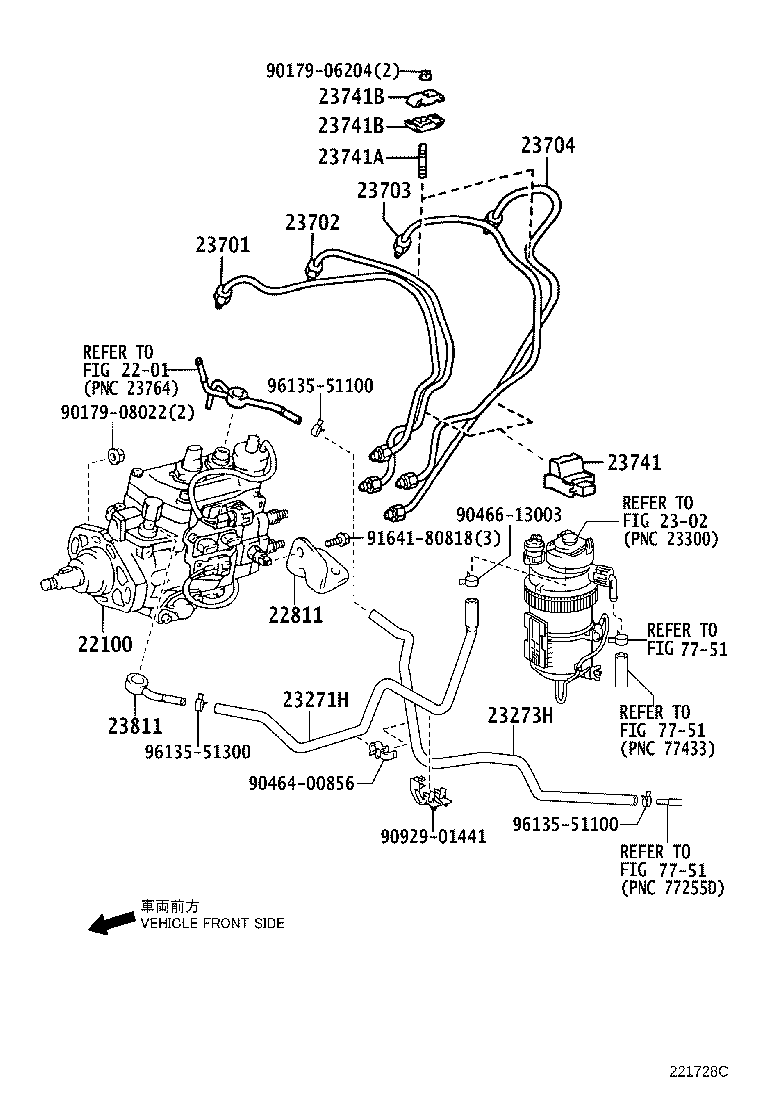

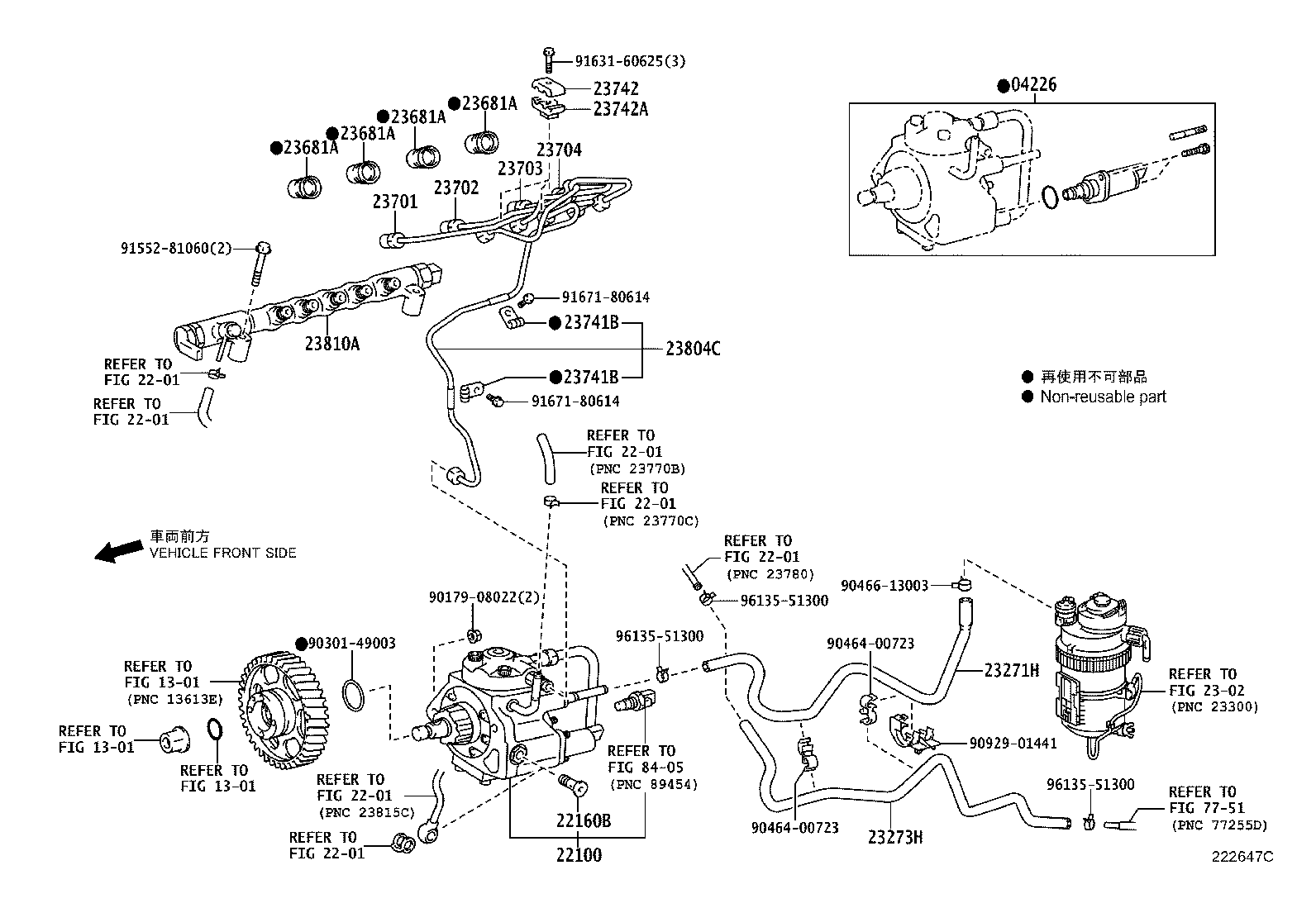

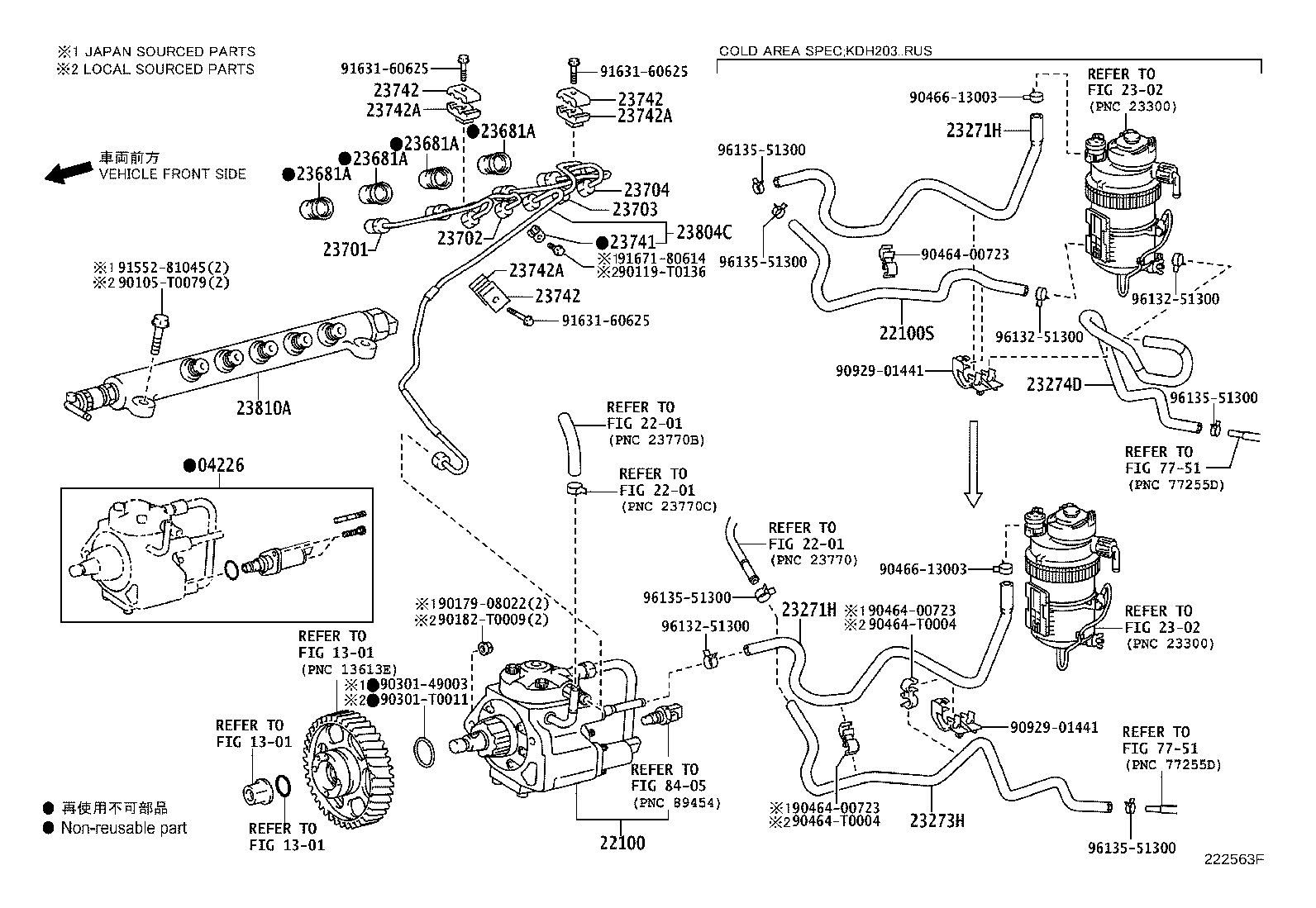

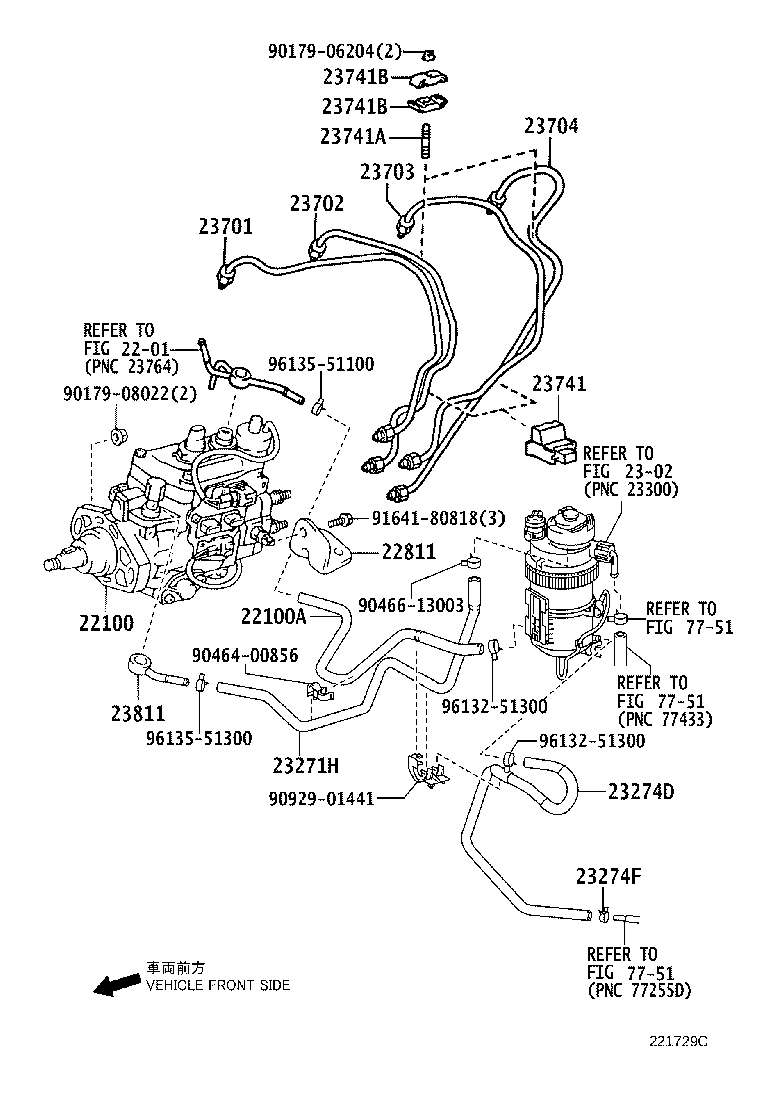

Figure 221725V 221725V 2005-01 → 2007-05 Figure 221725V 221725V 2007-05 → 2007-09 Figure 222499G 222499G 2007-05 → — Figure 222499G 222499G 2007-05 → — Figure 222040M 222040M 2006-10 → 2010-08 Figure 222563F 222563F 2010-08 → 2011-10 Figure 222563F 222563F 2011-10 → 2012-12 Figure 222563F 222563F 2011-10 → — Figure 222647C 222647C 2011-10 → — Figure 222647C 222647C 2012-12 → — Figure 221728C 221728C 2005-01 → — Figure 221729C 221729C 2005-01 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22160B Screw
22560A Valve Assy, Suction Control
22811 Stay, Injection Pump, NO.1
23271H Hose, Fuel, NO.1
23273H Hose, Fuel, NO.2
23274D Hose, Fuel, NO.3
23274F Clip(FOR FUEL HOSE NO.3)
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741A Bolt, Stud(FOR INJECTION PIPE CLAMP)
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23804C Pipe Sub-assy, Fuel Inlet
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
