Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

5 part groups · 2 illustrations

Illustrations

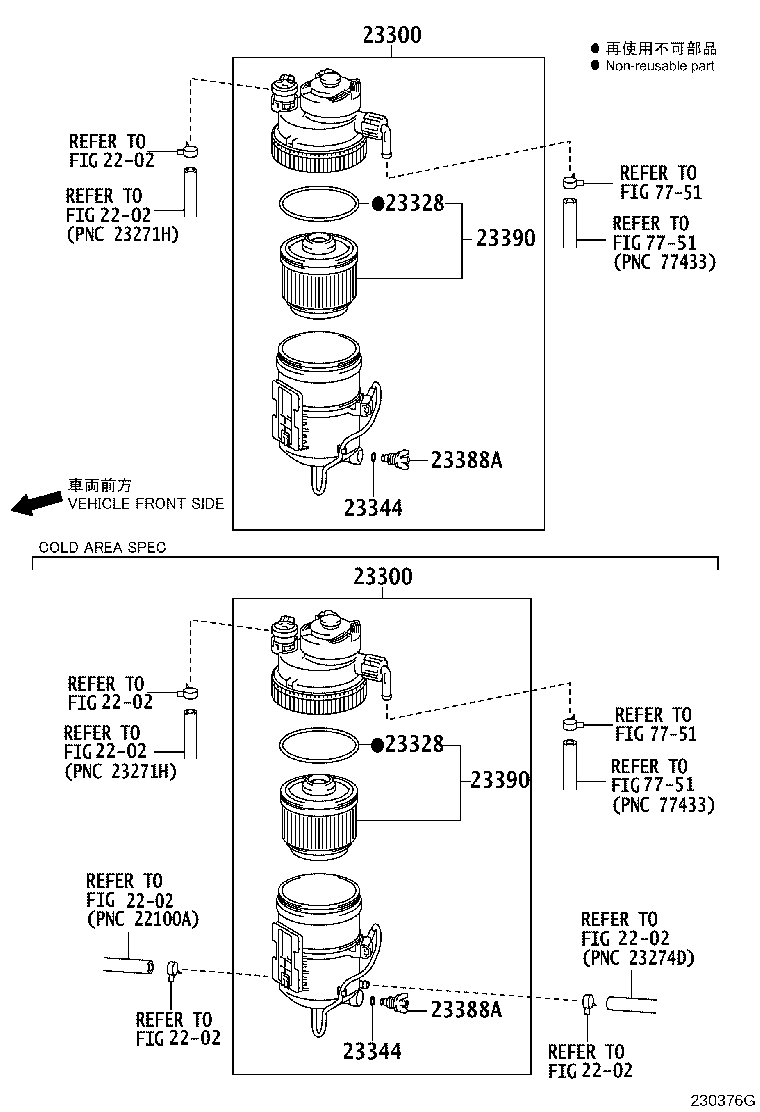

Figure 230374I 230374I 2005-01 → — Figure 230376G 230376G 2005-01 → —

Part groups

PNCDescription
23300 Filter Assy, Fuel
23328 Gasket(FOR FUEL FILTER)
23344 Gasket, Clamping Nut(FOR FUEL FILTER)
23388A Plug, Fuel Filter Drain
23390 Element Assy, Fuel Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
