Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

25 part groups · 3 illustrations

Illustrations

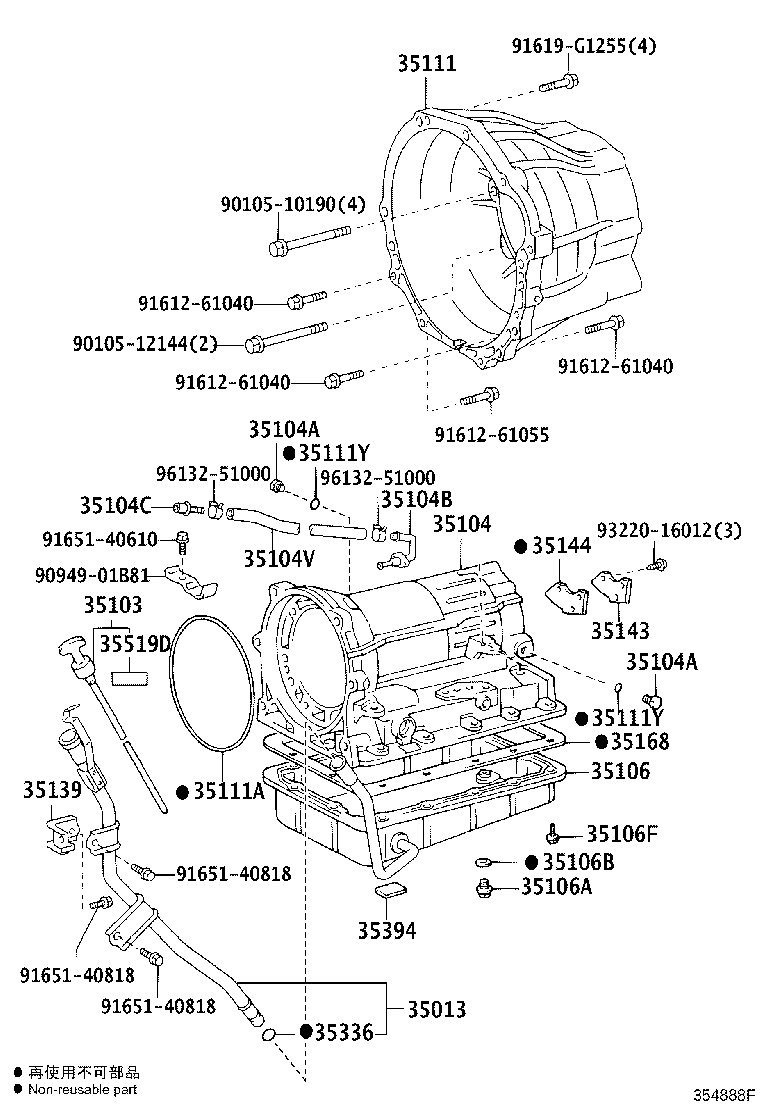

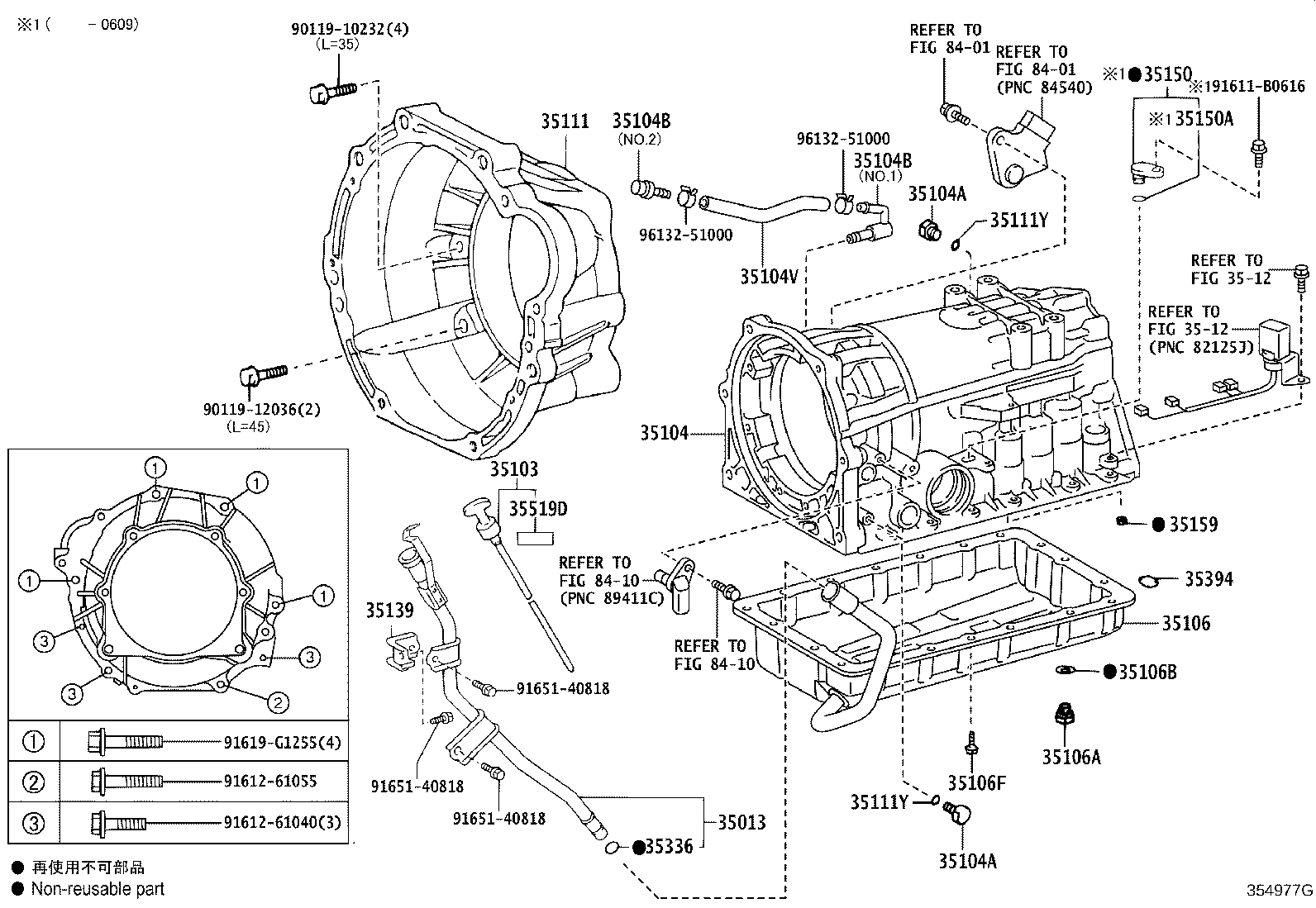

Figure 354976I 354976I 2005-01 → — Figure 354977G 354977G 2005-01 → — Figure 354888F 354888F 2013-08 → —

Part groups

PNCDescription
33118B Plate, Stiffener, RH(ATM)
35013 Tube Sub-assy, Transmission Oil Filler
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35104C Plug, Breather, NO.2 (ATM)
35104V Hose (FOR BREATHER PLUG)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111 Housing, Automatic Transmission
35111A Ring, O (FOR AUTOMATIC TRANSMISSION HOUSING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35139 Bracket, Oil Filler Tube
35143 Cover, Transmission Case, Rear
35144 Gasket, Transmission Case Rear Cover
35150 Plug Assy, Transmission Case
35150A Ring, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
35159 Gasket, Brake Drum
35168 Gasket, Automatic Transmission Oil Pan
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35519D Label, Automatic Transmission Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
