Center Support & Planetary Sun Gear (ATM)

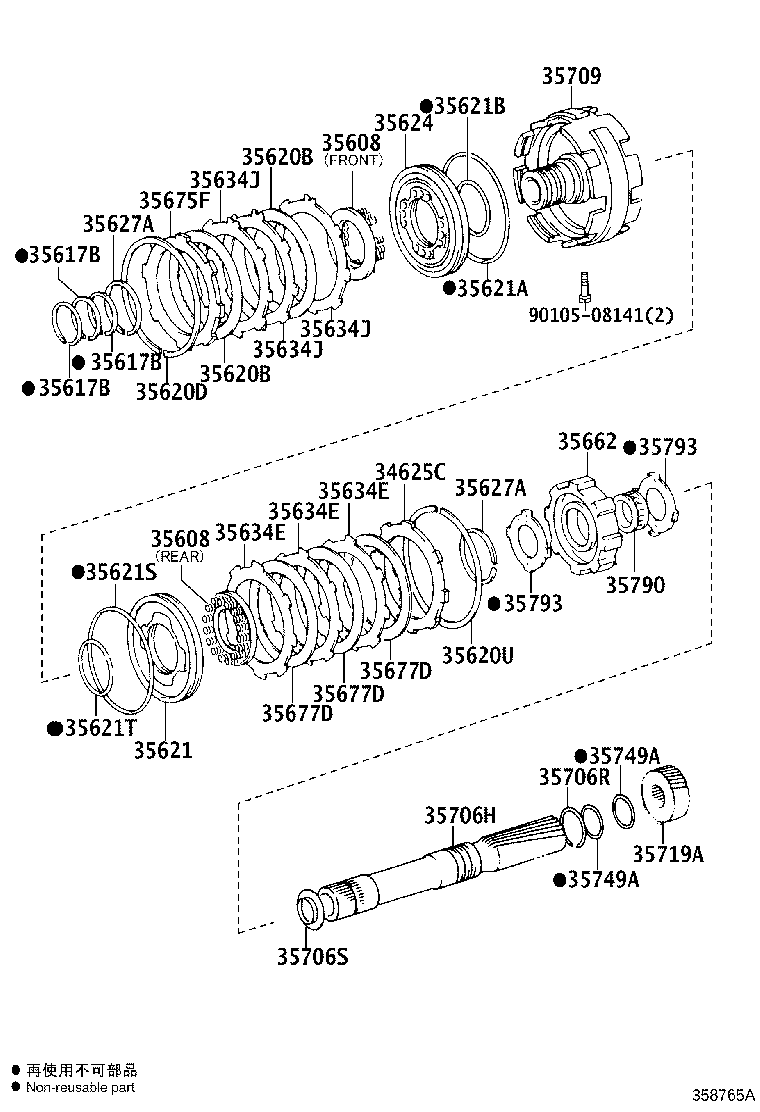

42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 34625C | Flange, Overdrive Brake |
| 35608 | Spring Sub-assy, 2ND Brake Piston Return |
| 35617B | Ring, Clutch Drum Oil Seal |
| 35620B | Disc, Clutch (FOR BRAKE) |
| 35620D | Ring (FOR BRAKE) |
| 35620U | Ring (FOR REAR BRAKE) |
| 35621 | Piston, Brake, NO.1 |
| 35621A | Ring, O (FOR BRAKE PISTON OUTER) |
| 35621B | Ring, O (FOR BRAKE PISTON INNER) |
| 35621S | Ring (FOR REAR BRAKE PISTON OUTER) |
| 35621T | Ring (FOR REAR BRAKE PISTON INNER) |
| 35624 | Piston, 2ND Brake |
| 35624A | Ring, O (FOR 2ND BRAKE PISTON) |
| 35626C | Sleeve, 2ND Brake Piston |
| 35627A | Ring, Shaft Snap (FOR BRAKE RETURN SPRING SEAT) |
| 35627B | Seat, 2ND Brake Piston Return Spring |
| 35627C | Ring, Shaft Snap(FOR 2ND BRAKE PISTON RETURN SPRING SEAT) |
| 35634E | Plate, Clutch (FOR BRAKE) |
| 35634J | Plate, Clutch, NO.3 |
| 35648 | Plate, Clutch (FOR 2ND BRAKE) |
| 35662 | Hub, Brake |
| 35675F | Flange, Clutch (FOR BRAKE) |
| 35676 | Flange, Brake (FOR 2ND BRAKE) |
| 35676E | Ring, Hole Snap (FOR 2ND BRAKE) |
| 35677 | Disc, Clutch (FOR 2ND BRAKE) |
| 35677D | Disc, Clutch (FOR REAR BRAKE) |
| 35706H | Gear Sub-assy, Planetary Sun |
| 35706J | Bearing, Thrust Needle Roller (FOR PLANETARY SUN GEAR) |
| 35706R | Ring, Shaft Snap (FOR PLANETARY SUN GEAR) |
| 35706S | Race, Thrust Bearing (FOR PLANETARY SUN GEAR FRONT) |
| 35709 | Support Sub-assy, Center |
| 35709F | Drum Sub-assy, 2ND Brake |
| 35709G | Ring, Hole Snap (FOR 2ND BRAKE DRUM) |
| 35719A | Gear, Rear Planetary Sun |
| 35729A | Washer, Planetary Carrier Thrust, NO.4 |
| 35738A | Washer, 1 Way Clutch Thrust, NO.1 |
| 35749A | Ring, Sun Gear Shaft Oil Seal |
| 35755 | Drum, Sun Gear Input |
| 35755A | Ring, Shaft Snap (FOR SUN GEAR INPUT DRUM) |
| 35789E | Race, Thrust Bearing (FOR PLANETARY SUN GEAR) |
| 35790 | Clutch Assy, 1 Way |
| 35793 | Retainer, 1 Way Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
