Oil Cooler & Tube (ATM)

14 part groups · 3 illustrations

Illustrations

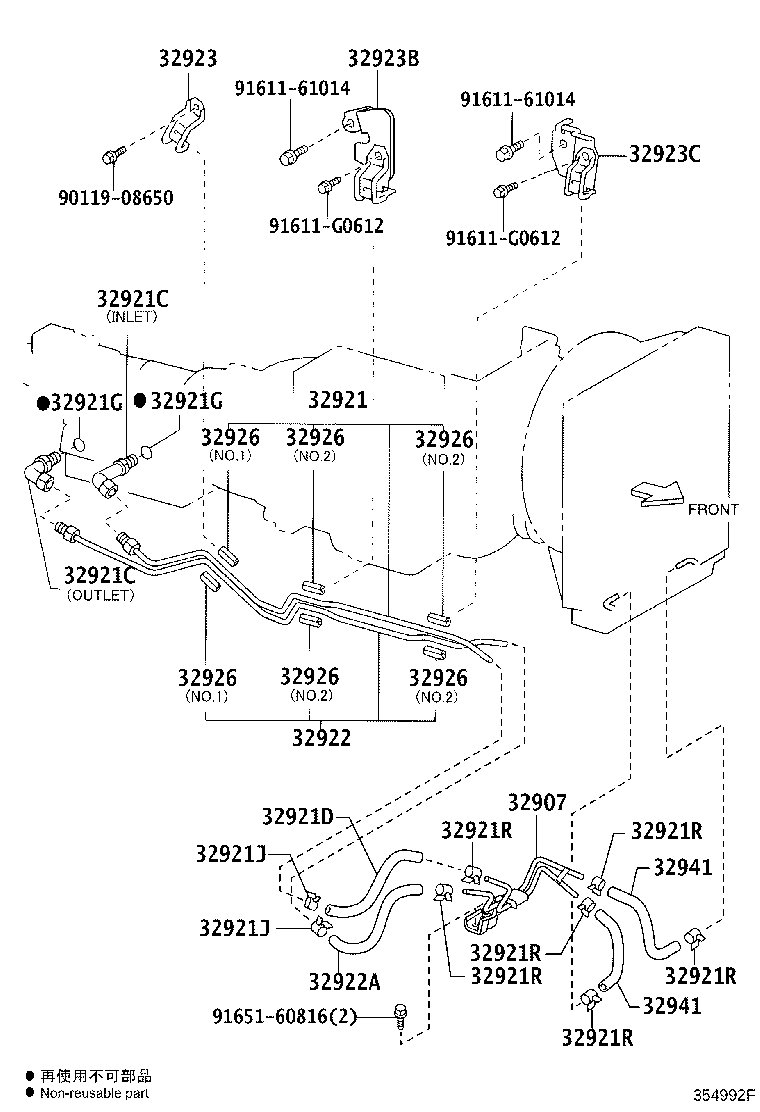

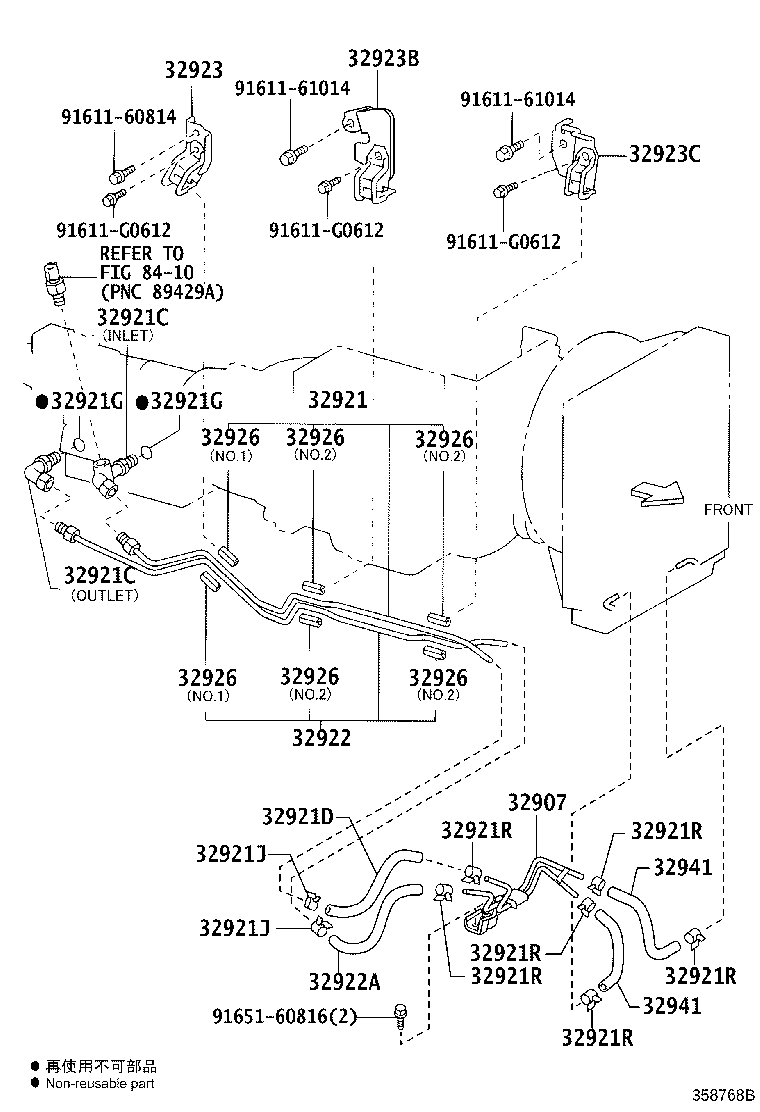

Figure 354991I 354991I 2005-01 → — Figure 354992F 354992F 2005-01 → — Figure 358768B 358768B 2013-08 → —

Part groups

PNCDescription
32907 Tube Sub-assy, Oil Cooler Outlet, NO.2
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32921R Clip, NO.2(FOR OIL COOLER HOSE)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923C Clamp, Automatic Transmission Oil Cooler Tube, NO.4
32926 Cushion, Oil Cooler Tube(ATM)
32941 Hose, Oil Cooler Inlet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
