Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

12 part groups · 3 illustrations

Illustrations

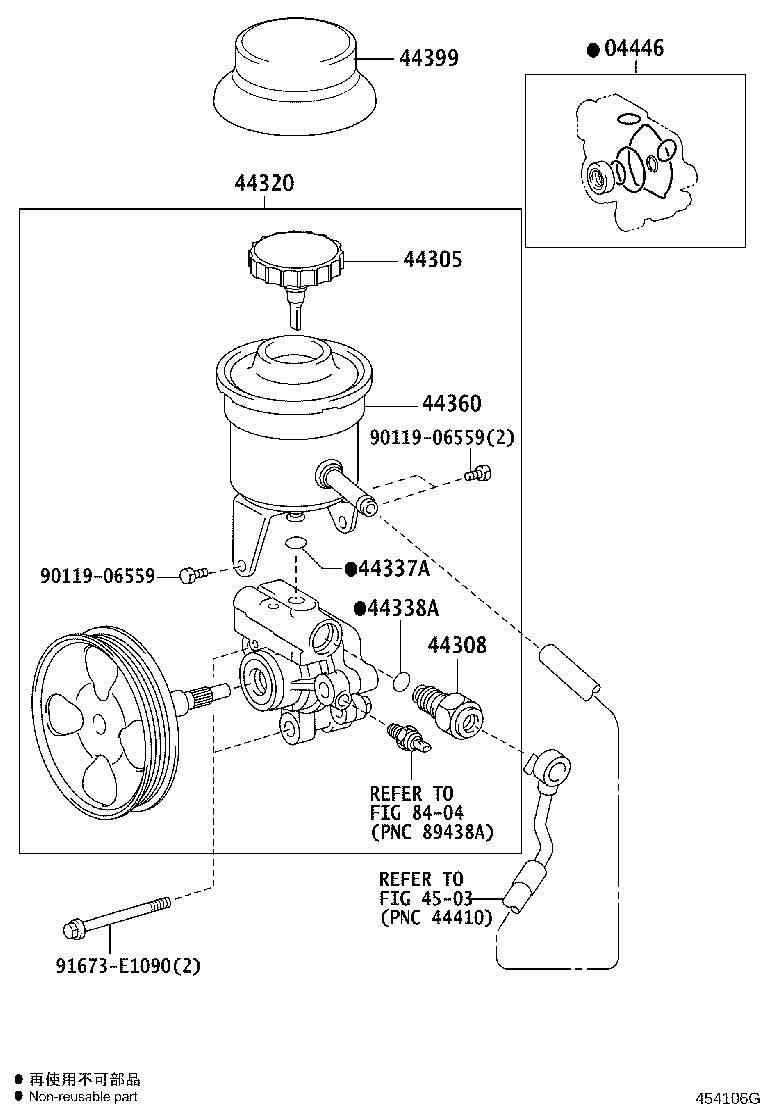

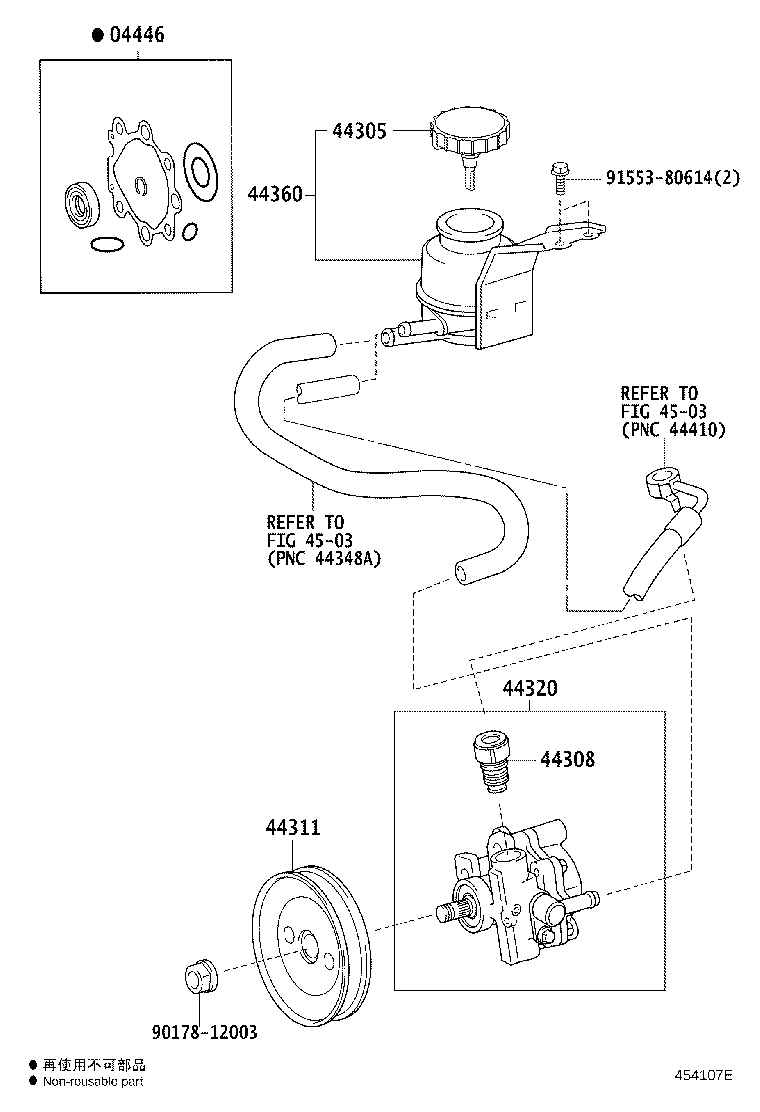

Figure 454105H 454105H 2005-01 → — Figure 454107E 454107E 2005-01 → — Figure 454106G 454106G 2005-01 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44310C Ring, O(FOR VANE PUMP)
44311 Pulley, Vane Pump
44312A Bearing(FOR VANE PUMP SHAFT)
44316 Gear, Vane Pump
44320 Pump Assy, Vane
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338A Ring, O(FOR PRESSURE PORT UNION)
44360 Reservoir Assy, Vane Pump Oil
44399 Cover, Vane Pump Oil Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
