Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

10 part groups · 12 illustrations

Illustrations

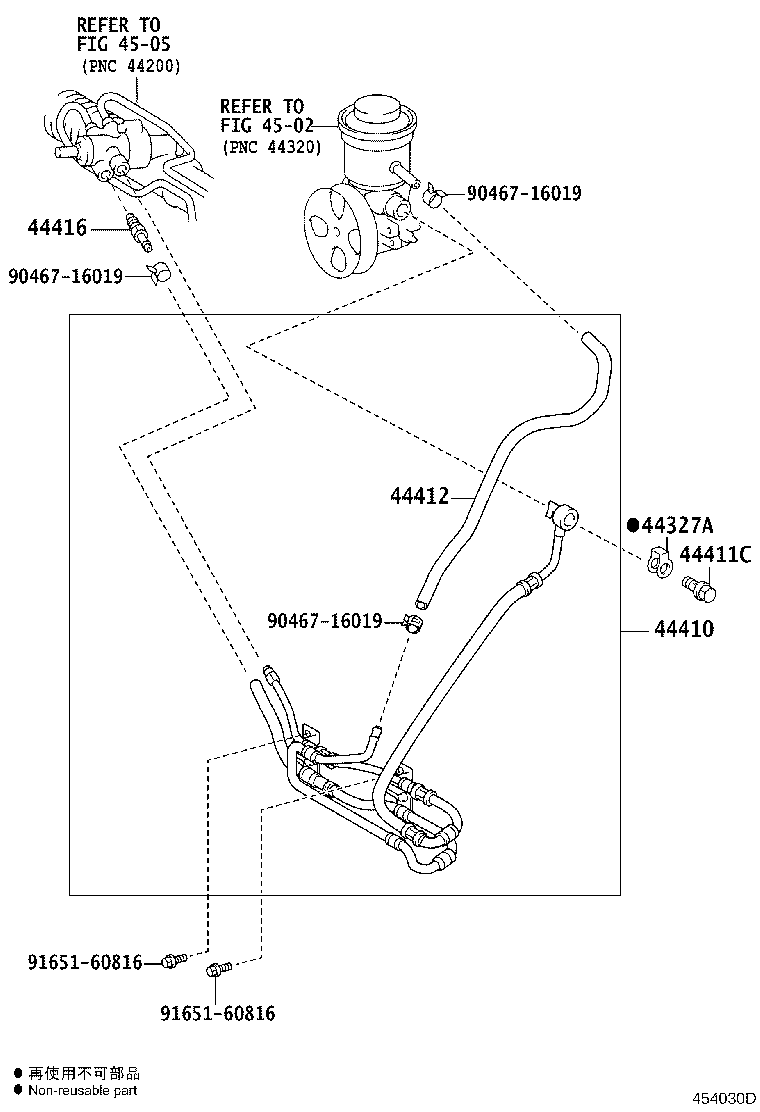

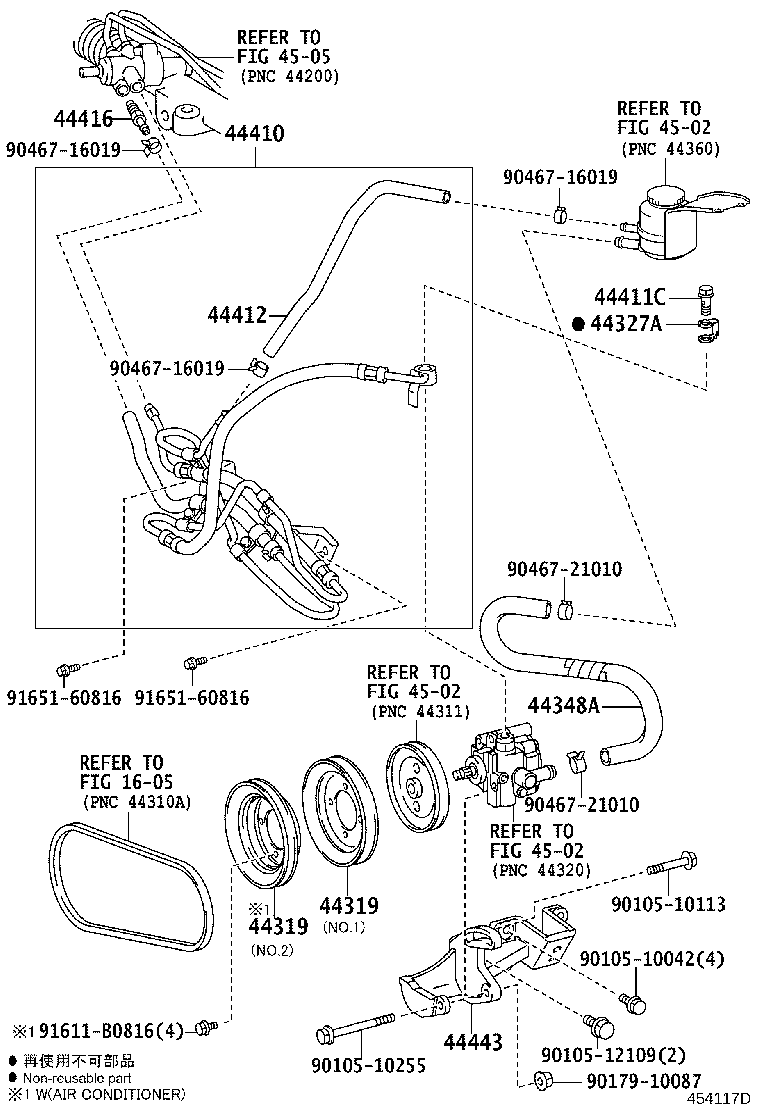

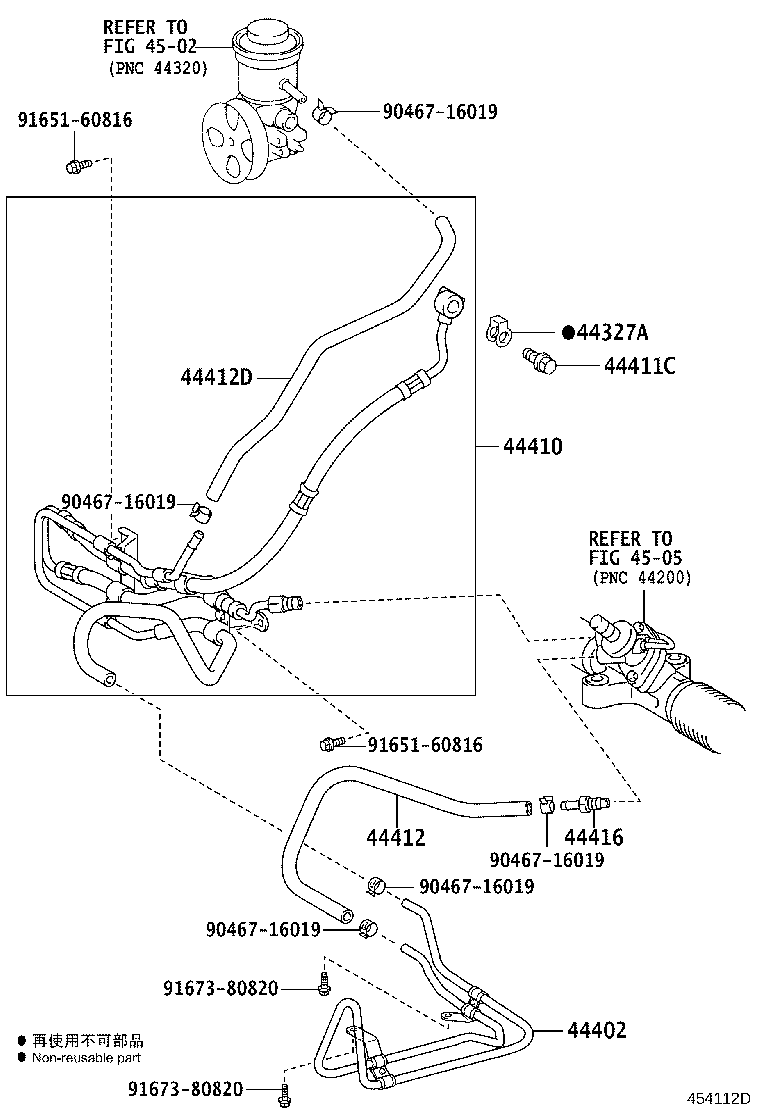

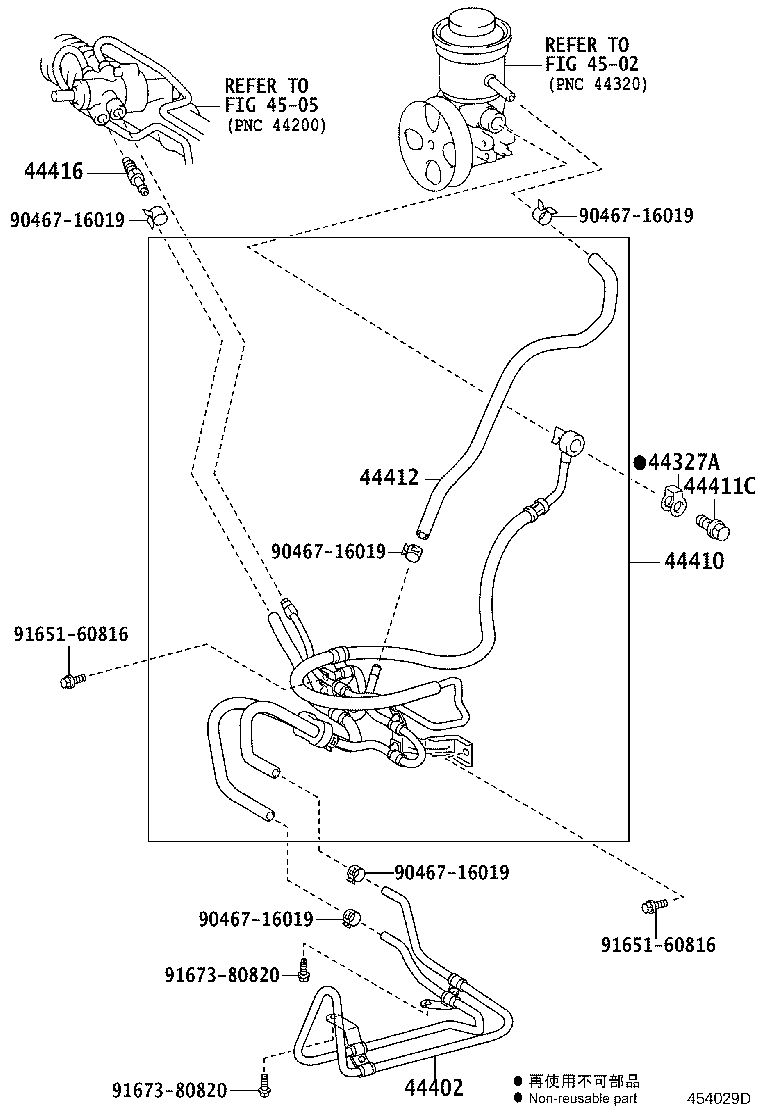

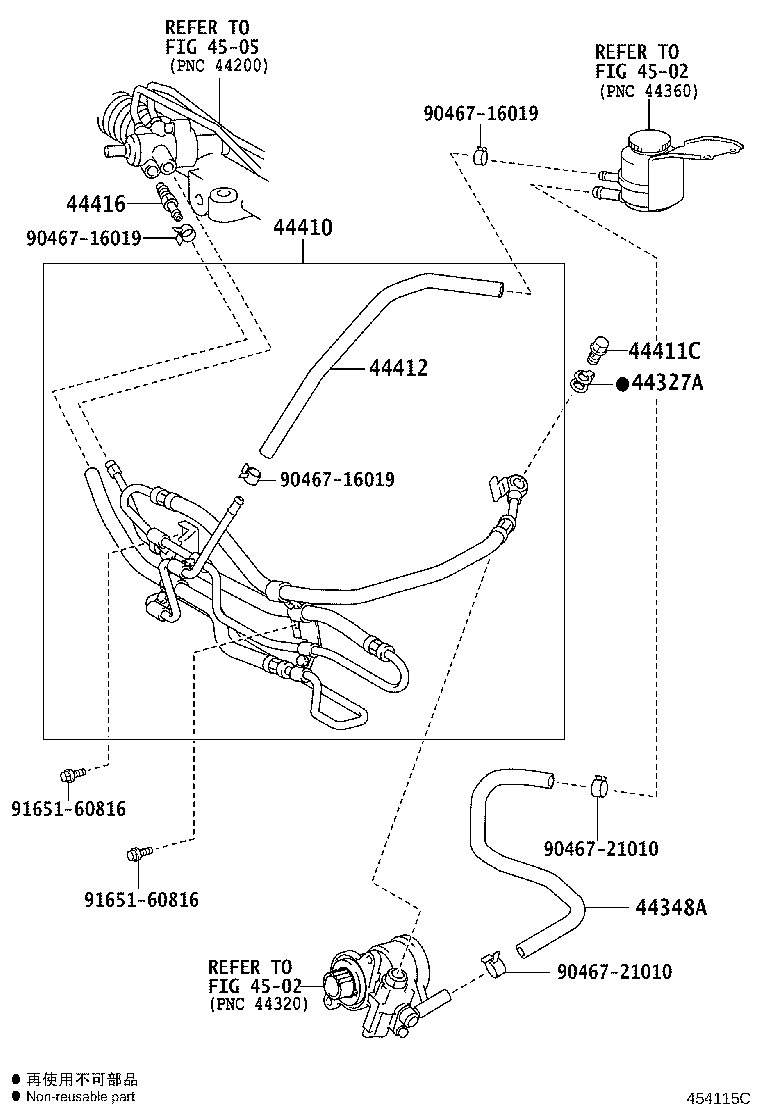

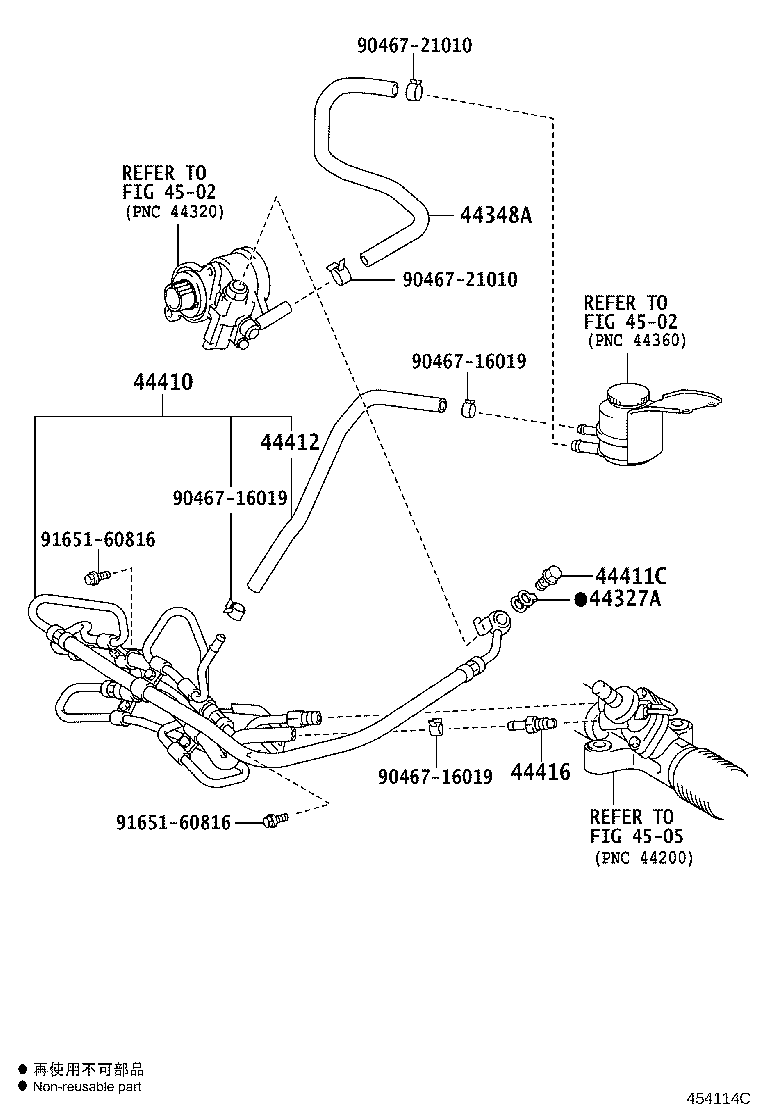

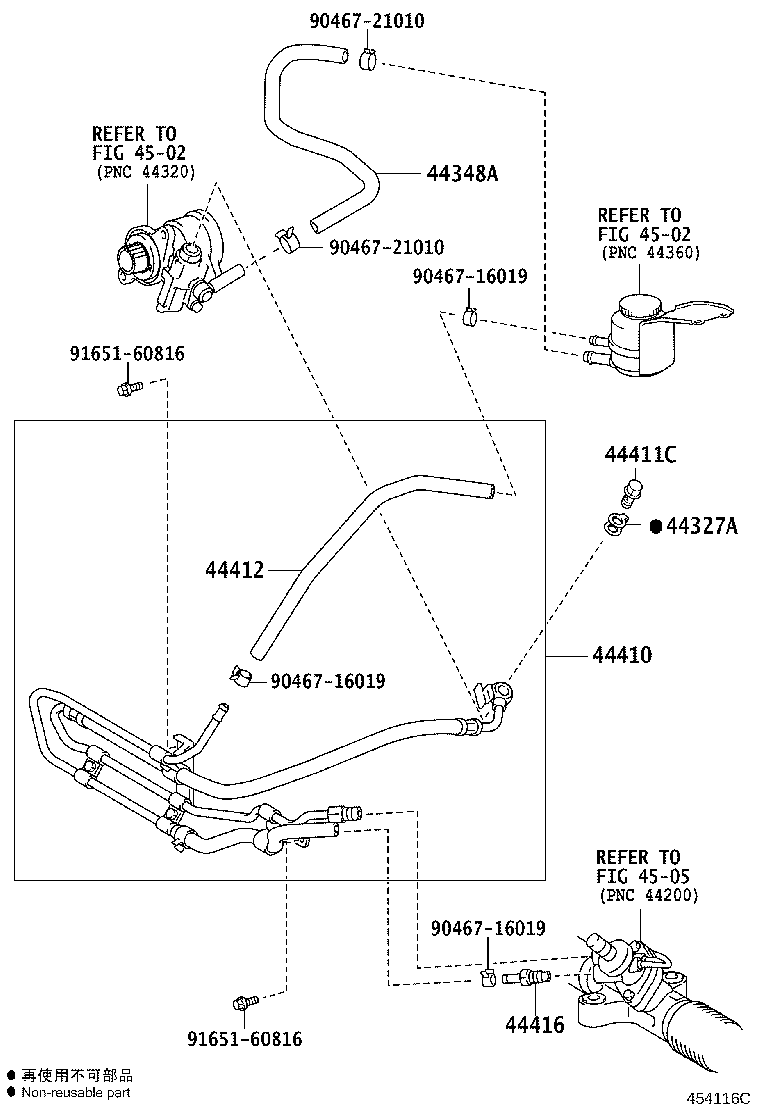

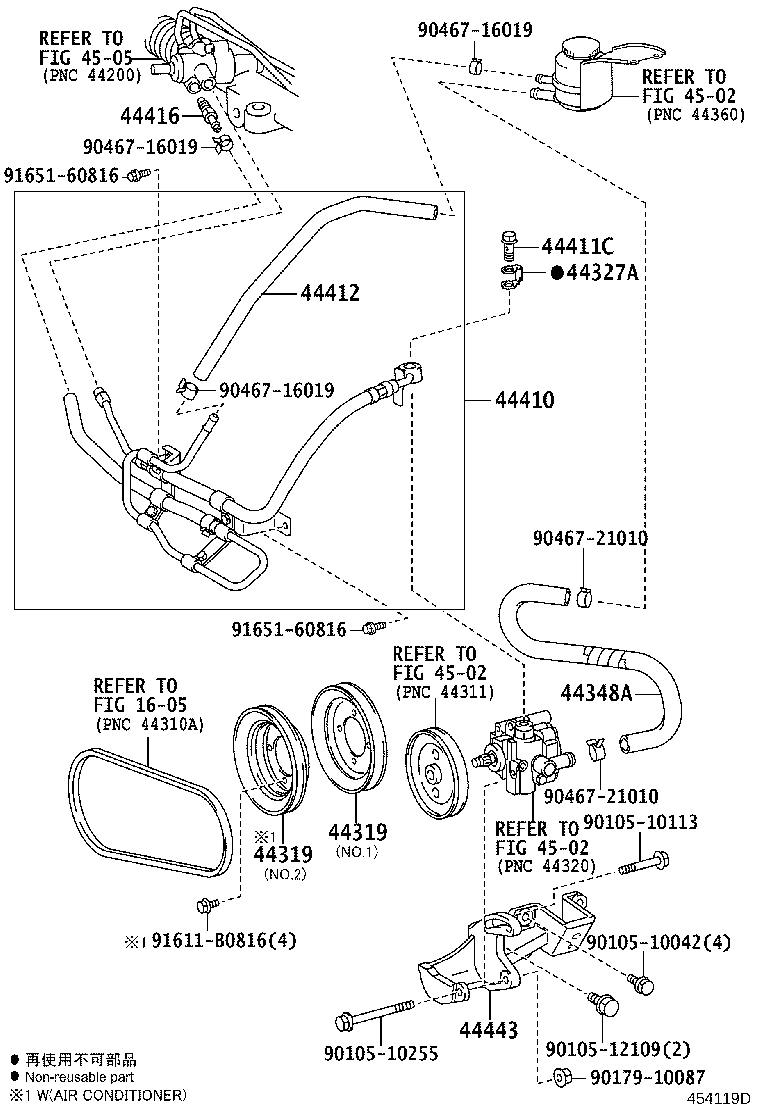

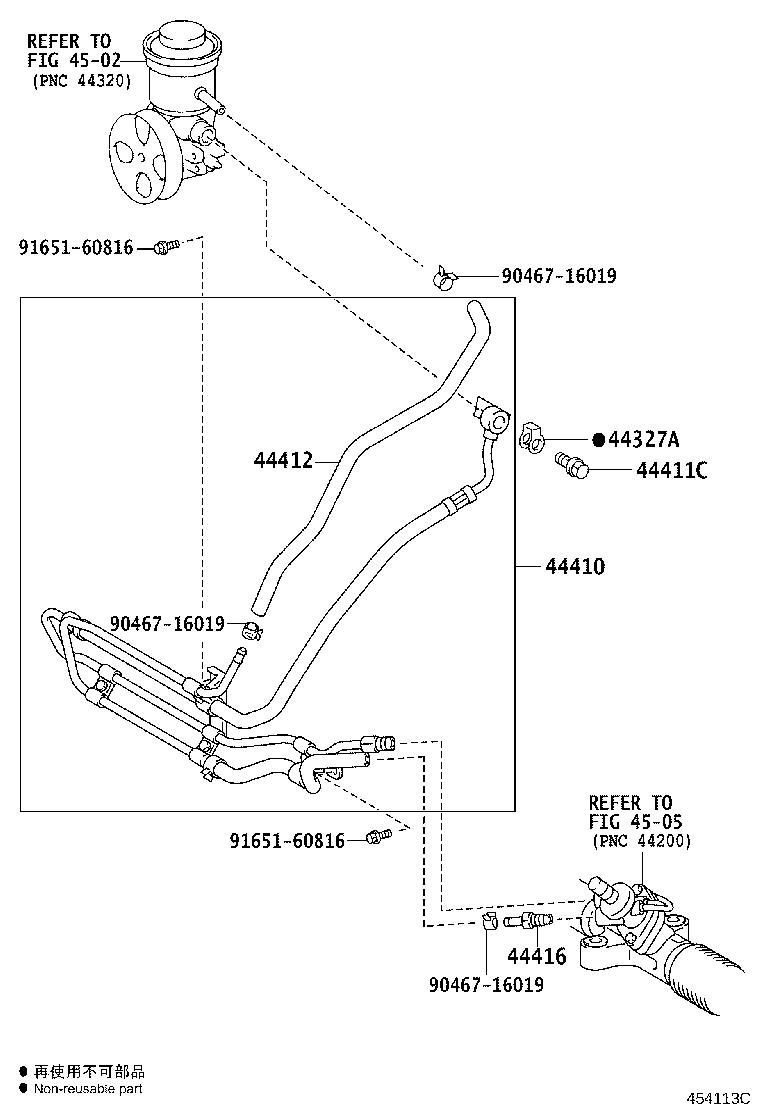

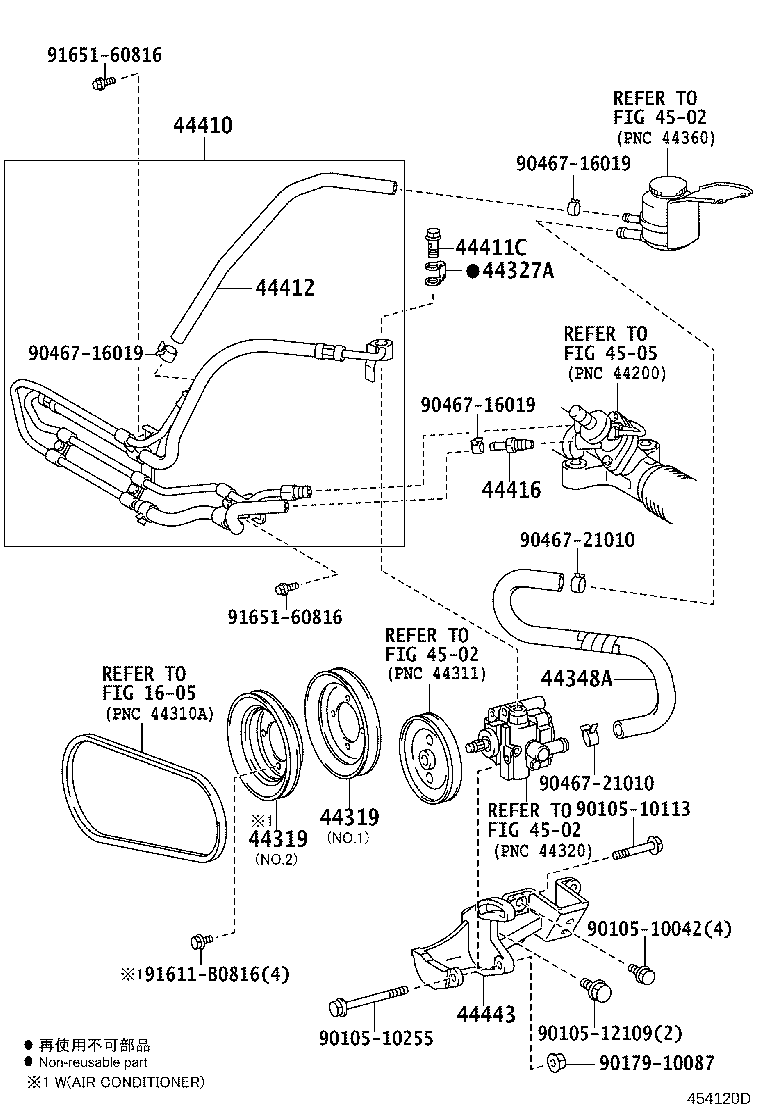

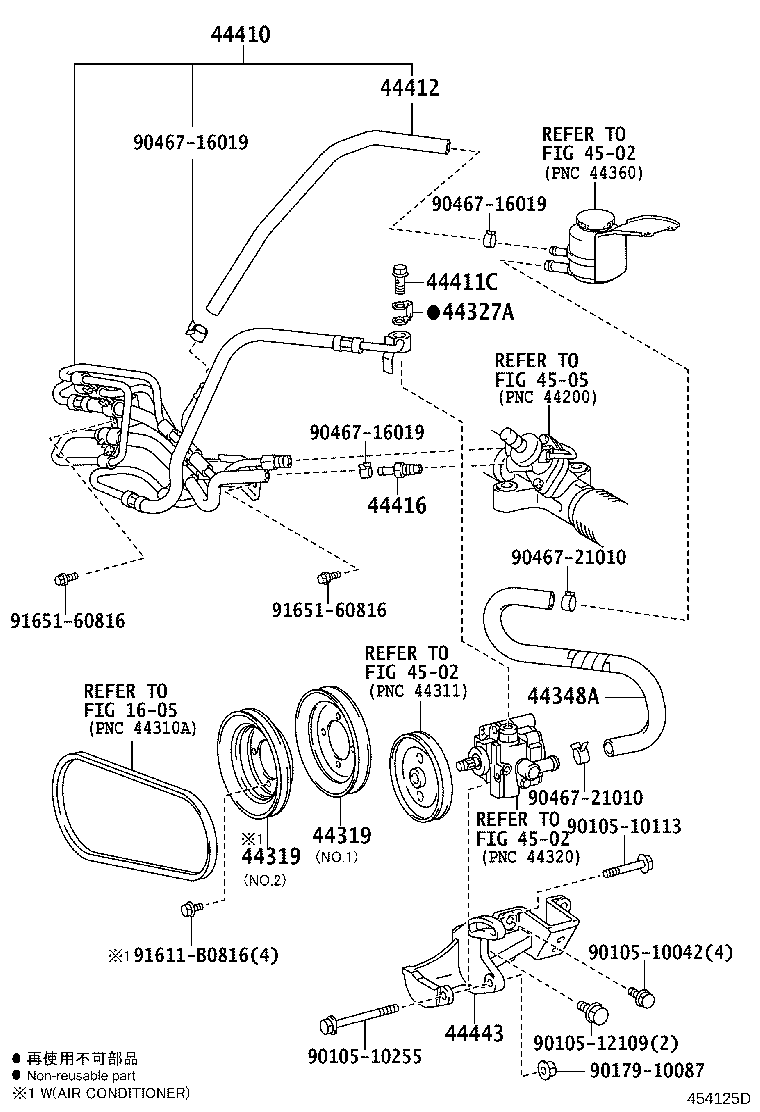

Figure 454032E 454032E 2005-01 → — Figure 454114C 454114C 2005-01 → — Figure 454115C 454115C 2005-01 → — Figure 454116C 454116C 2005-01 → — Figure 454117D 454117D 2005-01 → — Figure 454125D 454125D 2005-01 → — Figure 454119D 454119D 2005-01 → — Figure 454120D 454120D 2005-01 → — Figure 454029D 454029D 2005-01 → — Figure 454112D 454112D 2005-01 → — Figure 454030D 454030D 2005-01 → — Figure 454113C 454113C 2005-01 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412D Hose, Return, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
