Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

16 part groups · 11 illustrations

Illustrations

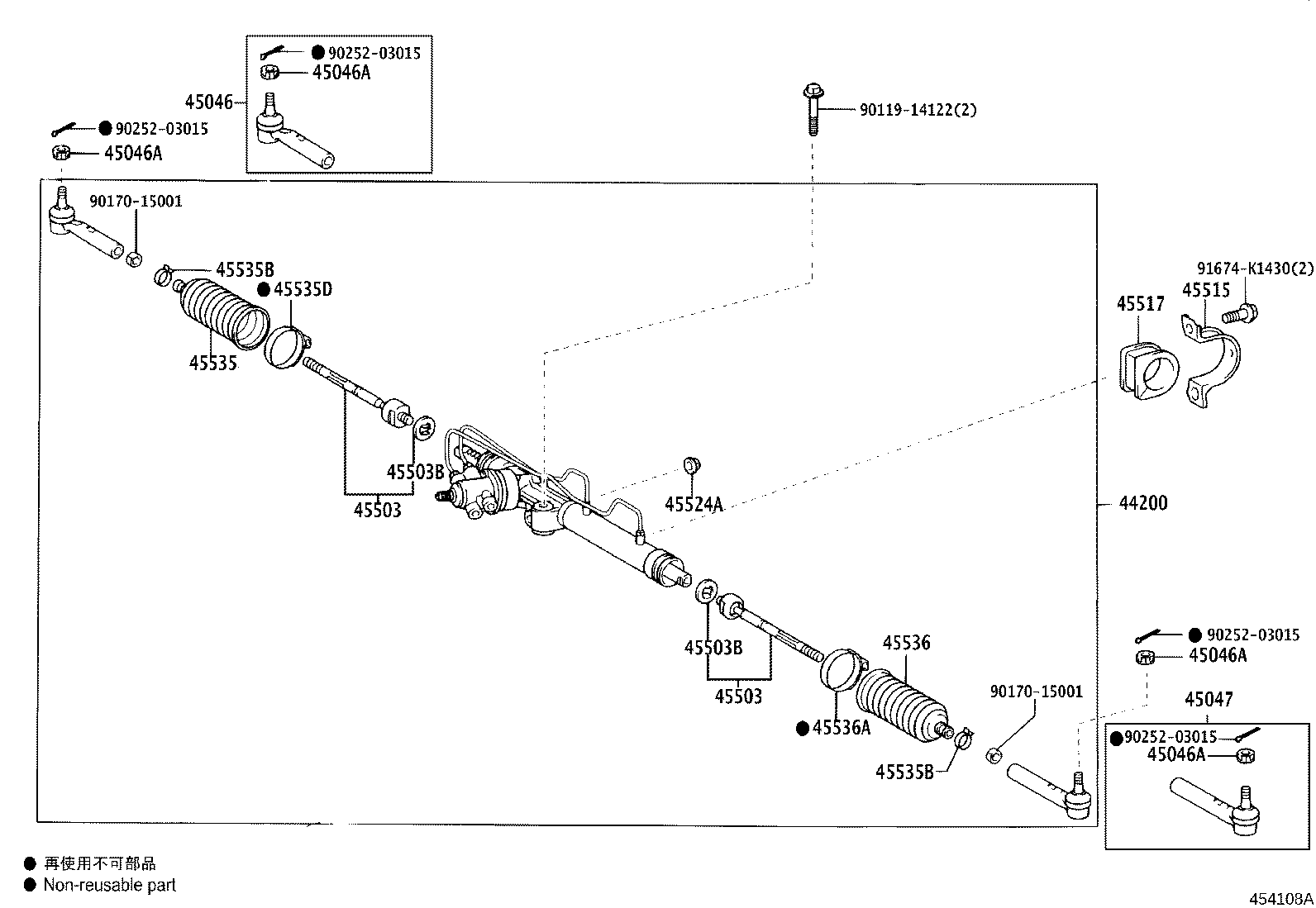

Figure 454110B 454110B 2005-01 → — Figure 454108A 454108A 2005-01 → — Figure 456541 456541 2005-01 → 2008-01 Figure 456541 456541 2005-01 → 2008-01 Figure 456541 456541 2005-01 → 2008-01 Figure 456541 456541 2005-01 → 2009-12 Figure 456541 456541 2005-01 → 2009-12 Figure 456541 456541 2005-01 → 2009-12 Figure 456967 456967 2008-01 → 2010-01 Figure 456967 456967 2009-12 → 2010-01 Figure 456967 456967 2010-01 → 2014-02

Part groups

PNCDescription
04445A Gasket Kit, Power Steering Gear(FOR RACK & PINION)
04455 Gasket Kit, Power Steering Control Valve Overhole
44200 Link Assy, Power Steering
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45503 End Sub-assy, Steering Rack
45503B Washer, Claw(FOR STEERING RACK END)
45515 Bracket, Steering Rack Housing, NO.2
45517 Grommet, Steering Rack Housing, NO.2
45524A Nut(FOR STEERING RACK GUIDE SPRING CAP)
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
