Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

14 part groups · 6 illustrations

Illustrations

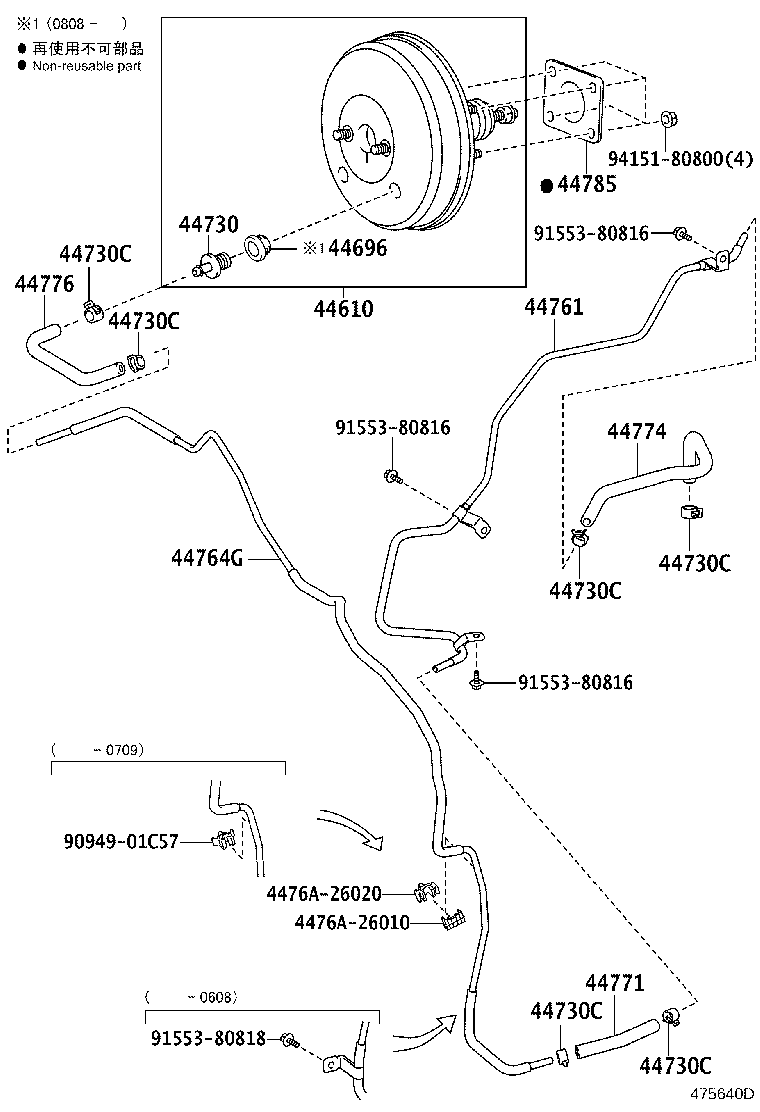

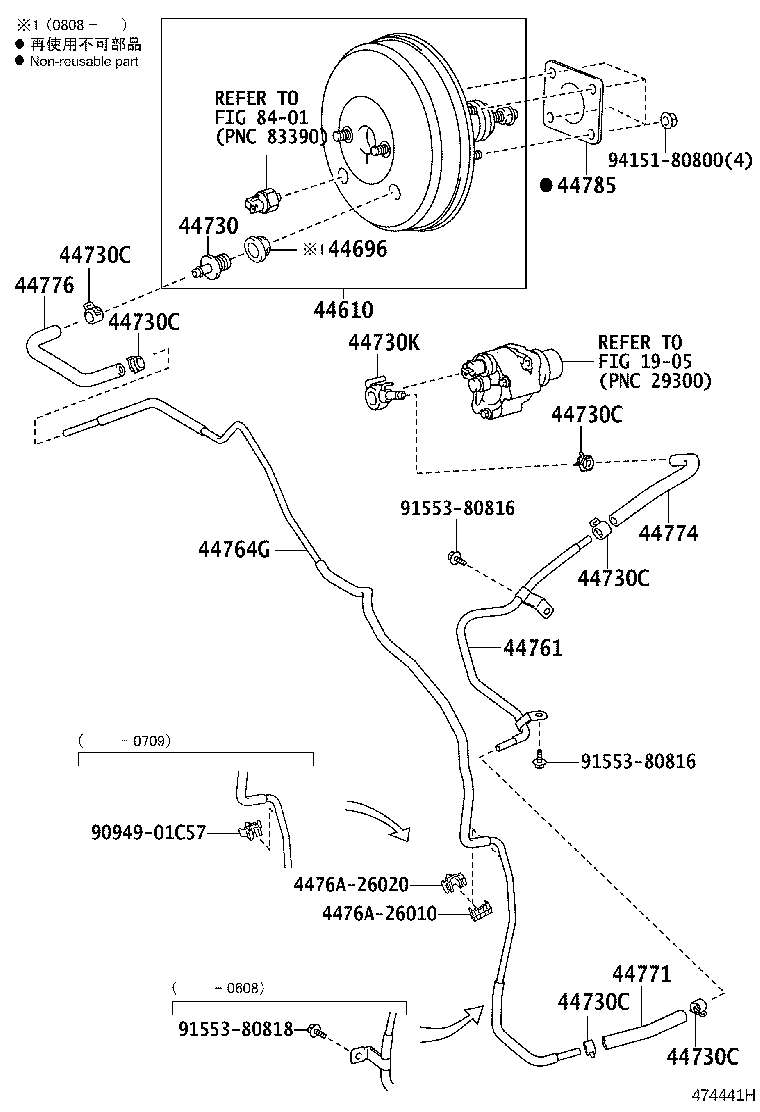

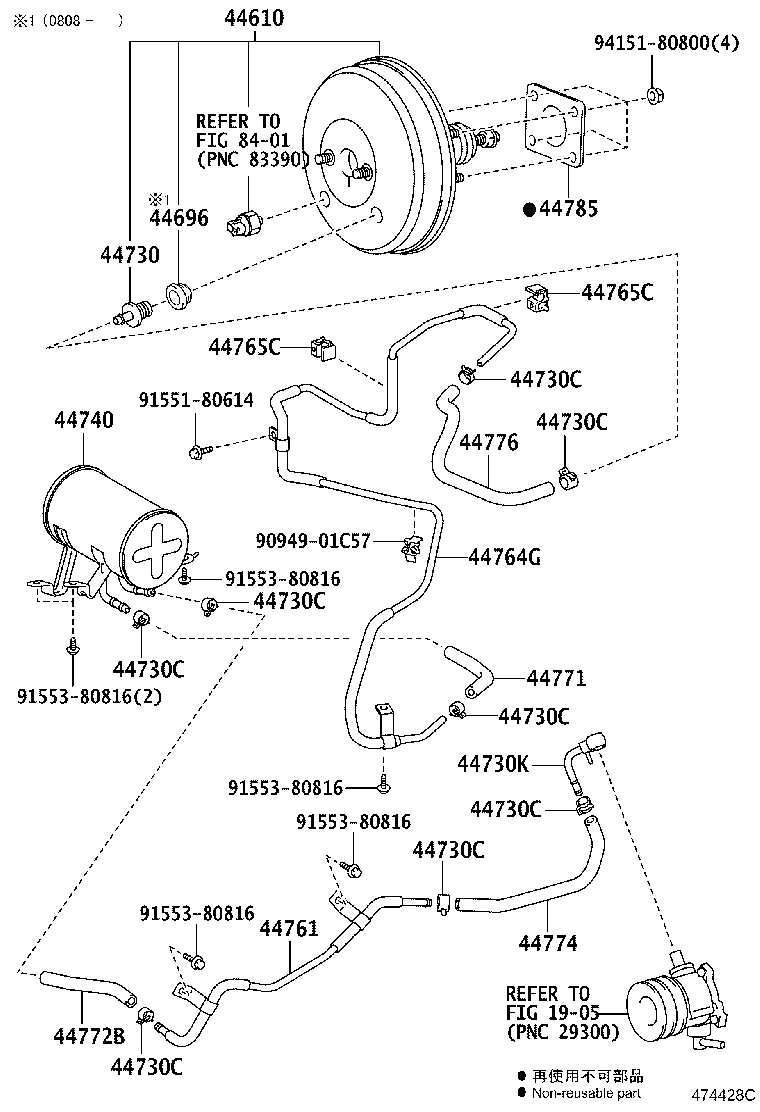

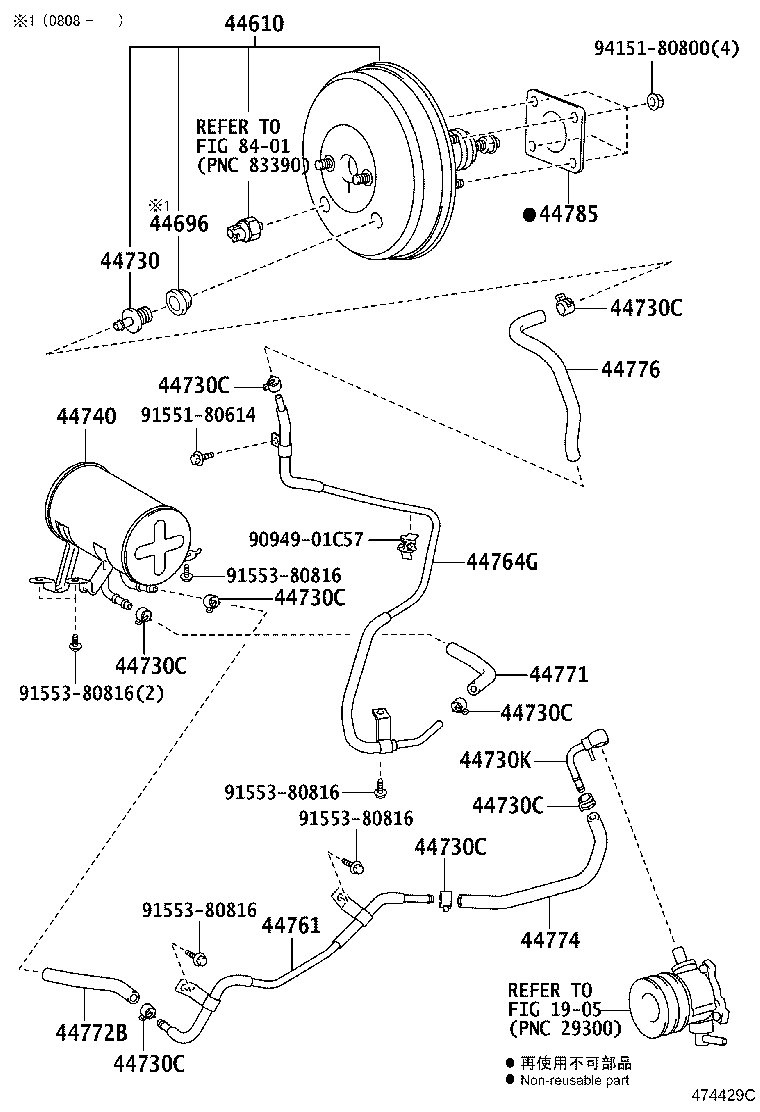

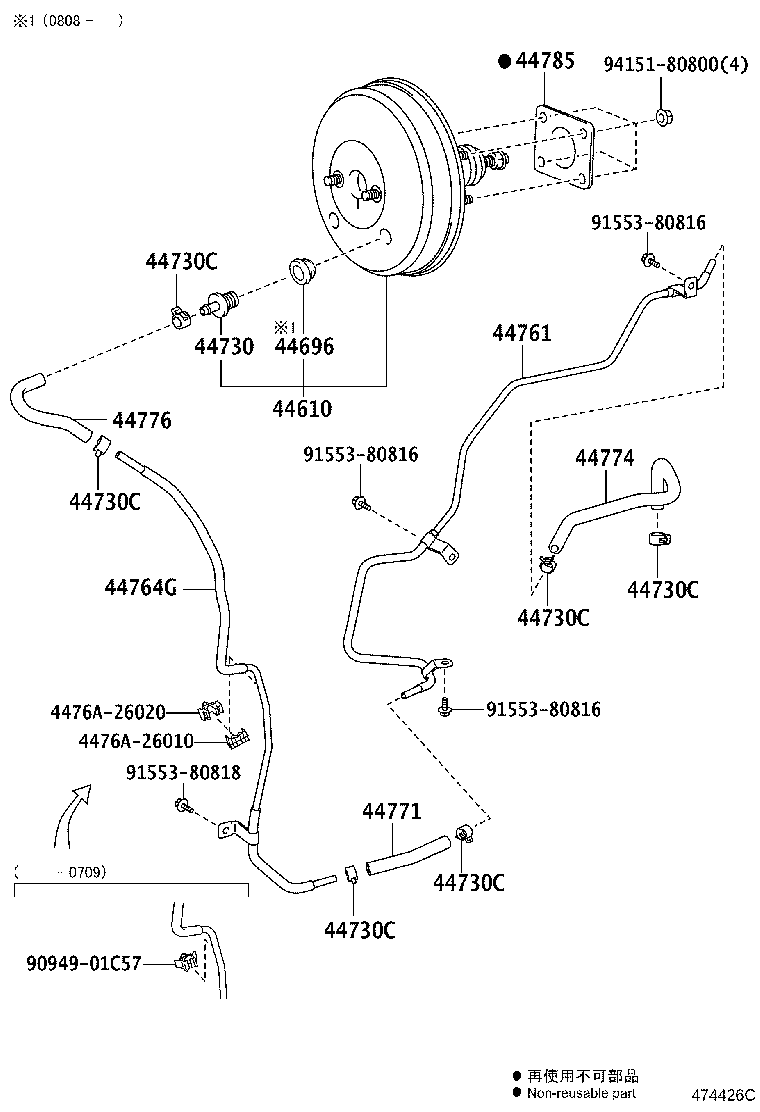

Figure 474427E 474427E 2005-01 → — Figure 474441H 474441H 2005-01 → — Figure 474426C 474426C 2005-01 → — Figure 475640D 475640D 2005-01 → — Figure 474428C 474428C 2005-01 → — Figure 474429C 474429C 2005-01 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730C Clip(FOR VACUUM HOSE)
44730K Union, Vacuum Hose(FOR VACUUM PUMP)
44740 Reservoir Assy, Vacuum
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44764G Tube, Connector TO Brake Booster
44765C Clamp, Connector TO Brake Booster
44771 Hose, Vacuum Tube Connector
44772B Hose, Check Valve TO Brake Booster
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
