Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

33 part groups · 20 illustrations

Illustrations

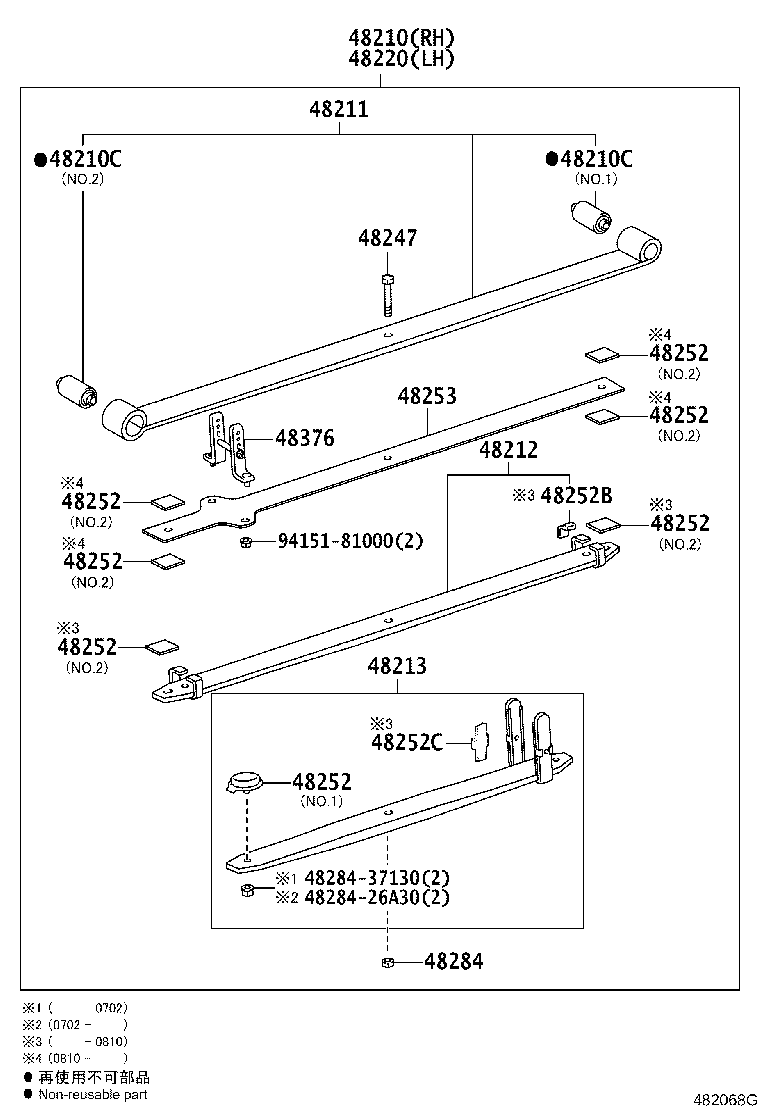

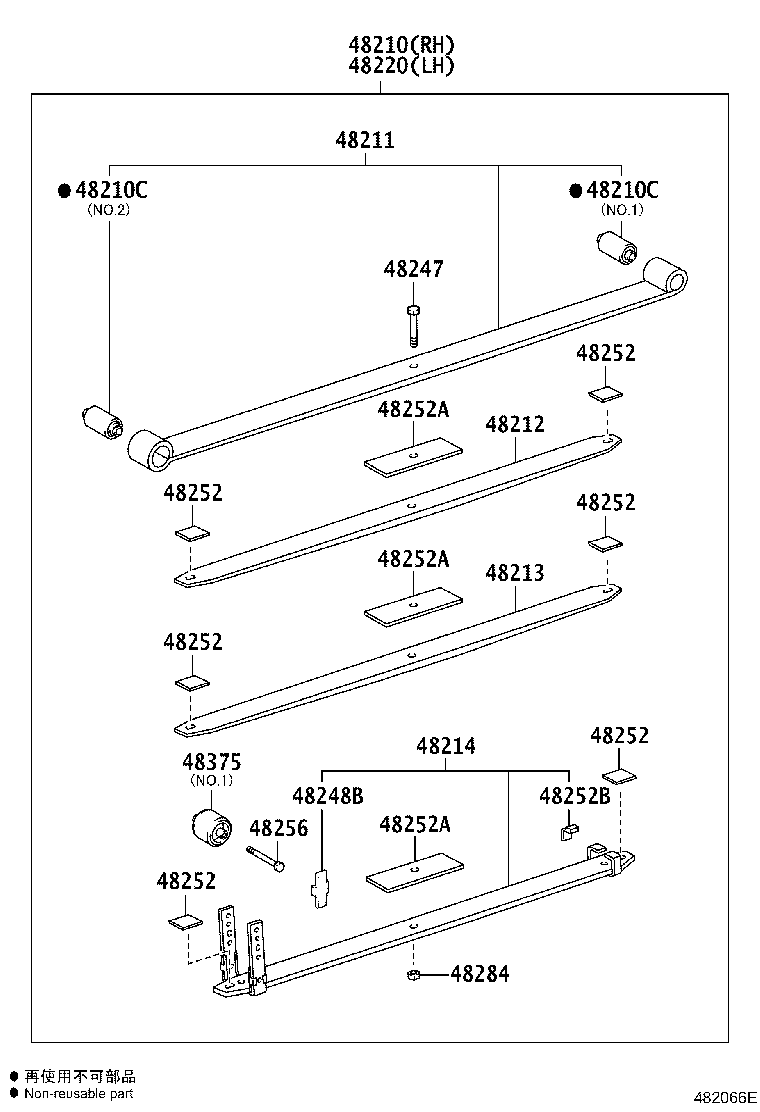

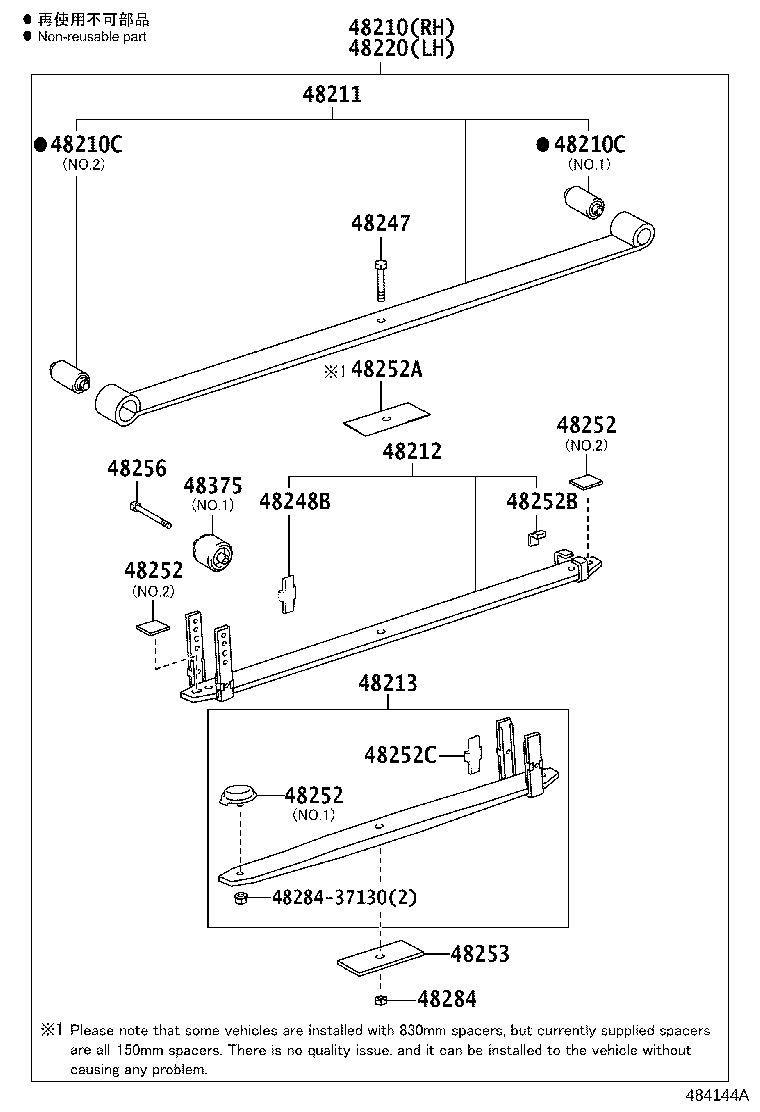

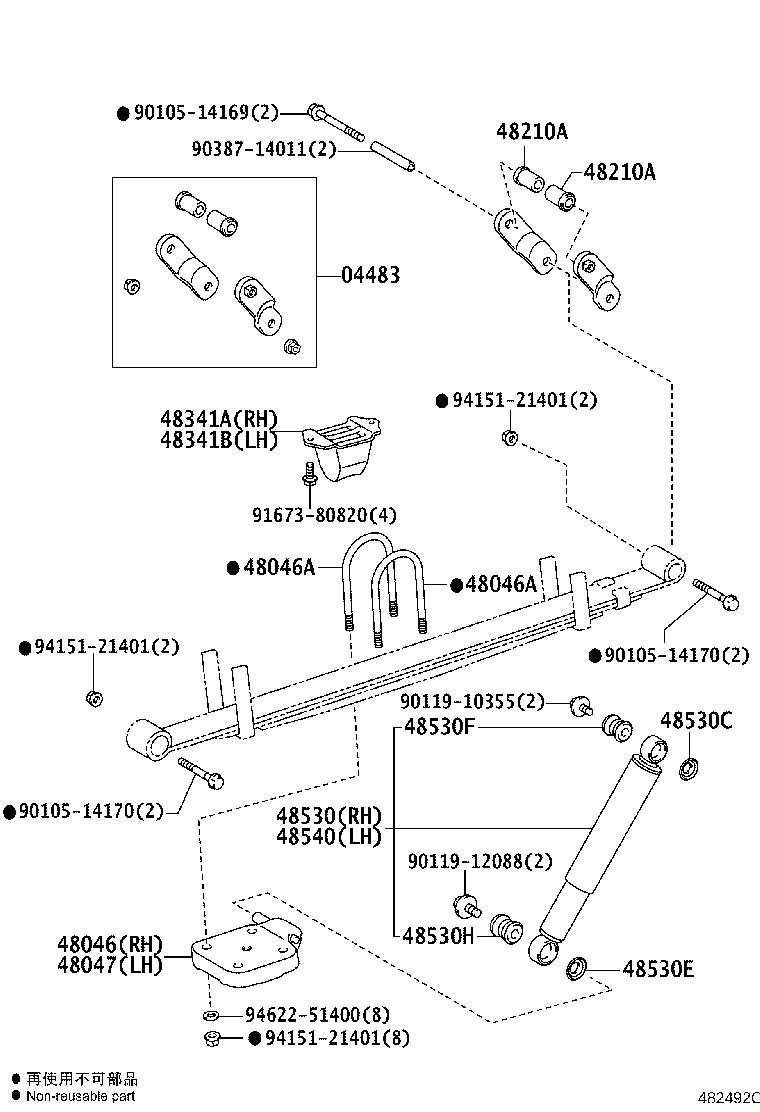

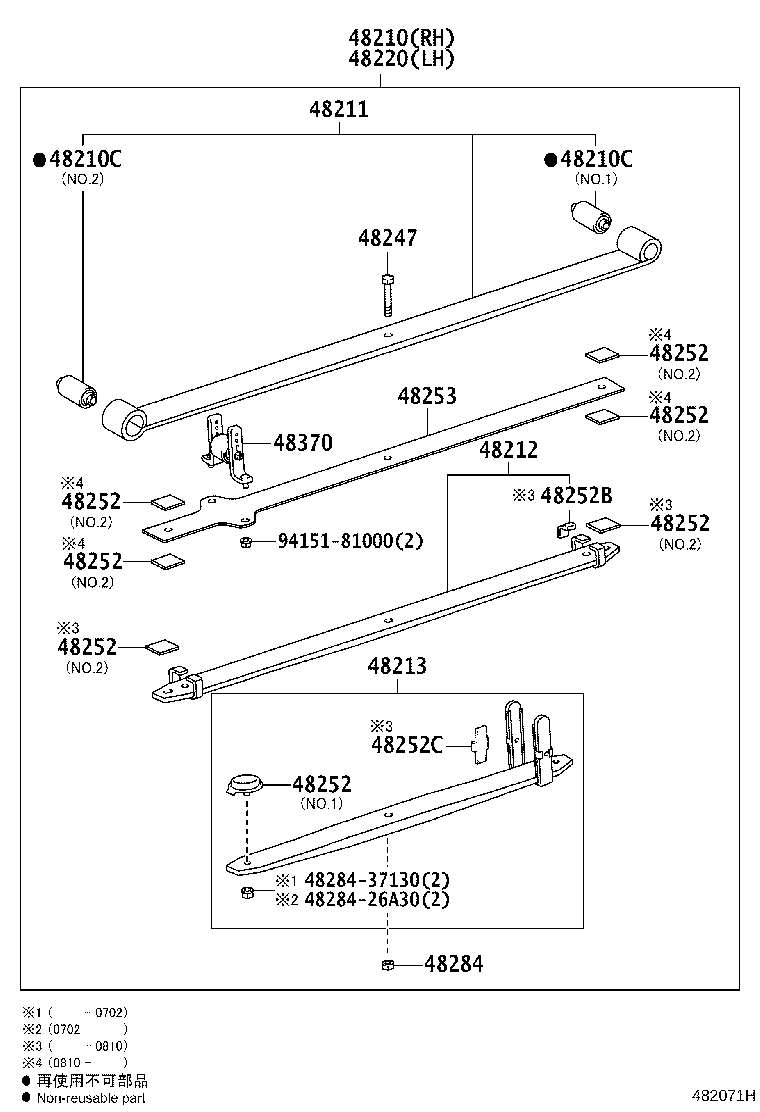

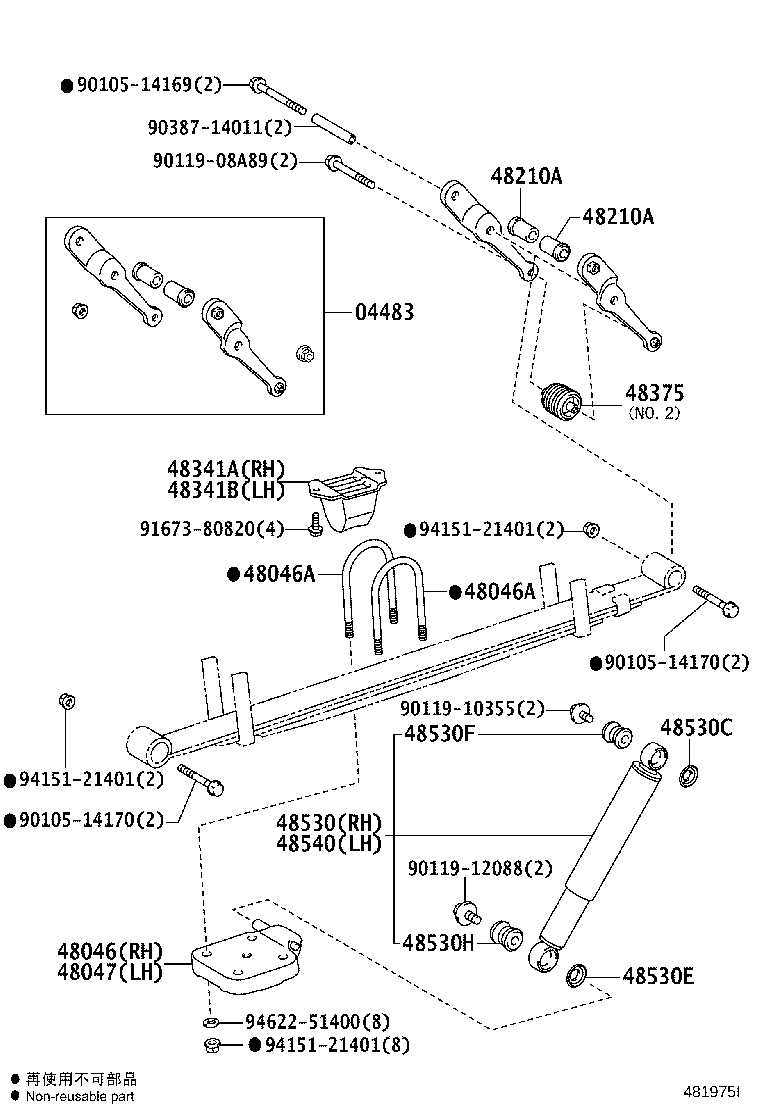

Figure 482012H 482012H 2005-01 → — Figure 482492C 482492C 2005-01 → — Figure 481975I 481975I 2005-01 → — Figure 482066E 482066E 2005-01 → — Figure 484144A 484144A 2005-01 → 2007-09 Figure 484144A 484144A 2005-01 → — Figure 484144A 484144A 2005-01 → — Figure 482068G 482068G 2005-01 → — Figure 482068G 482068G 2005-01 → — Figure 482068G 482068G 2010-08 → — Figure 482068G 482068G 2010-08 → — Figure 482069E 482069E 2005-01 → 2007-09 Figure 482070E 482070E 2005-01 → 2007-09 Figure 482071H 482071H 2005-01 → 2010-08 Figure 482275D 482275D 2006-01 → — Figure 482677B 482677B 2007-09 → 2010-08 Figure 482677B 482677B 2007-09 → — Figure 482677B 482677B 2010-08 → — Figure 482677B 482677B 2010-08 → — Figure 482683B 482683B 2007-09 → 2010-08

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210C Bush(FOR REAR SPRING LEAF)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48220 Spring Assy, Rear LH
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48248B Spacer, Rear Spring, NO.3
48252 Silencer, Rear Spring
48252A Spacer, Rear Spring, NO.2
48252B Silencer, Rear Spring, NO.1
48252C Silencer, Rear Spring, NO.2
48253 Spacer, Rear Spring, NO.1
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48284 Nut, Rear Spring Center Bolt
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48370 Damper Assy, Leaf Spring Dynamic
48375 Damper, Leaf Spring Dynamic
48376 Bracket, Rear Leaf Spring Dynamic Danper
48530 Absorber Assy, Shock, Rear RH
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530E Washer, Rear Shock Absorber Cushion, NO.4
48530F Retainer, Shock Absorber Cushion(FOR REAR)
48530H Bush, Rear Shock Absorber
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
