Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

6 part groups · 2 illustrations

Illustrations

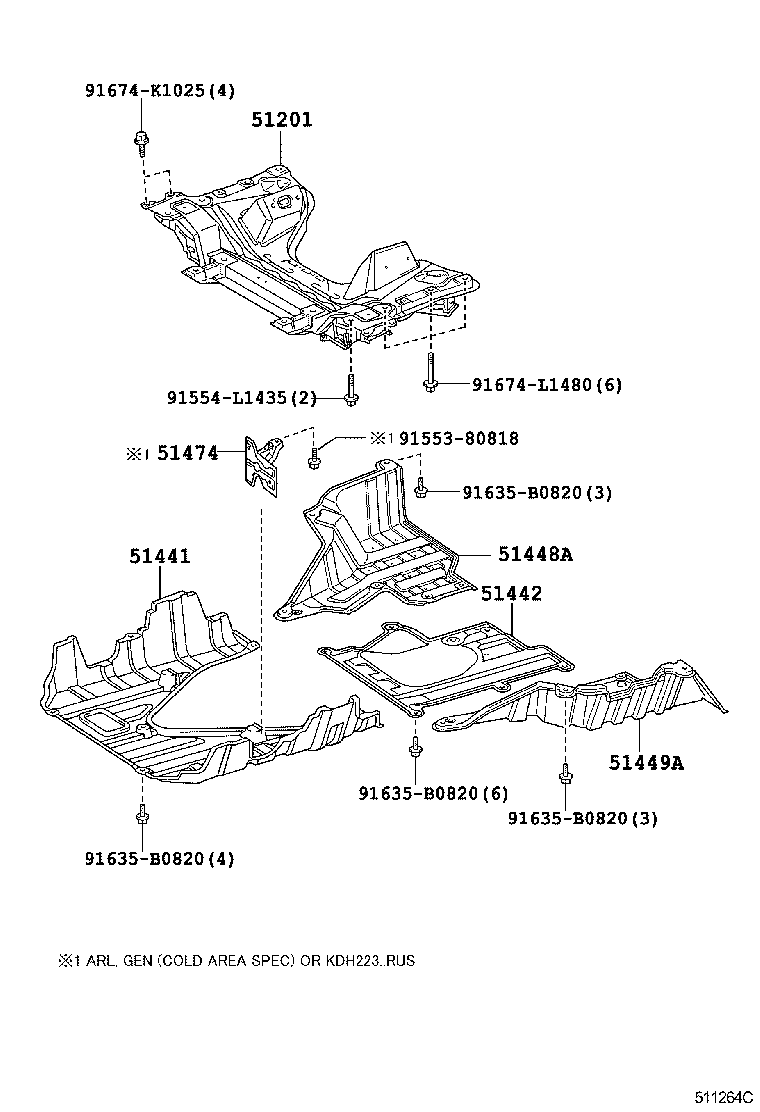

Figure 511263B 511263B 2005-01 → — Figure 511264C 511264C 2005-01 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51448A Cover, Engine Side Under, RH
51449A Cover, Engine Side Under, LH
51474 Cover Sub-assy, Engine Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
