Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 4 illustrations

Illustrations

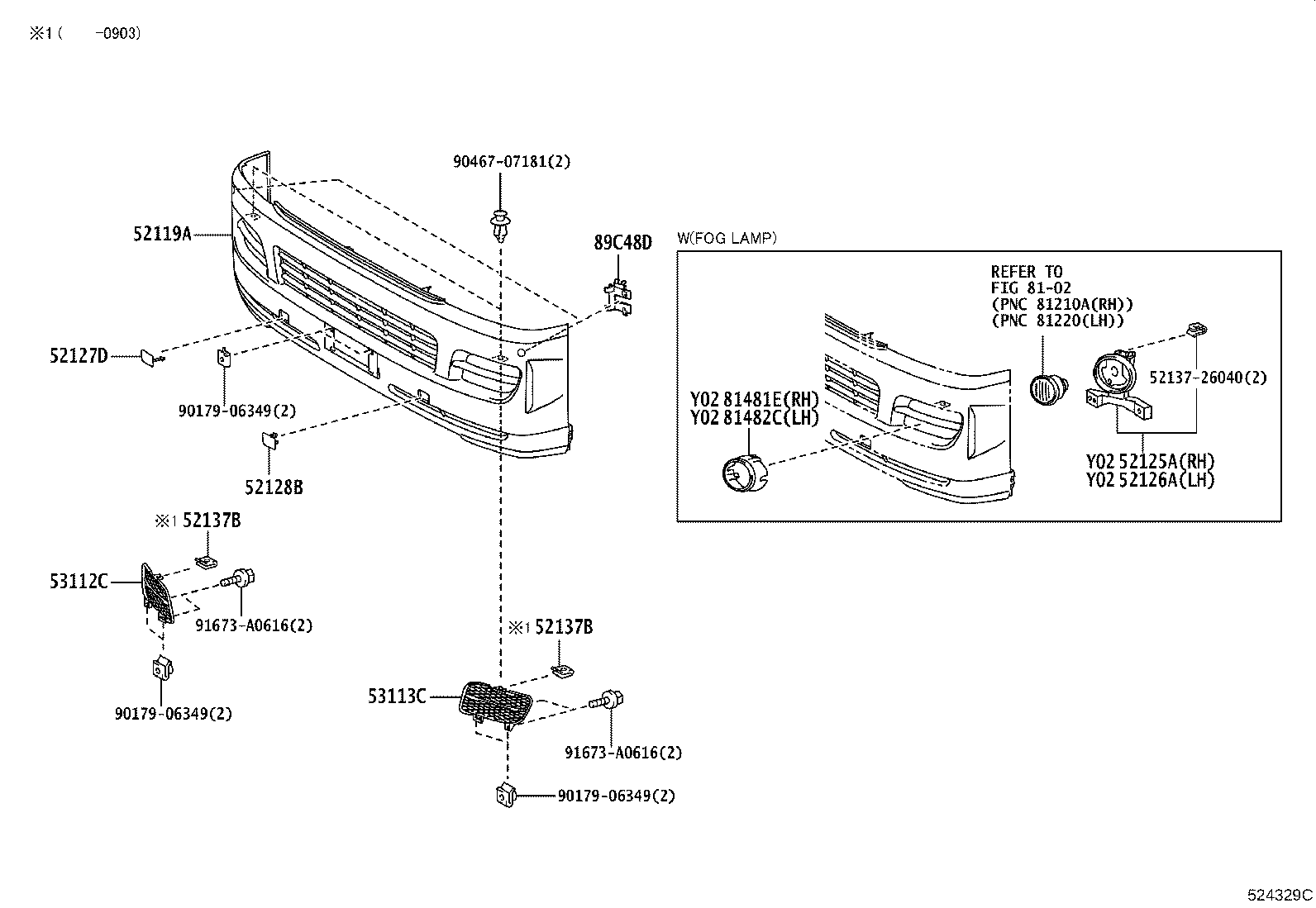

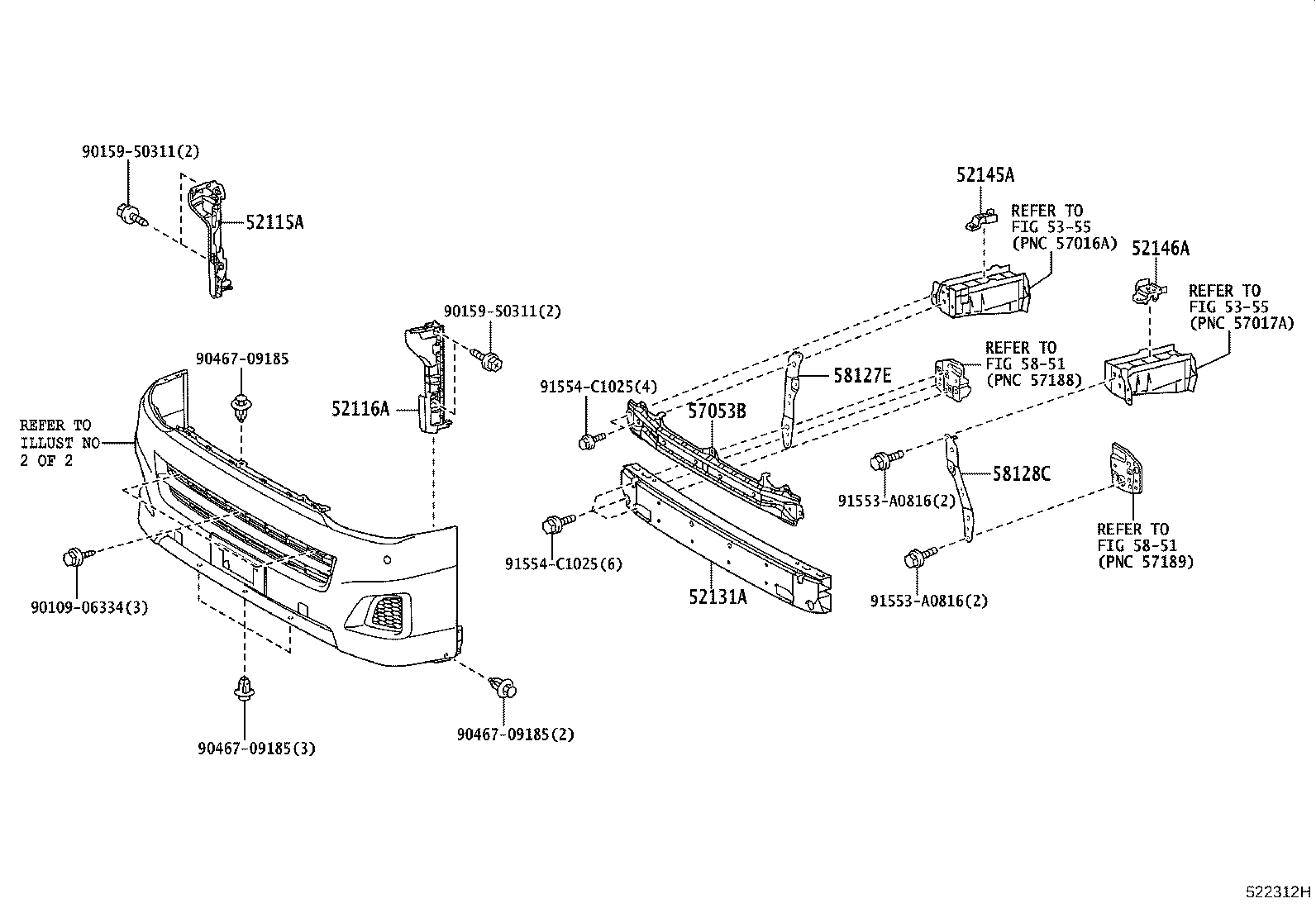

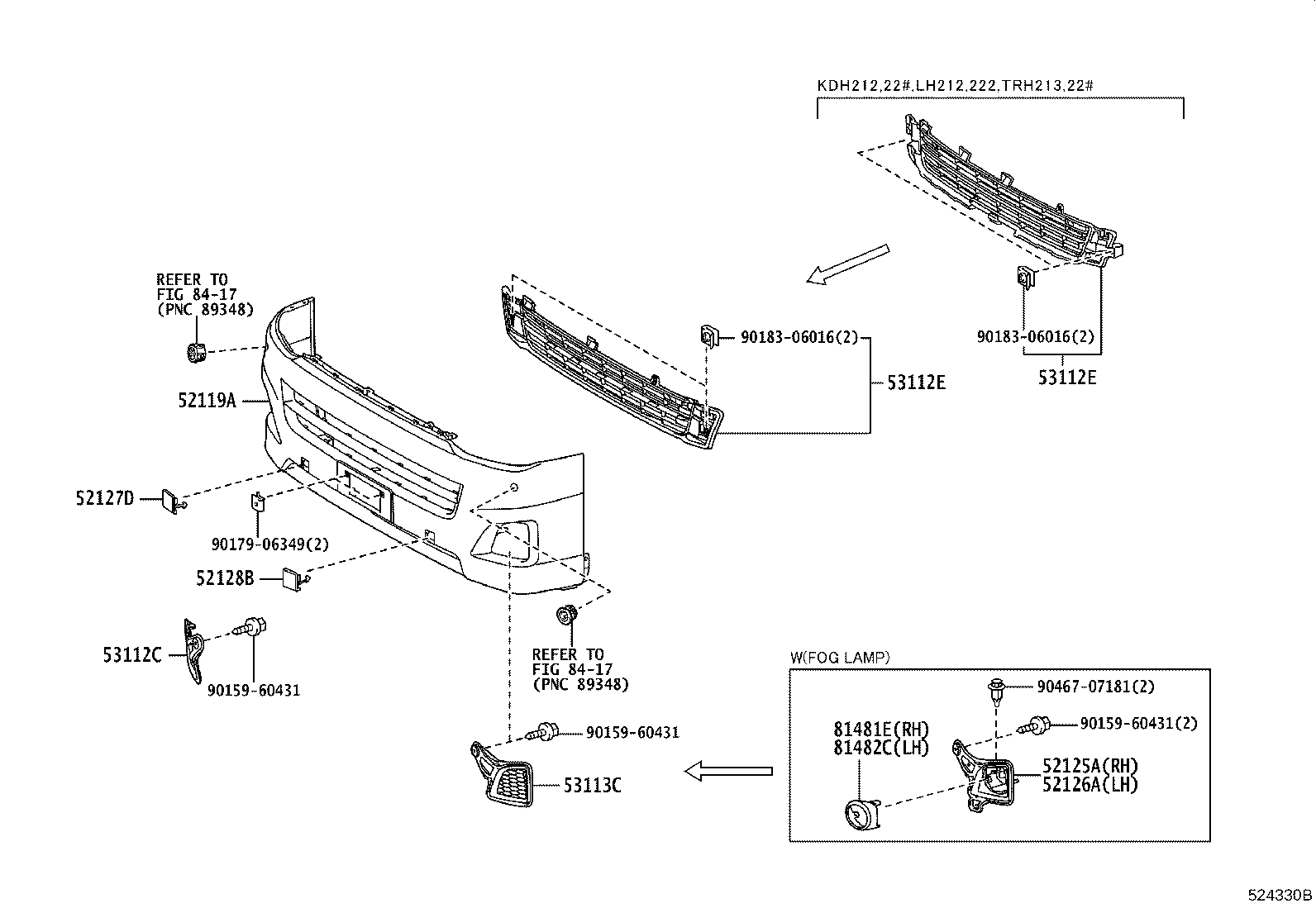

Figure 521298O 521298O 2005-01 → 2010-08 Figure 524329C 524329C 2005-01 → 2010-08 Figure 522312H 522312H 2010-08 → — Figure 524330B 524330B 2010-08 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52137B Plate, Front Bumper Bracket, NO.1
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
53112C Grille, Radiator, Lower RH
53112E Grille, Radiator, Lower NO.1
53113C Grille, Radiator, Lower LH
57053B Reinforce Sub-assy, Front Floor Crossmember
58127E Reinforce, Front Cross TO Front Panel Member, RH
58128C Reinforce, Front Cross TO Front Panel Member, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
