Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

140 part groups · 6 illustrations

Illustrations

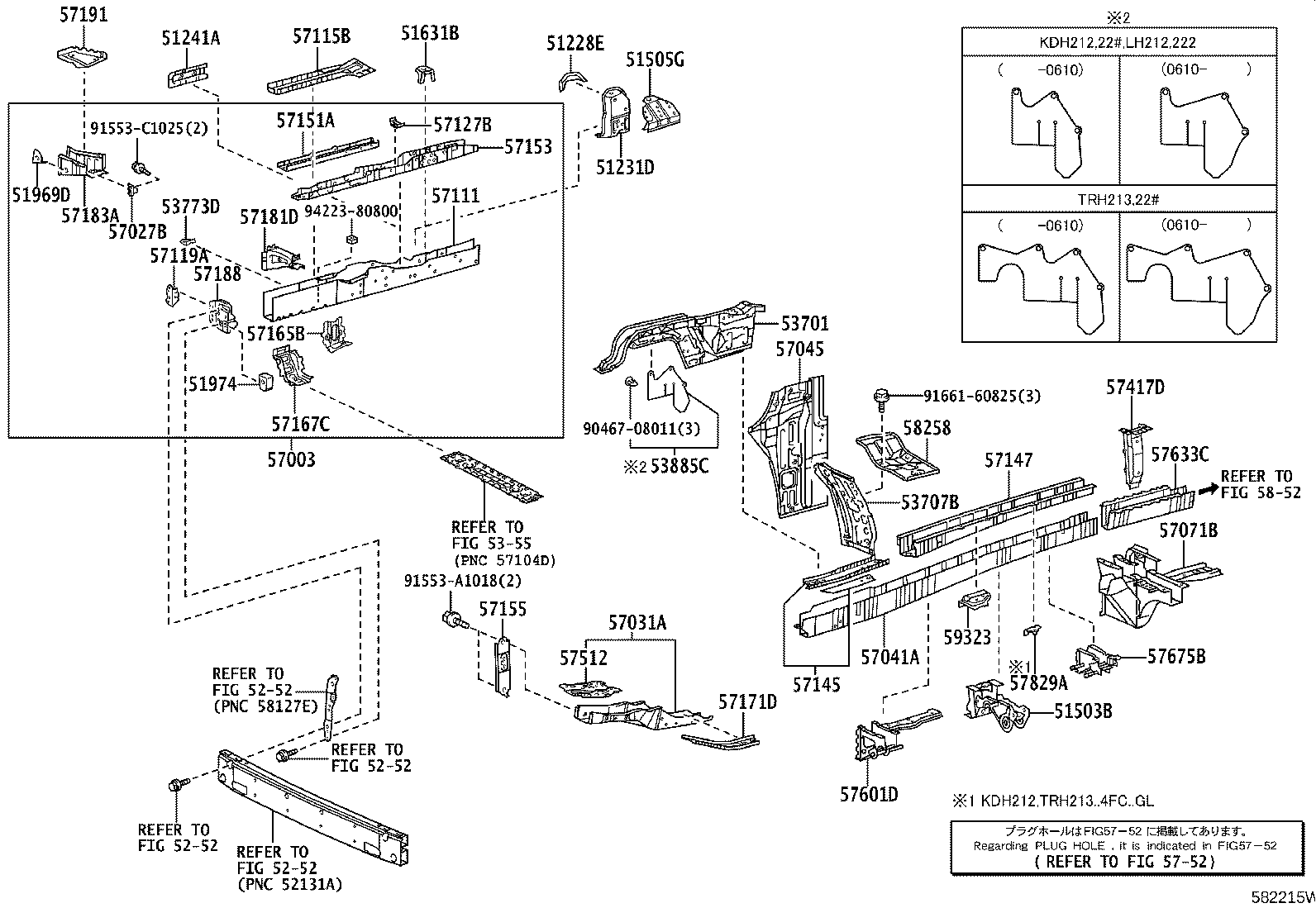

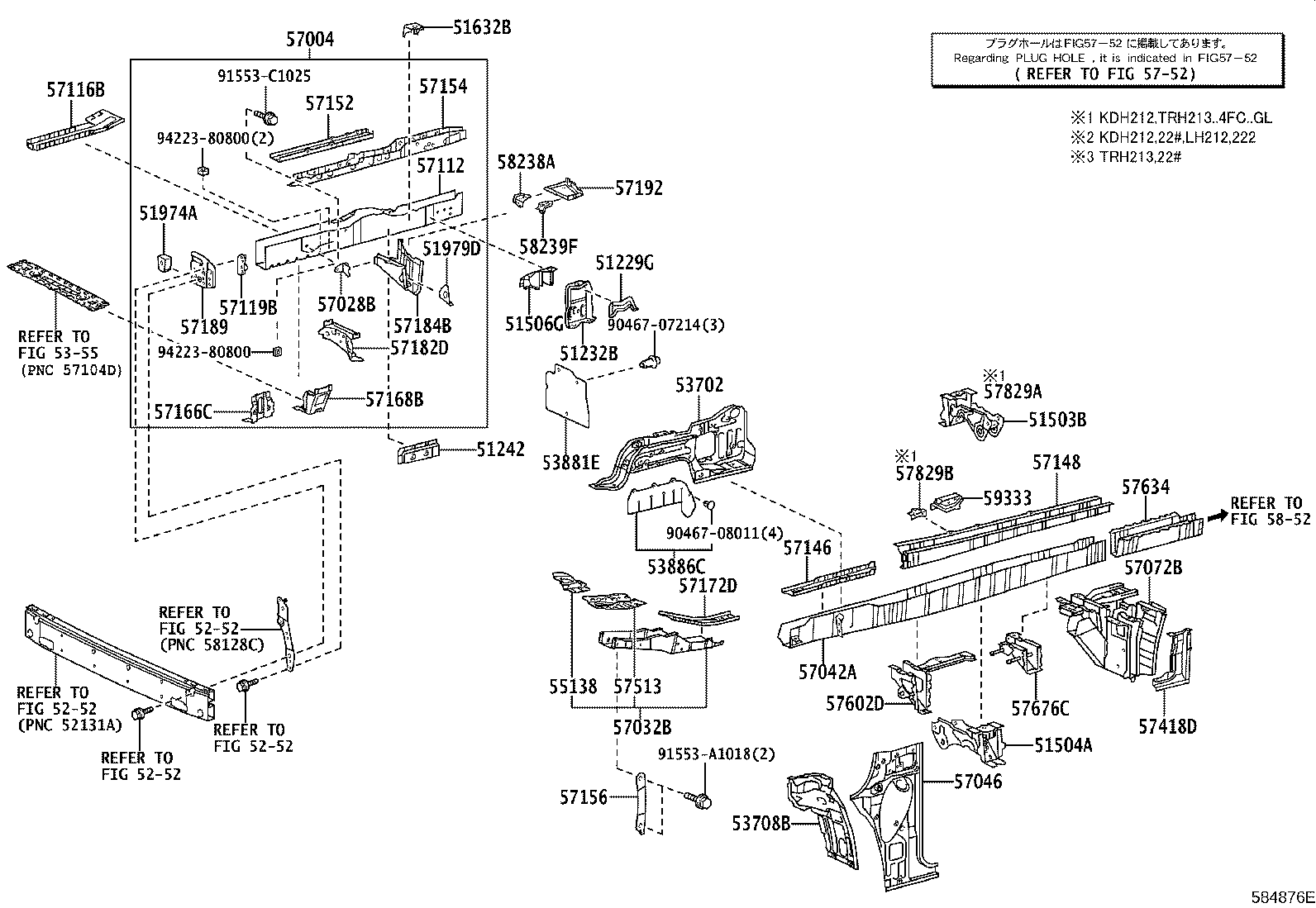

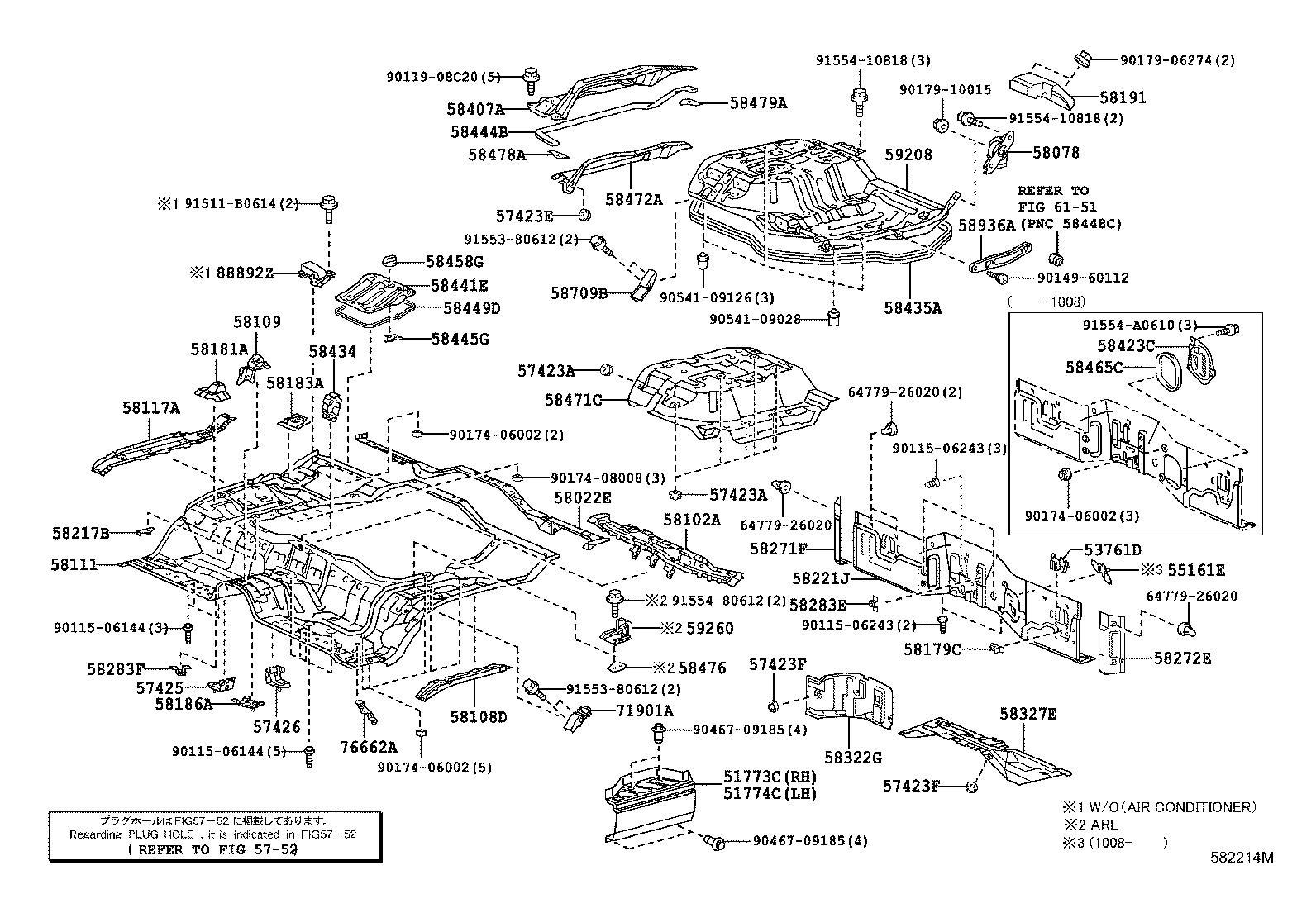

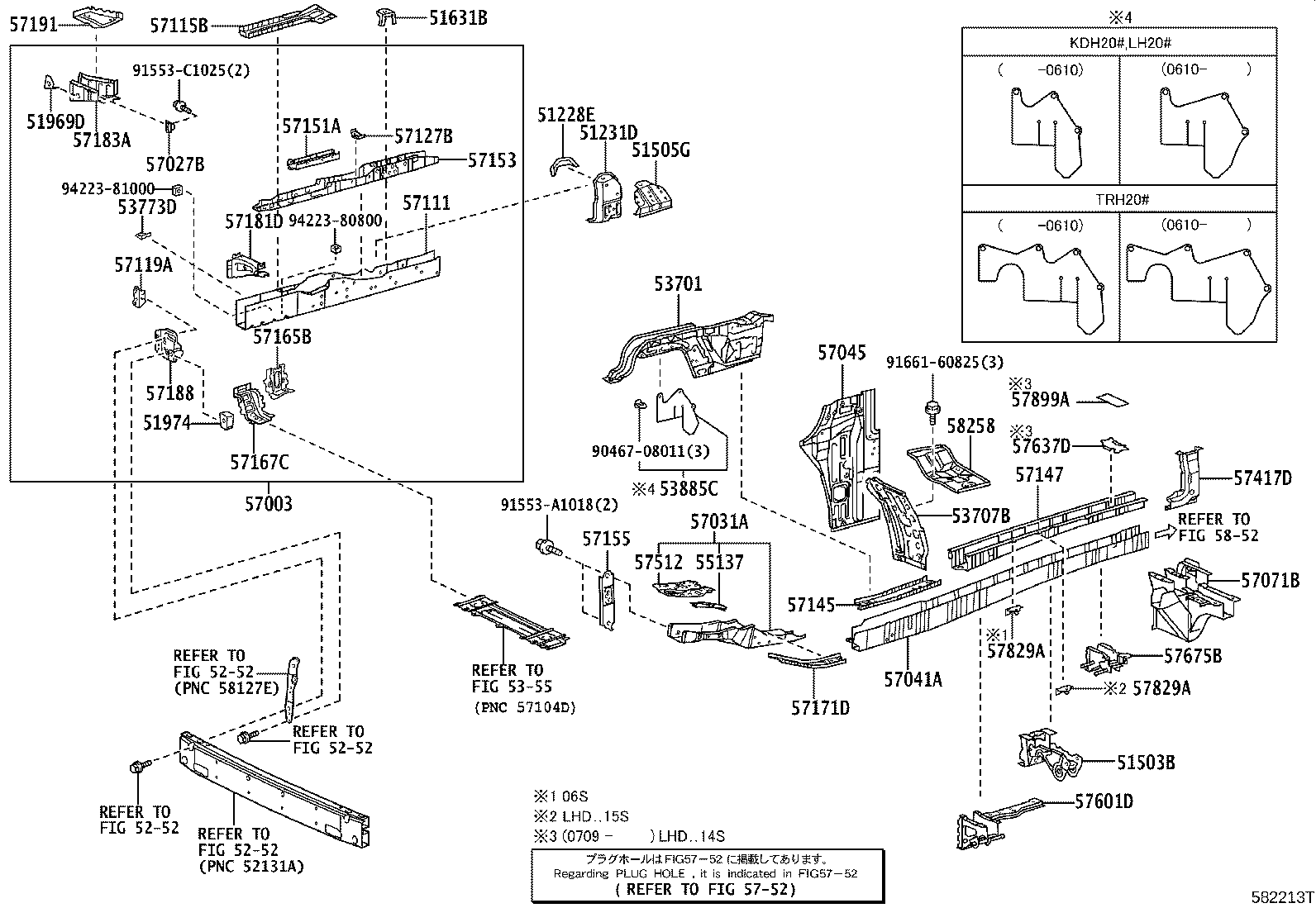

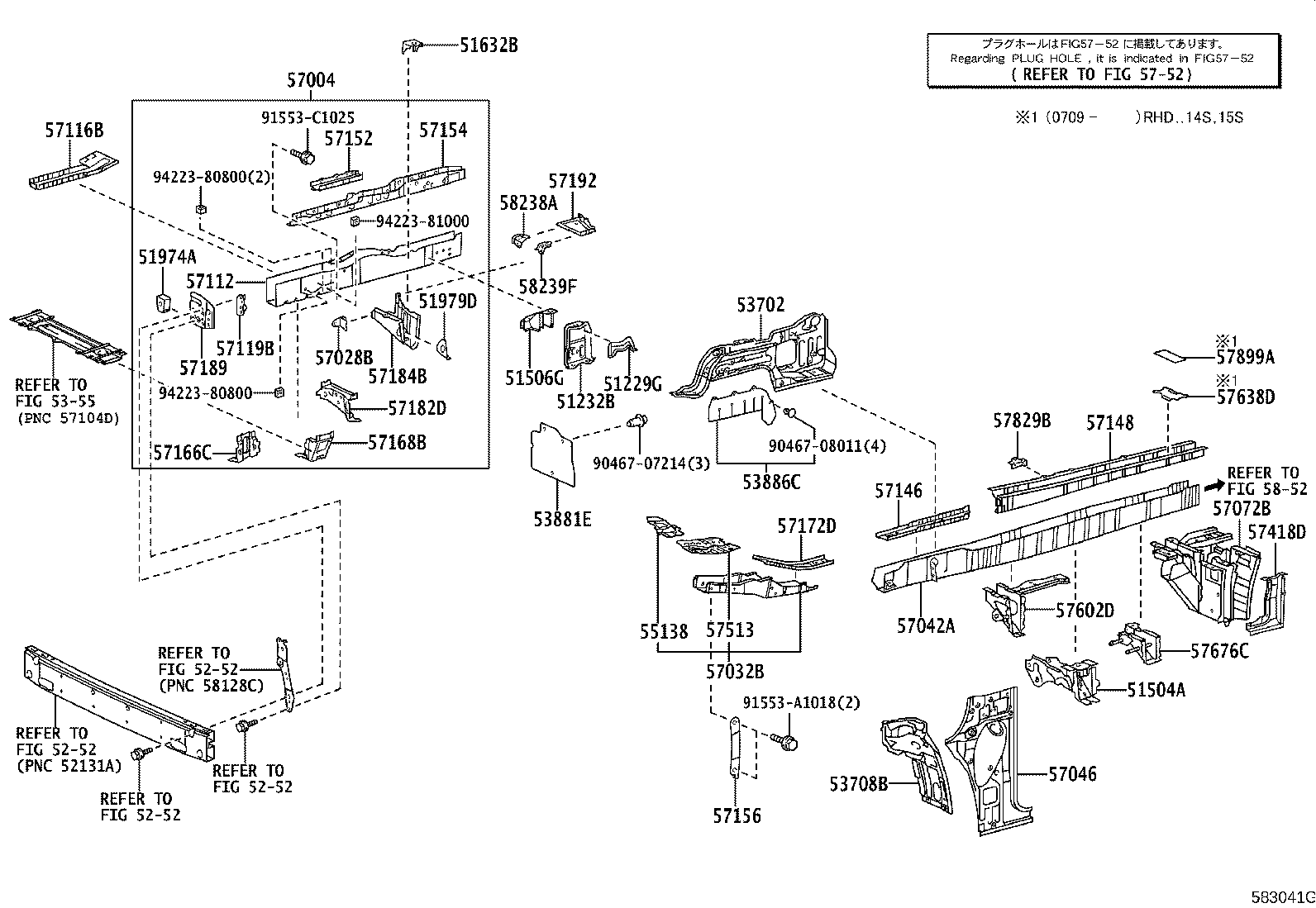

Figure 582212M 582212M 2005-01 → — Figure 582214M 582214M 2005-01 → — Figure 582213T 582213T 2005-01 → — Figure 583041G 583041G 2005-01 → — Figure 582215W 582215W 2005-01 → — Figure 584876E 584876E 2005-01 → —

Part groups

PNCDescription
51228E Patch, Front Suspension Member, RH
51229G Patch, Front Suspension Member, LH
51231D Bracket, Front Shock Absorber, RH
51232B Bracket, Front Shock Absorber, LH
51241A Reinforcement, Front Shock Absorber Bracket, RH
51242 Reinforcement, Front Shock Absorber Bracket, LH
51503B Brace Sub-assy, Lower Arm Bracket, RH
51504A Brace Sub-assy, Lwr Arm Bracket, LH
51505G Support Sub-assy, Upper Control Arm, RH
51506G Support Sub-assy, Upr Control Arm, LH
51631B Stopper, Front Suspension Rebound, RH
51632B Stopper, Front Suspension Rebound, LH
51773C Cover, Step Plate, RH
51774C Cover, Step Plate, LH
51969D Reinforcement, Transport Hook Mounting, Rear RH
51974 Nut, Transport Hook, RH
51974A Nut, Transport Hook, LH
51979D Reinforcement, Transport Hook Mounting, Rear LH
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53707B Apron Sub-assy, Fender Side, RH
53708B Apron Sub-assy, Fender Side, LH
53761D Bracket, Battery Clamp
53773D Bracket, Air Cleaner Mounting
53881E Mudguard, Front
53885C Seal, Fender Apron Mudguard, RH
53886C Seal, Fender Apron Mudguard, LH
55137 Brace, Dash TO Frame, RH
55138 Brace, Dash TO Frame, LH
55161E Bracket, Heater Mounting
57003 Member Sub-assy, Front Side, RH
57004 Member Sub-assy, Front Side, LH
57027B Member Sub-assy, Front Side, Inner RH
57028B Member Sub-assy, Front Side, Inner LH
57031A Reinforce Sub-assy, Front Side Member, NO.2 RH
57032B Reinforcement Sub-assy, Front Side Member, NO.2 LH
57041A Member Sub-assy, Center Floor Side, RH
57042A Member Sub-assy, Center Floor Side, LH
57045 Plate Sub-assy, Floor Side Rail, RH
57046 Plate Sub-assy, Floor Side Rail, LH
57071B Hanger Sub-assy, Rear Spring, Front A RH
57072B Hanger Sub-assy, Rear Spring, Front A LH
57111 Member, Front Side, RH
57112 Member, Front Side, LH
57115B Plate, Front Side Member, NO.1 RH
57116B Plate, Front Side Member, NO.1 LH
57119A Plate, Front Side Member, Front RH
57119B Plate, Front Side Member, Front LH
57127B Plate, Front Suspension Member Mounting, RH
57145 Plate, Front Side Member, Center RH
57146 Plate, Front Side Member, Center LH
57147 Plate, Front Side Member, Rear RH
57148 Plate, Front Side Member, Rear LH
57151A Reinforcement, Front Side Member, NO.1 RH
57152 Reinforcement, Front Side Member, NO.1 LH
57153 Reinforcement, Front Side Member, NO.2 RH
57154 Reinforcement, Front Side Member, NO.2 LH
57155 Reinforcement, Front Side Member, NO.3, RH
57156 Reinforcement, Front Side Member, NO.3, LH
57165B Reinforcement, Front Crossmember, NO.2 RH
57166C Reinforcement, Front Crossmember, NO.2 LH
57167C Gusset, Front Crossmember Side, RH
57168B Gusset, Front Crossmember Side, LH
57171D Plate, Front Side Member TO Floor, RH
57172D Plate, Front Side Member TO Floor, LH
57181D Extension, Front Crossmember, Front RH
57182D Extension, Front Crossmember, Front LH
57183A Extension, Front Crossmember, RR RH
57184B Extension, Front Crossmember, RR LH
57188 Reinforcement, Front Side Member Extension, RH
57189 Reinforcement, Front Side Member Extension, LH
57191 Plate, Front Side Member, Outer Rear RH
57192 Plate, Front Side Member, Outer Rear LH
57417D Reinforcement, Floor Side, Inner RH
57418D Reinforcement, Floor Side, Inner LH
57423A Clamp, Front Floor
57423E Clamp, Front Floor, NO.2
57423F Clamp, Front Floor, NO.3
57425 Reinforcement, Front Floor, NO.2 RH
57426 Reinforcement, Front Floor, NO.2 LH
57512 Reinforcement, Front Floor, RH
57513 Reinforcement, Front Floor, LH
57601D Member Sub-assy, Rear Floor Side, RH
57602D Member Sub-assy, Rear Floor Side, LH
57633C Extension, Rear Floor Side Member, Rear RH
57634 Extension, Rear Floor Side Member, Rear LH
57637D Reinforcement, Rear Floor Side, RH
57638D Reinforcement, Rear Floor Side, LH
57675B Reinforcement, Rear Floor Cross, NO.1 RH
57676C Reinforcement, Rear Floor Cross, NO.1 LH
57829A Reinforcement, Seat Leg, RH
57829B Reinforcement, Seat Leg, LH
57899A Seal, Rear Floor, Rear
58022E Reinforcement Sub-assy, Header Panel
58078 Balancer Sub-assy, Engine Service Hole Cover
58102A Reinforcement Sub-assy, Front Floor
58108D Reinforce Sub-assy, Front Cross TO Front Panel, LH
58109 Bracket Sub-assy, Instrument Panel Brace Mounting
58111 Pan, Front Floor
58117A Reinforcement, Front Floor Side, RH
58179C Bracket, Clamp Floor
58181A Retainer, Seat Rail, Front
58183A Retainer, Seat Rail, Rear RH
58186A Bracket, Brake Tube Set
58191 Footrest, Front Floor
58217B Plate, Front Floor
58221J Panel, Header
58238A Bracket, Brake Tube Connector, NO.4
58239F Bracket, Brake Tube Connector, NO.3
58258 Plate, Water Guard, NO.1
58271F Plate, Floor Side, Rear RH
58272E Plate, Floor Side, Rear LH
58283E Bracket, Parking Cable Clamp, NO.5
58283F Bracket, Parking Cable Clamp, NO.6
58322G Insulator, Header Panel, NO.1
58327E Insulator, Transmission Service Hole Cover
58407A Cover Sub-assy, Engine Service Hole Sub
58423C Cover, Engine Service Hole, NO.2
58434 Hook, Engine Service Hole Cover
58435A Packing, Engine Main Cover
58441E Cover, Battery Service Hole
58444B Packing, Engine Sub Cover
58445G Lock, Battery Service Hole Cover
58449D Packing, Battery Service Hole Cover
58458G Knob, Battery Service Hole Cover
58465C Packing, Transmission Service Hole Cover
58471C Silencer, Engine Main Cover
58472A Silencer, Engine Sub Cover
58476 Retainer, Engine Service Hole Cover Catch
58478A Packing, Engine Sub Cover, NO.2
58479A Packing, Engine Sub Cover, NO.3
58709B Catch Sub-assy, Engine Service Cover
58936A Band, Engine Service Hole Cover Support
59208 Cover Sub-assy, Engine Servis Hole Main
59260 Lock Assy, Engine Cover
59323 Base, Sub Floor Leg, NO.1 RH
59333 Base, Sub Floor Leg, NO.1 LH
71901A Catch Sub-assy, Center Seat Cushion, Front
76662A Brace, Front Mudguard, Front LH
88892Z Cover, Cooler
