Toyota Hiace
2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States
Supported model
Data version 2014-08
Floor Mat & Silencer Pad
36 part groups · 13 illustrations

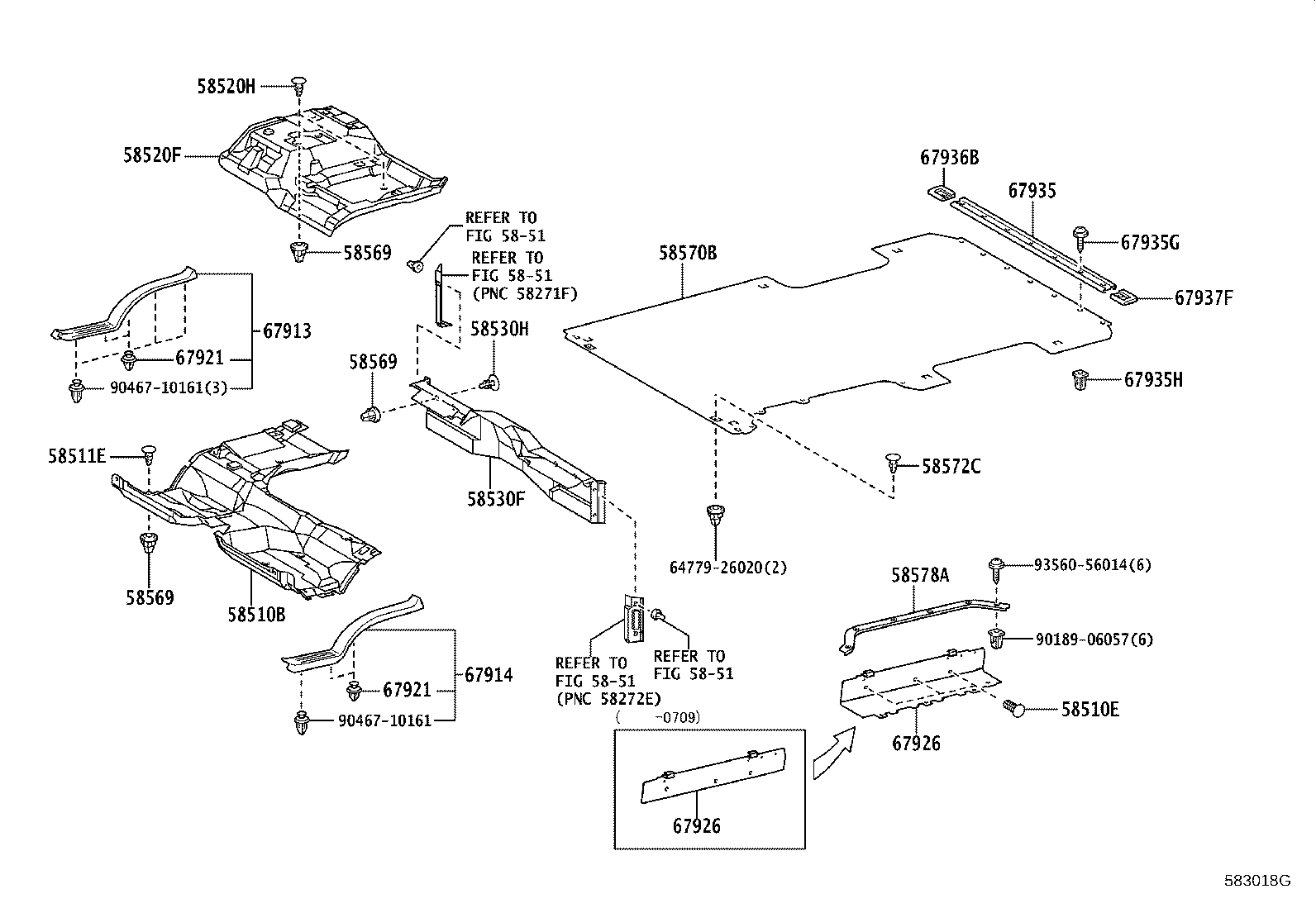

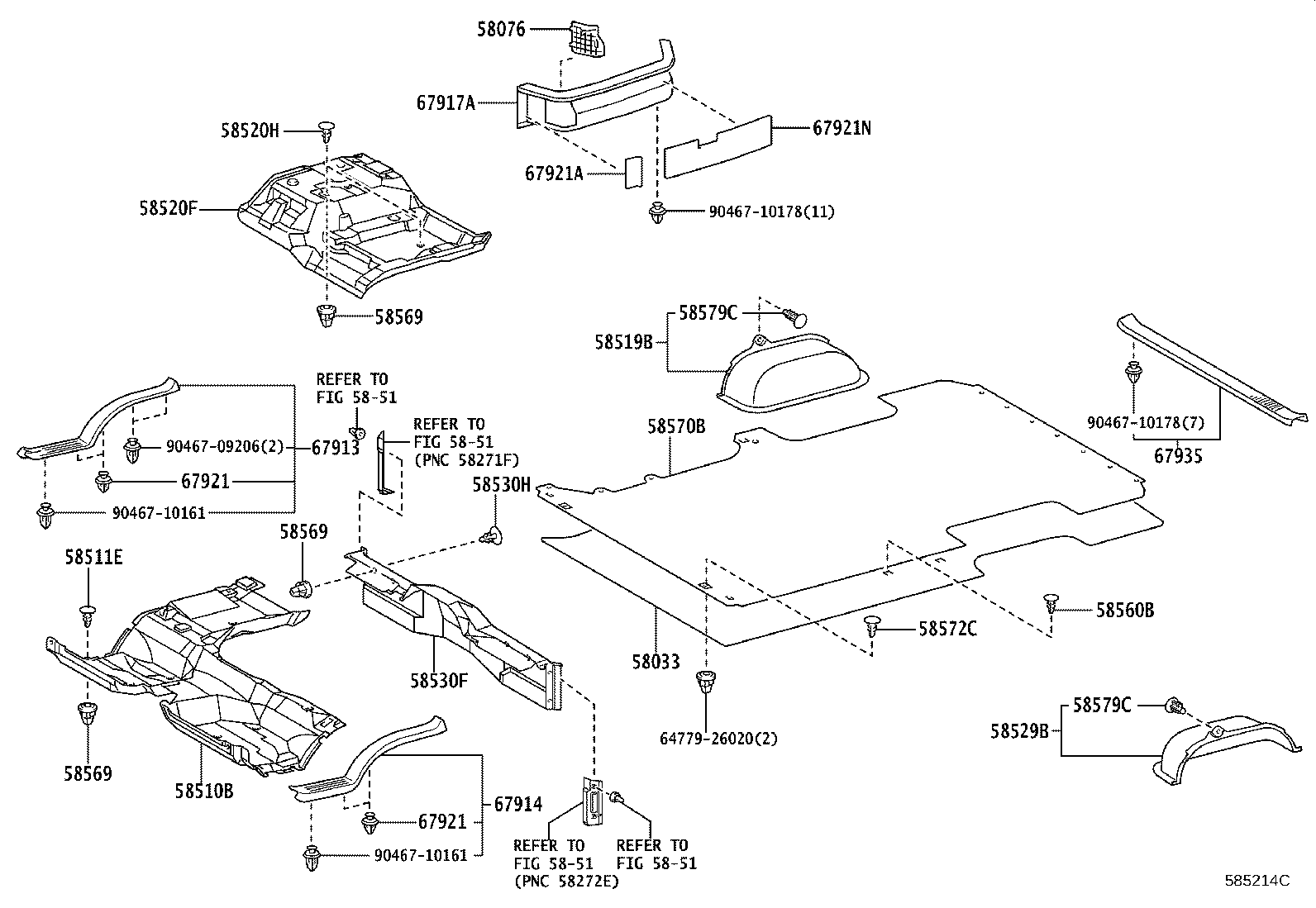

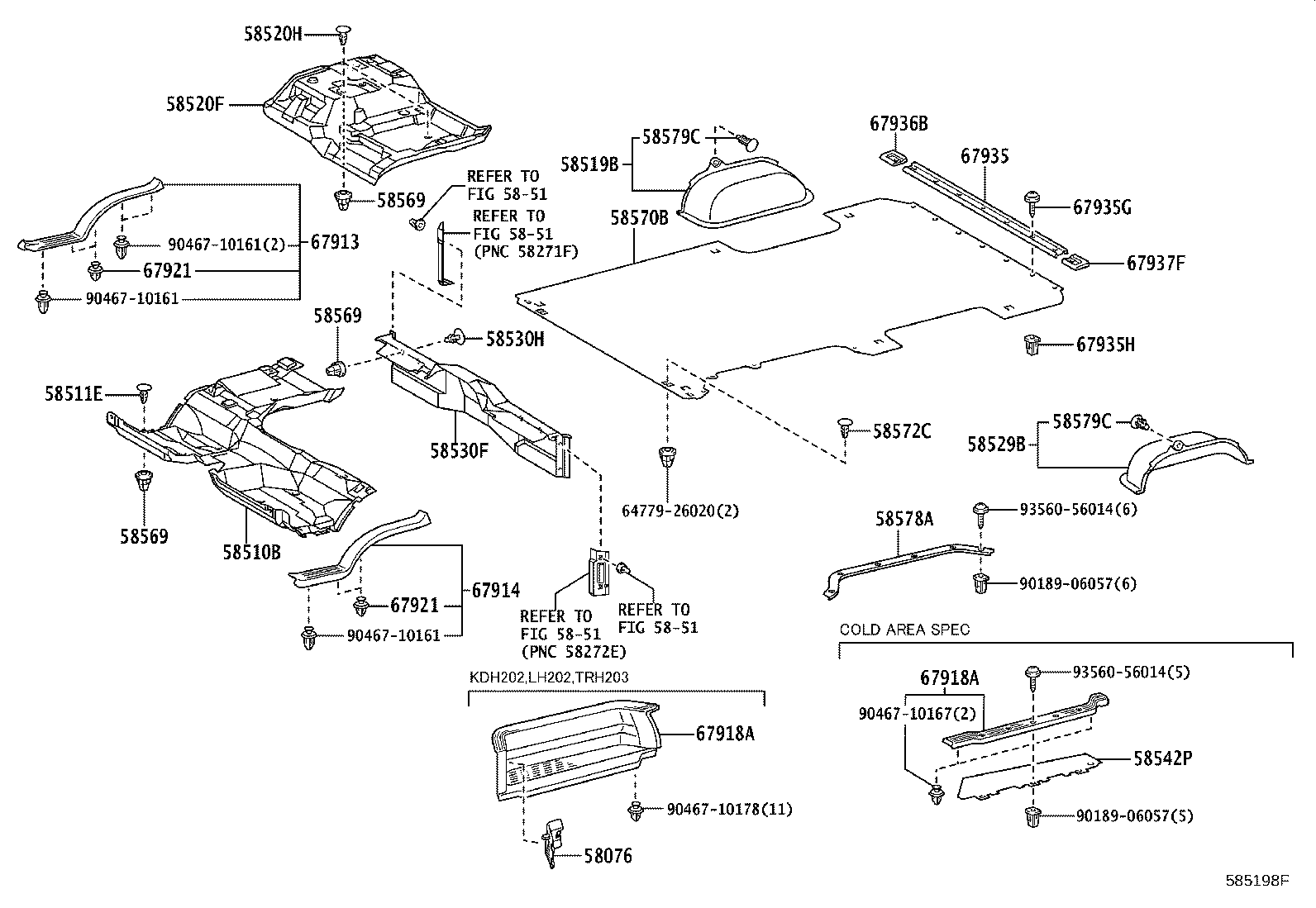

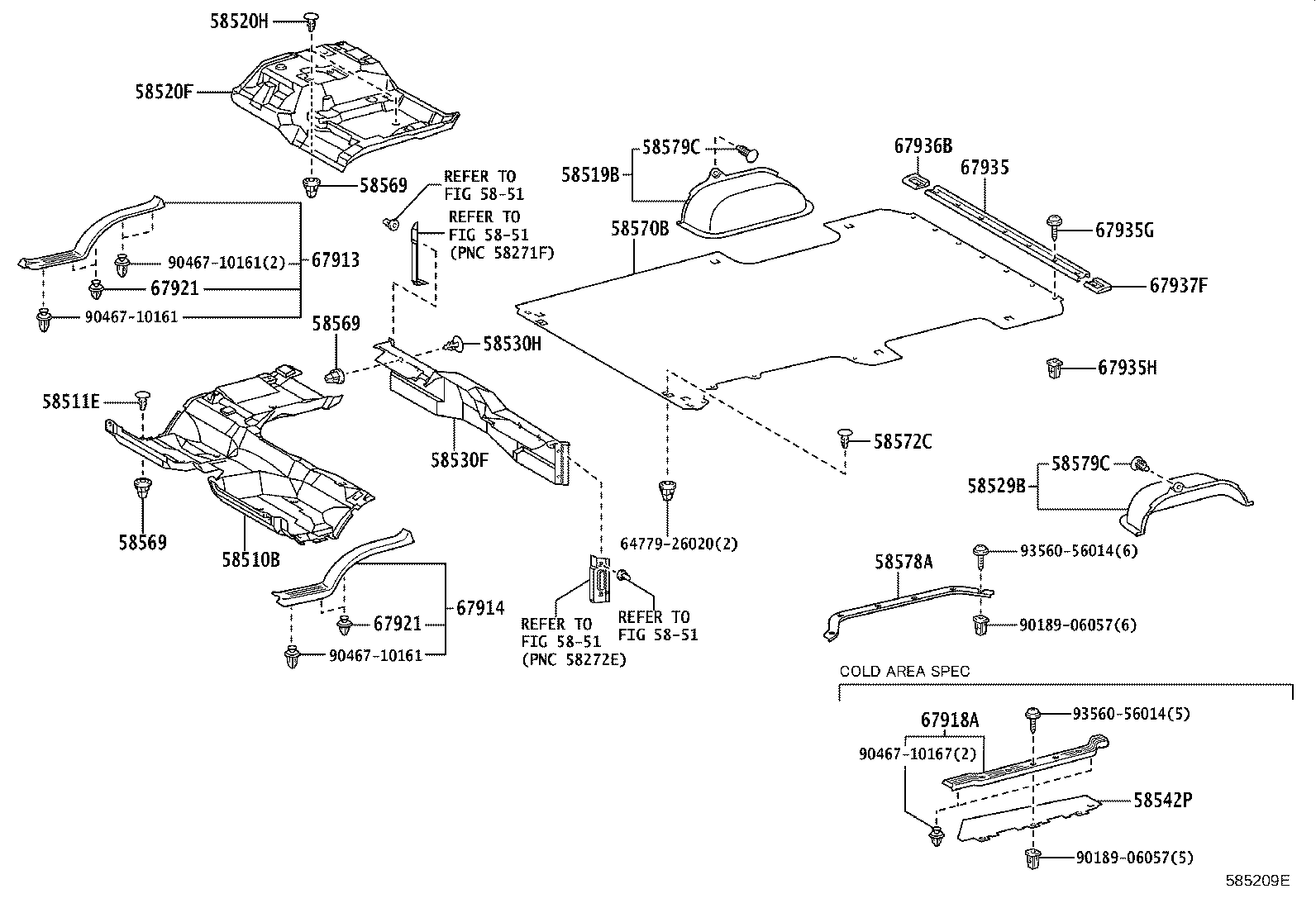

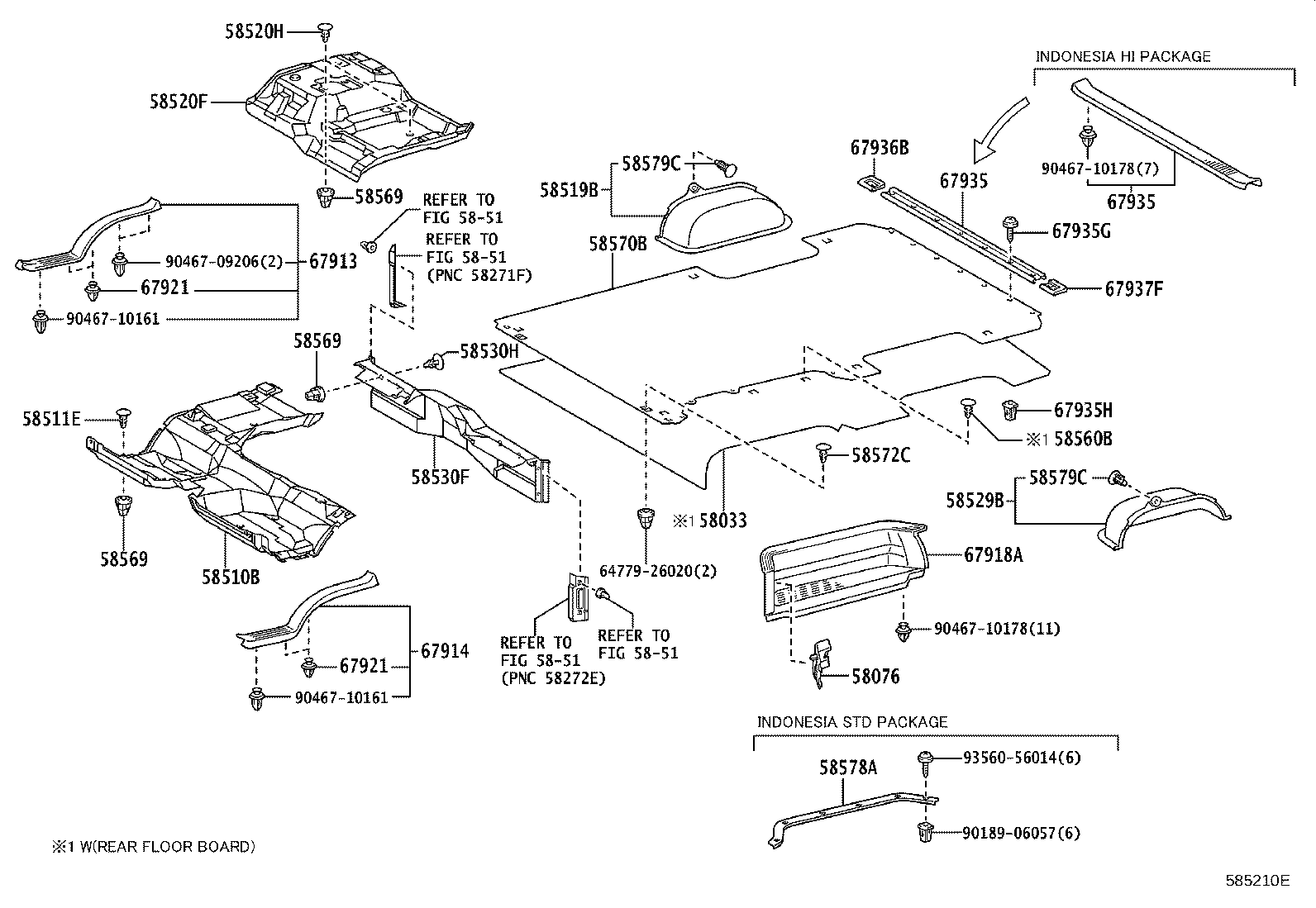

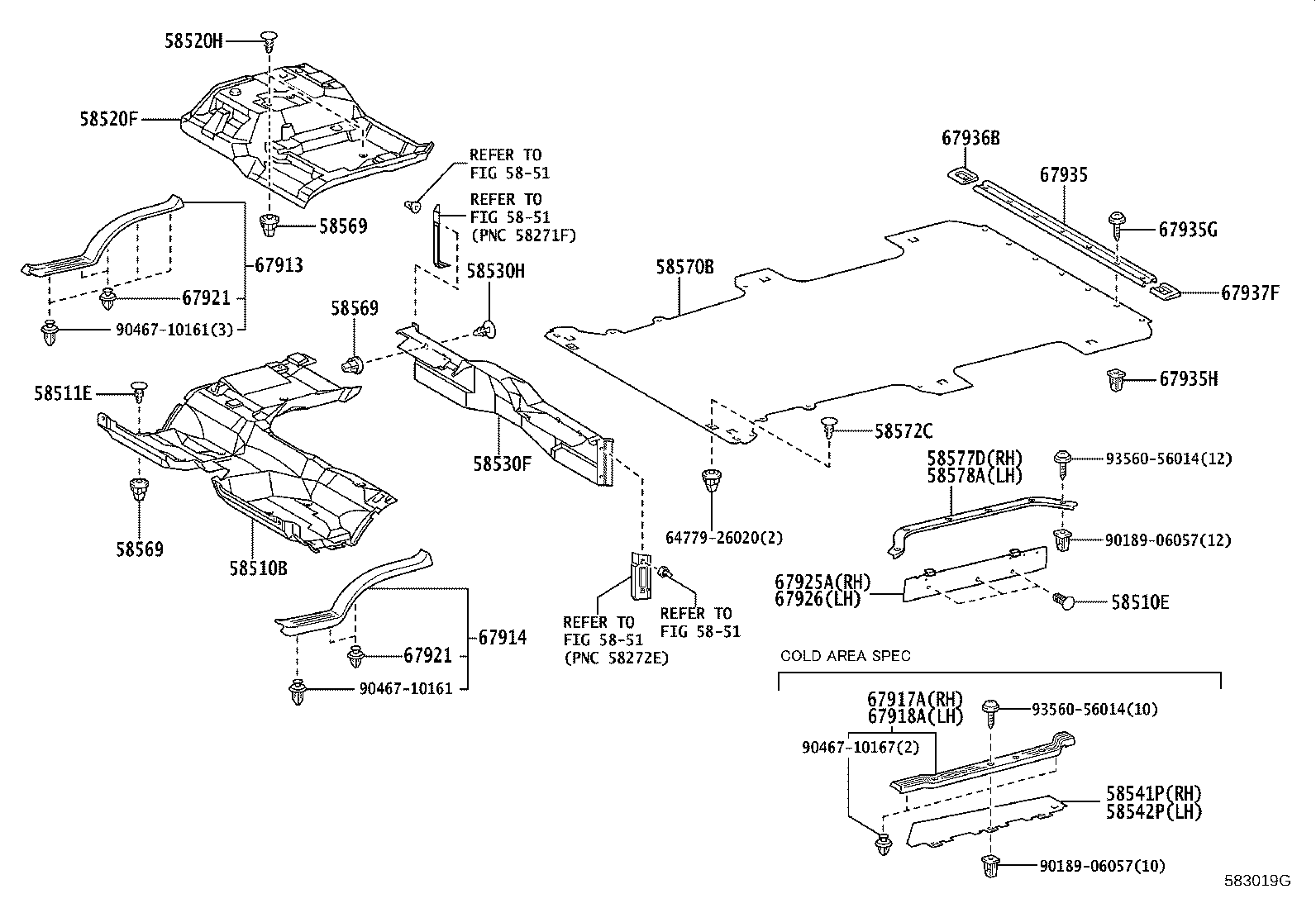

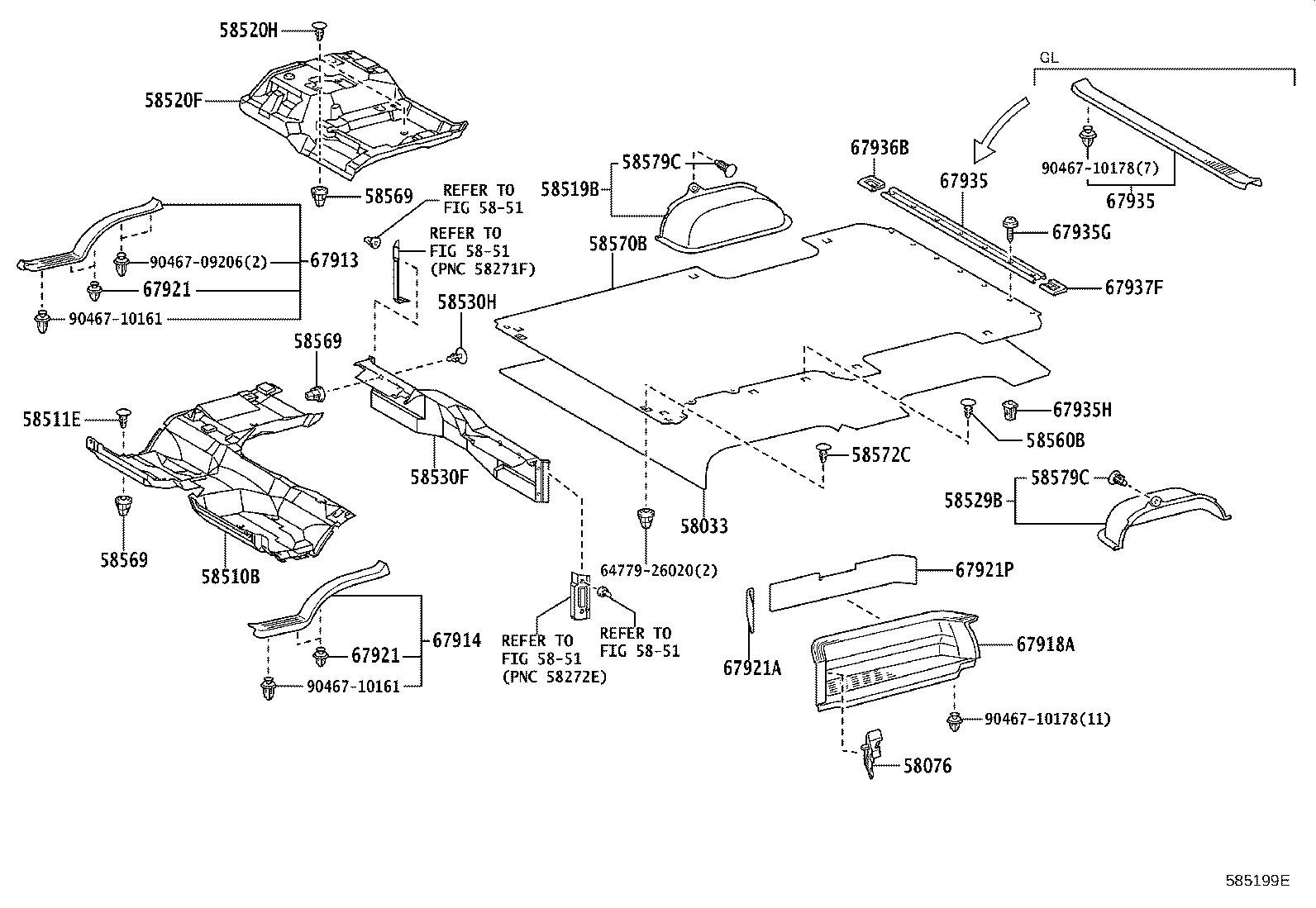

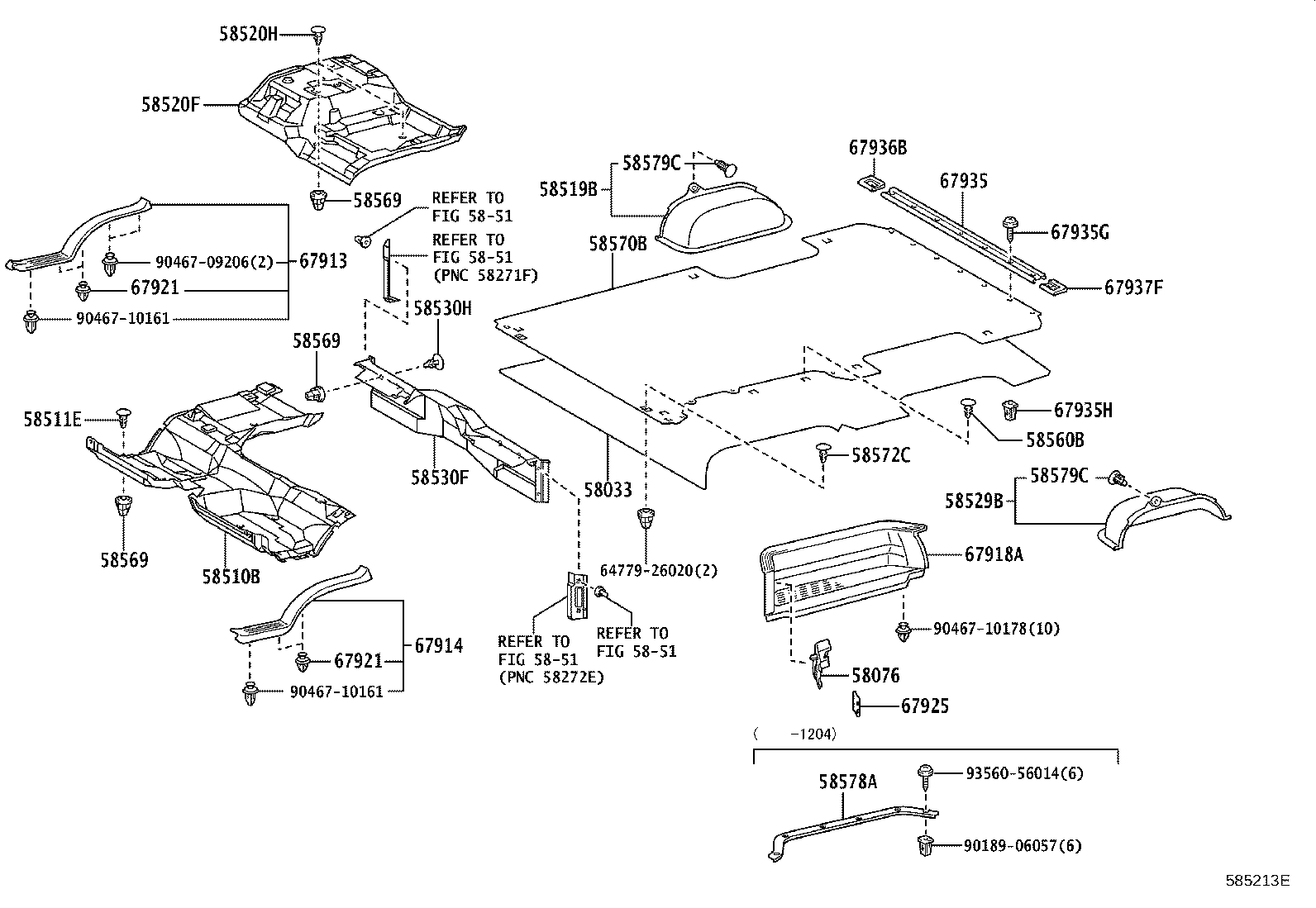

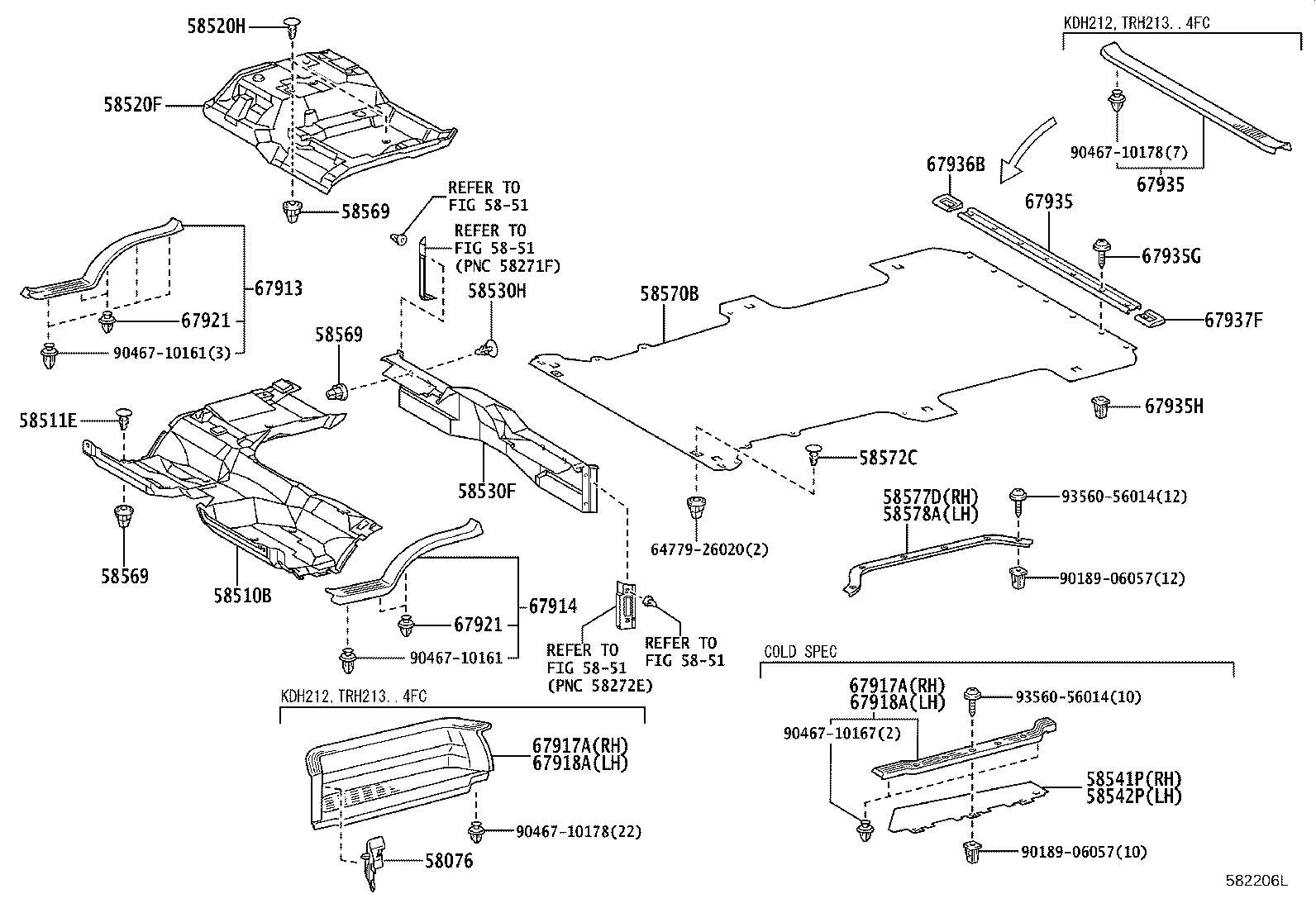

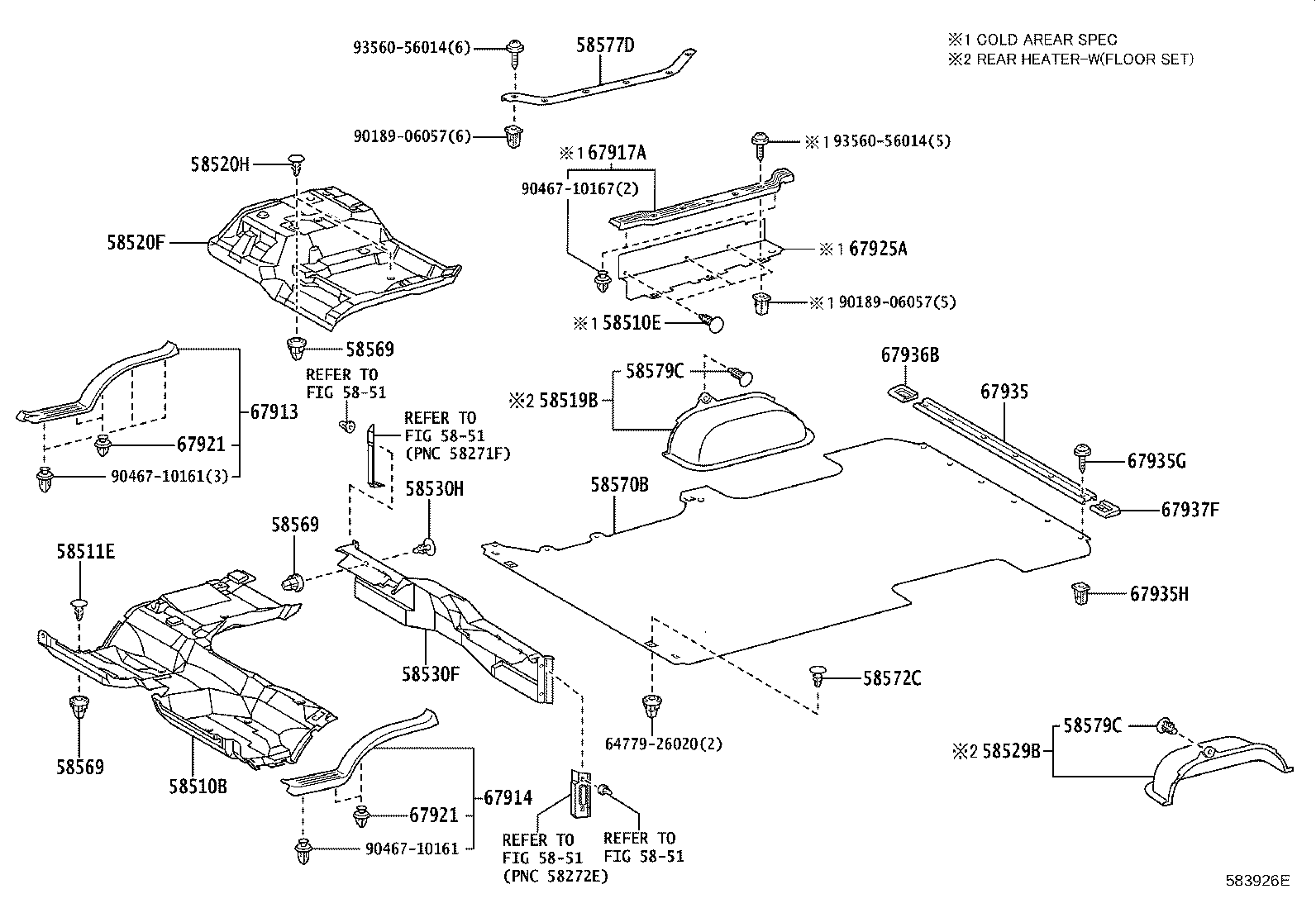

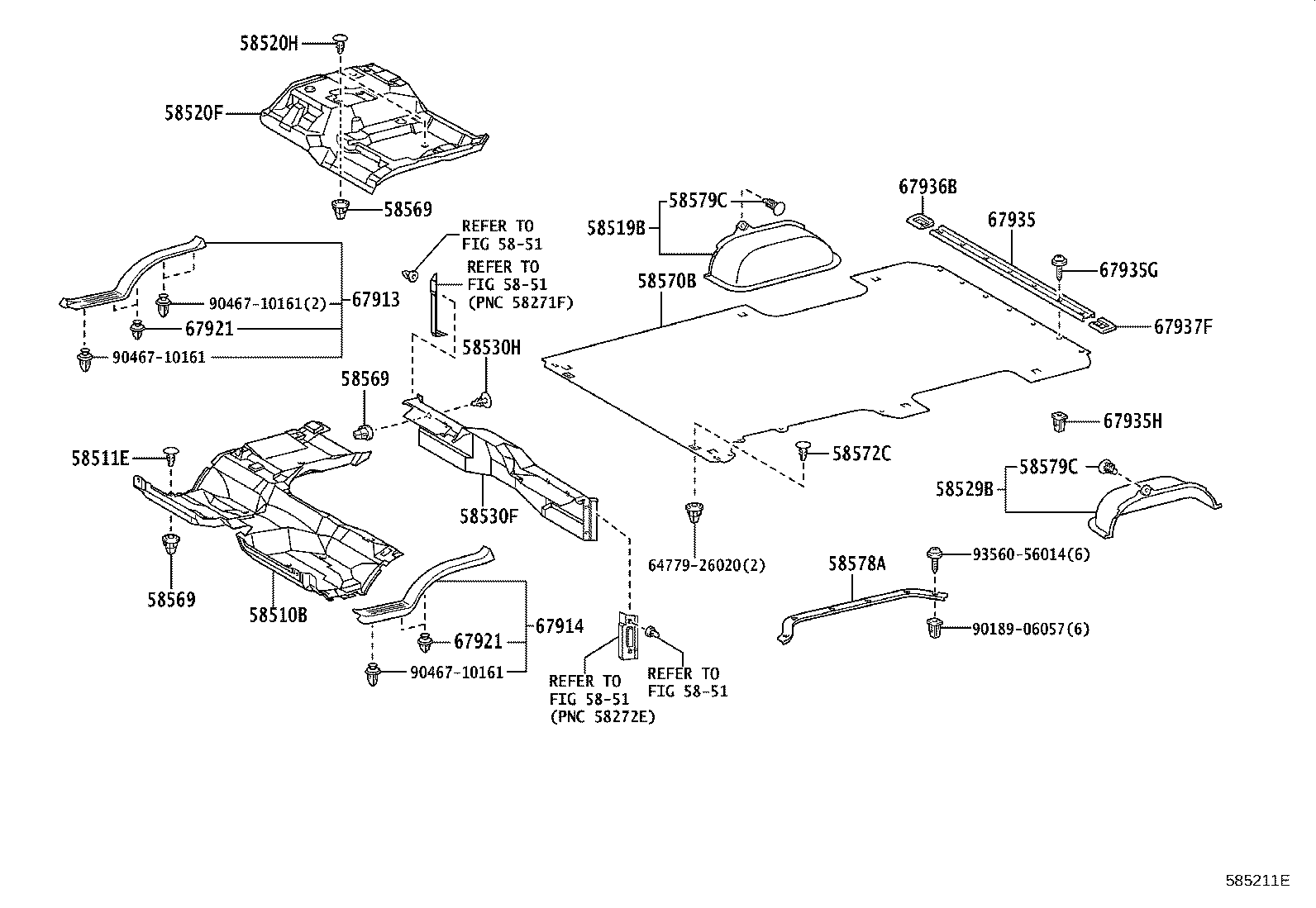

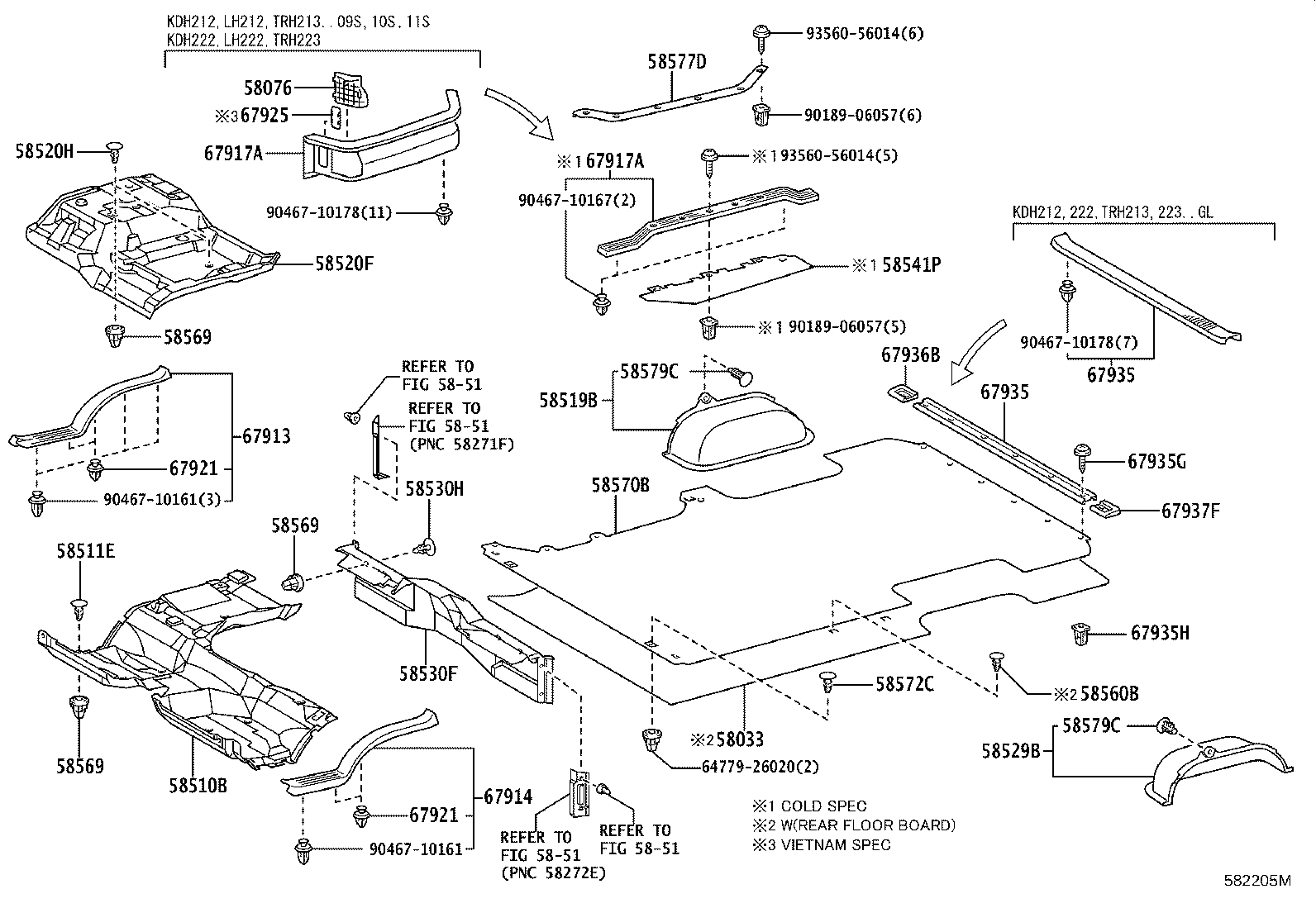

Illustrations
Part groups
| PNC | Description |
|---|---|
| 58033 | Board Sub-assy, Rear Floor |
| 58076 | Cover Sub-assy, Jack Box Hole |
| 58510B | Mat, Front Floor, Front |
| 58510E | Retainer, Floor Carpet |
| 58511E | Clip(FOR FRONT FLOOR MAT) |
| 58519B | Mat, Rear Wheel House, RH |
| 58520F | Mat Assy, Engine Cover |
| 58520H | Clip(FOR ENGINE COVER MAT) |
| 58529B | Mat, Rear Wheel House, LH |
| 58530F | Mat Assy, Header |
| 58530H | Clip(FOR HEADER MAT & HEADER CARPET) |
| 58541P | Mat, Step, RH |
| 58542P | Mat, Step, LH |
| 58560B | Clip(FOR FLOOR CARPET, REAR) |
| 58569 | Stopper, Rear Floor Mat |
| 58570B | Mat Assy, Rear Floor |
| 58572C | Clip, Rear Floor Mat Set |
| 58577D | Plate, Rear Floor Mat Support Side, RH |
| 58578A | Plate, Rear Floor Mat Support Side, LH |
| 58579C | Clip, Rear Floor Carpet Set |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67921 | Retainer, Front Door Scuff Plate |
| 67921A | Pad, Center Door Scuff Plate |
| 67921N | Pad, Center Door Scuff Plate, RH |
| 67921P | Pad, Center Door Scuff Plate, LH |
| 67925 | Cover, Door Scuff Plate |
| 67925A | Panel, Rear Door Scuff, RH |
| 67926 | Panel, Rear Door Scuff, LH |
| 67935 | Plate, Back Door Scuff |
| 67935G | Screw, Back Door Scuff Plate |
| 67935H | Grommet, Back Door Scuff Plate |
| 67936B | Cover, Back Door Scuff Side, RH |
| 67937F | Cover, Back Door Scuff Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
