Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

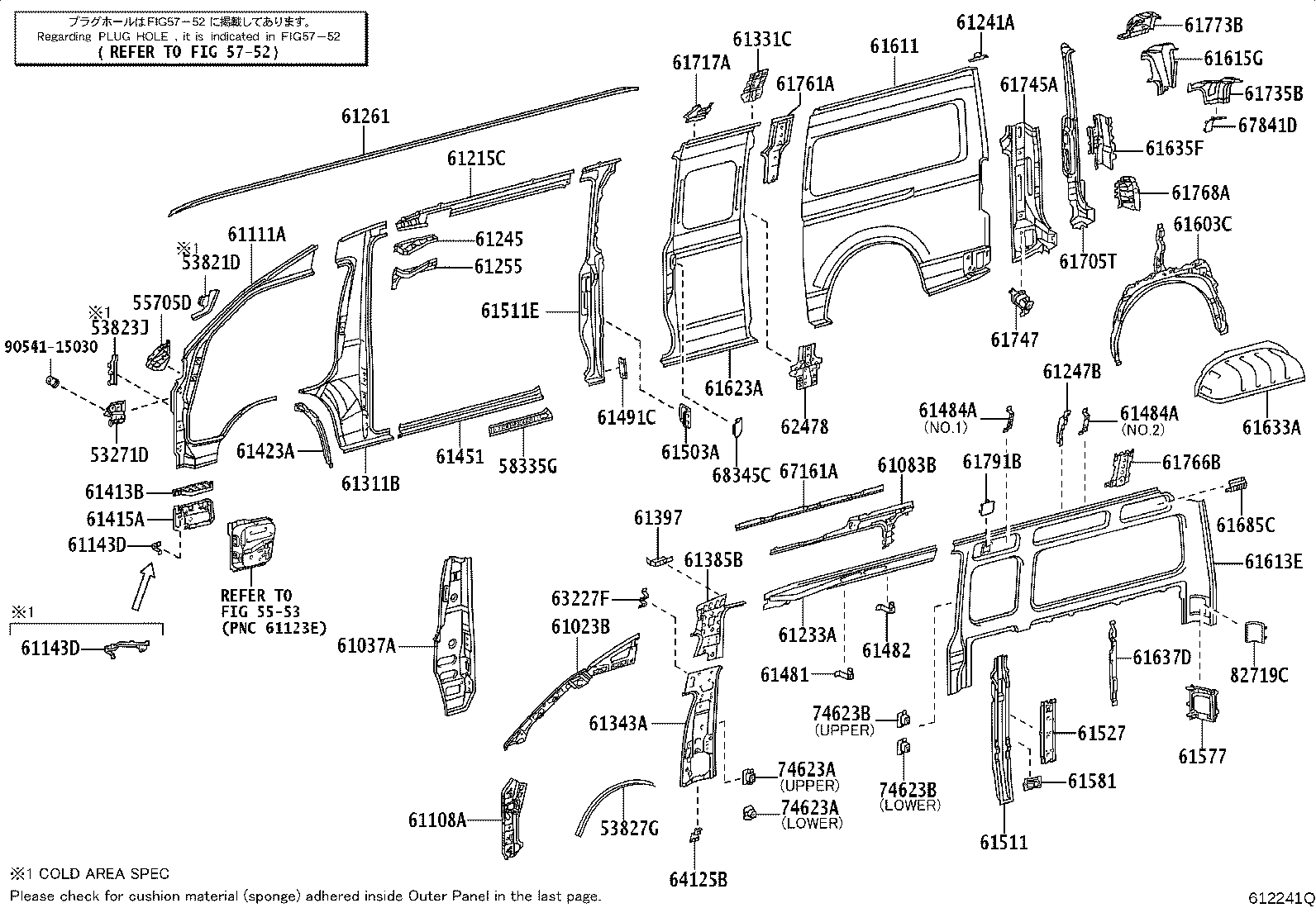

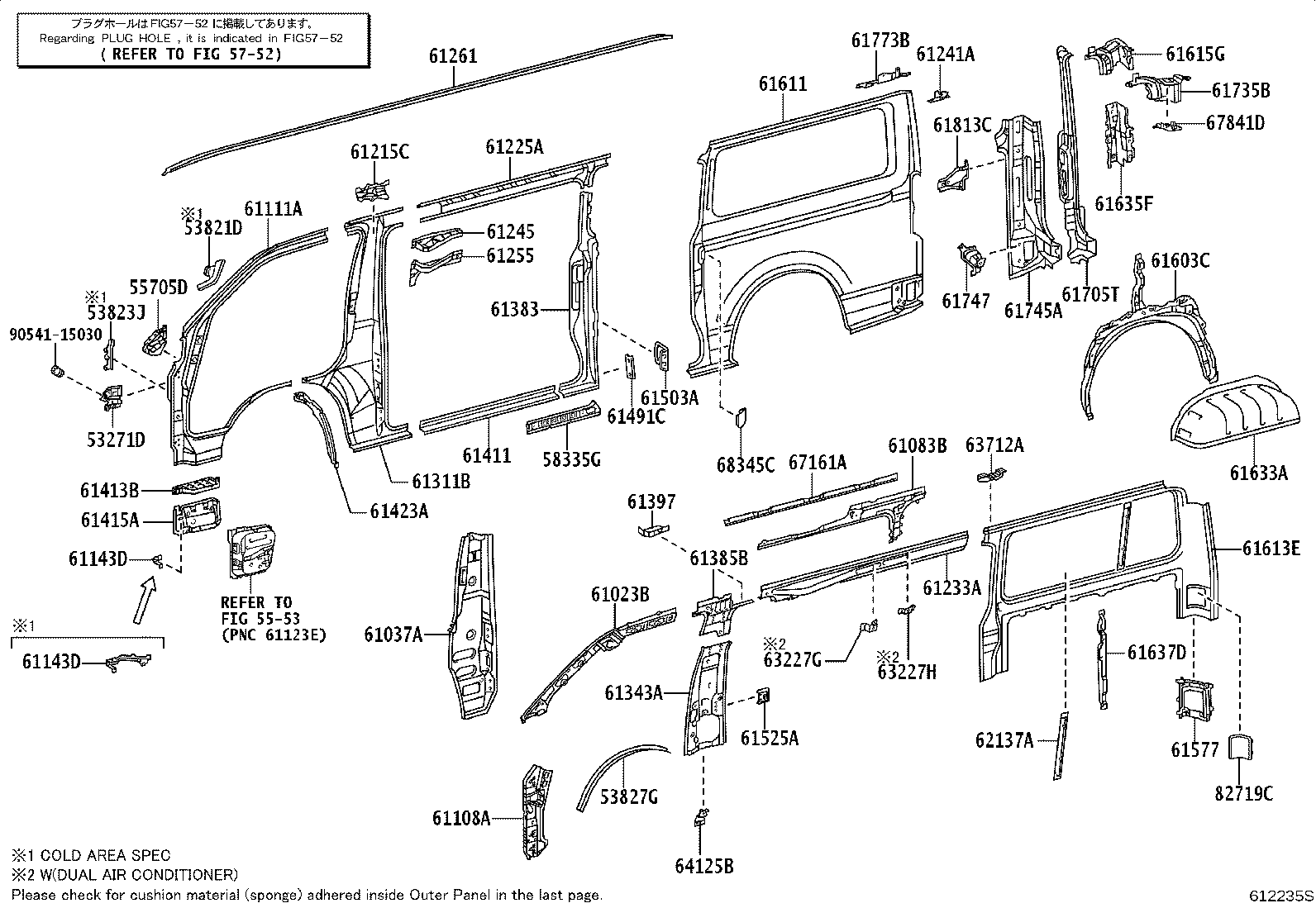

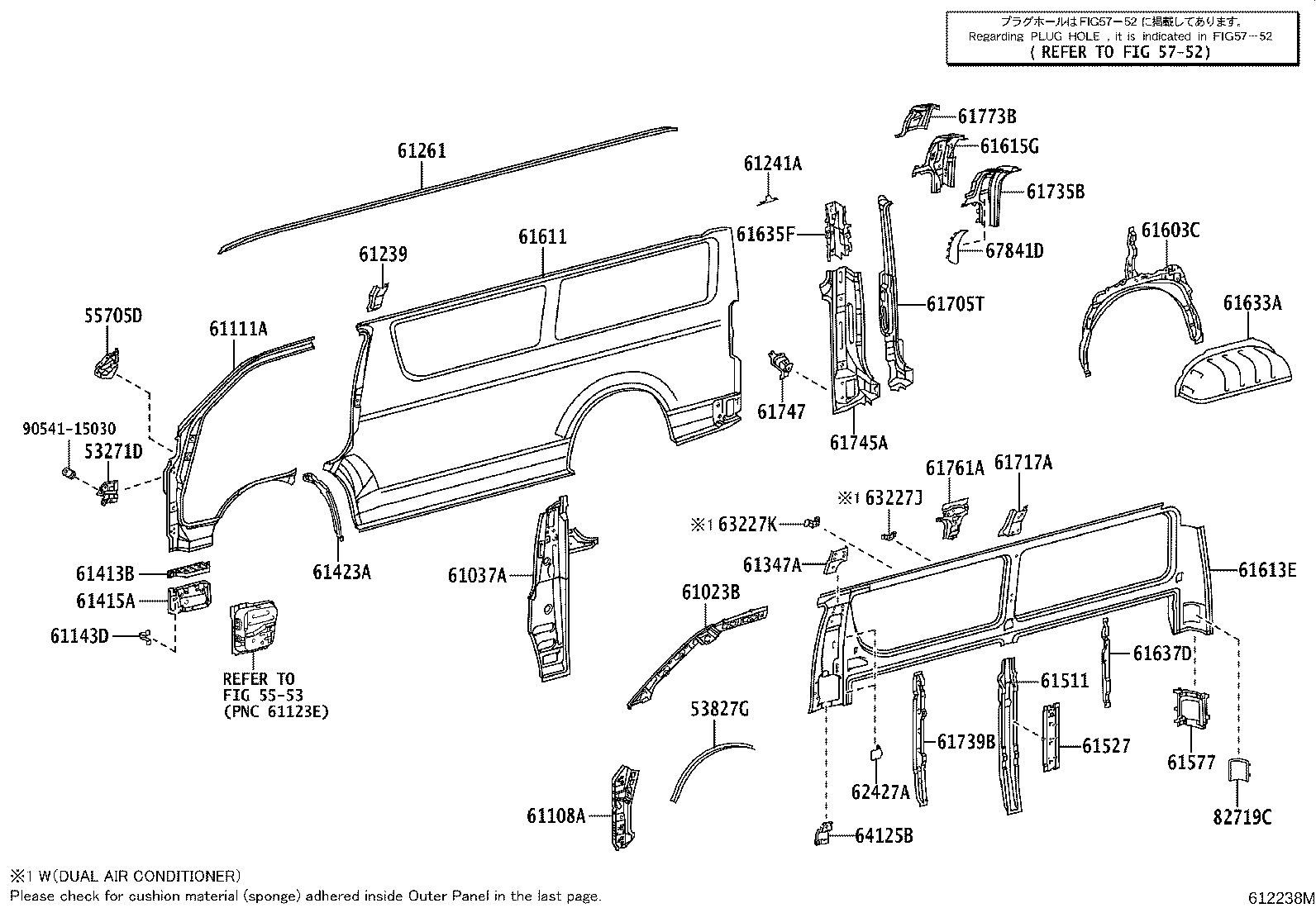

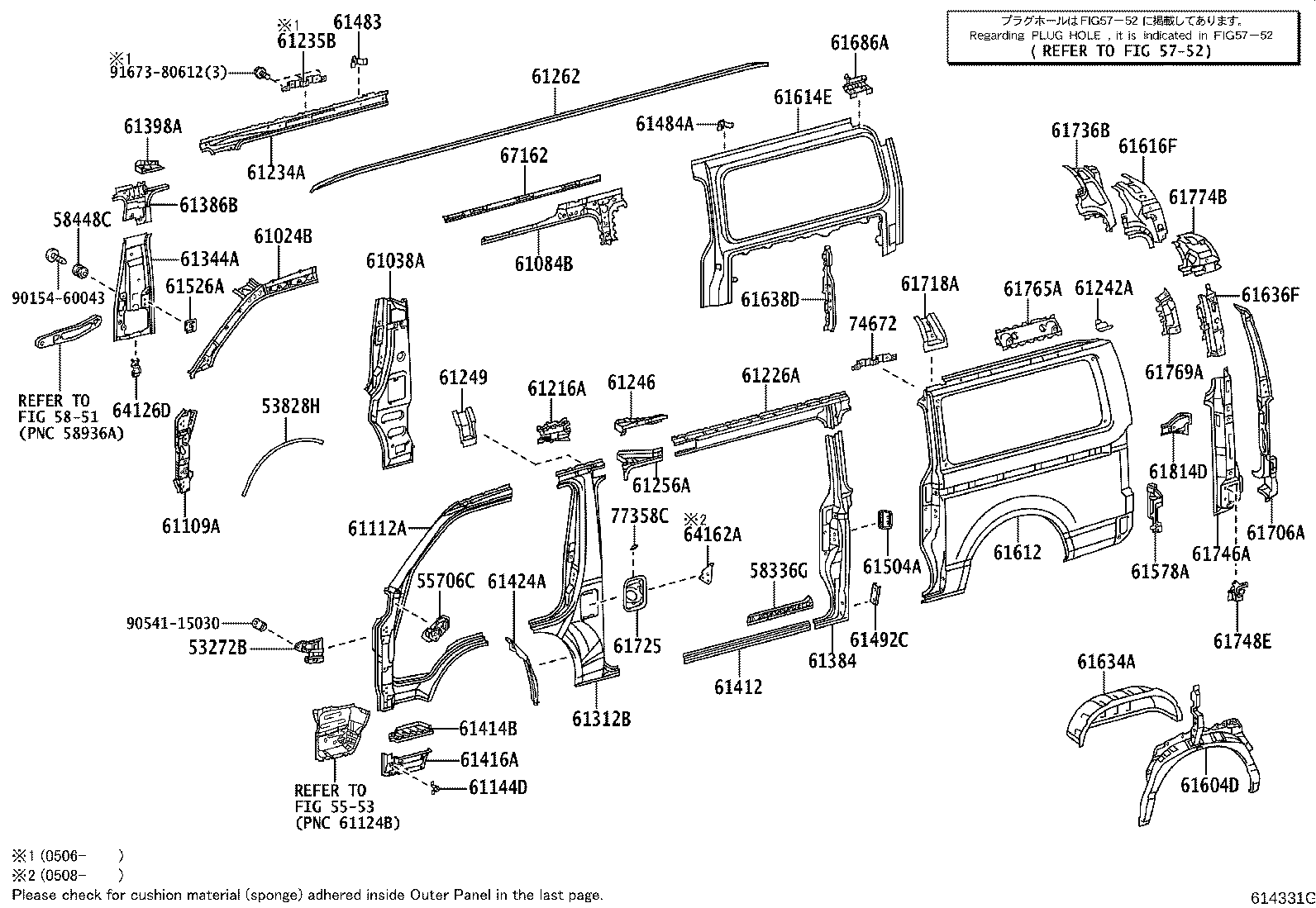

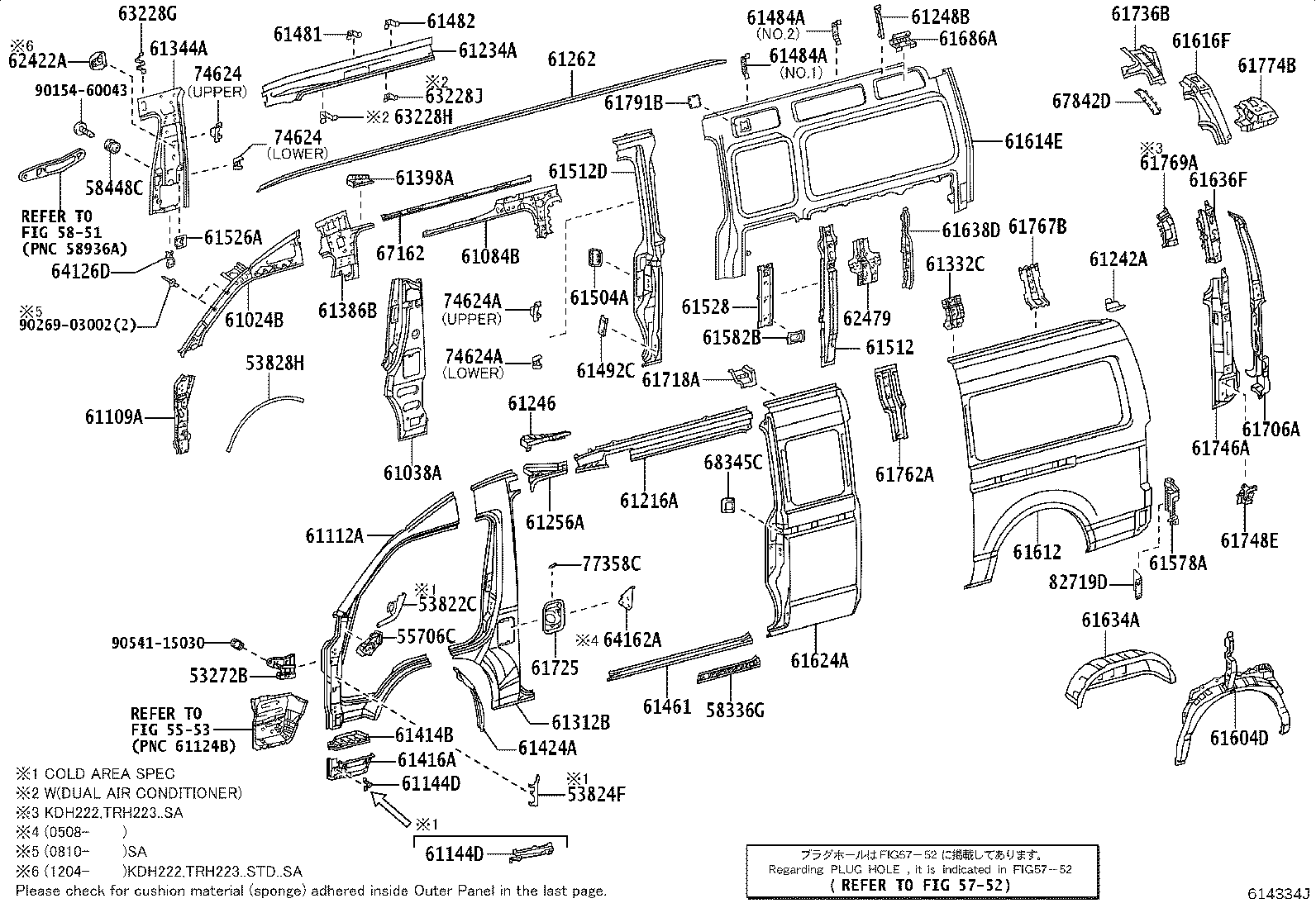

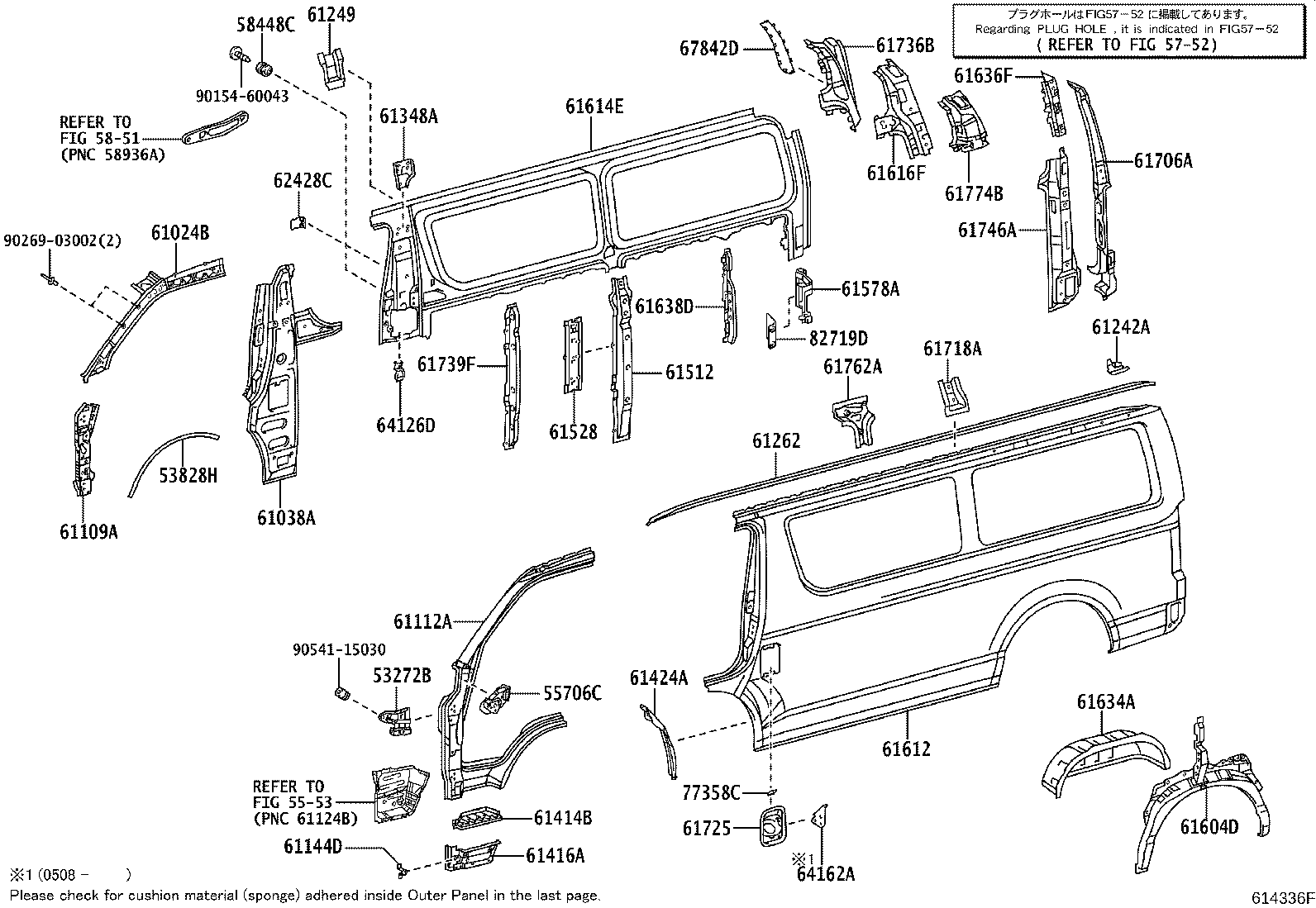

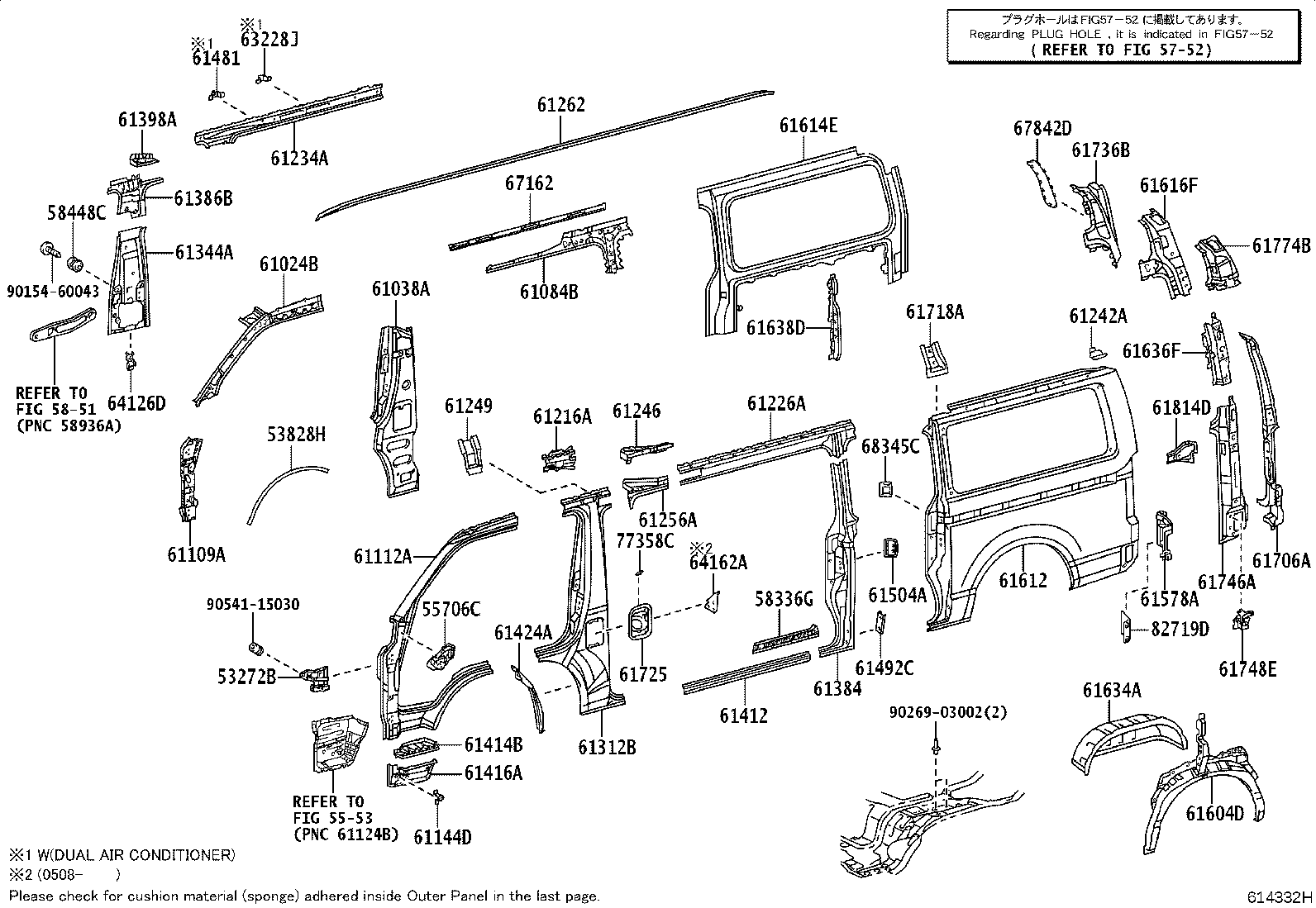

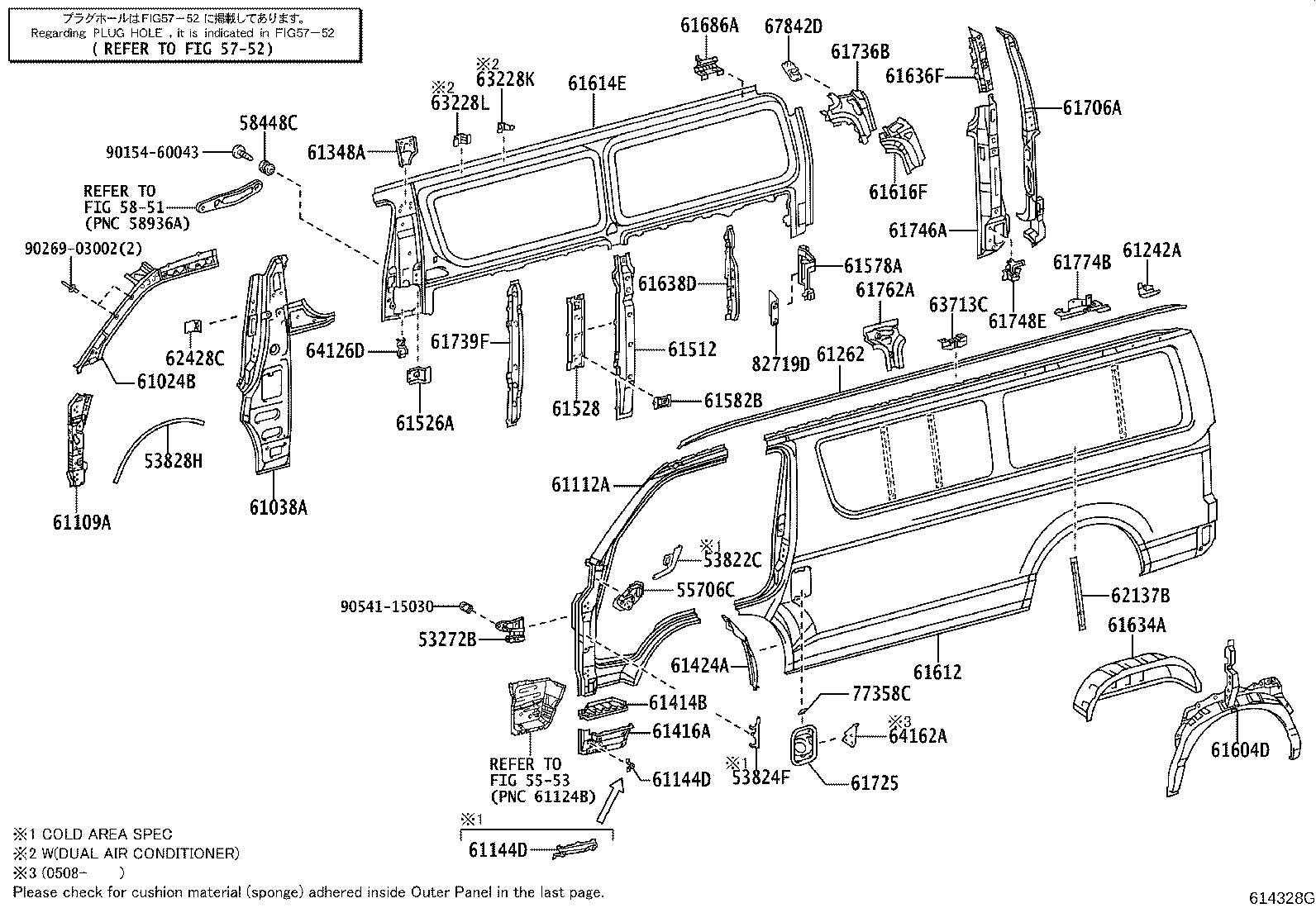

Side Member

176 part groups · 23 illustrations

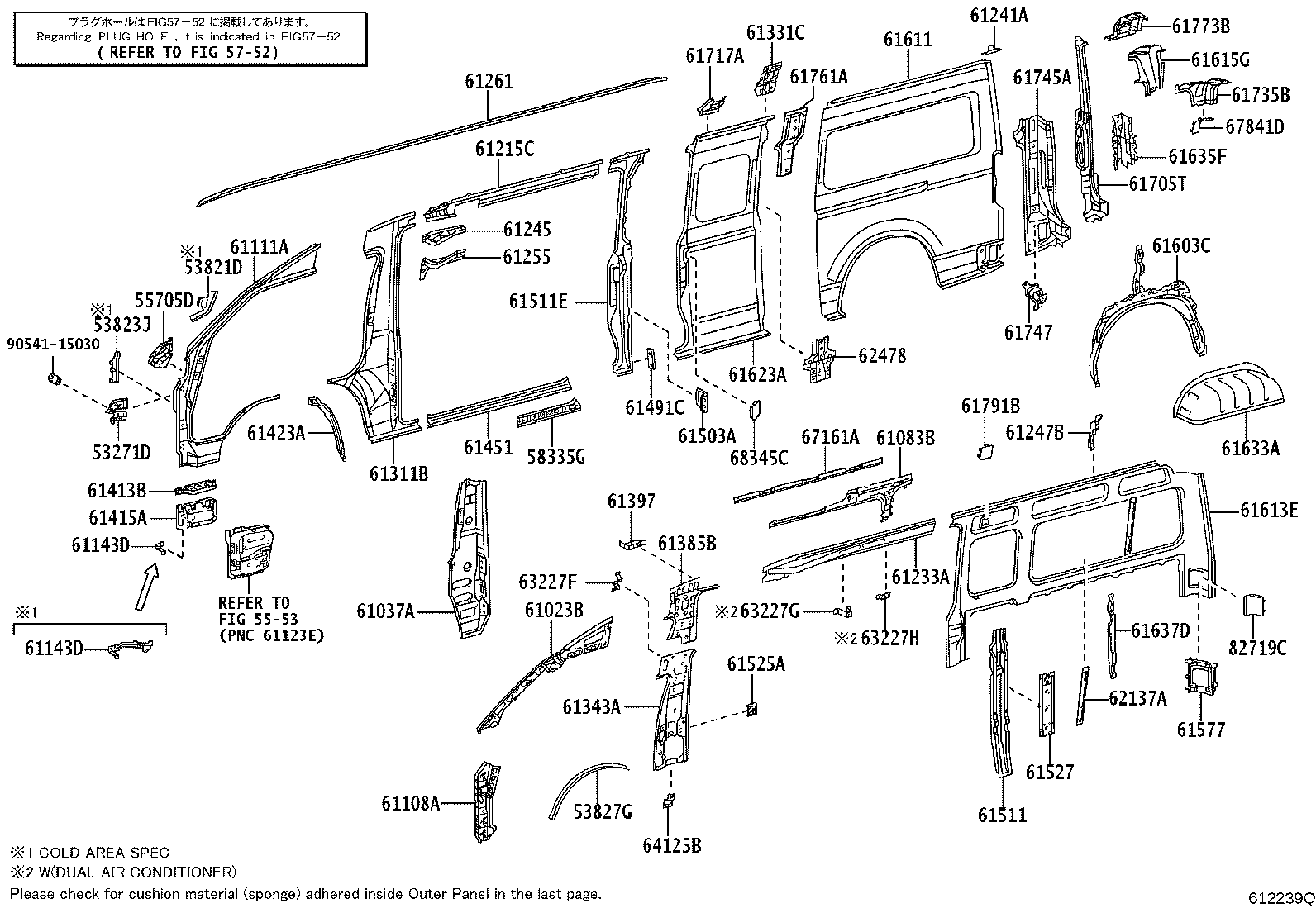

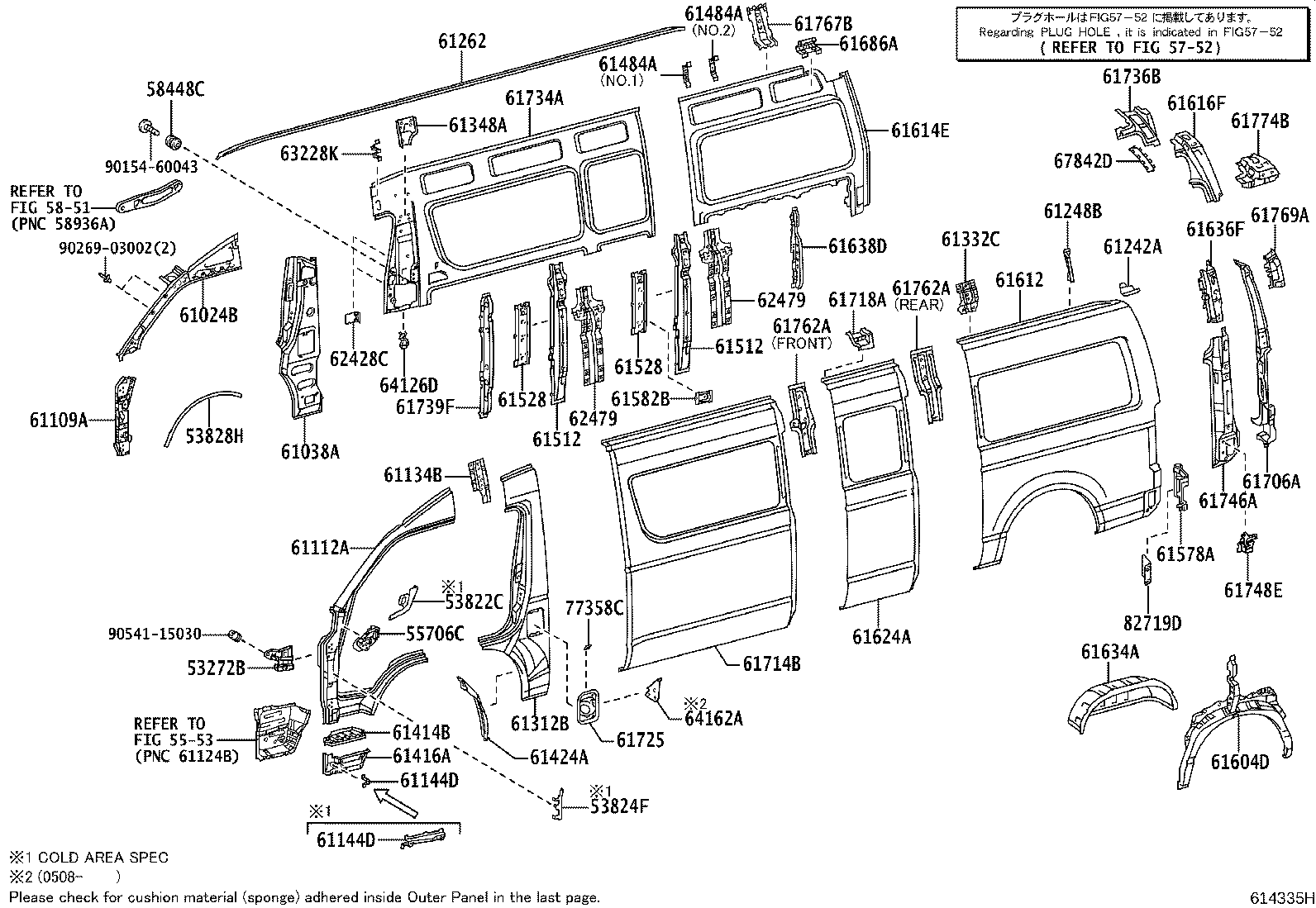

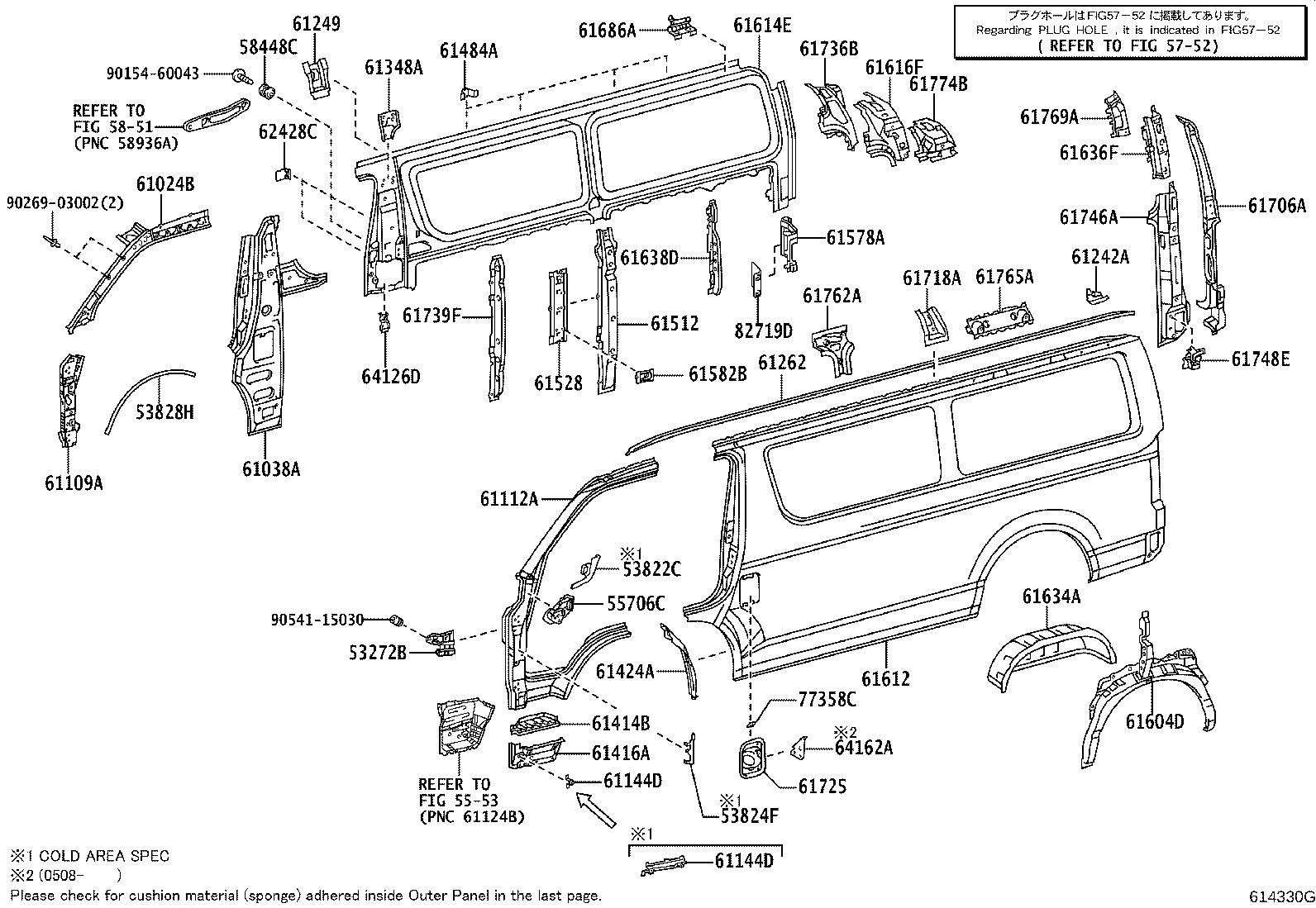

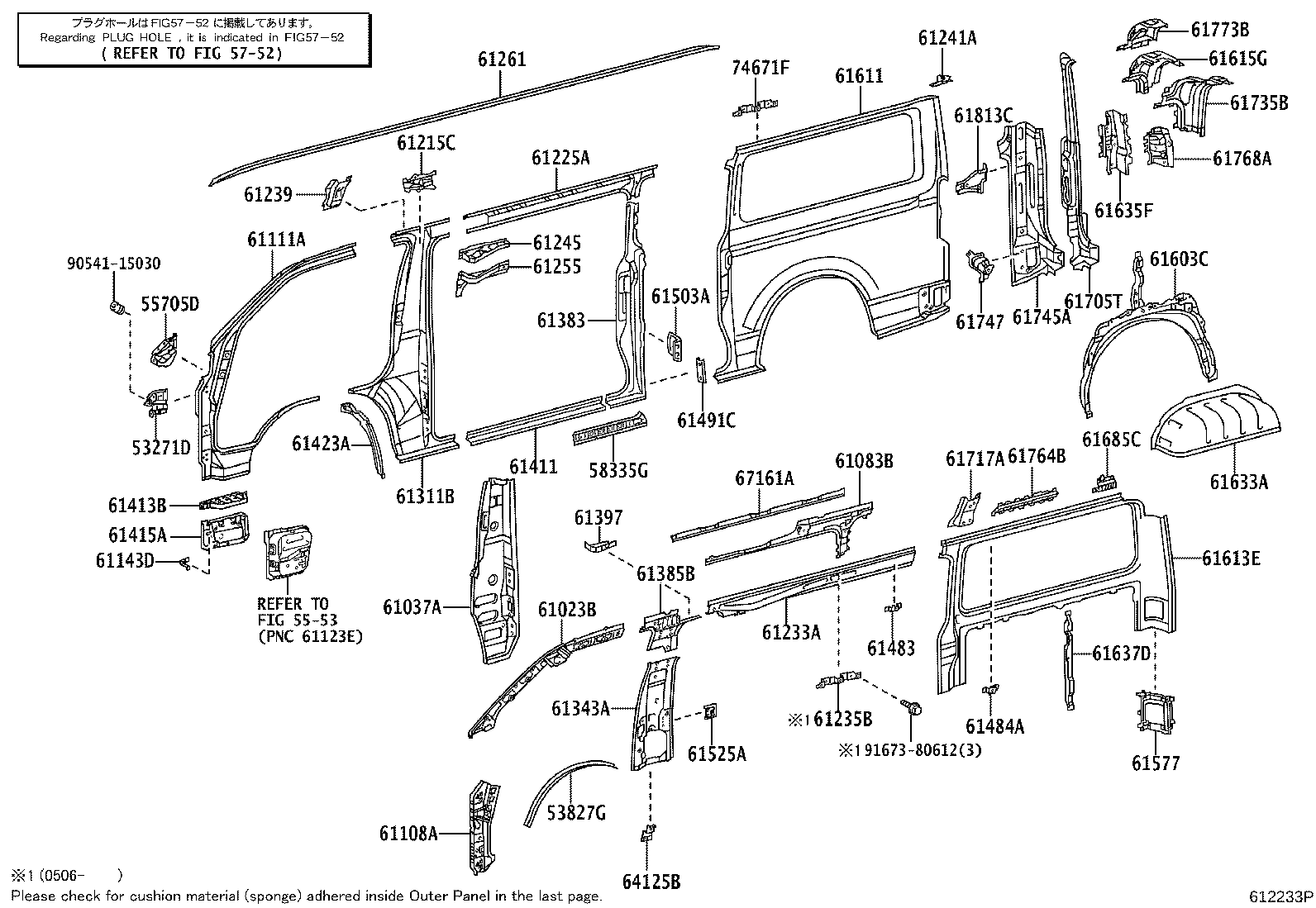

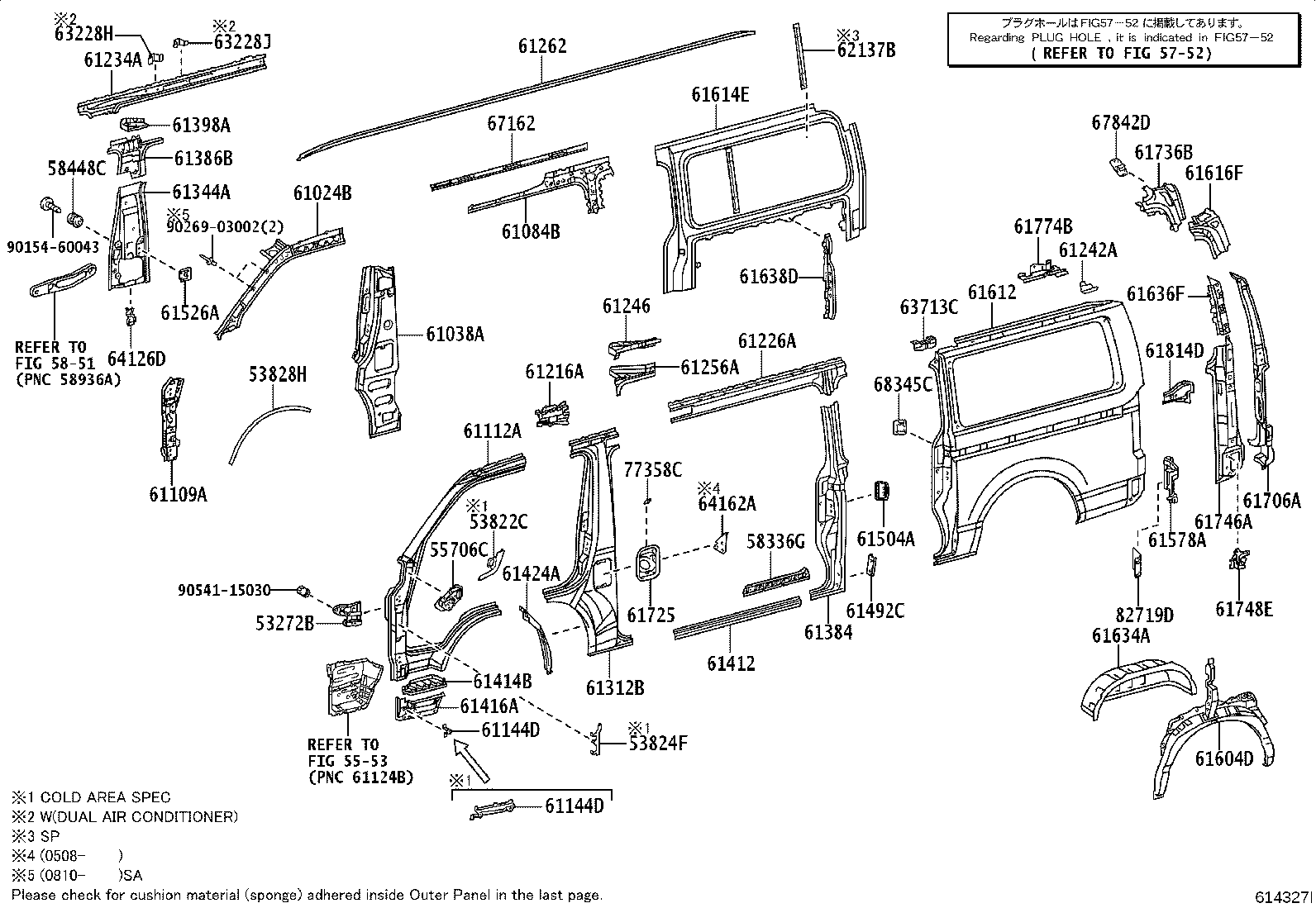

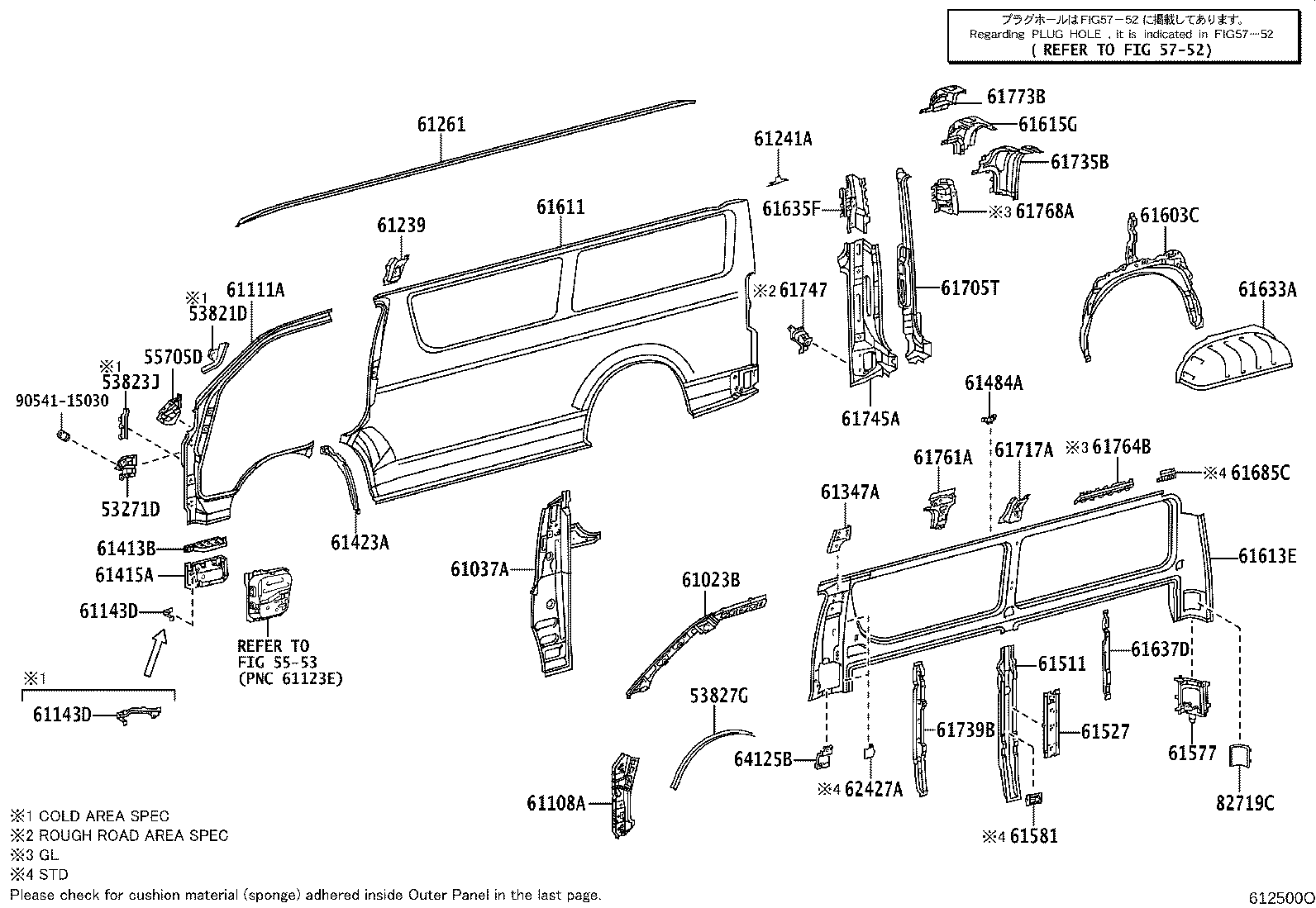

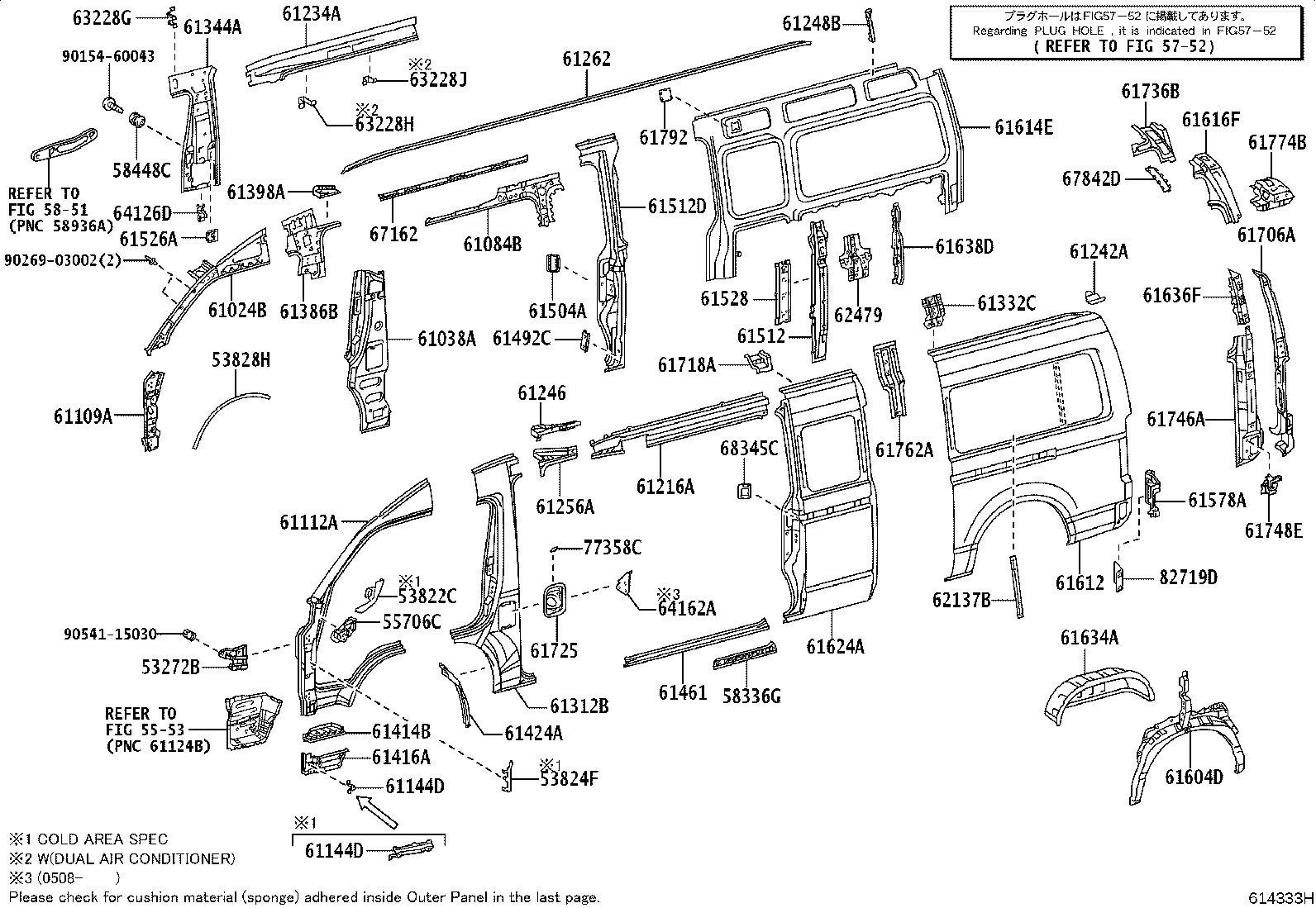

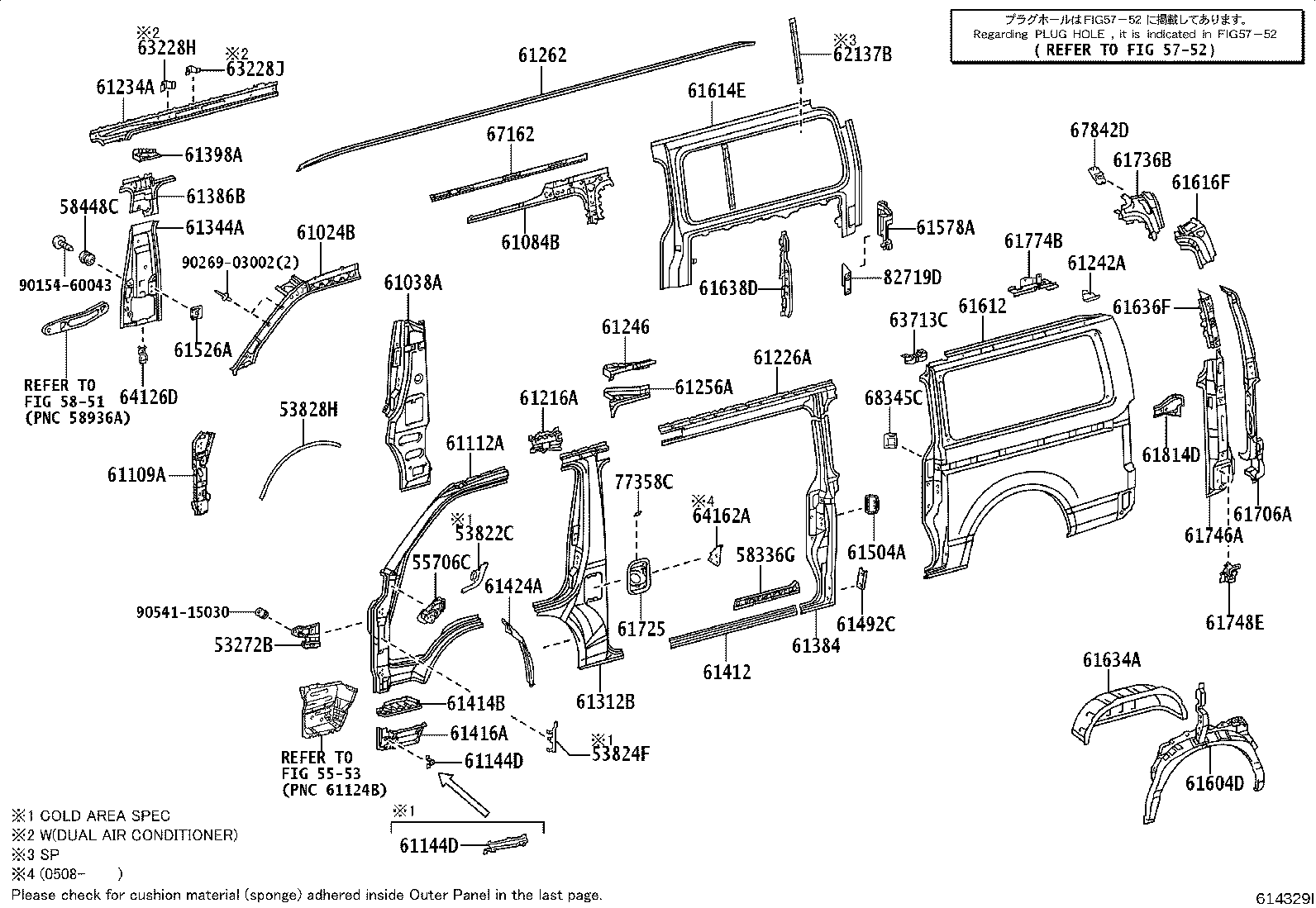

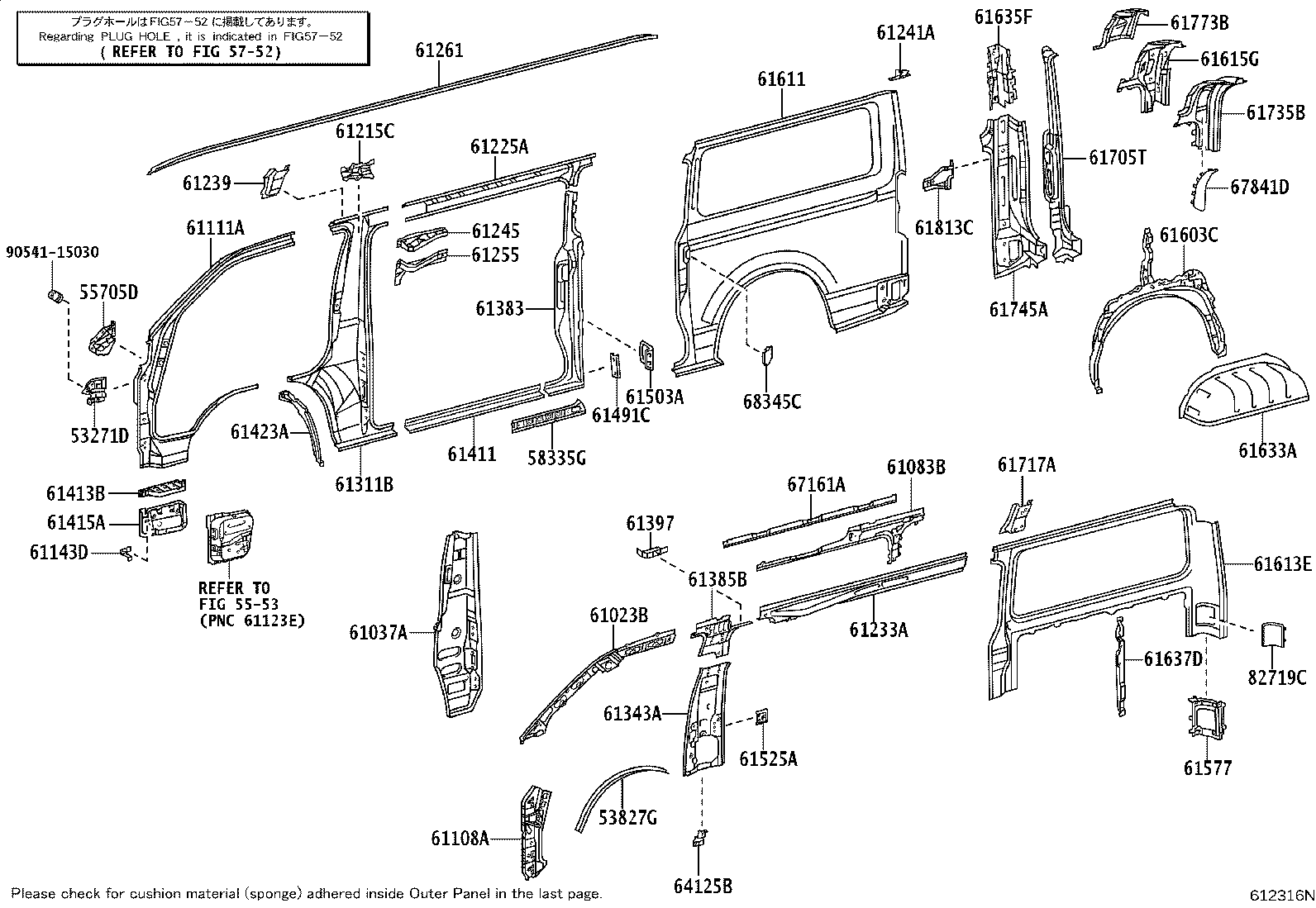

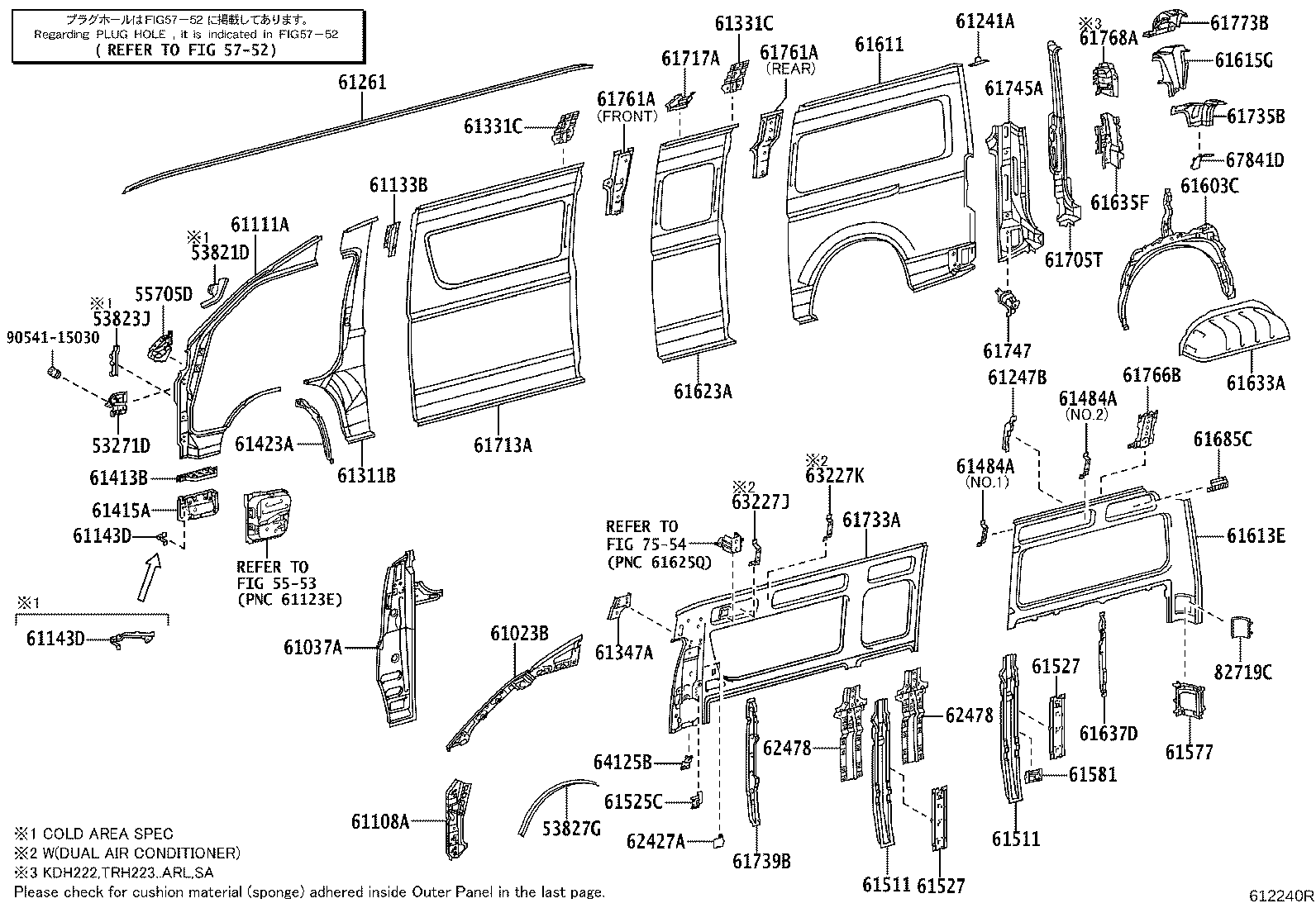

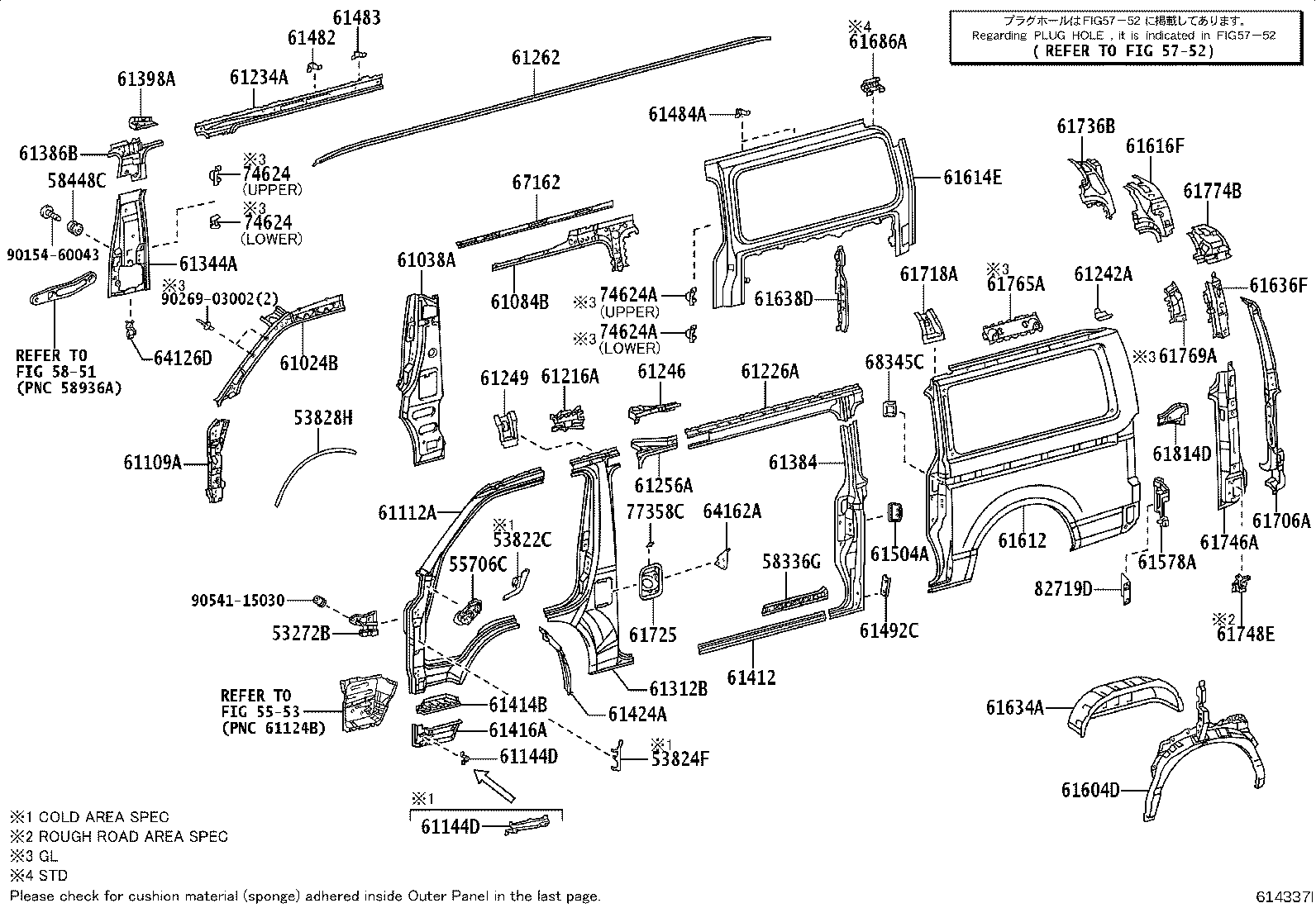

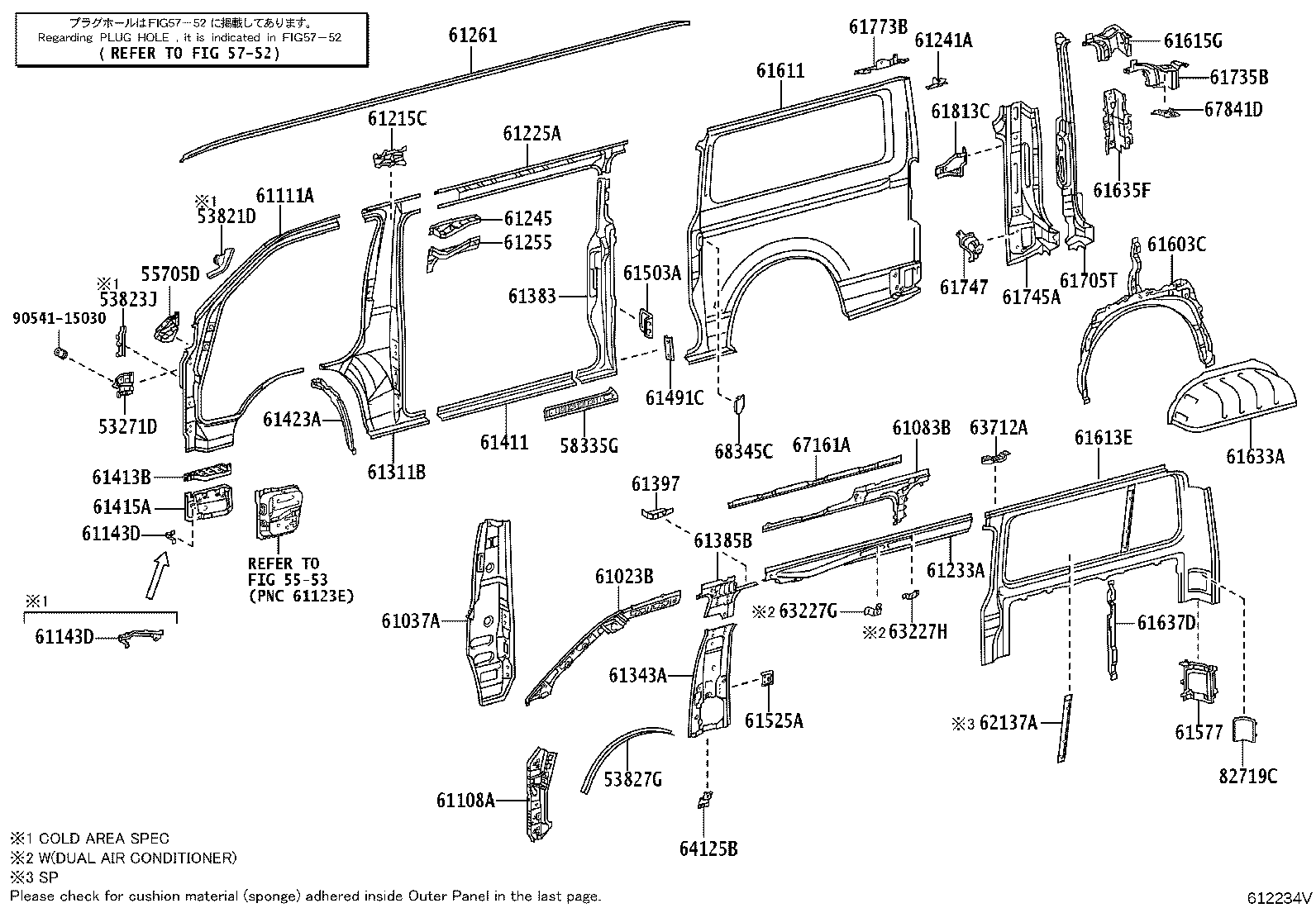

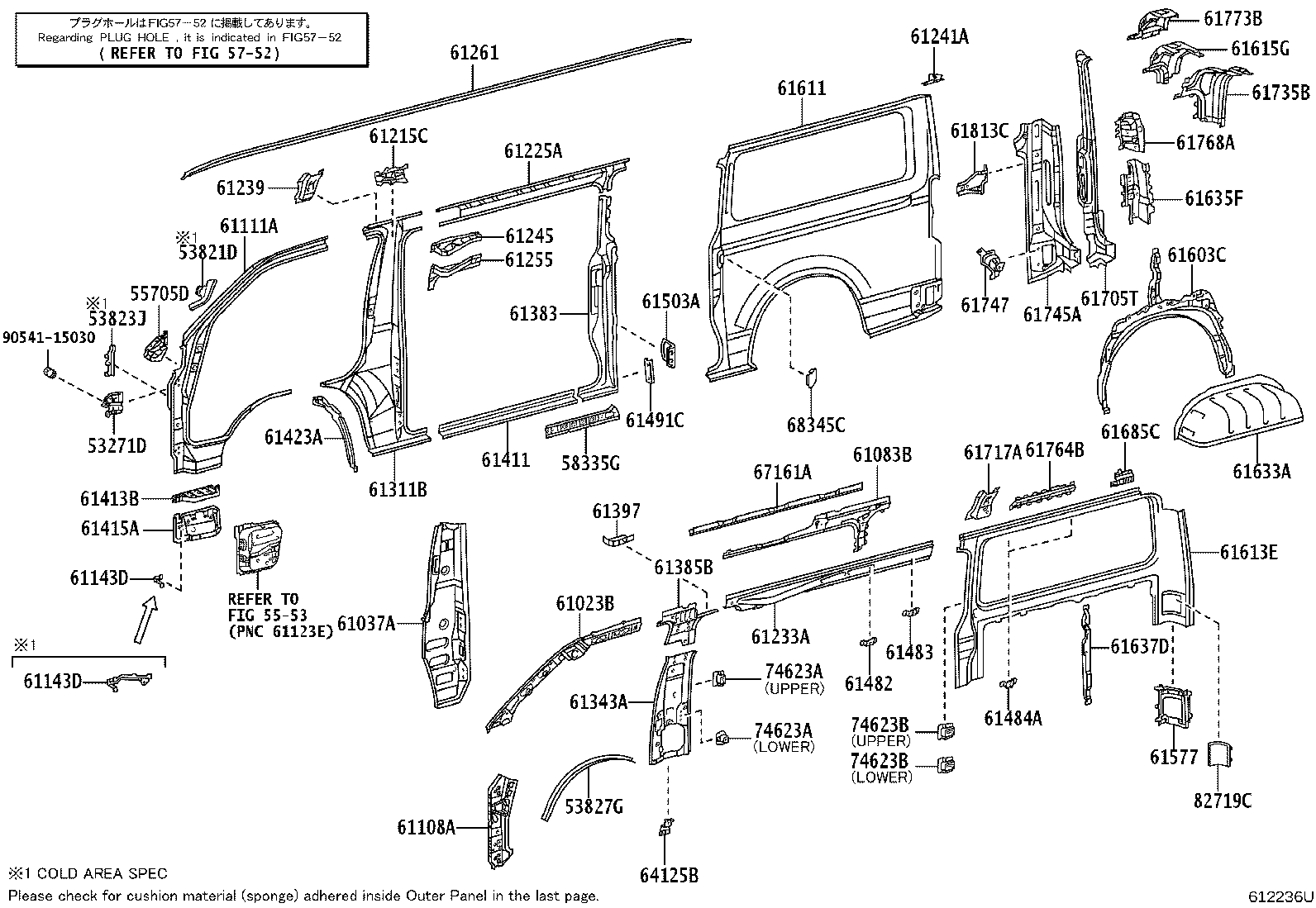

Illustrations

Part groups

PNC	Description
53271D	Bracket, Headlamp Mounting, RH
53272B	Bracket, Headlamp Mounting, LH
53821D	Protector, Front Side Panel, NO.1 RH
53822C	Protector, Front Side Panel, NO.1 LH
53823J	Protector, Front Side Panel, NO.2 RH
53824F	Protector, Front Side Panel, NO.2 LH
53827G	Protector, Front Fender Side Panel, RH
53828H	Protector, Front Fender Side Panel, LH
55705D	Panel Sub-assy, Cowl Top Side, RH,
55706C	Panel Sub-assy, Cowl Top Side, LH
58335G	Plate, Floor Side, FR RH
58336G	Plate, Floor Side, FR LH
58448C	Hook, Engine Service Hole Cover, NO.2 LH
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61083B	Brace Sub-assy, Roof Side Inner, FR RH
61084B	Brace Sub-assy, Roof Side Inner, FR LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61111A	Panel, Front Side, Outer RH
61112A	Panel, Front Side, Outer LH
61133B	Bracket, Front Body Pillar ,Outer RH
61134B	Bracket, Front Body Pillar Outer, LH
61143D	Retainer, Front Bumper Side, RH
61144D	Retainer, Front Bumper Side, LH
61215C	Rail, Roof Side, Outer Rear RH
61216A	Rail, Roof Side, Outer Rear LH
61225A	Rail, Roof Side Outer Upper NO.1, RH
61226A	Rail, Roof Side Outer Upper NO.1, LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61235B	Bracket, Assist Grip
61239	Retainer, Roof Side Rail Outer, RH
61241A	Gusset, Roof Side Rail, Rear RH
61242A	Gusset, Roof Side Rail, Rear LH
61245	Reinforcement, Roof Side Rail, Outer RH
61246	Reinforcement, Roof Side Rail, Outer LH
61247B	Reinforcement, Roof Side Rail, Inner RH
61248B	Reinforcement, Roof Side Rail, Inner LH
61249	Retainer, Roof Side Rail, Outer LH
61255	Plate, Roof Side Rail, Outer RH
61256A	Plate, Roof Side Rail, Outer LH
61261	Channel, Roof Drip, RH
61262	Channel, Roof Drip, LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61331C	Reinforcement, Center Pillar, Upper Outer RH
61332C	Reinforcement, Center Pillar, Upper Outer LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61347A	Reinforcement, Belt Anchor TO Center Pillar, RH
61348A	Reinforcement, Belt Anchor TO Center Pillar, LH
61383	Extension, Center Body Pillar, Outer RH
61384	Extension, Center Body Pillar, Outer LH
61385B	Extension, Center Body Pillar, Inner RH
61386B	Extension, Center Body Pillar, Inner LH
61397	Patch, Center Body Pillar, Inner RH
61398A	Patch, Center Body Pillar, Inner LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61413B	Panel, Front Step, RH
61414B	Panel, Front Step, LH
61415A	Panel, Front Step, Under, RH
61416A	Panel, Front Step Under, LH
61423A	Panel, Fender, Inner Lower RH
61424A	Panel, Fender, Inner Lower LH
61451	Panel, Rocker, Outer RH
61461	Panel, Rocker, Outer LH
61481	Bracket, Roof Side Rail Reinforce, NO.1
61482	Bracket, Roof Side Rail Reinforce, NO.2
61483	Bracket, Roof Side Rail Reinforce, NO.3
61484A	Bracket, Roof Side Rail Reinforce, NO.4
61491C	Plate, NO.3 Lower Rail, Inner RH
61492C	Plate, NO.3 Lower Rail, Inner LH
61503A	Reinforce Sub-assy, Slide Door Lock Striker, RH
61504A	Reinforce Sub-assy, Slide Door Lock Striker, LH
61511	Pillar, Quarter Lock, RH
61511E	Pillar, Quarter Lock, RH
61512	Pillar, Quarter Lock, LH
61512D	Pillar, Quarter Lock, LH
61525A	Retainer, Separator Bar Bracket, RH
61525C	Retainer, Separator Bar Bracket, RH NO.2
61526A	Retainer, Separator Bar Bracket, LH
61527	Reinforcement, Quarter Lock Piller, Lower RH
61528	Reinforcement, Quarter Lock Piller, Lower LH
61577	Plate, Cab Rear Pillar, Lower RH
61578A	Plate, Cab Rear Pillar, Lower LH
61581	Bracket, Rear Seat, NO.1
61582B	Bracket, Rear Seat, NO.2 LH
61603C	Panel Sub-assy, Quarter Wheel House, RH
61604D	Panel Sub-assy, Quarter Wheel House, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613E	Panel, Quarter, Inner RH
61614E	Panel, Quarter, Inner LH
61615G	Reinforcement, Rear Body Rear Side Panel, RH
61616F	Reinforcement, Rear Body Rear Side Panel, LH
61623A	Extension, Quarter Panel, Outer RH
61624A	Extension, Quarter Panel, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61635F	Reinforcement, Quarter Panel, Upr RH
61636F	Reinforcement, Quarter Panel, Upr LH
61637D	Reinforcement, Quarter, Inner RH
61638D	Reinforcement, Quarter, Inner LH
61685C	Bracket, Rear Seatback Stopper, RH
61686A	Bracket, Rear Seatback Stopper, LH
61705T	Frame Sub-assy, Back Door Opening Side, RH
61706A	Frame Sub-assy, Back Door Opening Side, LH
61713A	Extension, Roof Side, Outer RH
61714B	Reinforce, Roof Side, Outer LH
61717A	Reinforcement, Quarter Panel Extension, RH
61718A	Reinforcement, Quarter Panel Extension, LH
61725	Box, Fuel Inlet
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61735B	Extension, Quarter Panel, Inner RH
61736B	Extension, Quarter Panel, Inner LH
61739B	Reinforcement, Extension Quarter Inner Panel
61739F	Reinforcement, Extension Quarter Inner Panel
61745A	Reinforcement, Back Door Opening, Lower RH
61746A	Reinforcement, Back Door Opening, Lower LH
61747	Brace, Roof Side Inner TO Wheel House, RH
61748E	Brace, Roof Side Inner TO Wheel House, LH
61761A	Reinforce, Seat Belt Anchor, NO.1 Upper RH
61762A	Reinforce, Seat Belt Anchor, NO.1 Upper LH
61764B	Reinforcement, Seat Belt Anchor, NO.2 RH
61765A	Reinforcement, Seat Belt Anchor, NO.2 LH
61766B	Reinforcement, Belt Anchor TO Roof Side, Inner RH
61767B	Reinforcement, Belt Anchor TO Roof Side, Inner LH
61768A	Reinforcement, Seat Belt Anchor, NO.2 RH
61769A	Reinforcement, Seat Belt Anchor, NO.2 LH
61773B	Frame, Back Door Opening Side, Upper RH
61774B	Frame, Back Door Opening Side, Upper LH
61791B	Cover, Roof Side Inner Service Hole
61792	Cover, Roof Side Inner Service Hole
61813C	Reinforcement, Quarter Panel Extension, NO.3 RH
61814D	Reinforcement, Quarter Panel Extension, NO.3 LH
62137A	Reinforce, Side Window Panel
62137B	Reinforce, Side Window Panel
62422A	Cover, Center Pillar Garnish, NO.1 LH
62427A	Bracket, Center Pillar Garnish, RH
62428C	Bracket, Center Pillar Garnish, LH
62478	Patch, Center Pillar, RH
62479	Patch, Center Pillar, LH
63227F	Bracket, Roof Headlining, FR RH
63227G	Bracket, Roof Headlining, FR RH NO.2
63227H	Bracket, Roof Headlining, FR RH NO.3
63227J	Bracket, Roof Headlining, FR RH NO.4
63227K	Bracket, Roof Headlining, FR RH NO.5
63228G	Bracket, Roof Headlining, Front LH
63228H	Bracket, Roof Headlining, Front LH NO.2
63228J	Bracket, Roof Headlining, Front LH NO.3
63228K	Bracket, Roof Headlining, Front LH NO.4
63228L	Bracket, Roof Headlining, Front LH NO.5
63712A	Bracket, Roof Panel Reinforcement, RH
63713C	Bracket, Roof Panel Reinforcement, LH
64125B	Anchor, Pillar Seat Belt
64126D	Anchor, Pillar Seat Belt, LH
64162A	Bracket, Fuel Inlet
67161A	Extension, Slide Door Inside Panel, Upper RH
67162	Extension, Slide Door Inside Panel, Upper LH
67841D	Cover, Quarter Service Hole, RH
67842D	Cover, Quarter Service Hole, LH
68345C	Cover, Slide Door Center Rail
74623A	Reinforcement, RR Assist Grip
74623B	Reinforcement, Rear Assist Grip, RH
74624	Reinforcement, RR Assist Grip, LH
74624A	Reinforcement, Rear Assist Grip, LH
74671F	Support,Assist Grip, NO.1
74672	Support,Assist Grip, NO.2
77358C	Stopper, Fuel Filler Opening Lid, NO.1
82719C	Cover, Wire Hanress Service Hole
82719D	Cover, Wire Hanress Service Hole

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
