Toyota Hiace
2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States
Supported model
Data version 2014-08

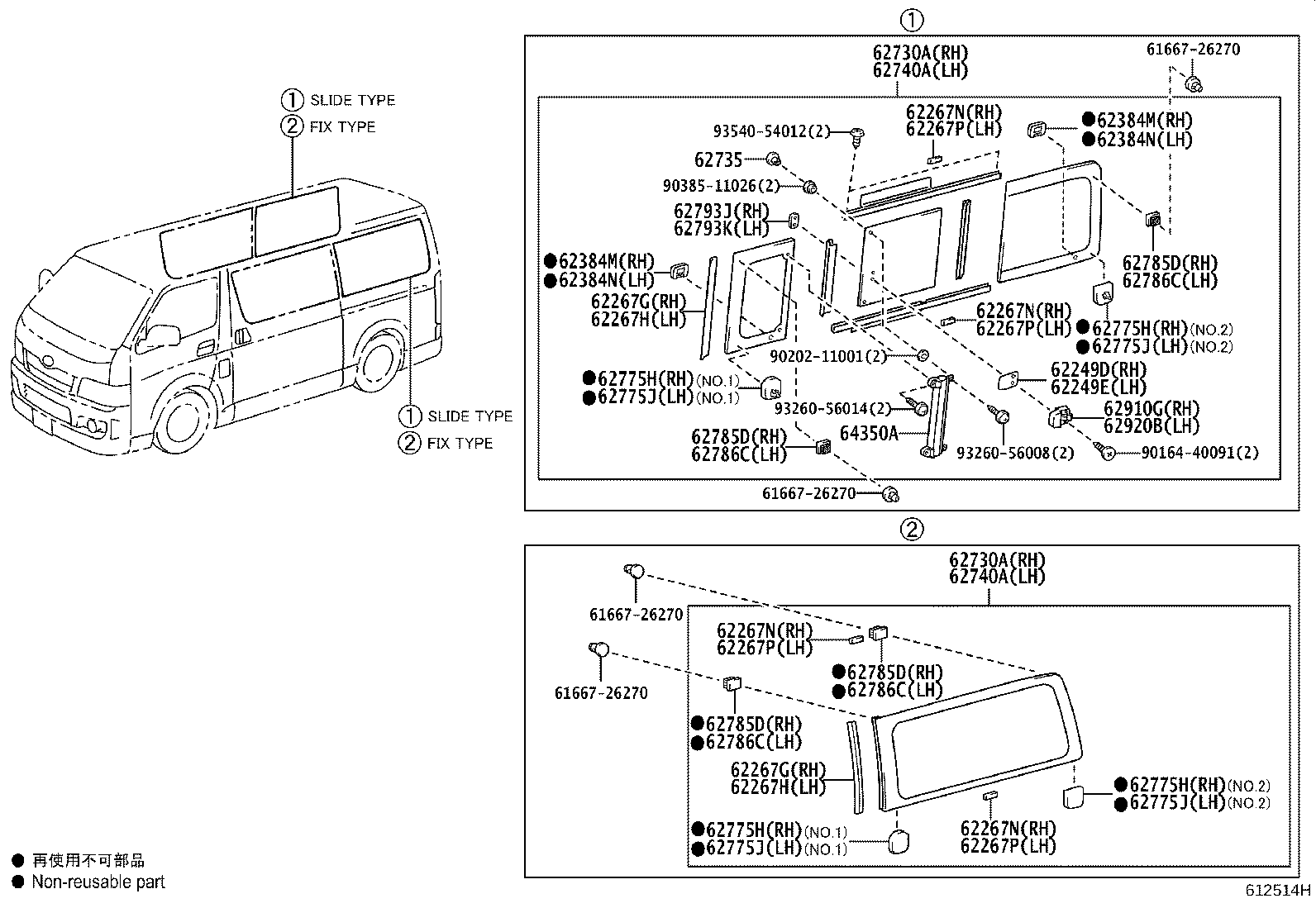

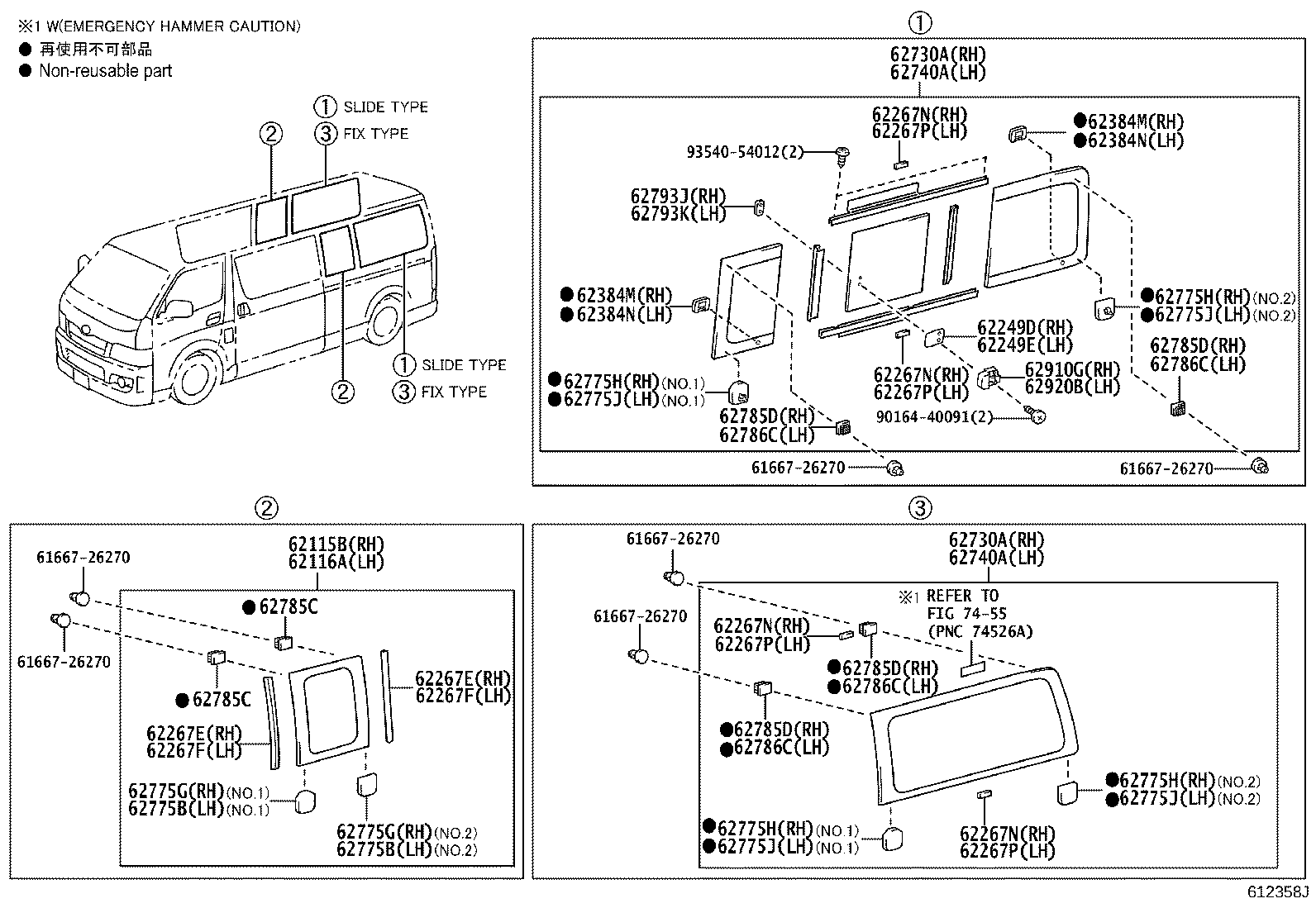

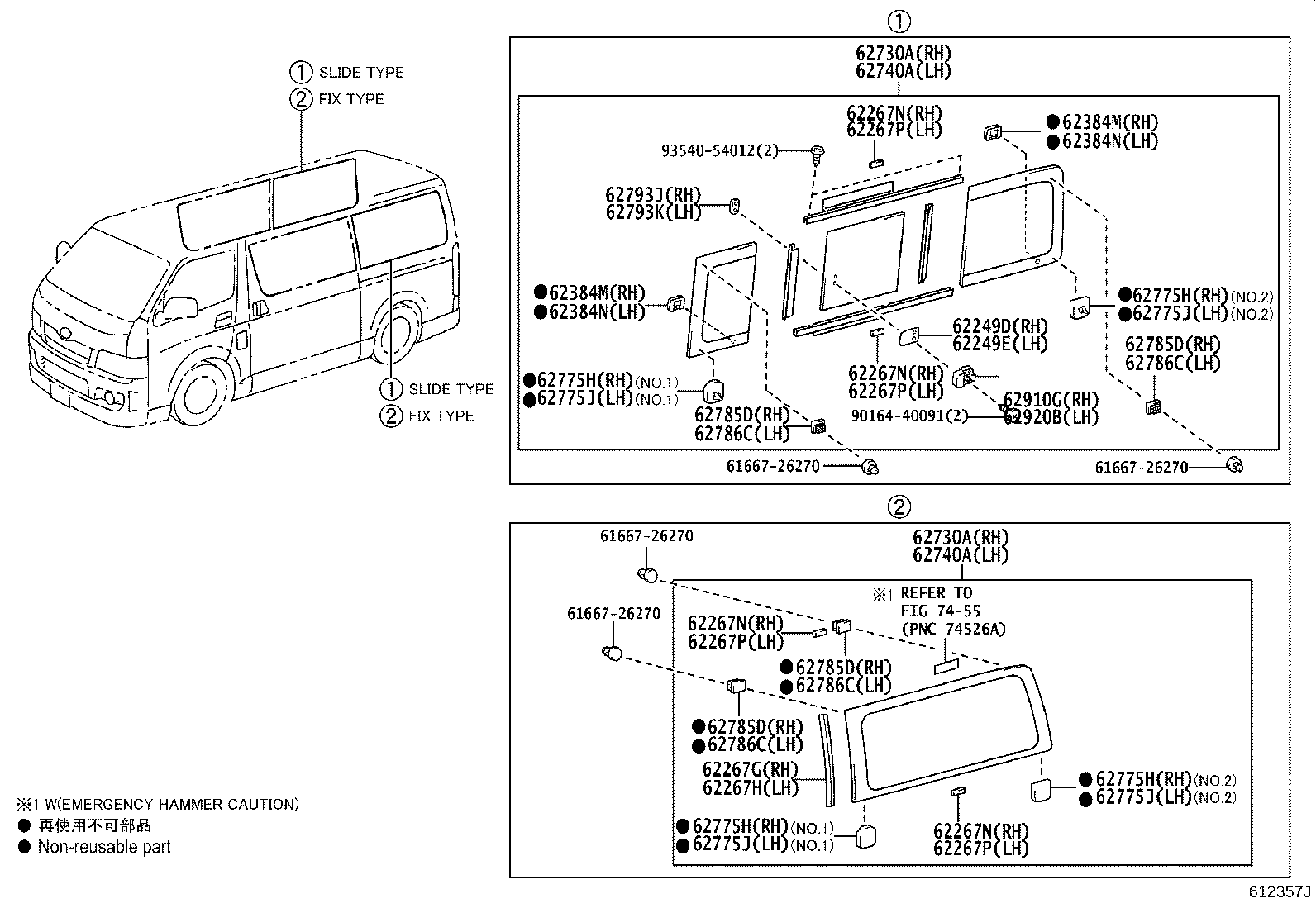

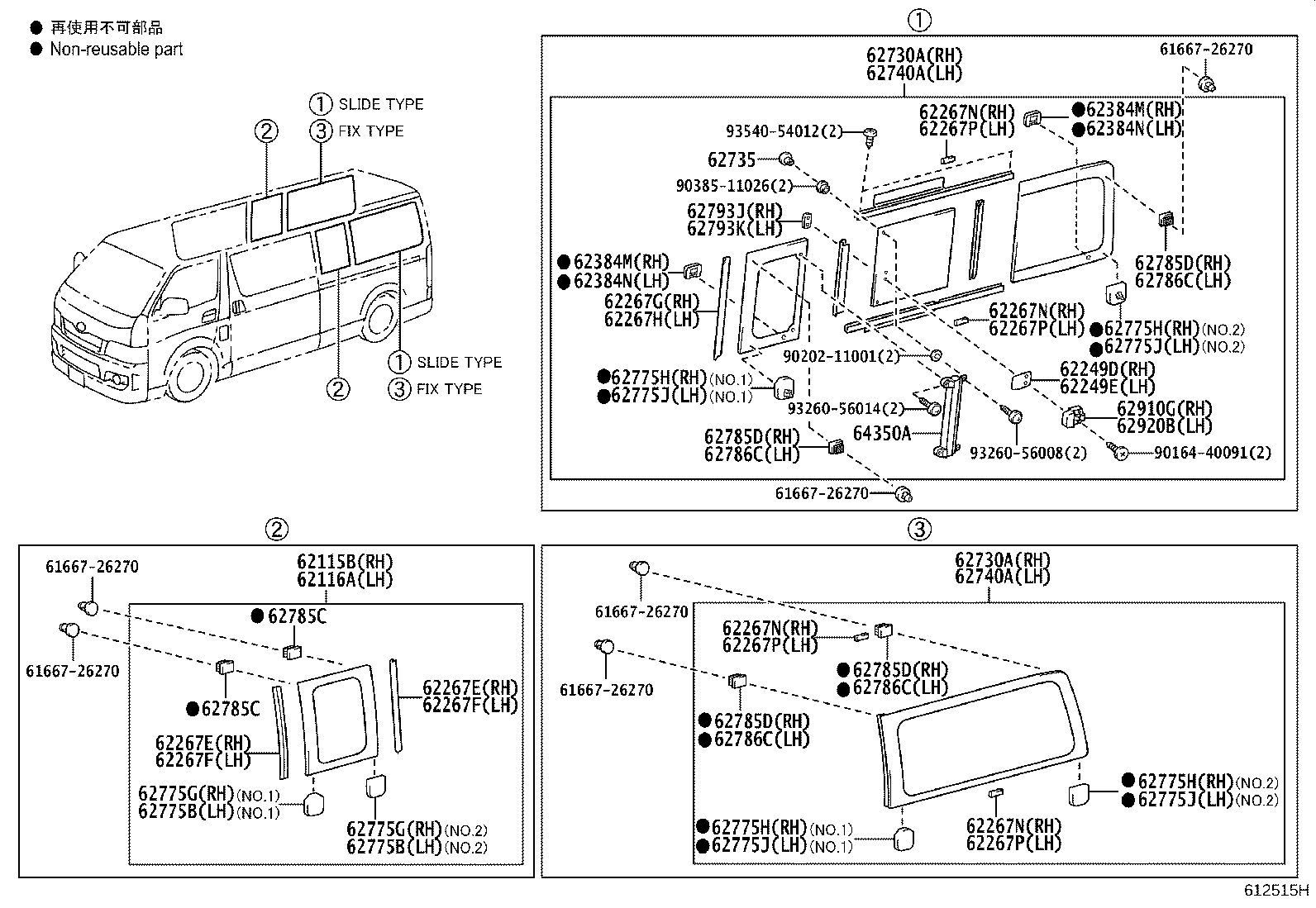

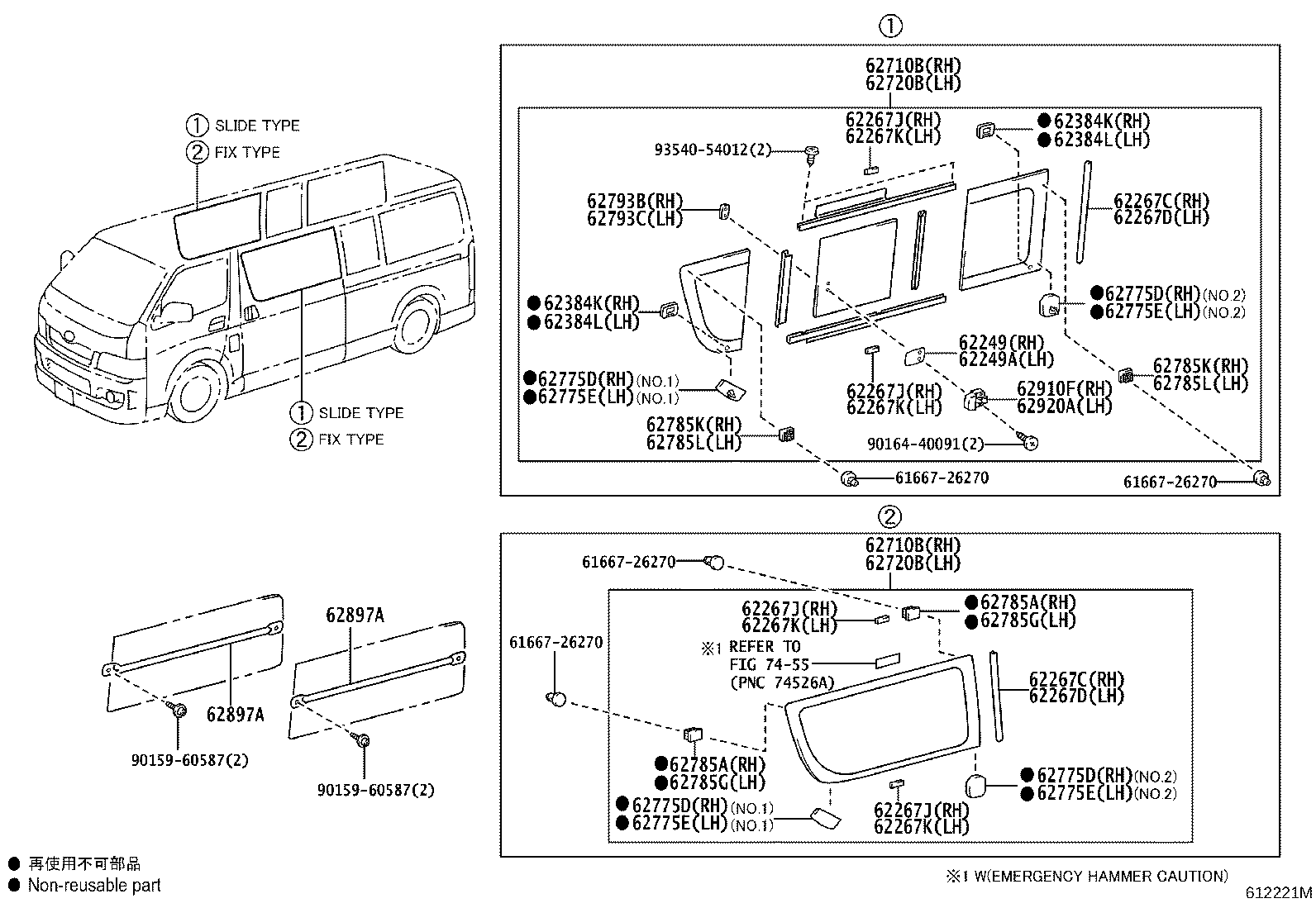

Side Window
48 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 62115B | Glass, Rear Side Window, Front RH |
| 62116A | Glass, Reart Side Window, Front LH |
| 62249 | Plate, Side Window, RH |
| 62249A | Plate, Side Window, LH |
| 62249D | Plate, Side Window |
| 62249E | Plate, Side Window |
| 62267C | Dam, Front Side Window Adhesive, NO.1 RH |
| 62267D | Dam, Front Side Window Adhesive, NO.1 LH |
| 62267E | Dam, Quarter Window Adhesive, NO.1 RH |
| 62267F | Dam, Quarter Window Adhesive, NO.1 LH |
| 62267G | Dam, Rear Side Window Adhesive, NO.1 RH |
| 62267H | Dam, Rear Side Window Adhesive, NO.1 LH |
| 62267J | Dam, Front Side Window Adhesive, NO.2 RH |
| 62267K | Dam, Front Side Window Adhesive, NO.2 LH |
| 62267N | Dam, Rear Side Window Adhesive, NO.2 RH |
| 62267P | Dam, Rear Side Window Adhesive, NO.2 LH |
| 62384K | Cap, Front Side Window Clip, RH |
| 62384L | Cap, Front Side Window Clip, LH |
| 62384M | Cap, Rear Side Window Clip, RH |
| 62384N | Cap, Rear Side Window Clip, LH |
| 62710B | Window Assy, Side, Front RH |
| 62720B | Window Assy, Side, Front LH |
| 62730A | Window Assy, Side, Rear RH |
| 62735 | Retainer, Quarter Window Hinge |
| 62740A | Window Assy, Side, Rear LH |
| 62775B | Clip, Quarter Window, LH |
| 62775D | Clip, Front Side Window, RH |
| 62775E | Clip, Front Side Window, LH |
| 62775G | Clip, Quarter Window, RH |
| 62775H | Clip, Rear Side Window, RH |
| 62775J | Clip, Rear Side Window, LH |
| 62785A | Spacer, Quarter Window Glass |
| 62785C | Spacer, Quarter Window Glass |
| 62785D | Spacer, Quarter Window Glass |
| 62785G | Spacer, Quarter Window Glass |
| 62785K | Spacer, Front Side Window Glass, RH |
| 62785L | Spacer, Front Side Window Glass, LH |
| 62786C | Spacer, Quarter Window Glass, LH |
| 62793B | Retainer, Side Window Lock, RH |
| 62793C | Retainer, Side Window Lock, LH |
| 62793J | Retainer, Side Window Lock |
| 62793K | Retainer, Side Window Lock |
| 62897A | Bar, Side Window Guard |
| 62910F | Lock Assy, Side Front Window, RH |
| 62910G | Lock Assy, Side Rear Window, RH |
| 62920A | Lock Assy, Side Front Window, LH |
| 62920B | Lock Assy, Side Rear Window, LH |
| 64350A | Shade Assy, Rear Window |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
