Roof Panel & Back Panel

18 part groups · 5 illustrations

Illustrations

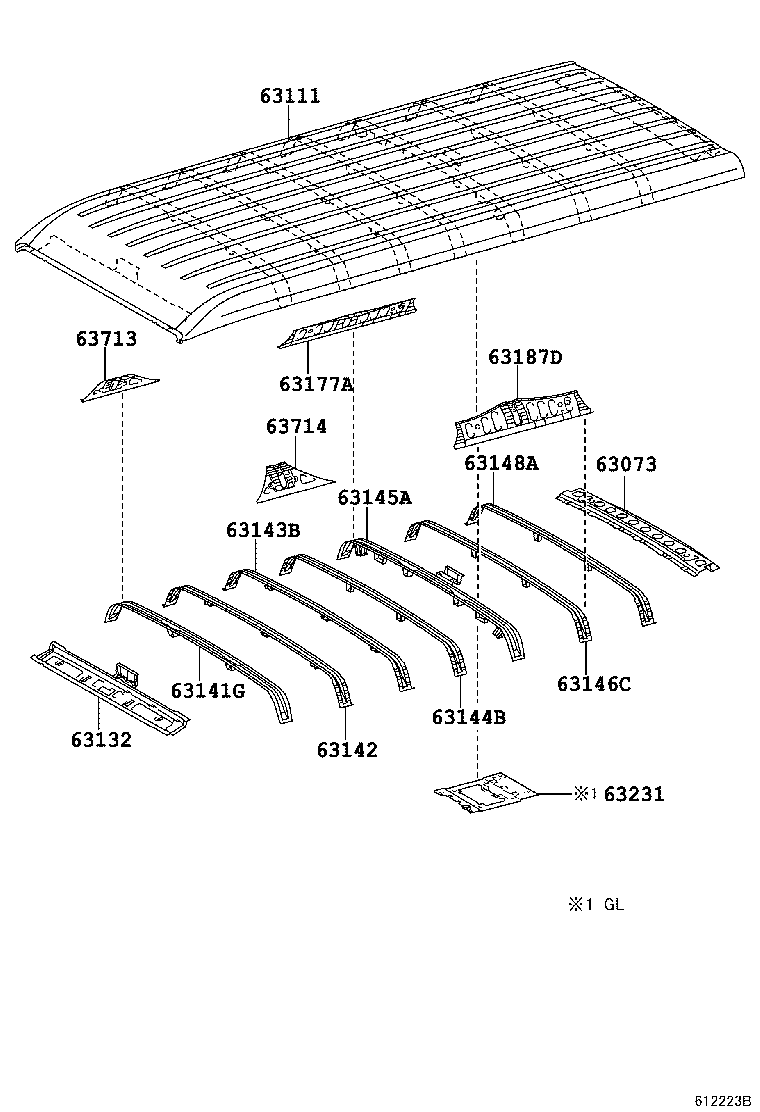

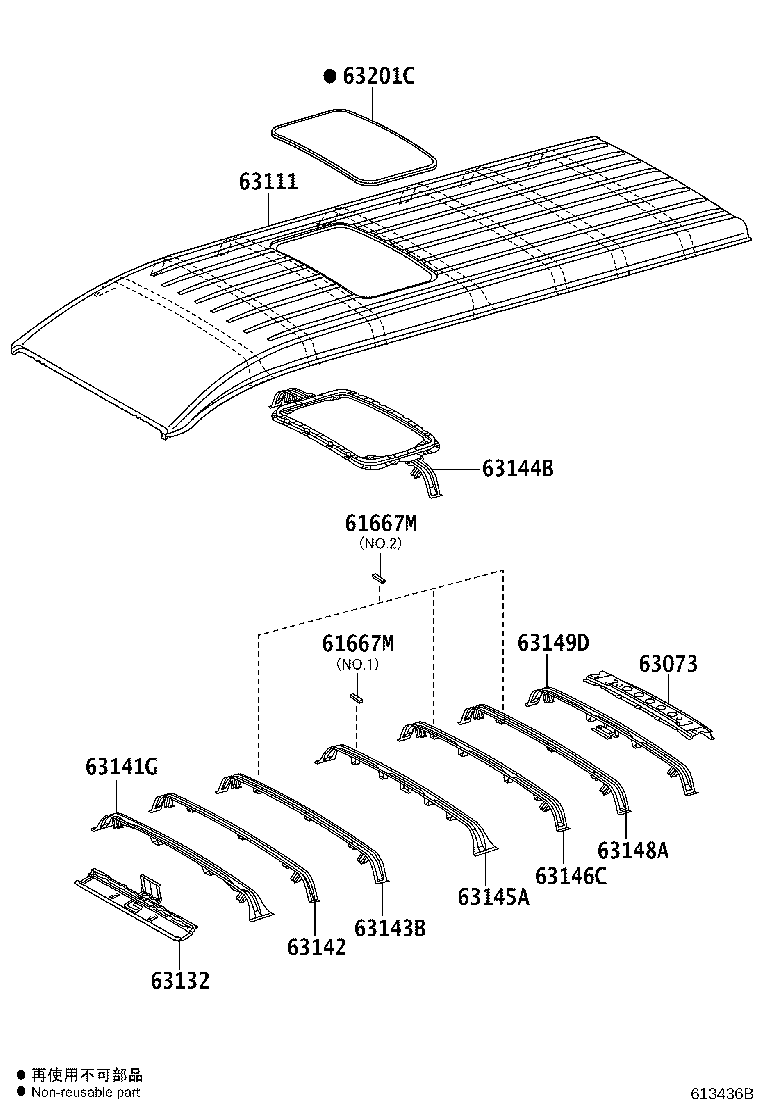

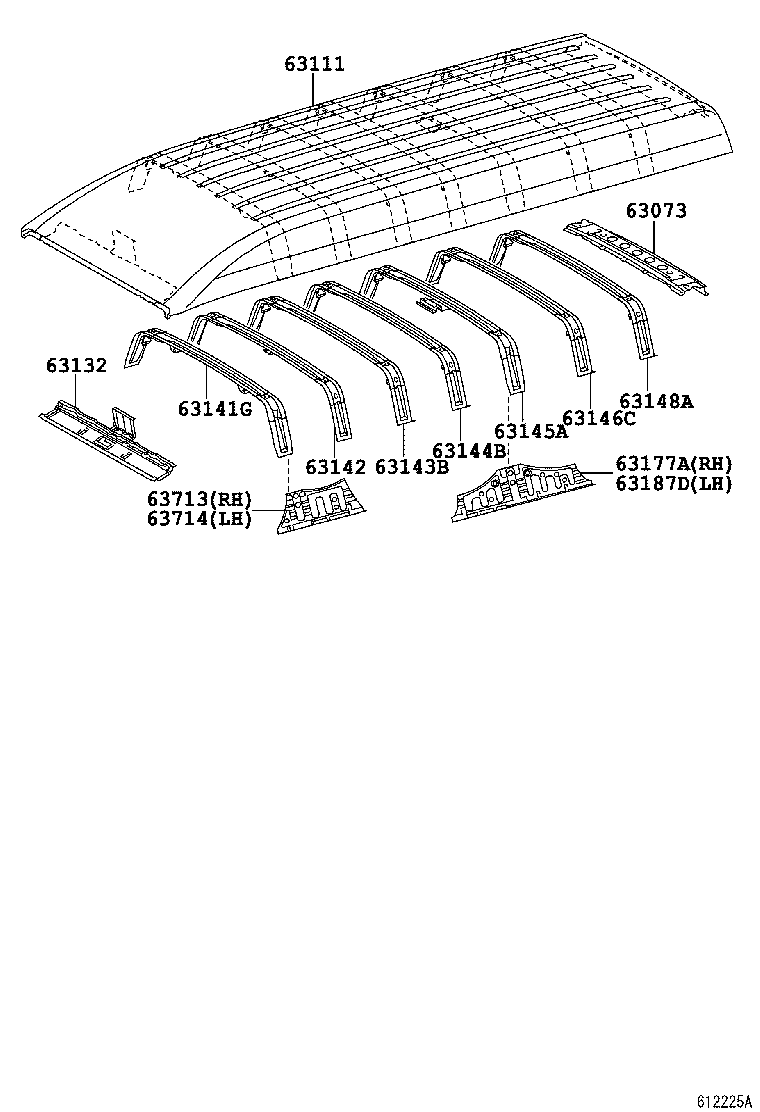

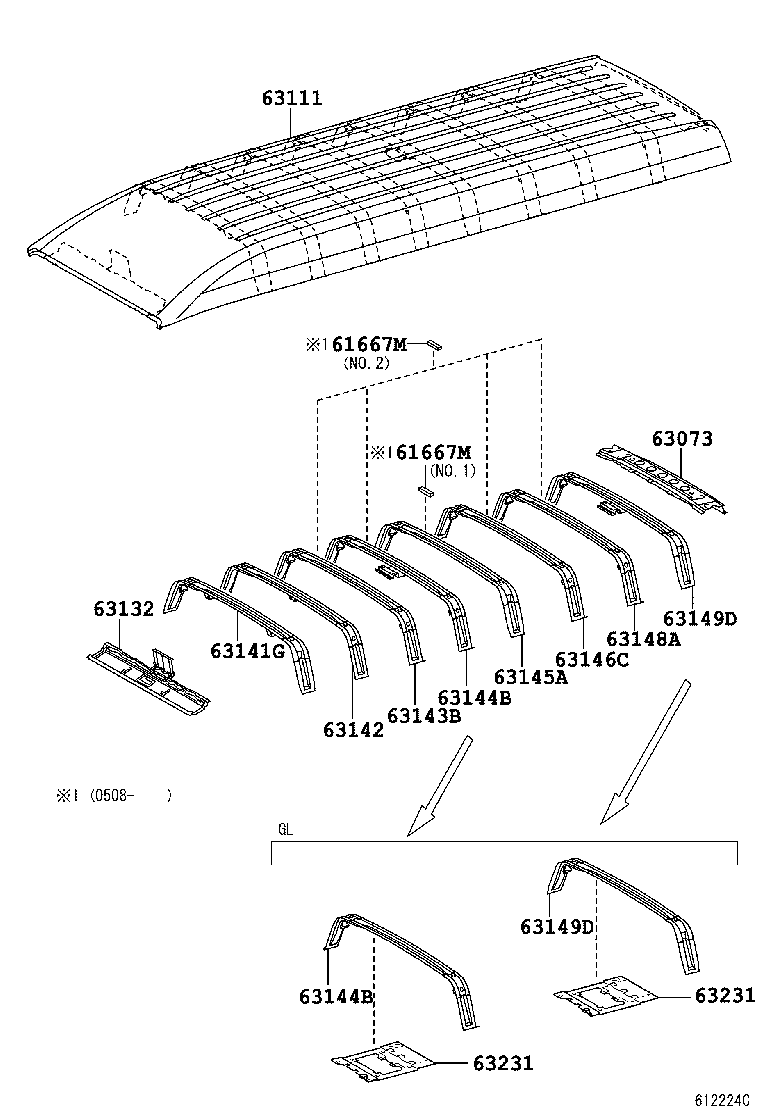

Figure 612222C 612222C 2005-01 → — Figure 612223B 612223B 2005-01 → — Figure 612224C 612224C 2005-01 → — Figure 612225A 612225A 2006-02 → — Figure 613436B 613436B 2009-04 → —

Part groups

PNCDescription
61667M Seal, Roof Panel
63073 Frame Sub-assy, Back Door Opening, Upper Outer
63111 Panel, Roof
63132 Panel, Windshield Header, Inner
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144B Reinforcement, Roof Panel, NO.4
63145A Reinforcement, Roof Panel, NO.5
63146C Reinforcement Sub-assy, Roof Panel, NO.6
63148A Reinforcement, Roof Panel, NO.7
63149D Reinforcement, Roof Panel, NO.8
63177A Reinforcement, Roof Panel, RH NO.7
63187D Reinforcement, Roof Panel, LH NO.7
63201C Glass Sub-assy, Tilt Roof
63231 Bracket, Room Lamp
63713 Bracket, Roof Panel Reinforcement, NO.3
63714 Bracket, Roof Panel Reinforcement, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
