Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

32 part groups · 20 illustrations

Illustrations

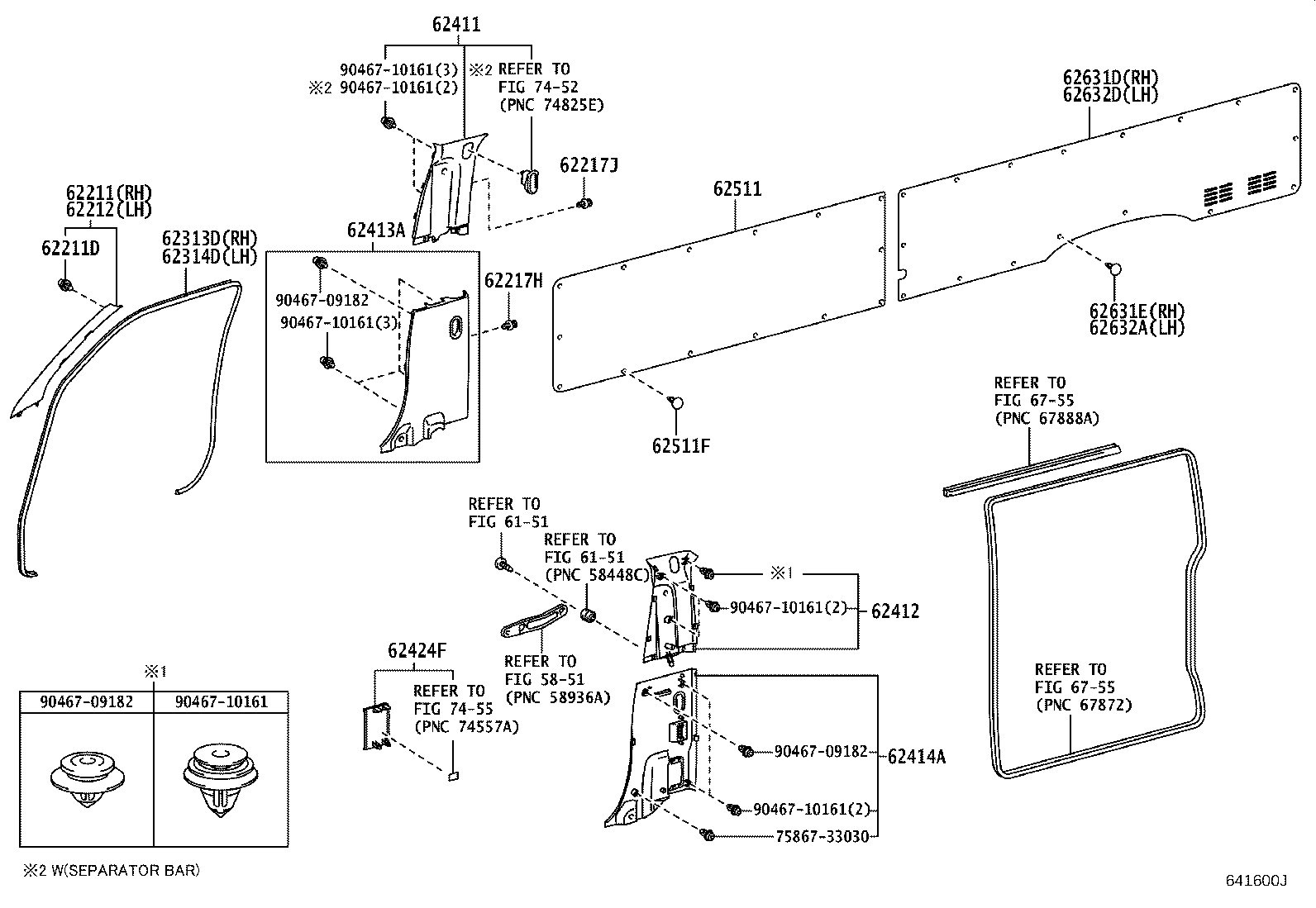

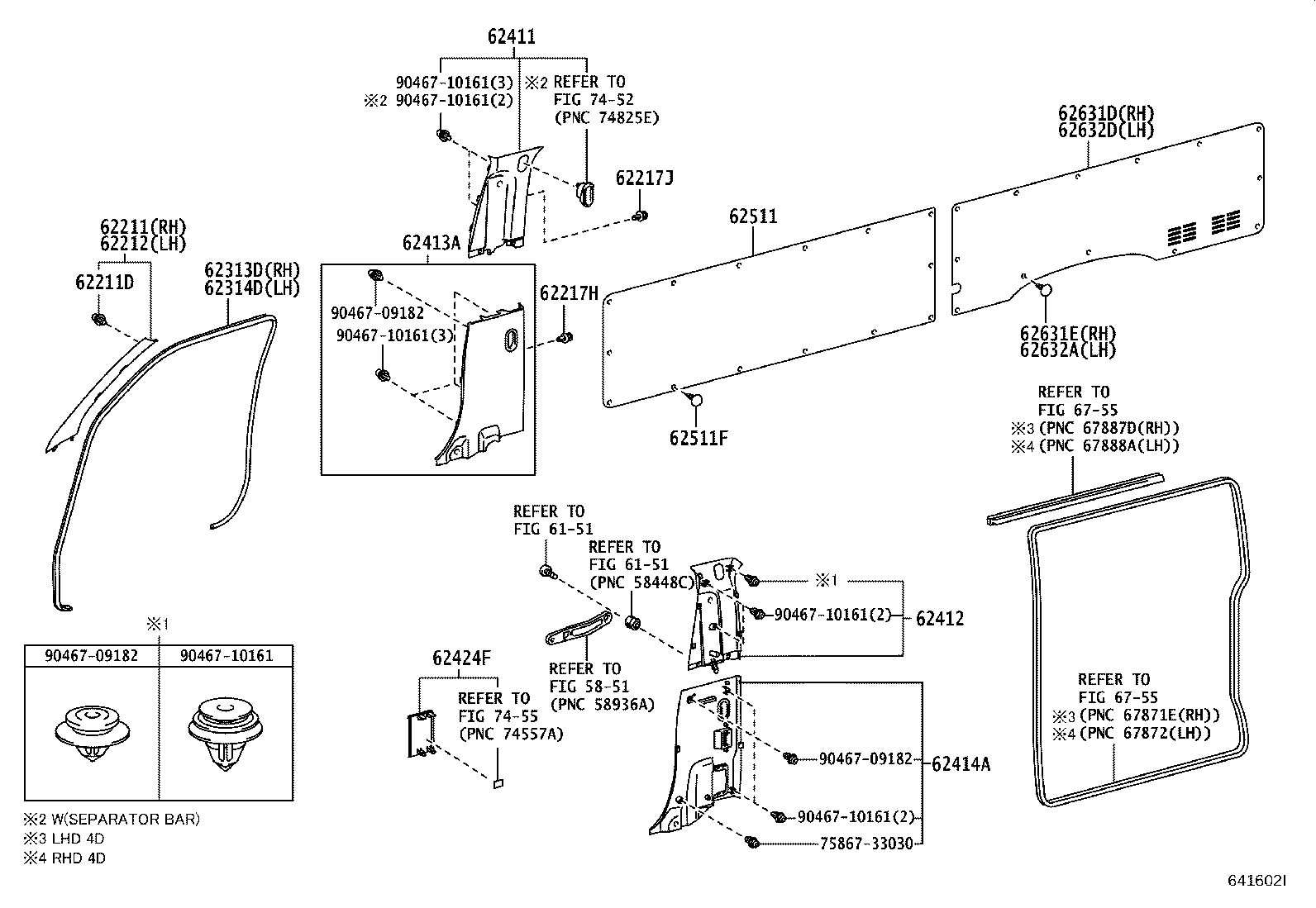

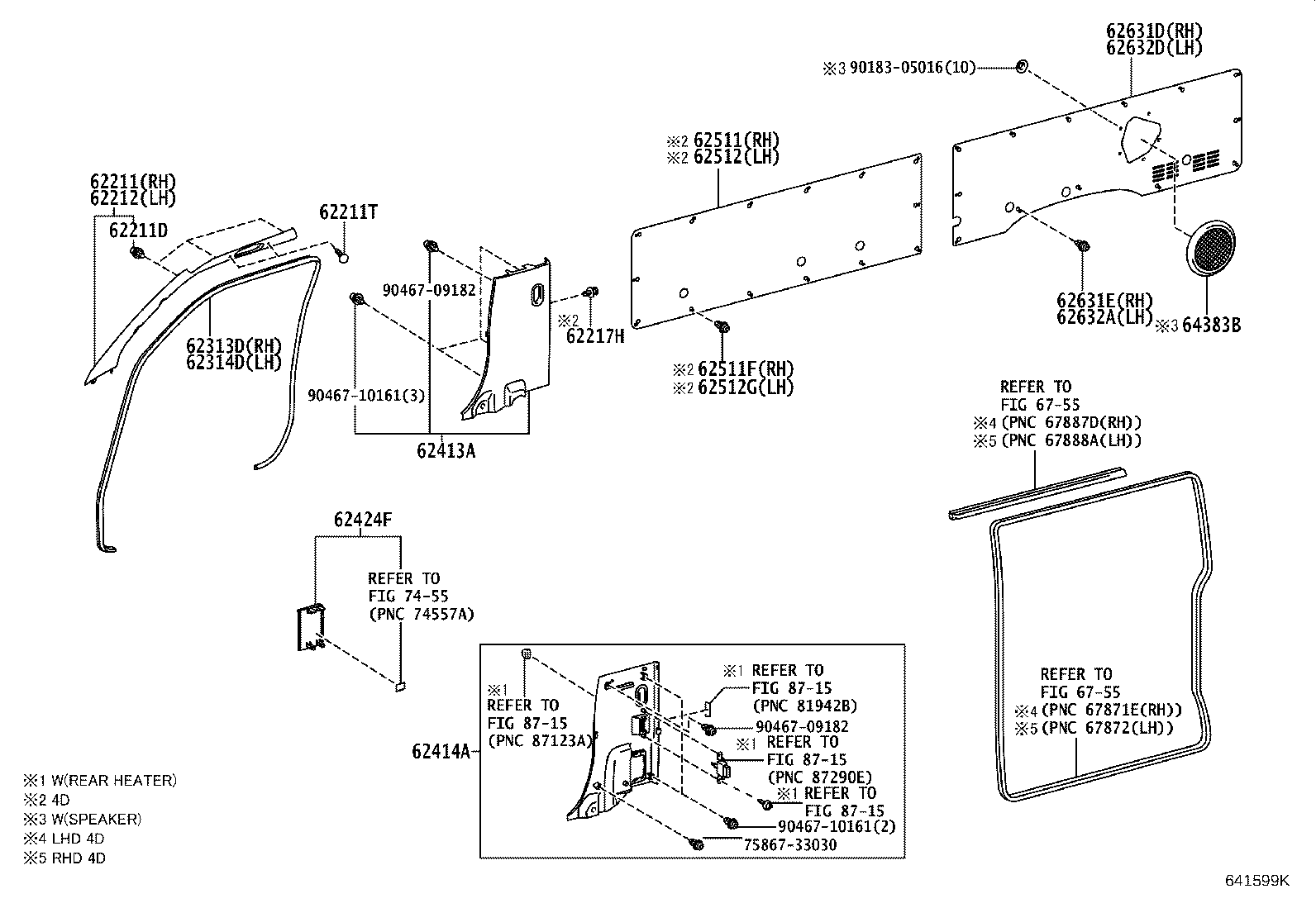

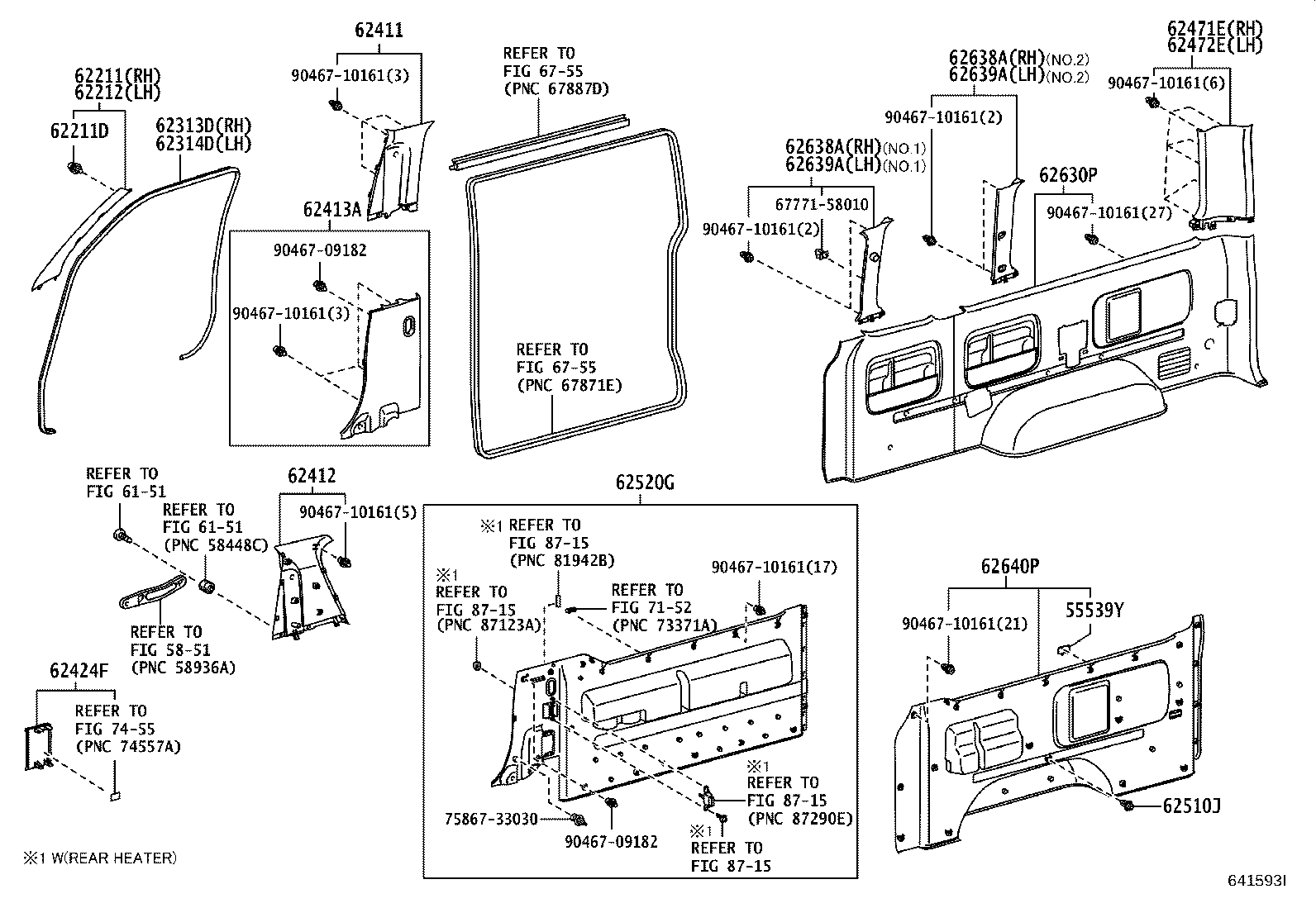

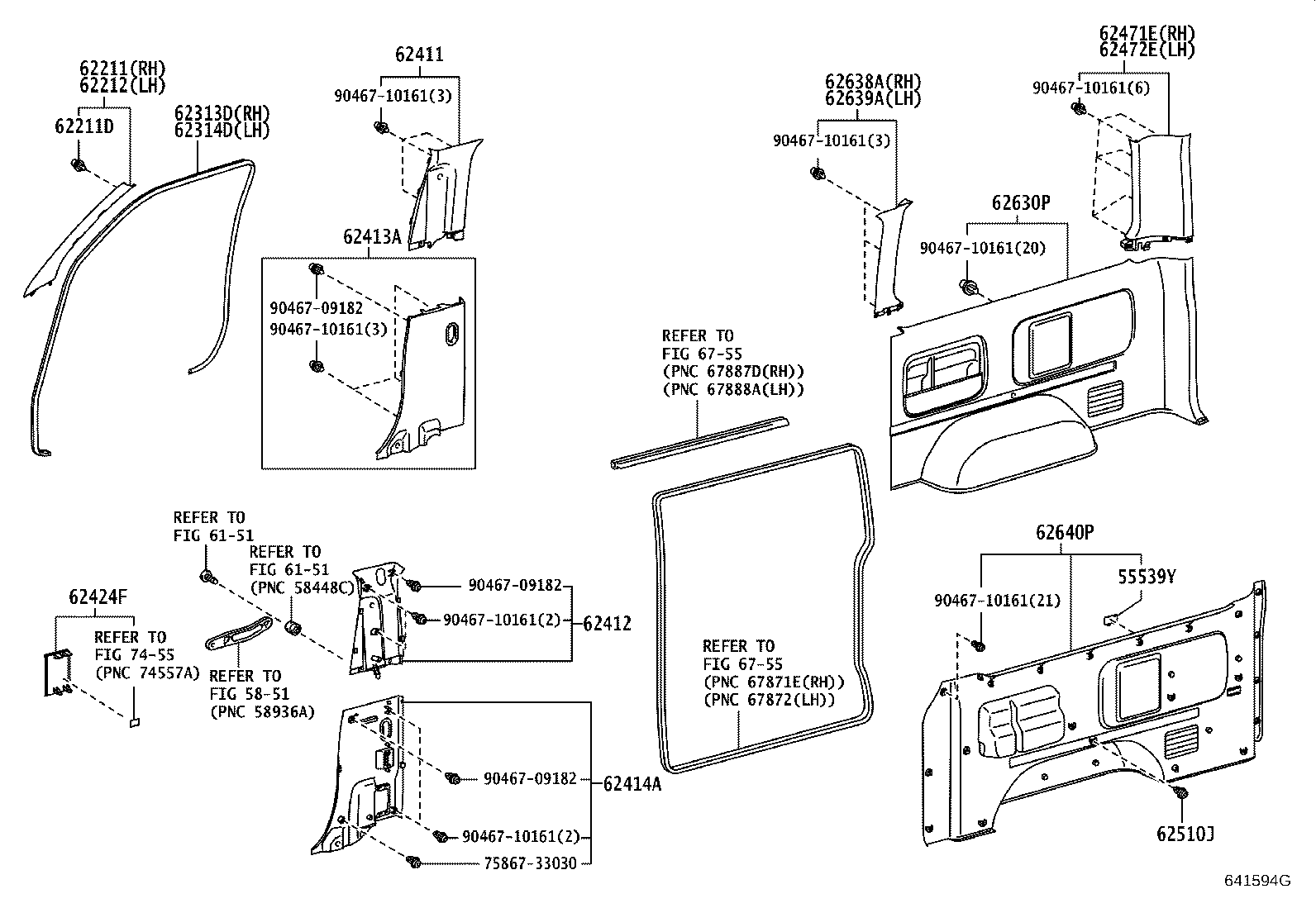

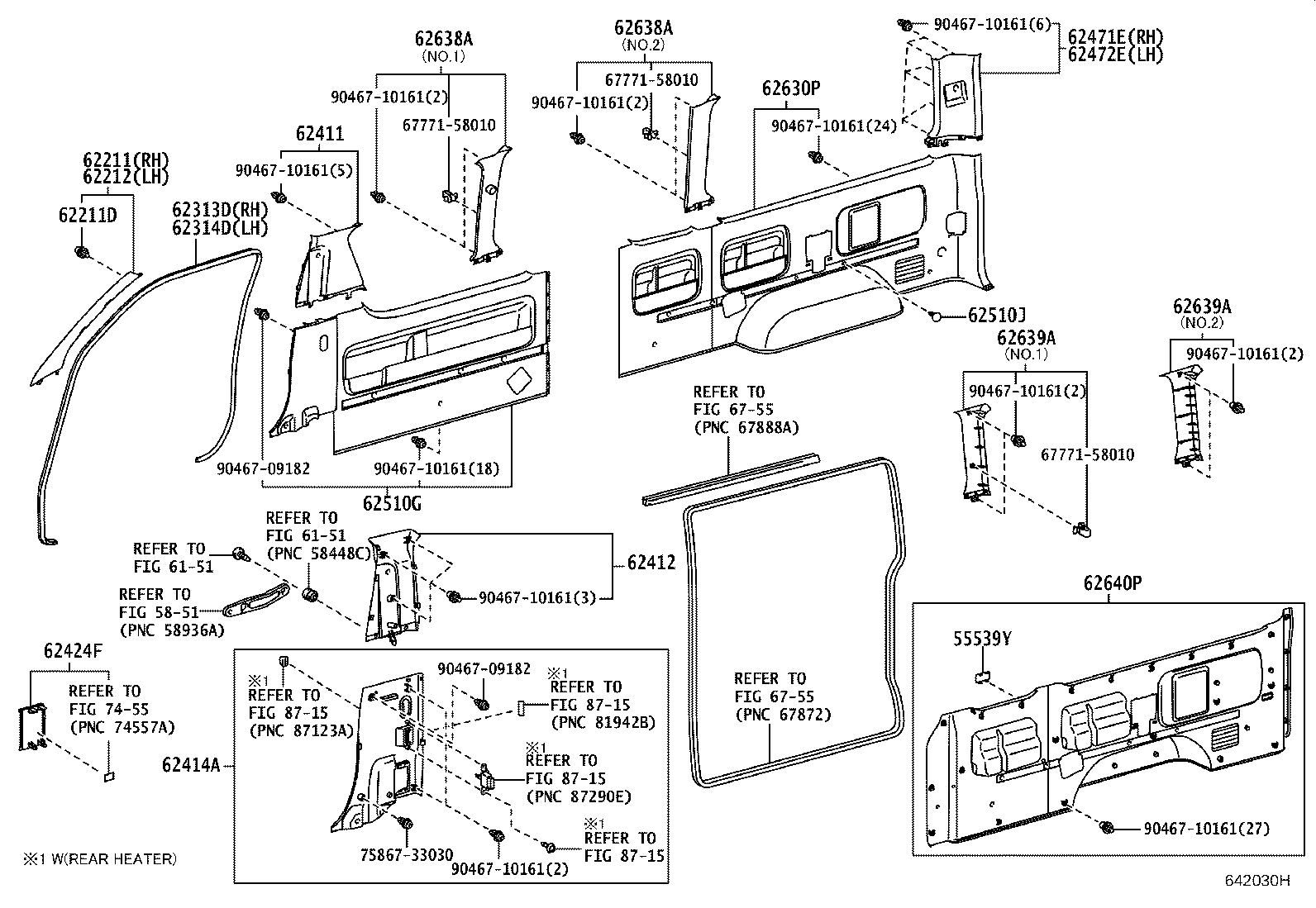

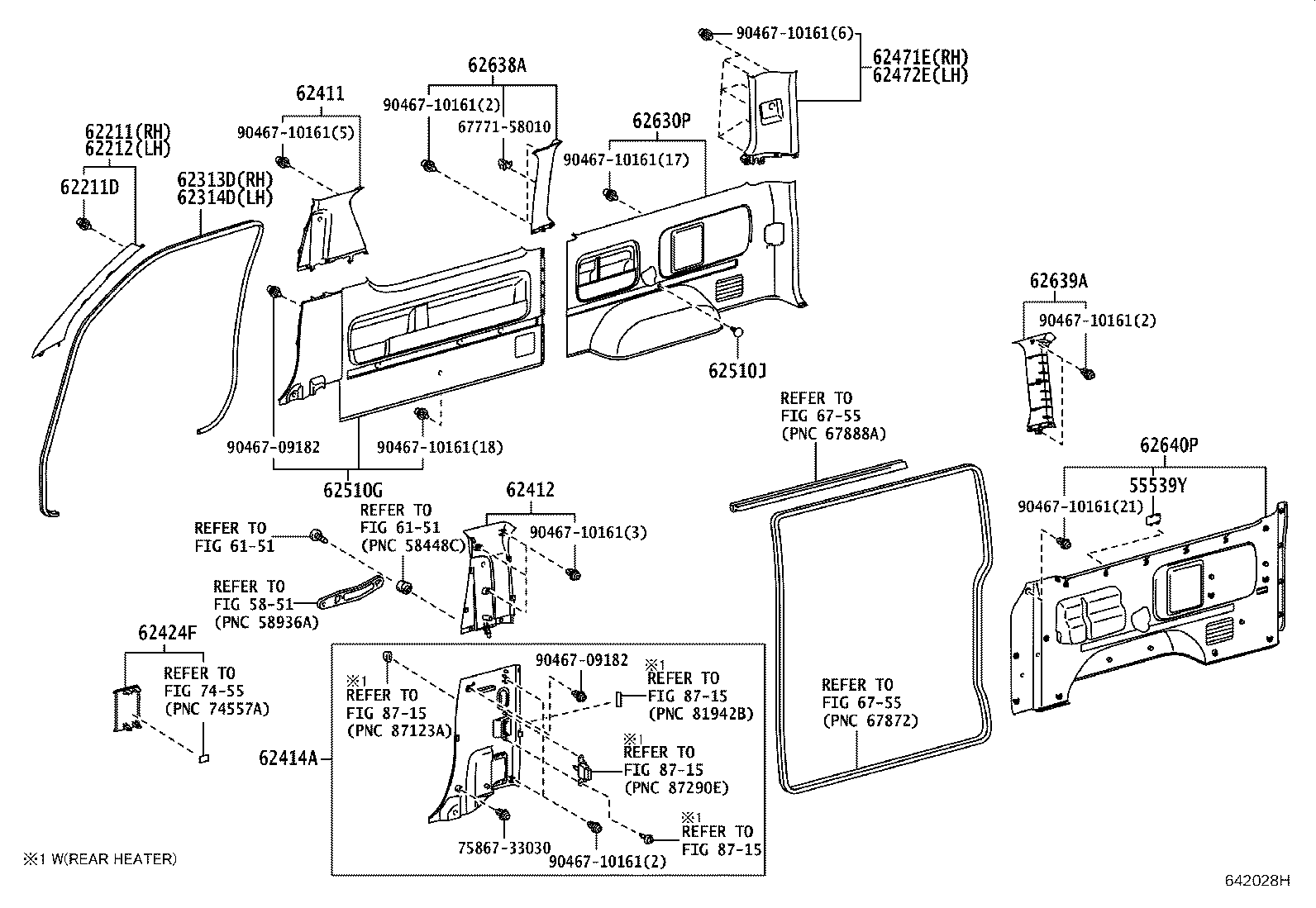

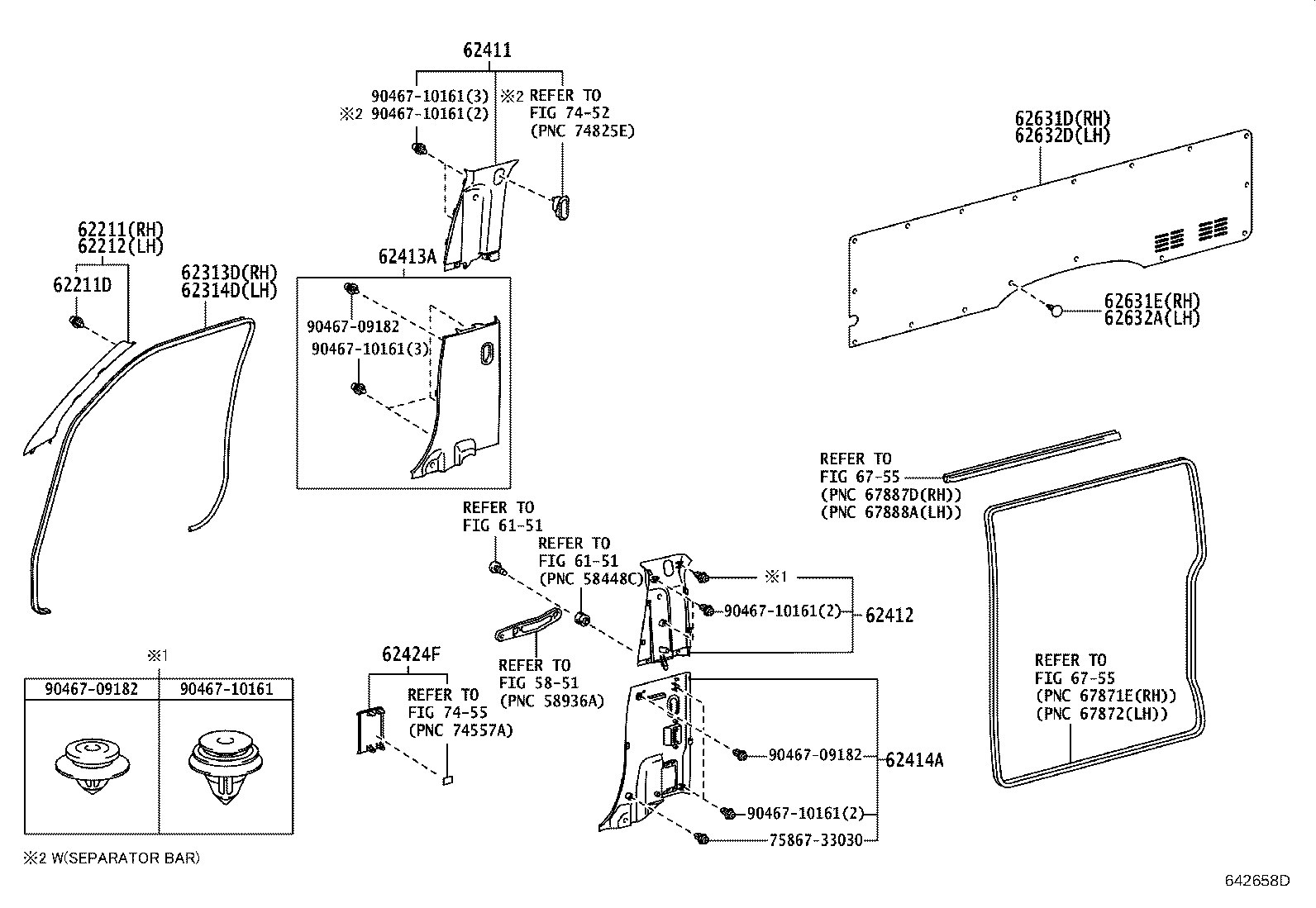

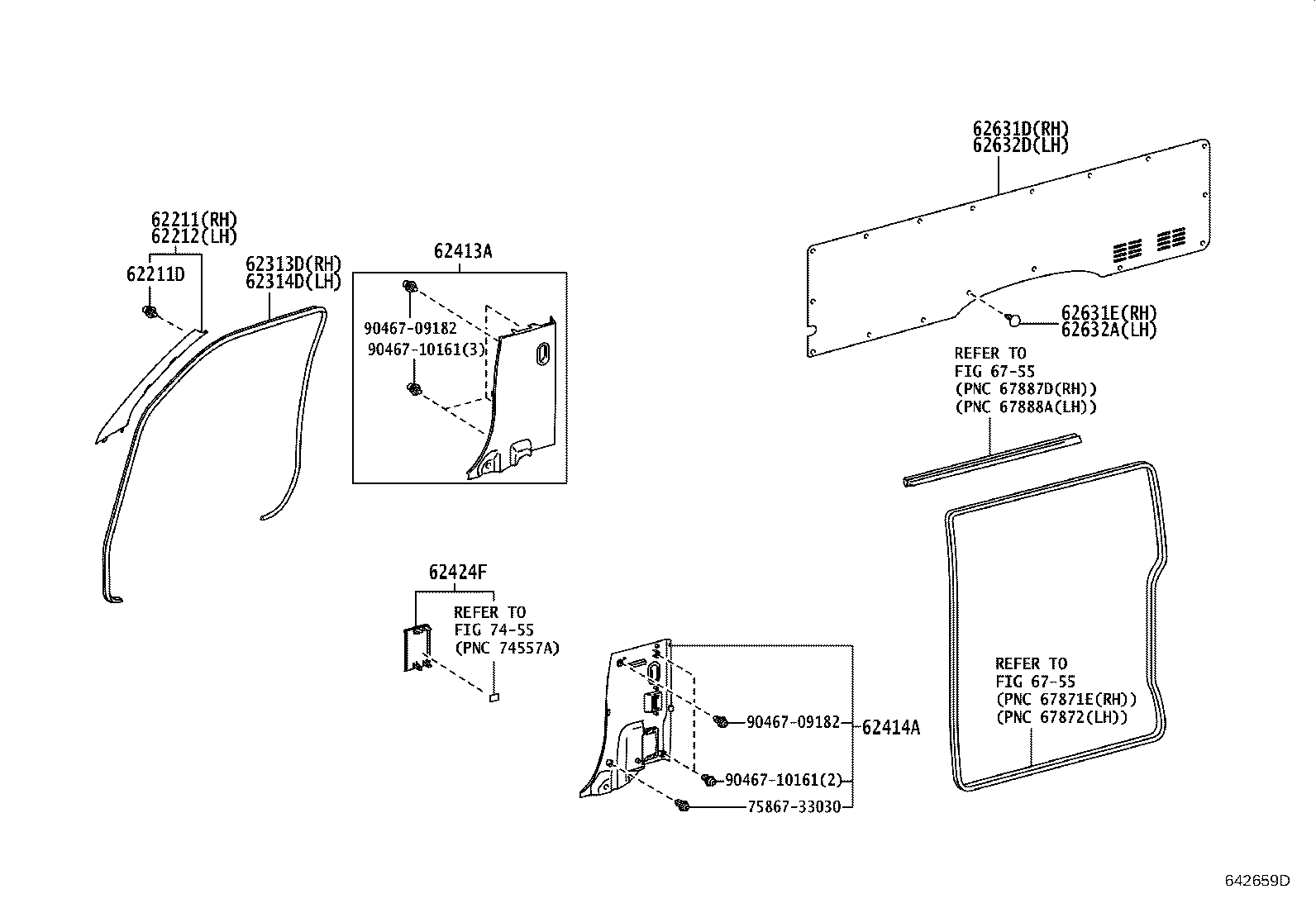

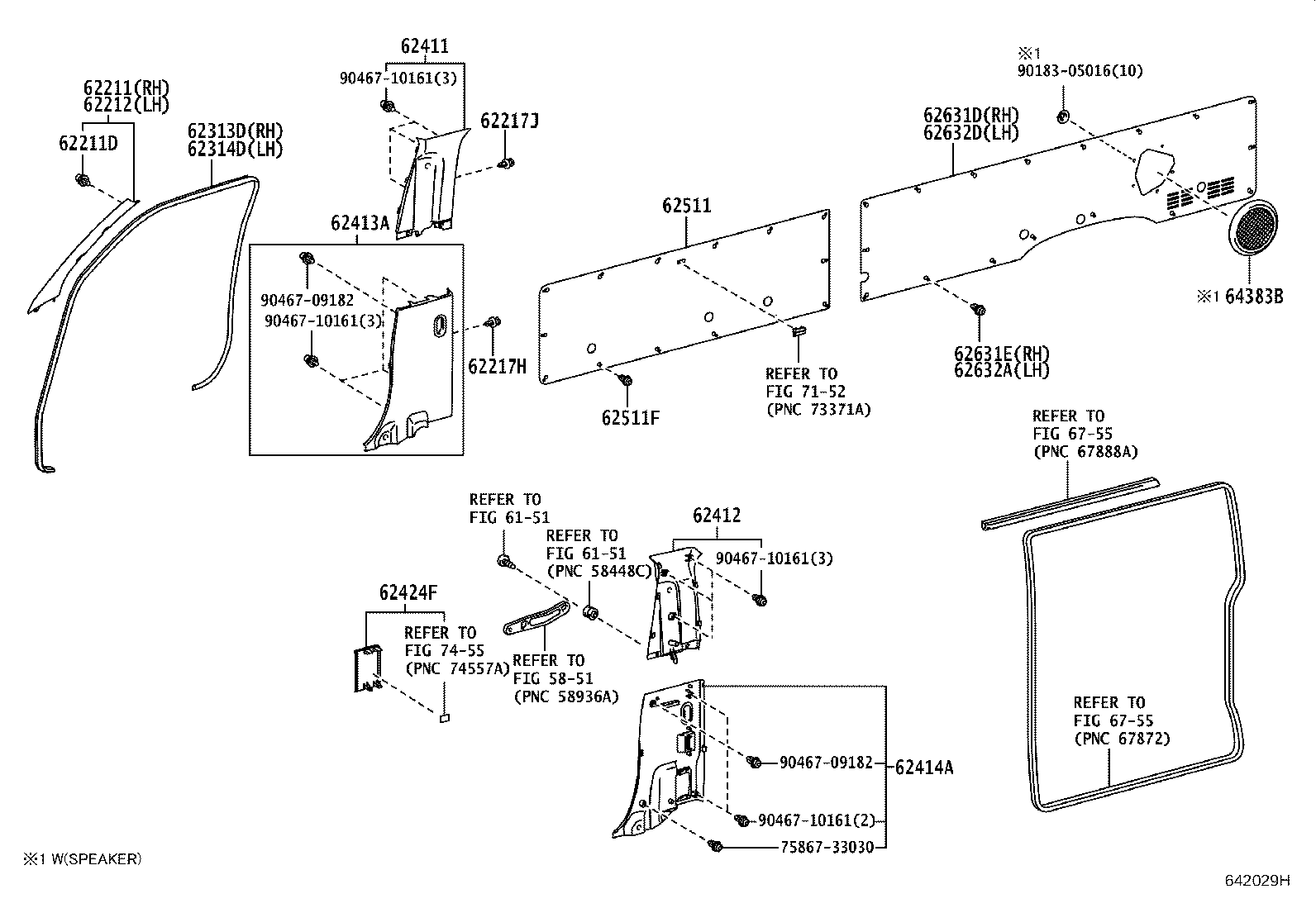

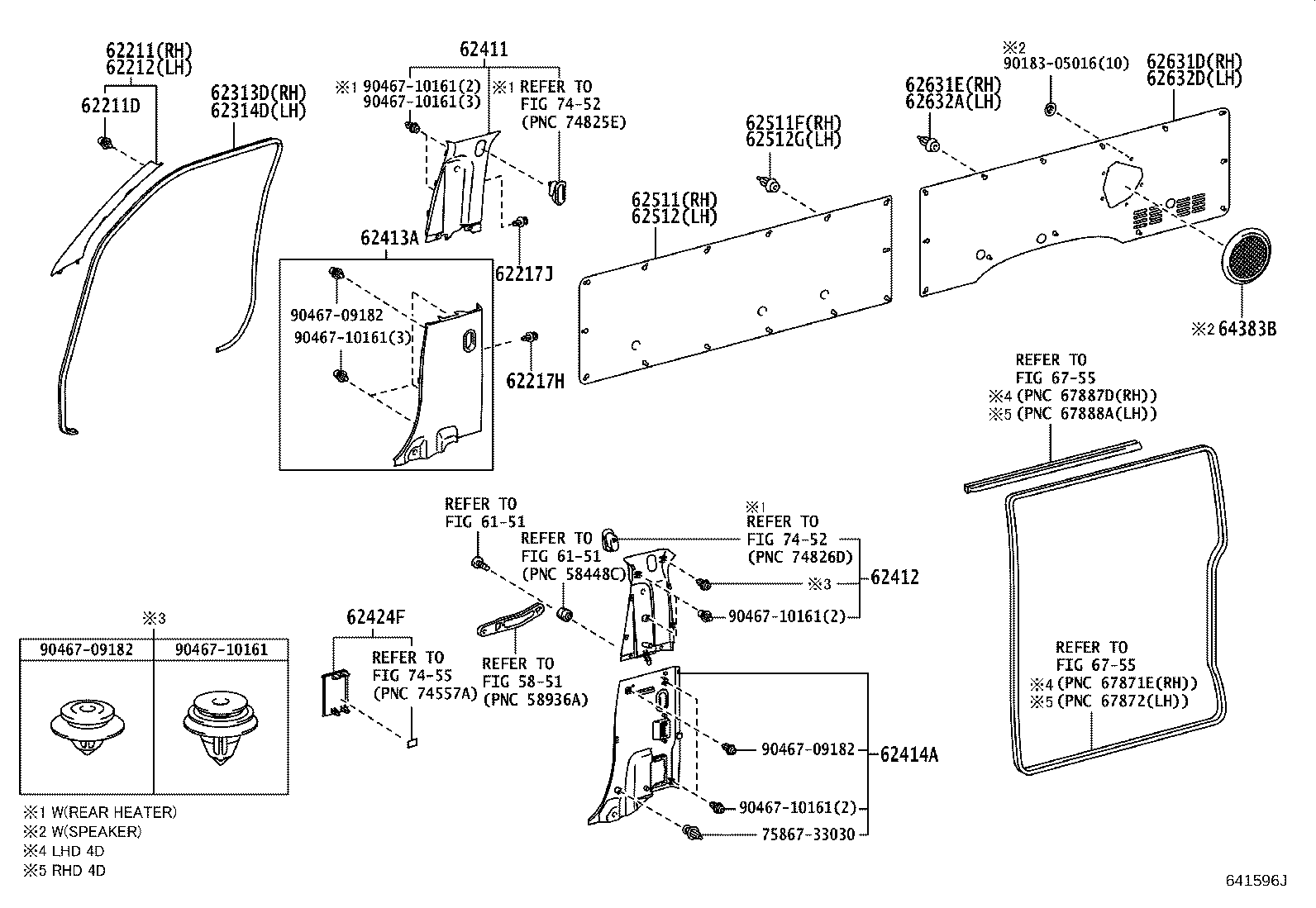

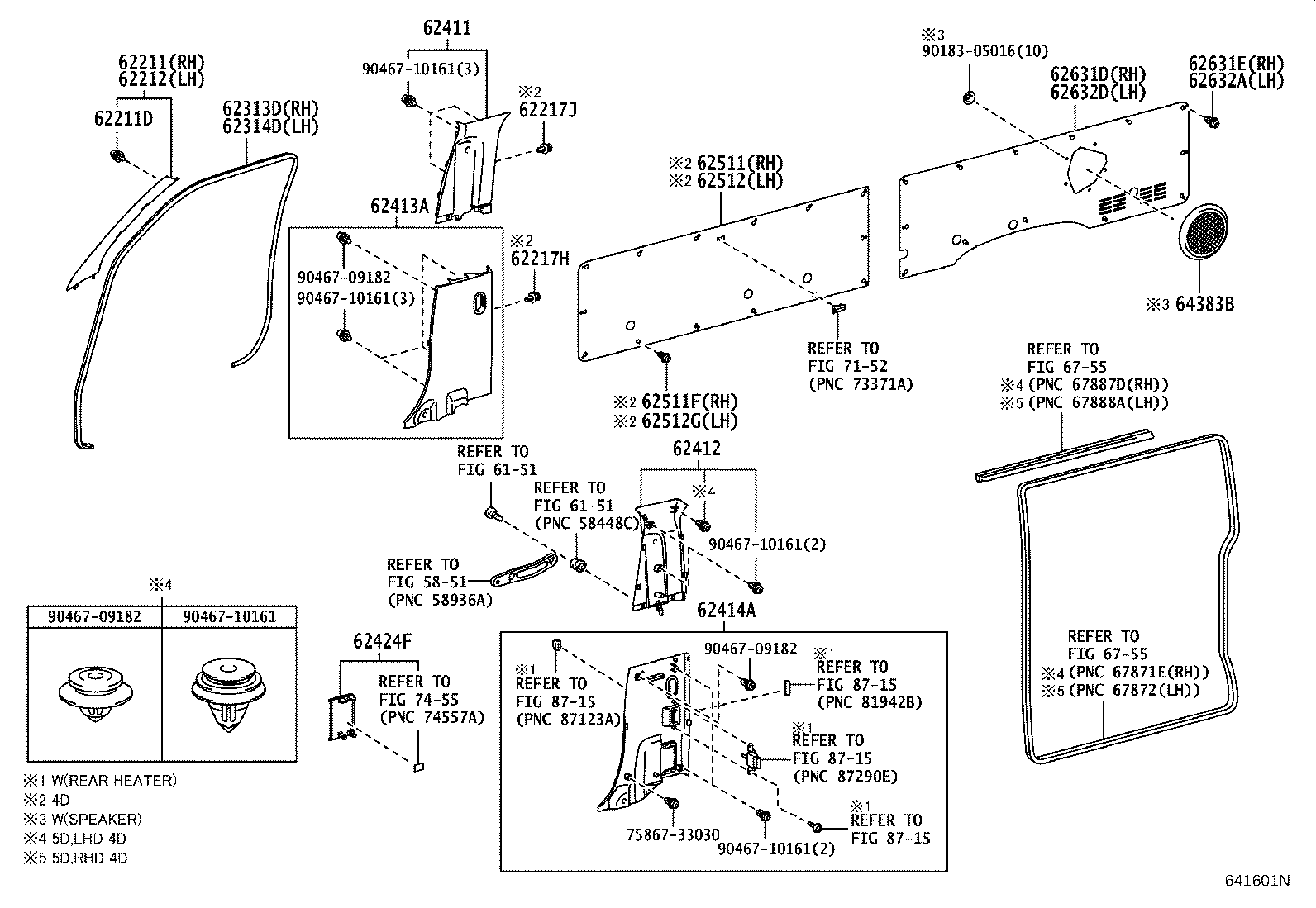

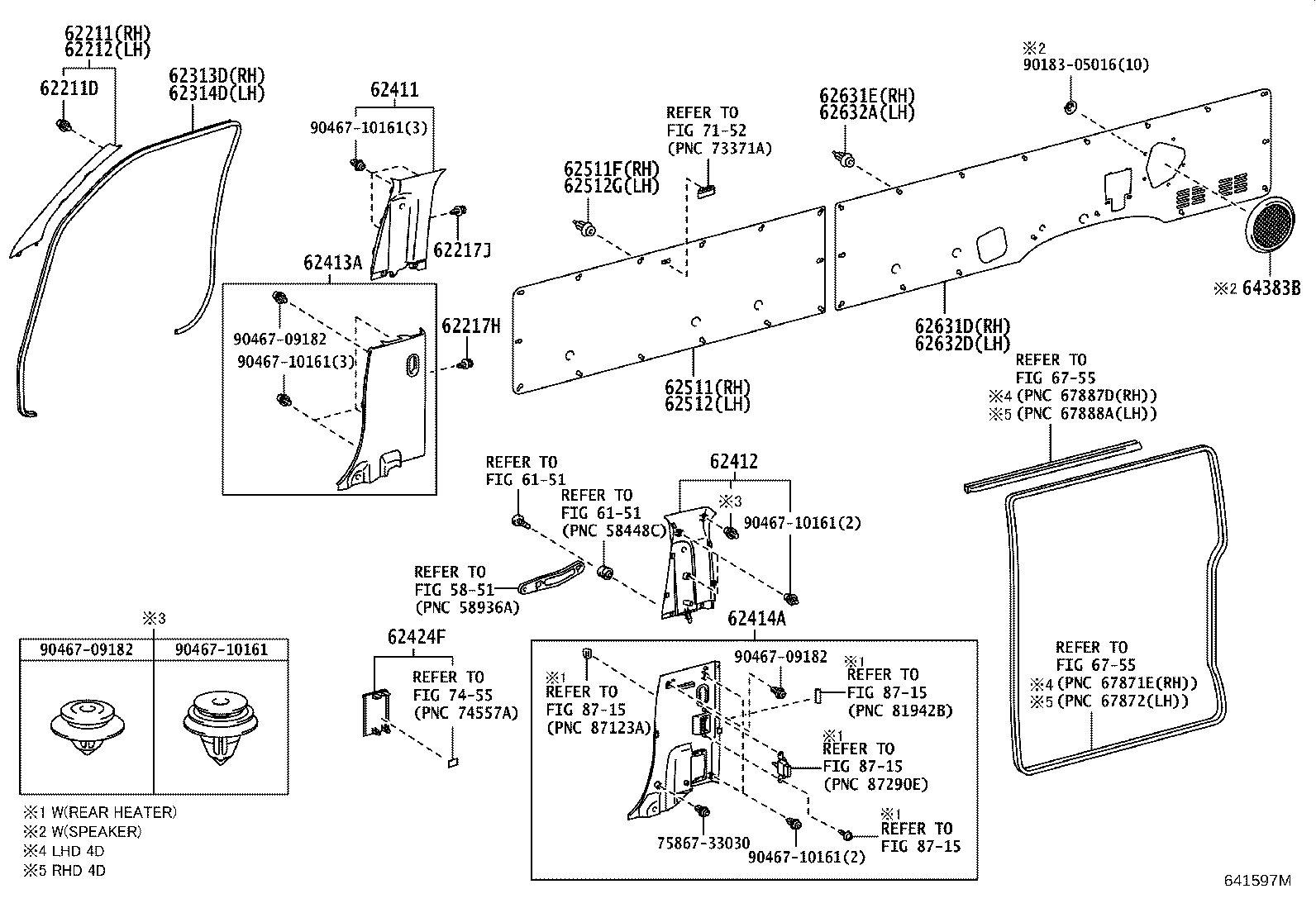

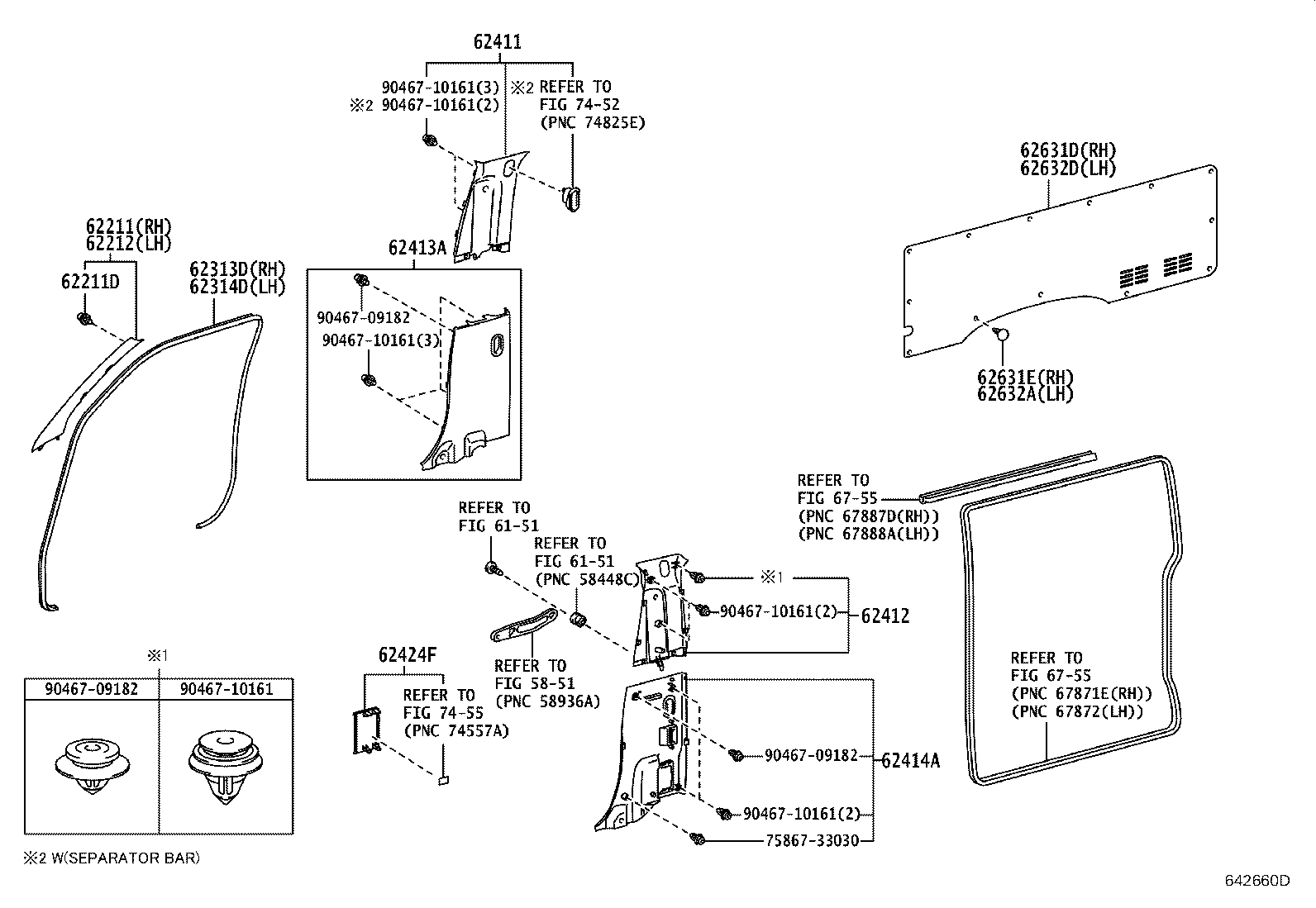

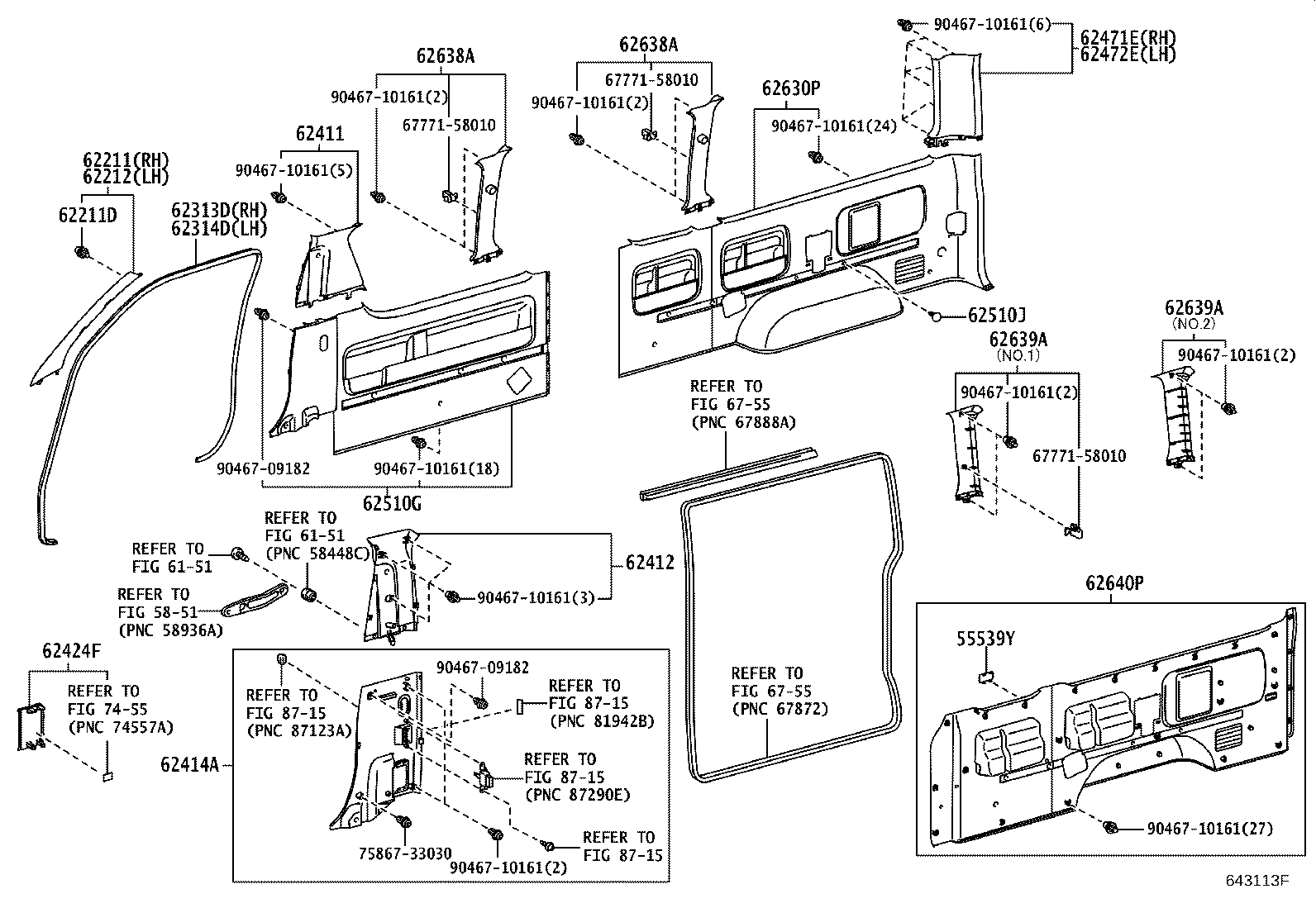

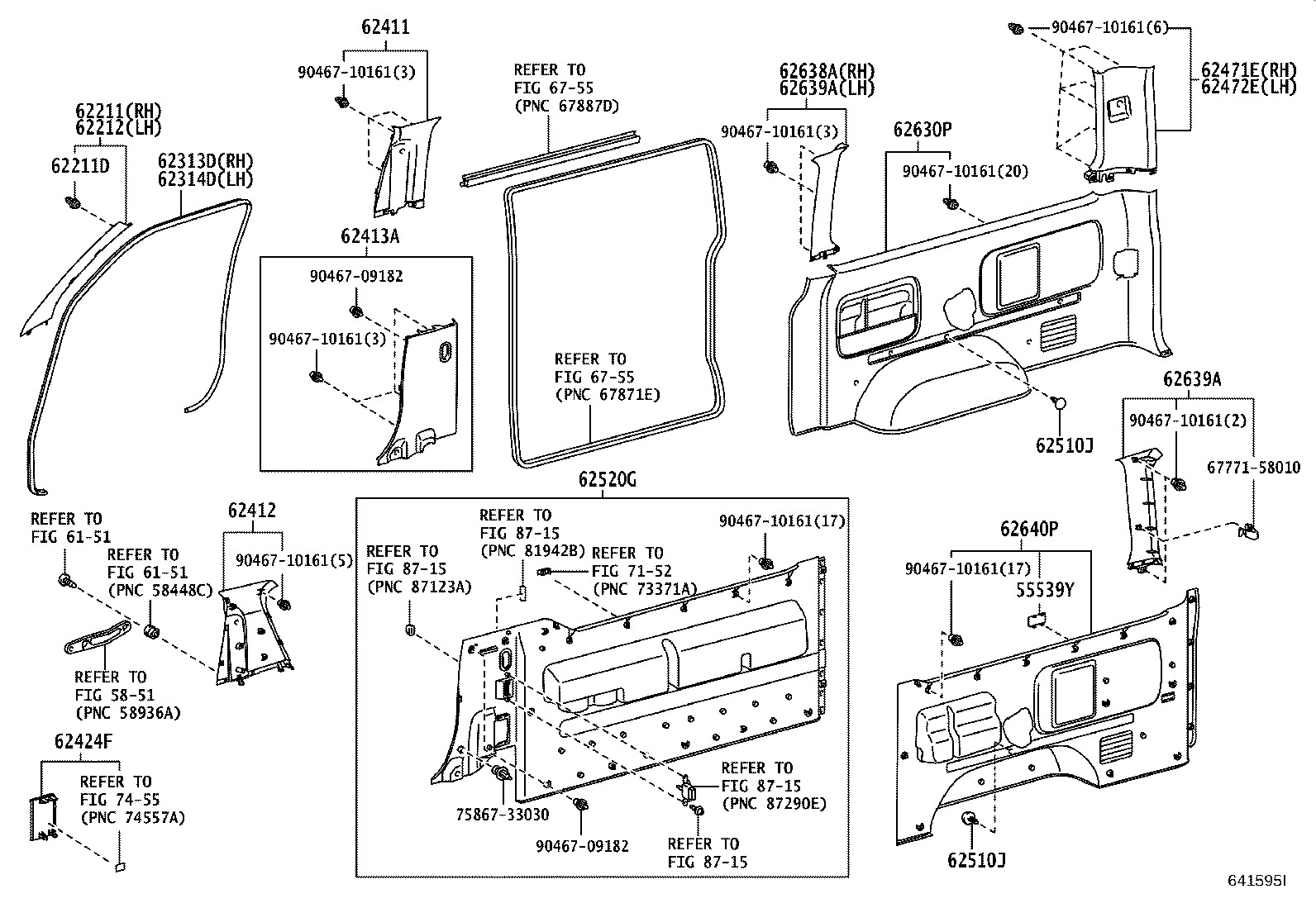

Figure 641598E 641598E 2005-01 → — Figure 641599K 641599K 2005-01 → — Figure 641601N 641601N 2005-01 → — Figure 641601N 641601N 2006-02 → 2007-09 Figure 641601N 641601N 2007-09 → — Figure 641602I 641602I 2005-01 → — Figure 641602I 641602I 2013-09 → — Figure 642660D 642660D 2005-01 → — Figure 641593I 641593I 2005-01 → — Figure 641594G 641594G 2005-01 → — Figure 641595I 641595I 2005-01 → — Figure 641596J 641596J 2005-01 → — Figure 641597M 641597M 2005-01 → — Figure 641600J 641600J 2005-01 → — Figure 642659D 642659D 2005-01 → — Figure 642658D 642658D 2005-01 → — Figure 642028H 642028H 2006-10 → — Figure 642029H 642029H 2006-10 → — Figure 642030H 642030H 2006-10 → — Figure 643113F 643113F 2012-05 → —

Part groups

PNCDescription
55539Y Cover, Spare Switch Hole
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62211T Clip(FOR FRONT PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62217H Clip, Center Piller Garnish
62217J Clip, Center Piller Garnish
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62424F Cover, Center Pillar Garnish, Lower LH
62471E Garnish, Roof Side, Inner Upper RH
62472E Garnish, Roof Side, Inner Upper LH
62510G Trim Assy, Side NO.1, RH
62510J Retainer, Quarter Trim
62511 Board, Quarter Inside Trim, RH
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62512 Board, Quarter Inside Trim, LH
62512G Retainer, Quater Trim
62520G Trim Assy, Side NO.1, LH
62630P Panel Assy, Quarter Trim, Rear RH
62631D Board, Quarter Trim, Rear RH
62631E Retainer, Quater Trim
62632A Retainer(FOR QUARTER INSIDE TRIM BOARD)
62632D Board, Quarter Trim, Rear LH
62638A Garnish, Quarter Pillar, RH
62639A Garnish, Quarter Pillar, LH
62640P Panel Assy, Quarter Trim, Rear LH
64383B Grille, Rear Speaker, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
