Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

29 part groups · 18 illustrations

Illustrations

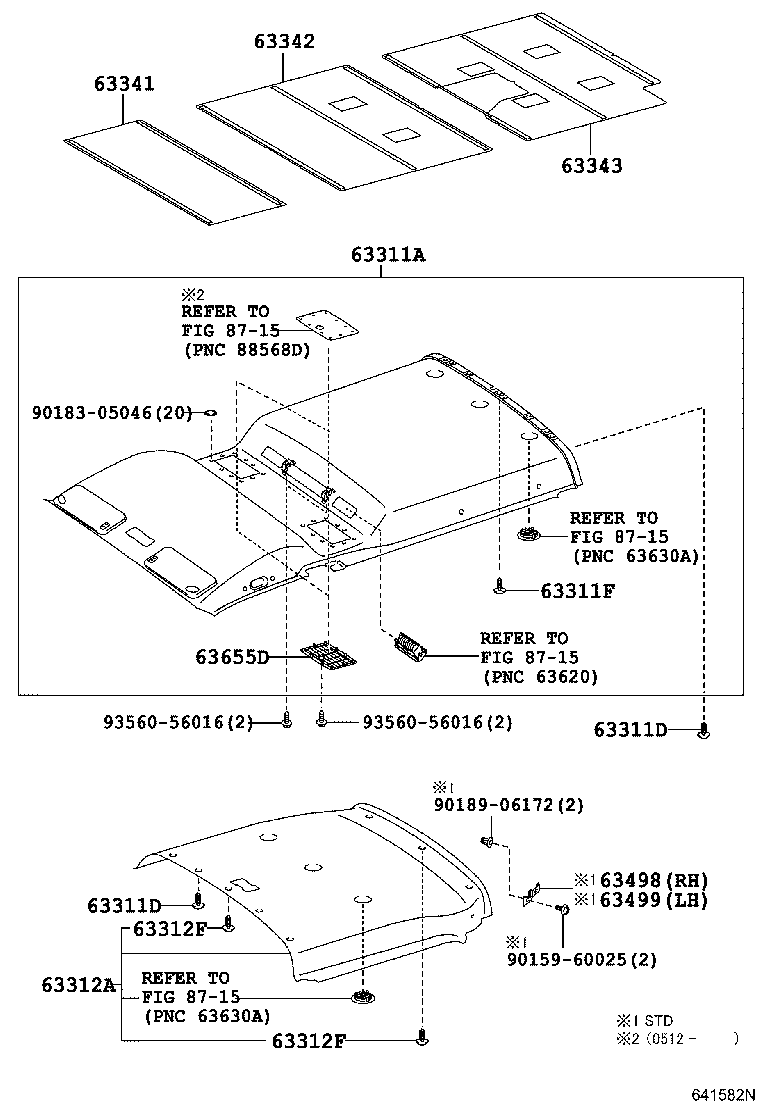

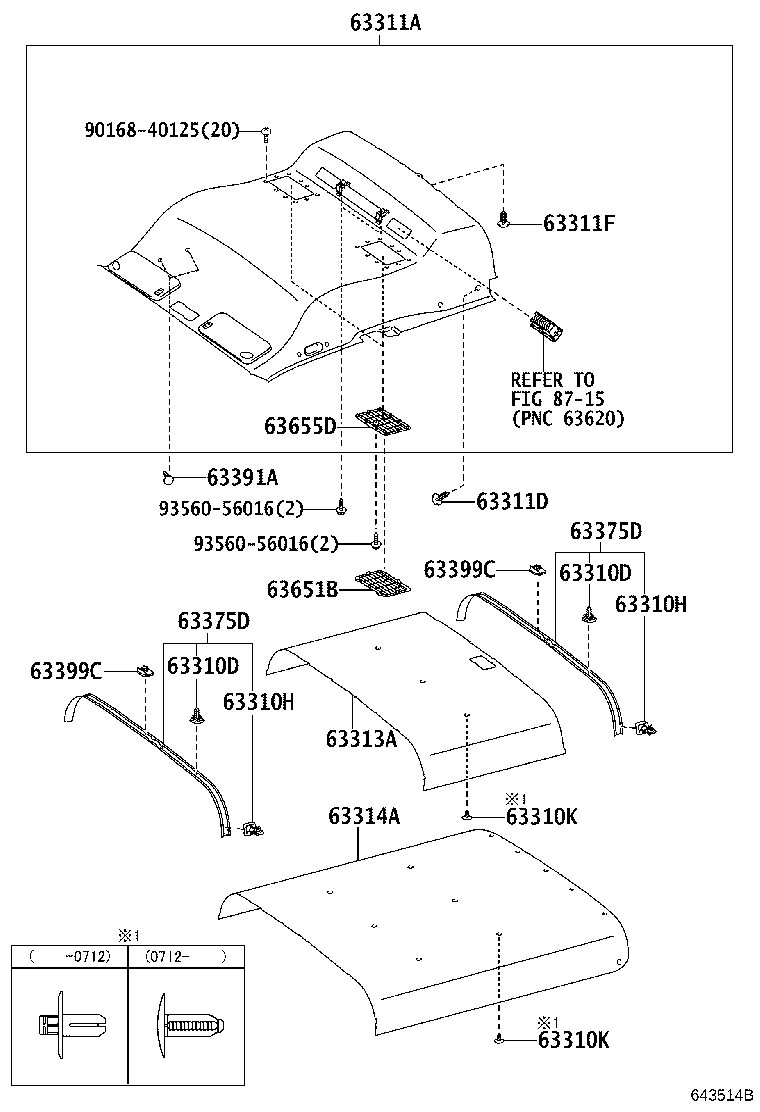

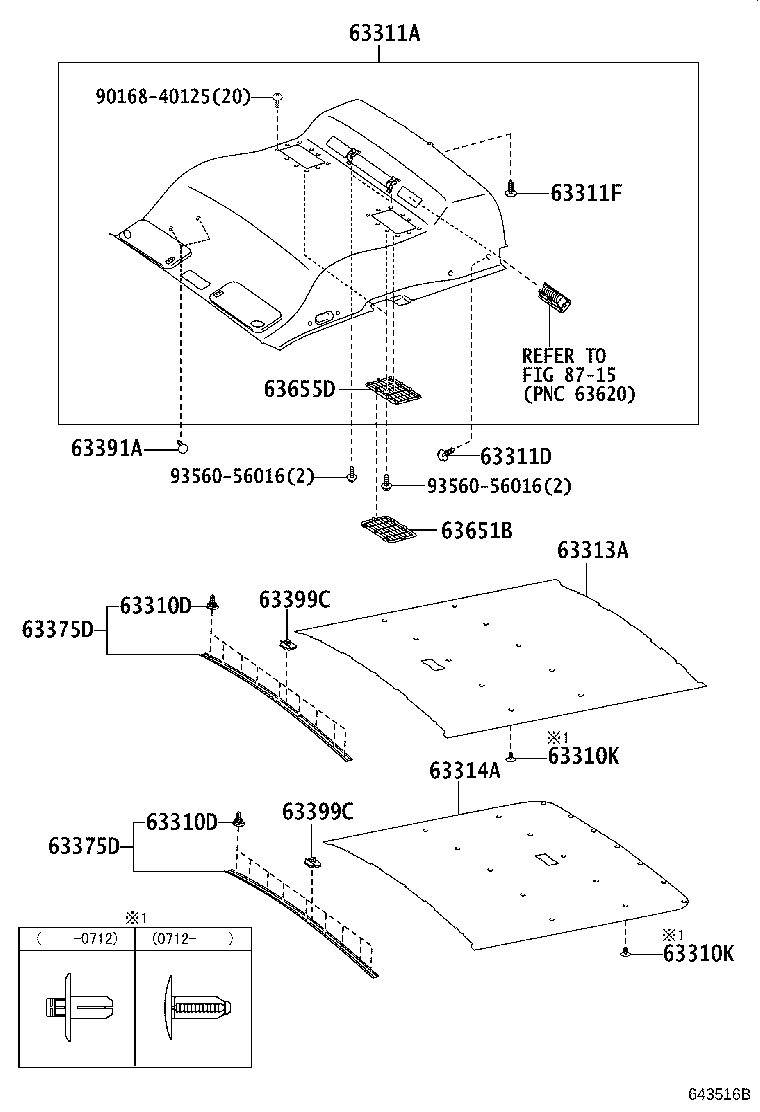

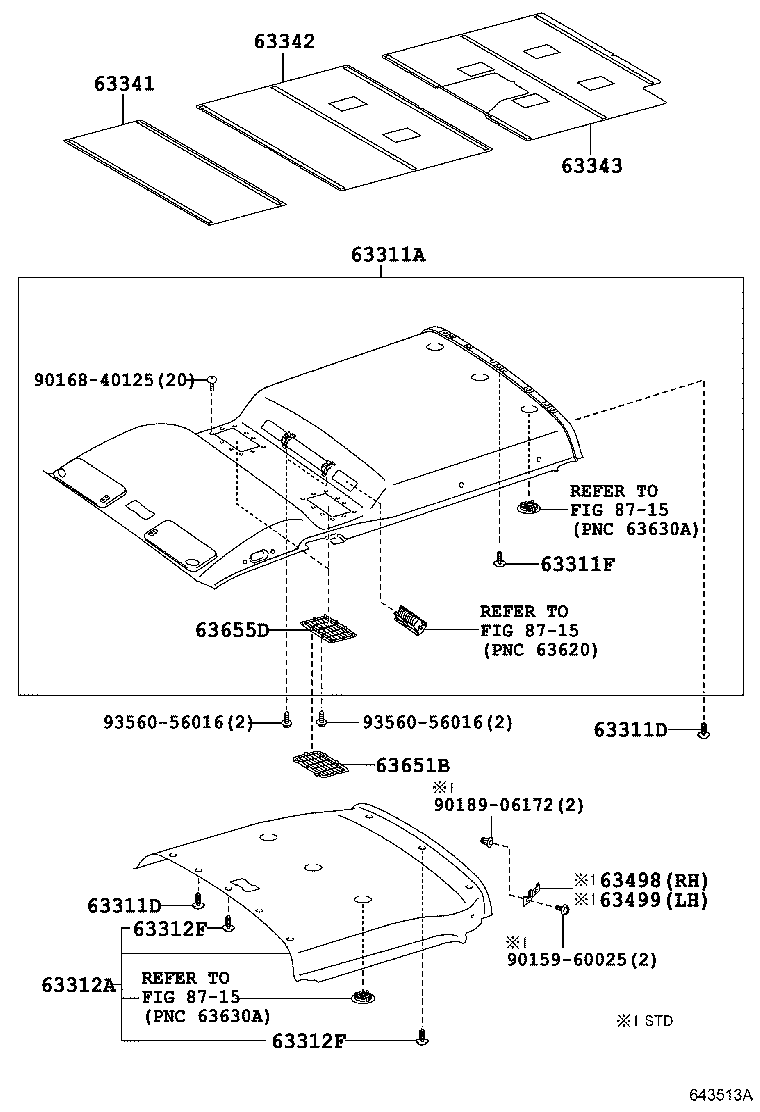

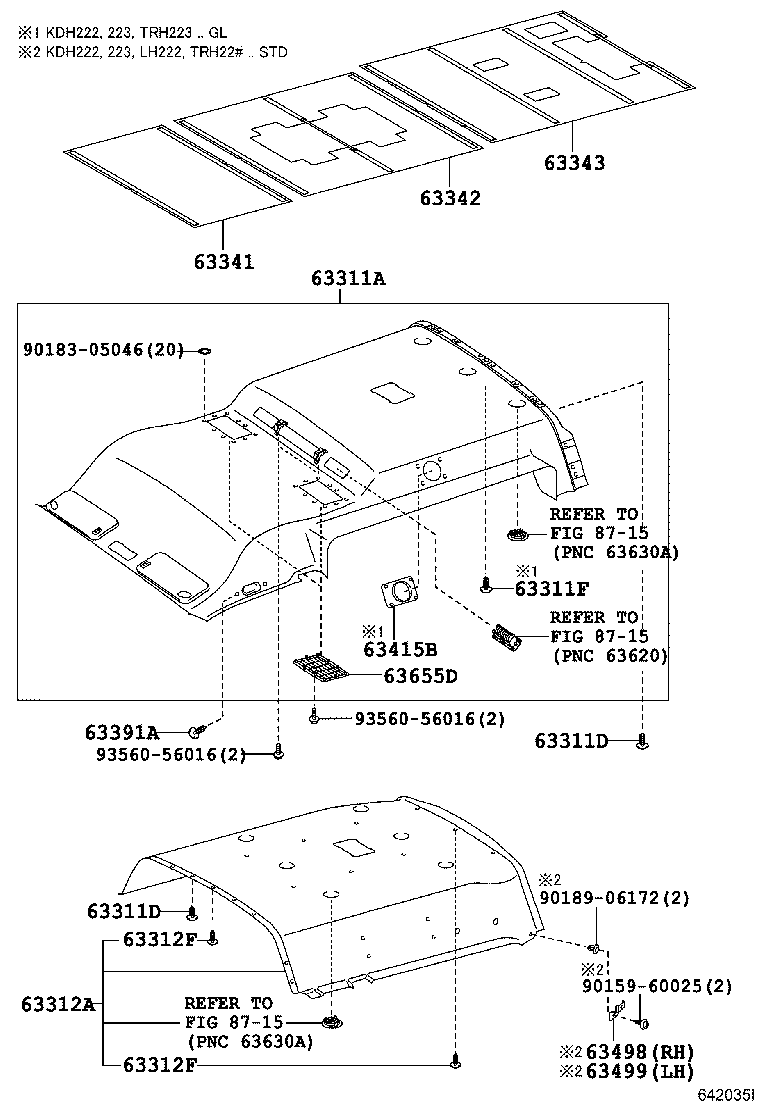

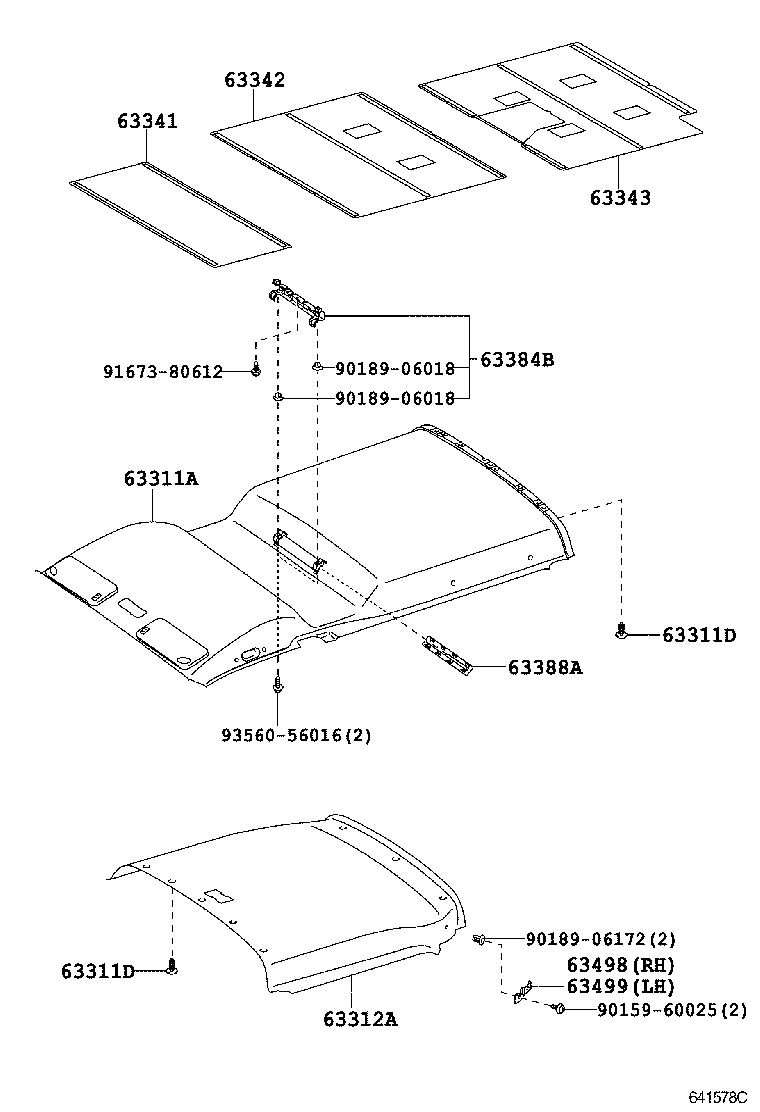

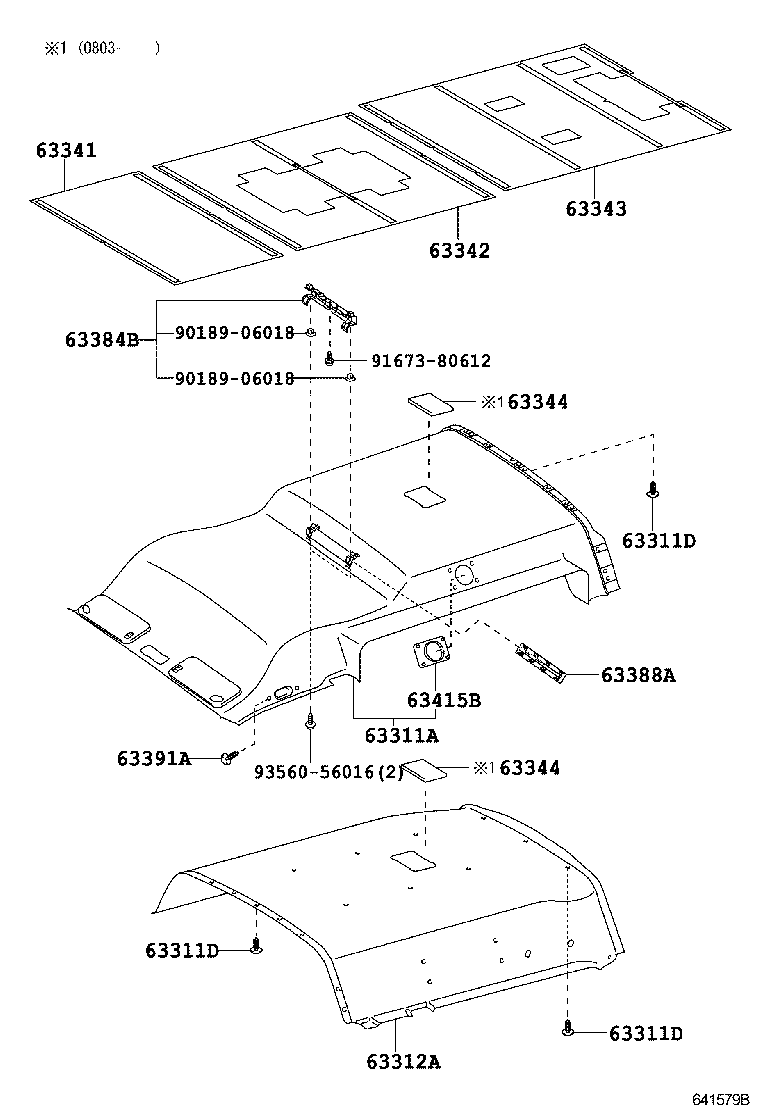

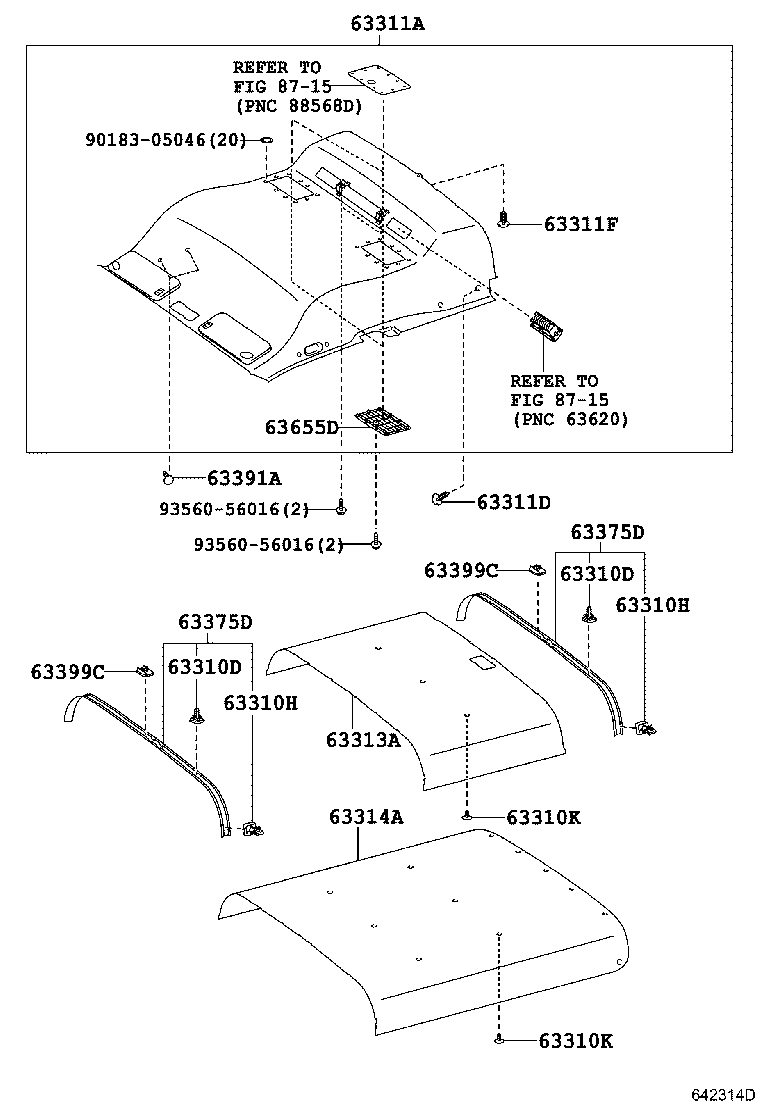

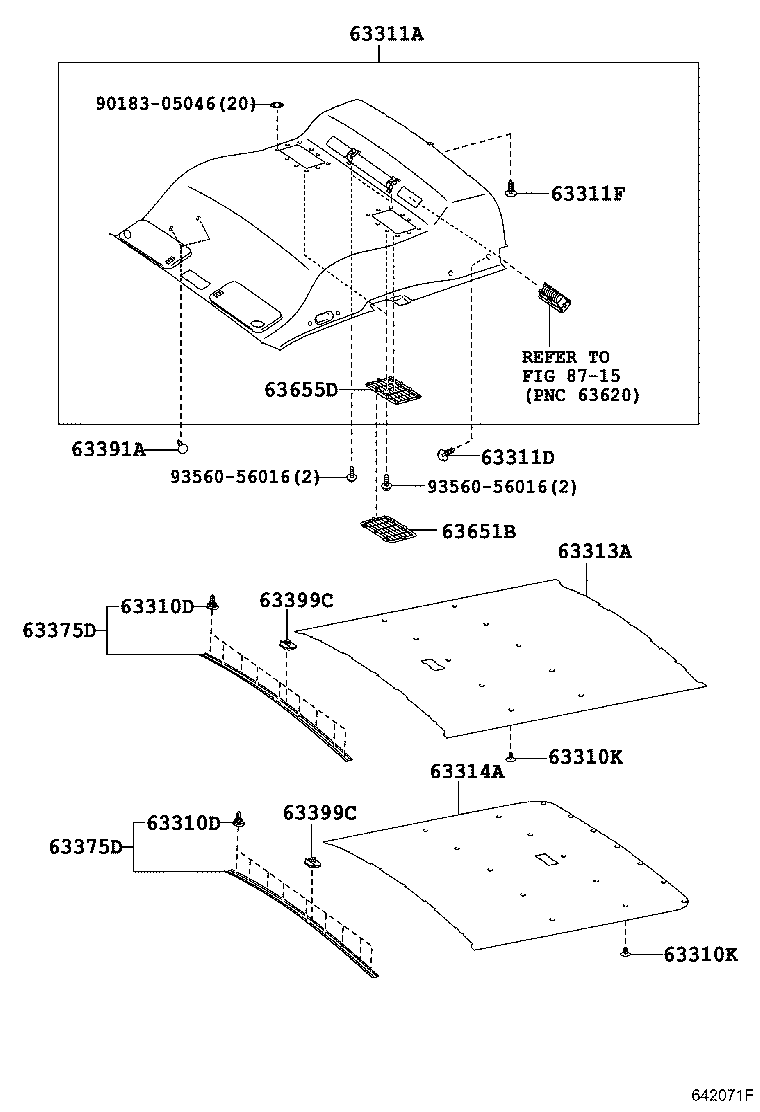

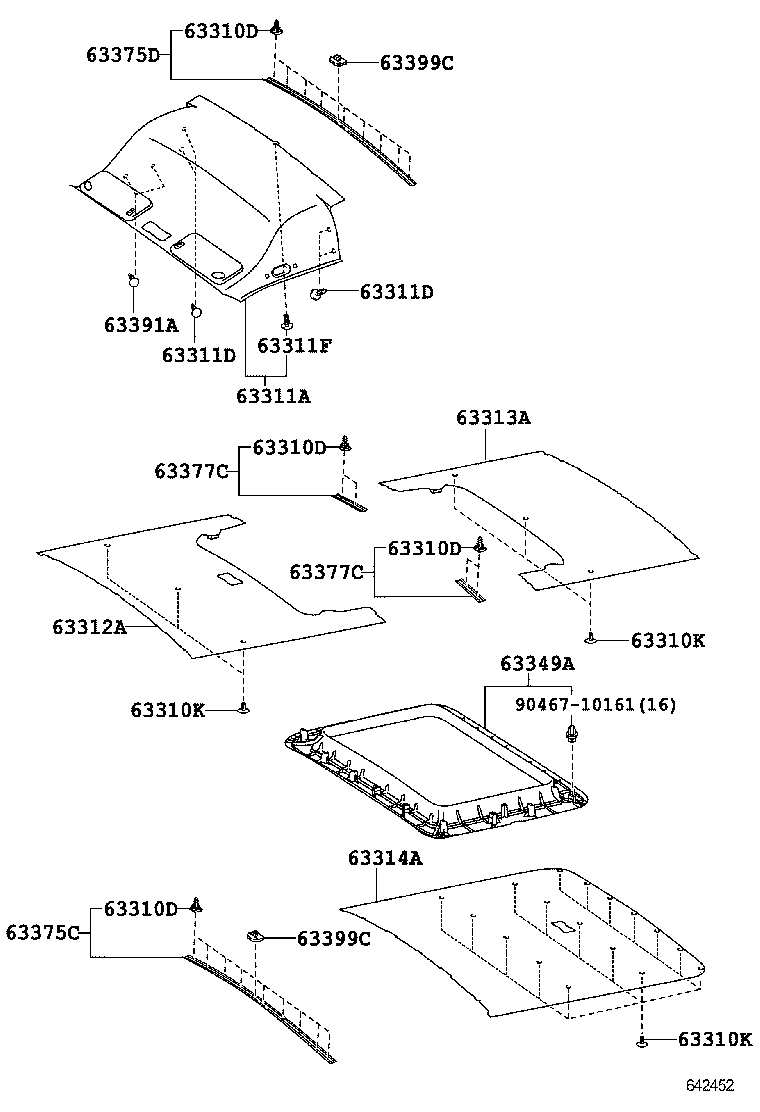

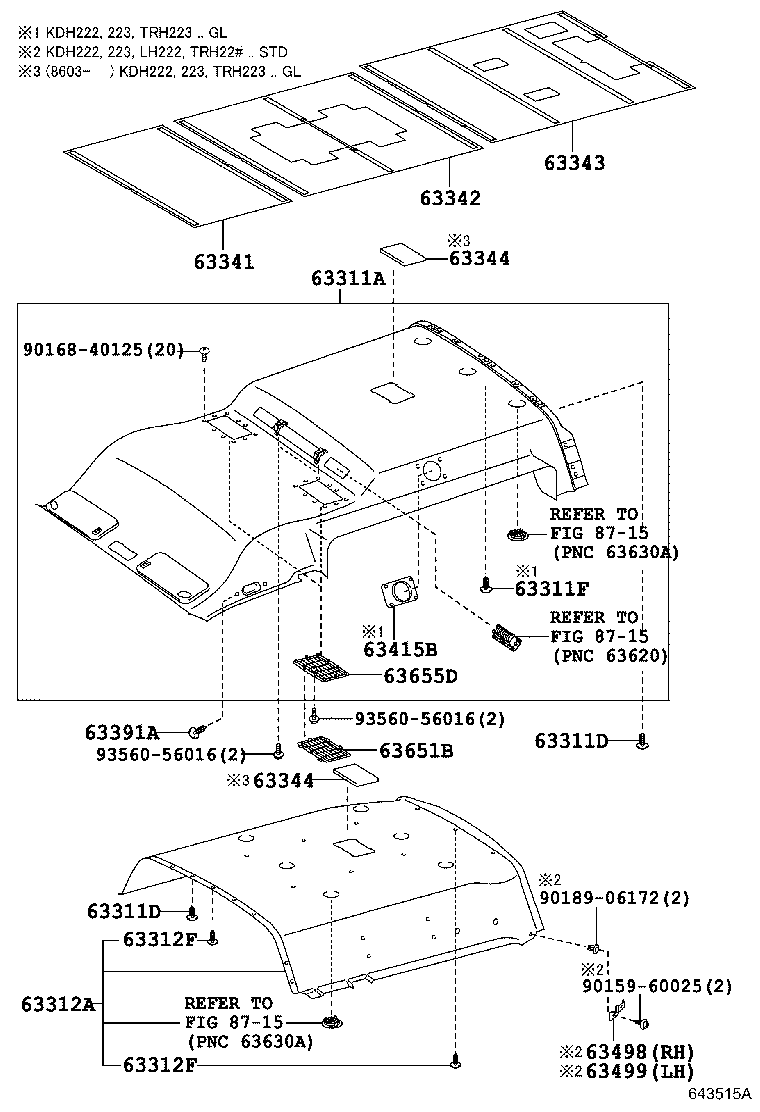

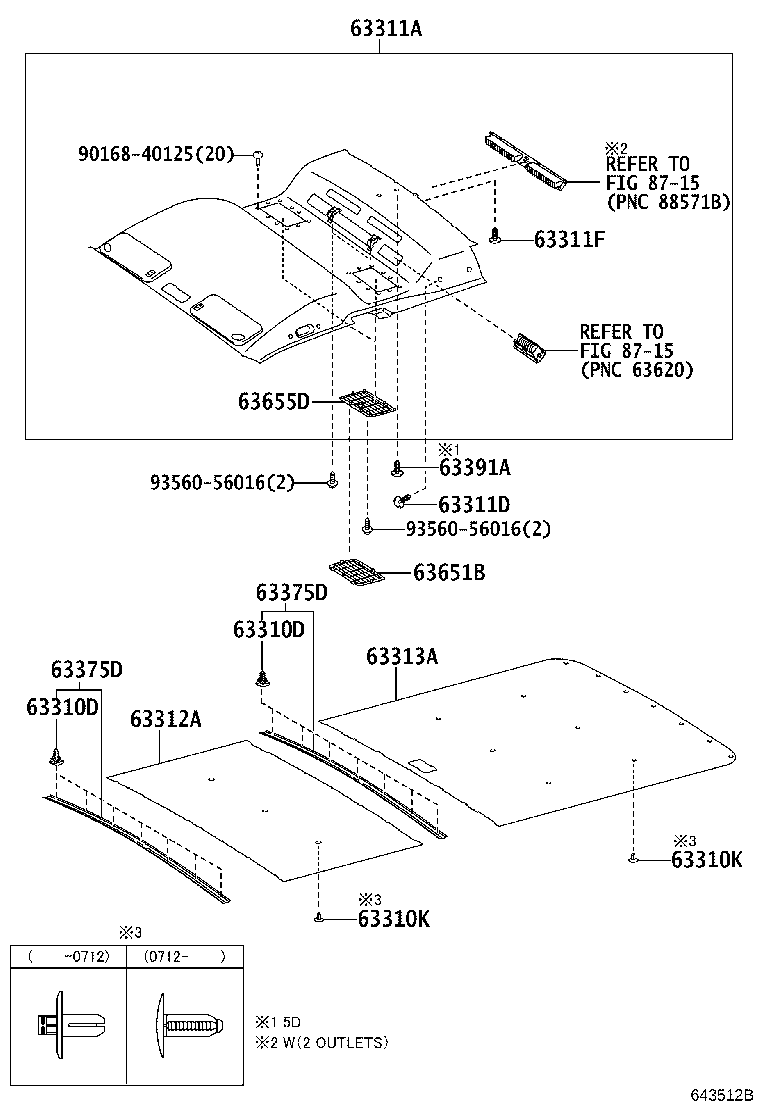

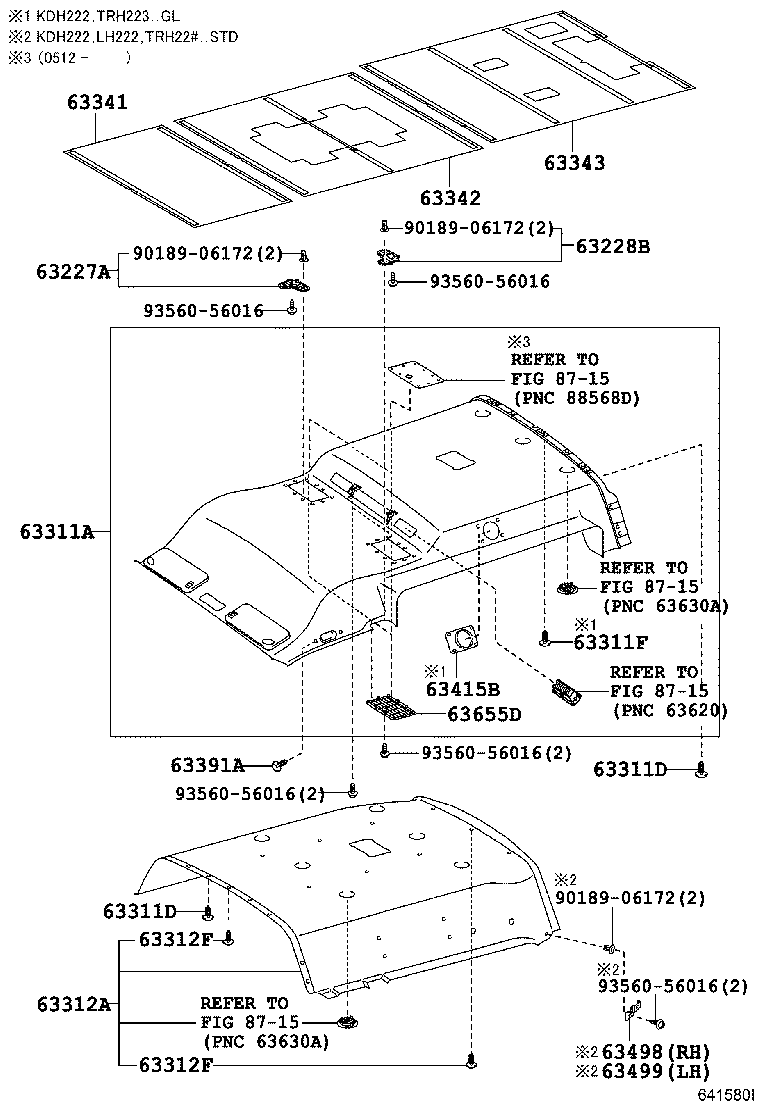

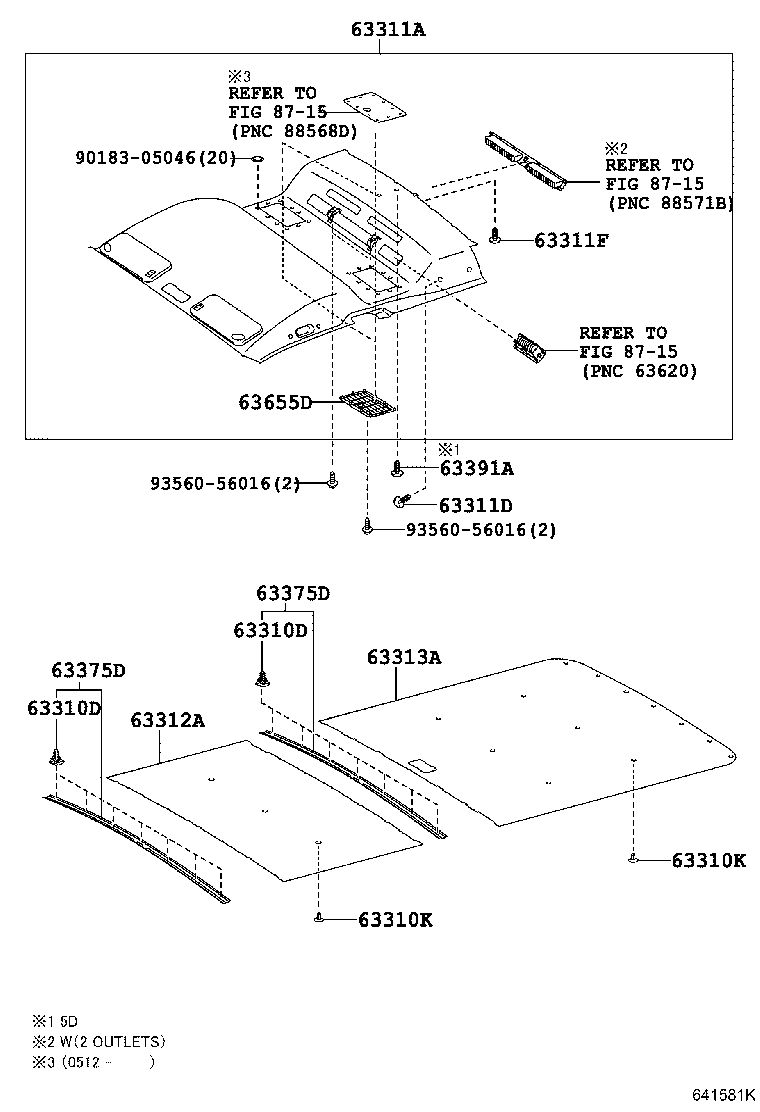

Figure 641672G 641672G 2005-01 → 2006-11 Figure 641580I 641580I 2005-01 → 2006-11 Figure 641581K 641581K 2005-01 → 2007-09 Figure 641582N 641582N 2005-01 → 2007-09 Figure 642314D 642314D 2006-02 → 2007-09 Figure 642035I 642035I 2006-11 → 2007-09 Figure 642071F 642071F 2006-11 → 2007-09 Figure 641533C 641533C 2005-01 → — Figure 641578C 641578C 2005-01 → — Figure 641579B 641579B 2005-01 → — Figure 641634C 641634C 2005-01 → — Figure 641535C 641535C 2005-05 → — Figure 643512B 643512B 2007-09 → — Figure 643513A 643513A 2007-09 → — Figure 643514B 643514B 2007-09 → — Figure 643515A 643515A 2007-09 → — Figure 643516B 643516B 2007-09 → — Figure 642452 642452 2009-04 → —

Part groups

PNCDescription
63227A Bracket, Roof Headlining, Front RH
63228B Bracket, Roof Headlining, Front LH
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63310K Clip
63311A Headlining, Roof NO.1
63311D Clip(HEADLINING, ROOF, FRONT)
63311F Clip, Roof Headlining, NO.1
63312A Headlining, Roof, NO.2
63312F Clip, Roof Headlining, NO.2
63313A Headlining, Roof, NO.3
63314A Headlining, Roof, NO.4
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63349A Garnish, Roof Headlining, Rear
63375C Retainer, Roof Headlining Support, Center
63375D Moulding, Roof Headlining
63377C Moulding, Roof Headlining, NO.2
63384B Bracket, Roof Headlining Trim Retainer
63388A Cover, Roof Headlining Holder
63391A Clip(FOR ROOF HEADLINING TRIM)
63399C Clip, Roof Headlining
63415B Grille, Roof Speaker, RH
63498 Bracket, Roof Headlining, Rear RH
63499 Bracket, Roof Headlining, Rear LH
63651B Net, Air Intake
63655D Cover, Air Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
